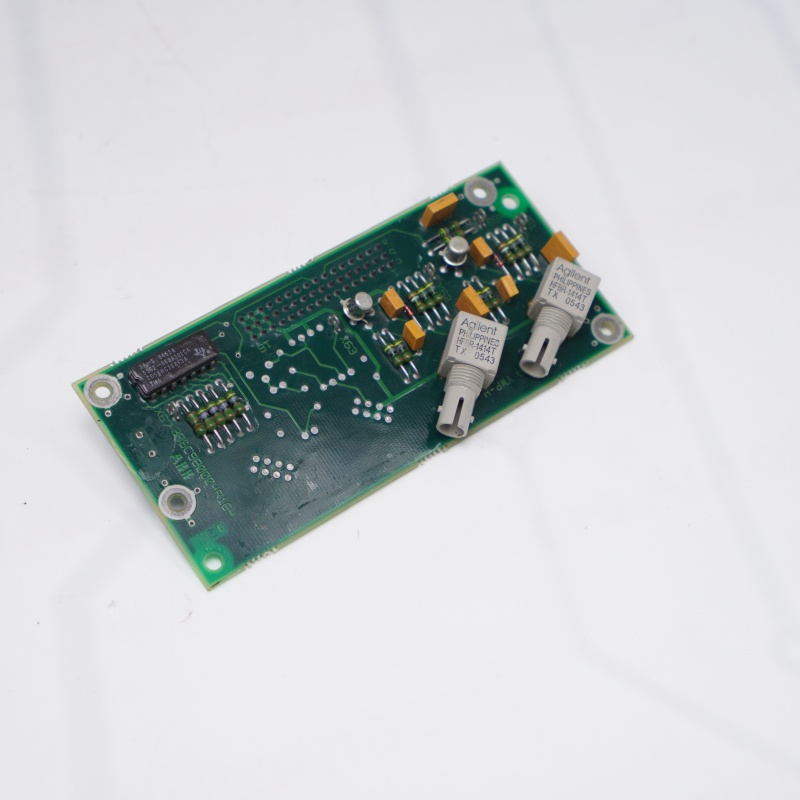

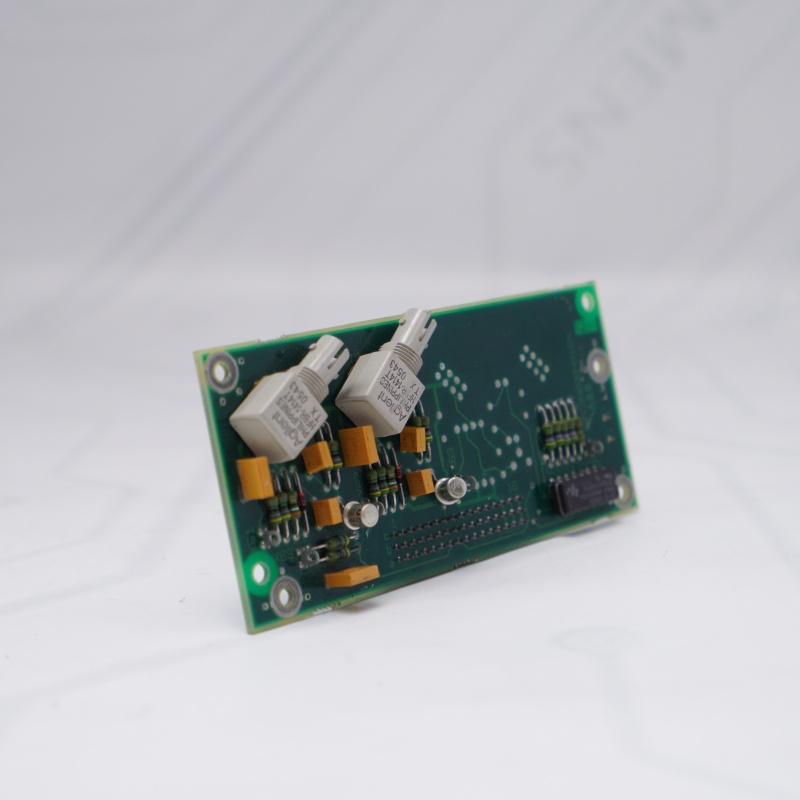

DTDX991A 61430001-UW ABB Digital Input/Output expansion module

DTDX991A Overview:

Manufacturer: ABB

Model Name: DTDX991A / DTDX 991A

Part Number: 61430001-UW

Category: Digital Input / Output Expansion Board

ABB DTDX991A 61430001-UW: 32DI/32DO Control
Processes 32 digital inputs and 32 digital outputs simultaneously to save system space.

ABB DTDX991A 61430001-UW: 64-Ch Opto-Isolation
Provides 64 independent optocouplers to suppress noise and protect central DCS controllers.

ABB DTDX991A 61430001-UW: SSI Encoder Interfacing
Delivers precise synchronous serial communication for real-time tracking and positioning.

ABB DTDX991A 61430001-UW: Sensor Power Supply
Supplies stable working power directly to field sensors to simplify loop wiring.

ABB DTDX991A 61430001-UW: Industrial Reliability
Engineered for harsh electromagnetic environments to ensure 24/7 continuous operation.

Q1: What is the primary industrial application of the ABB DTDX991A 61430001-UW module?

A: The ABB DTDX991A 61430001-UW(DTDX991A) is predominantly utilized as a high-density digital I/O expansion board in ABB's advanced DCS (Distributed Control Systems), UNITROL excitation packages, and AC 800PEC heavy-duty drive systems. It acts as a rugged signaling interface between central processors and field-level instruments.

Q2: Does the ABB DTDX991A 61430001-UW support absolute encoder data tracking?

A: Yes, absolutely. The ABB DTDX991A 61430001-UW features built-in SSI (Synchronous Serial Interface) communication protocols, allowing it to interface directly with multi-turn absolute encoders and linear sensors for zero-latency, high-precision positioning data acquisition.

Q3: How does the ABB DTDX991A 61430001-UW handle heavy electromagnetic interference (EMI)?

A: The ABB DTDX991A 61430001-UW is engineered with 64 independent, industrial-grade optocouplers (32 for input lines and 32 for output lines). This robust opto-isolation design provides superior noise immunity and exceptional transient surge protection, safeguarding the core control loops from severe EMI.

Q4: Can field sensors be powered directly through the ABB DTDX991A 61430001-UW board?

A: Yes, the DTDX991A is designed with on-board auxiliary loop power distribution capabilities. It can deliver a stable 24V DC working voltage directly to connected external sensors, drastically simplifying field loop wiring and reducing external power supply costs.

Q5: Is hardware revision compatibility crucial when replacing an ABB DTDX991A 61430001-UW module?

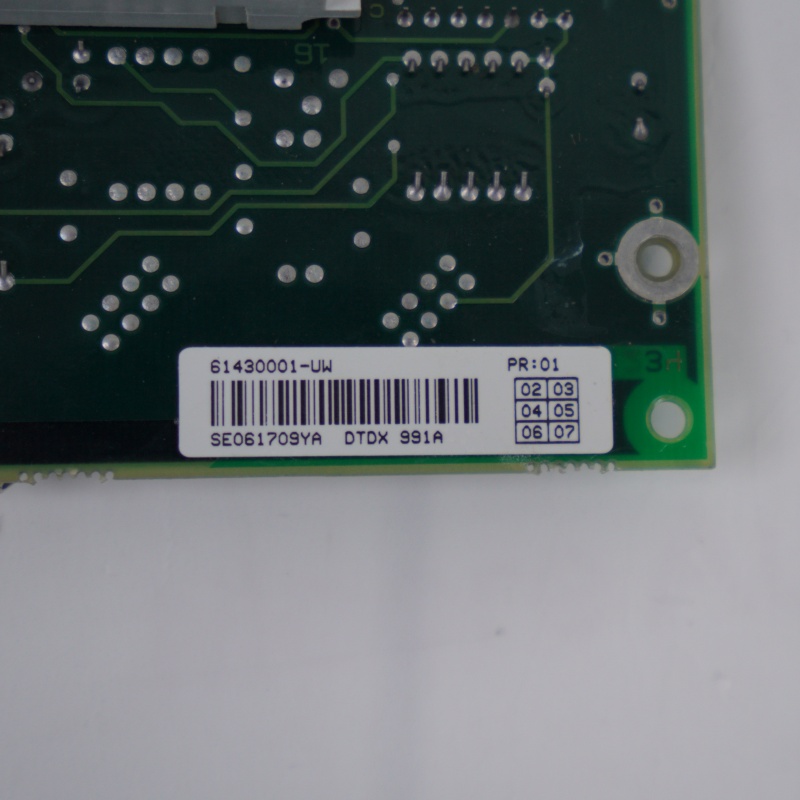

A: Yes, when sourcing a replacement ABB Digital Input/Output module, it is highly recommended to verify the hardware revision mark (such as PR:01). Ensuring match-for-match revisions guarantees complete firmware parity, physical pinout compatibility, and seamless hot-swappable installation without system reconfiguration.
