UK2,5B Phoenix Contact Overview
The UK2,5B (Item No: 3001035) by Phoenix Contact is an industry-standard, universal screw-connection terminal block. UK2,5B Feed-through terminal block provides secure and reliable wire connections inside industrial control panels and switchgear.
Phoenix Contact Feed-through terminal block Key Features
Universal Foot: Snaps onto both NS 35 (top-hat) and NS 32 (G-profile) DIN rails.
Screw Connection: Uses a robust M3 screw mechanism for high contact force and vibration resistance.
Premium Housing: Made of durable Polyamide (PA 6.6) with a top-tier UL 94 V-0 flammability rating.
Easy Bridging: Features a central bridge shaft for quick power distribution using insertion bridges.
Phoenix Contact Feed-through terminal block(UK2,5B) Core Specifications
UK2,5B Feed-through terminal block Rated Current: 24 A
UK2,5B Feed-through terminal block Rated Voltage: 690 V (IEC) / 600 V (UL)
Wire Range: 0.2 mm² – 4 mm² (Solid) / 0.2 mm² – 2.5 mm² (Stranded, 24-12 AWG)
UK2,5B Feed-through terminal block Width / Pitch: 6.2 mm
UK2,5B Feed-through terminal block Color: Gray
If you want to more details about UK2,5B Phoenix Contact，please contact me without hesitation.Email：sales@sparecenter.com
Phoenix Contact Feed-through terminal block Images

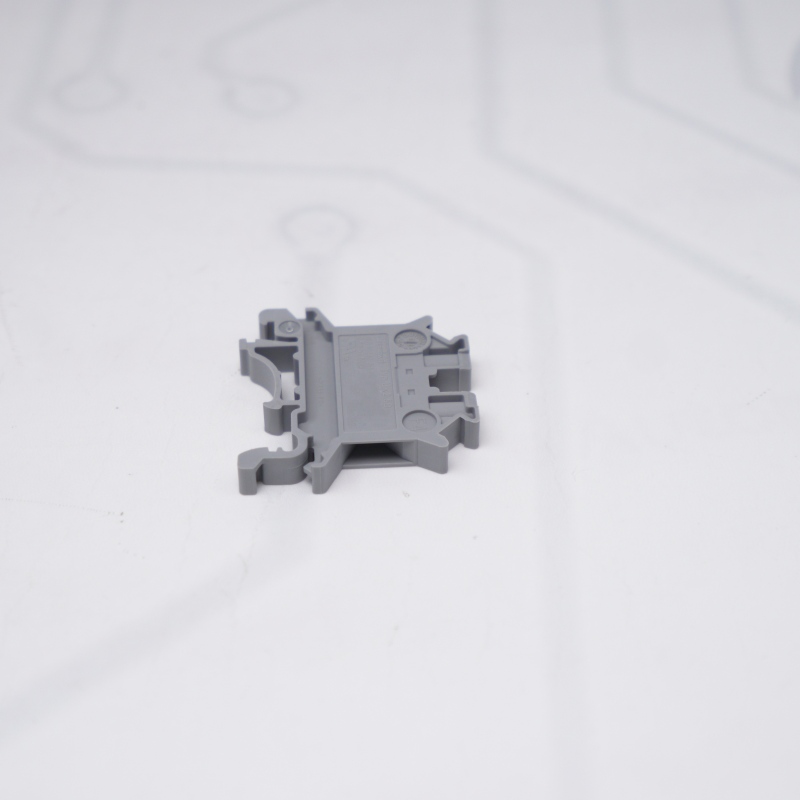

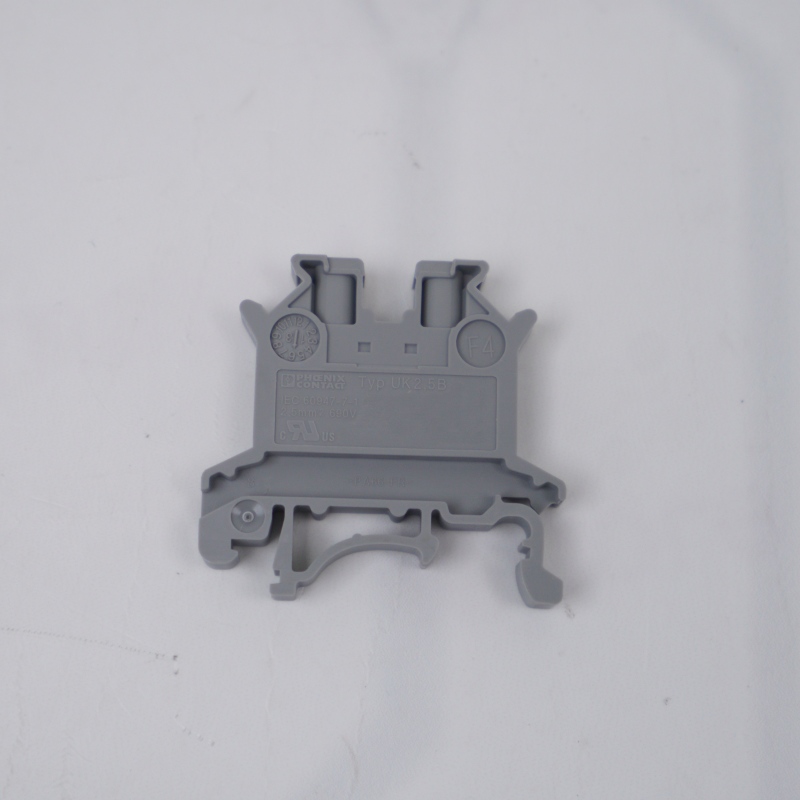

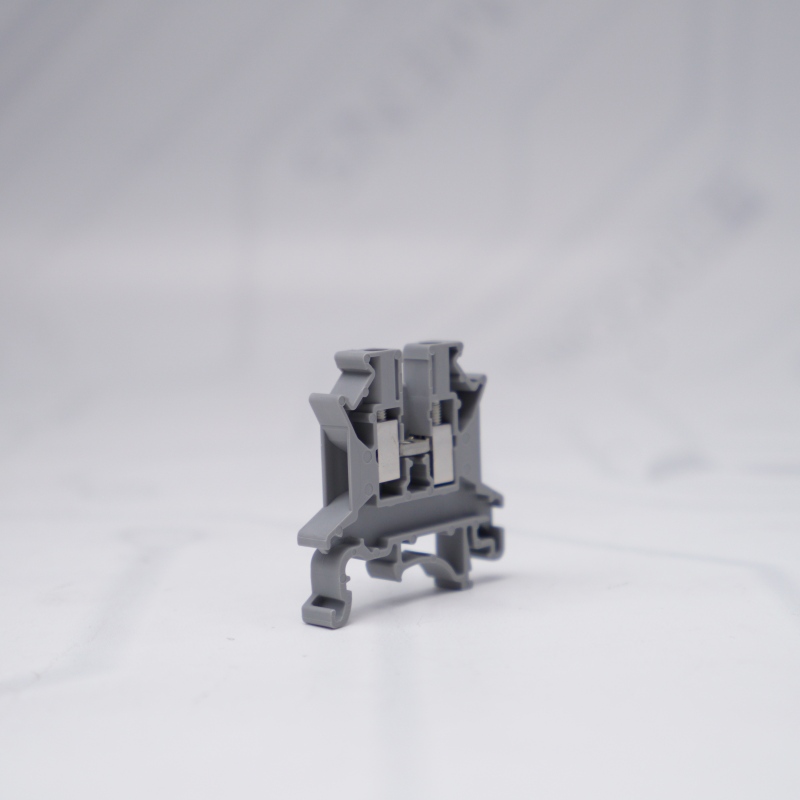

Phoenix Contact Feed-through terminal block(UK2,5B)

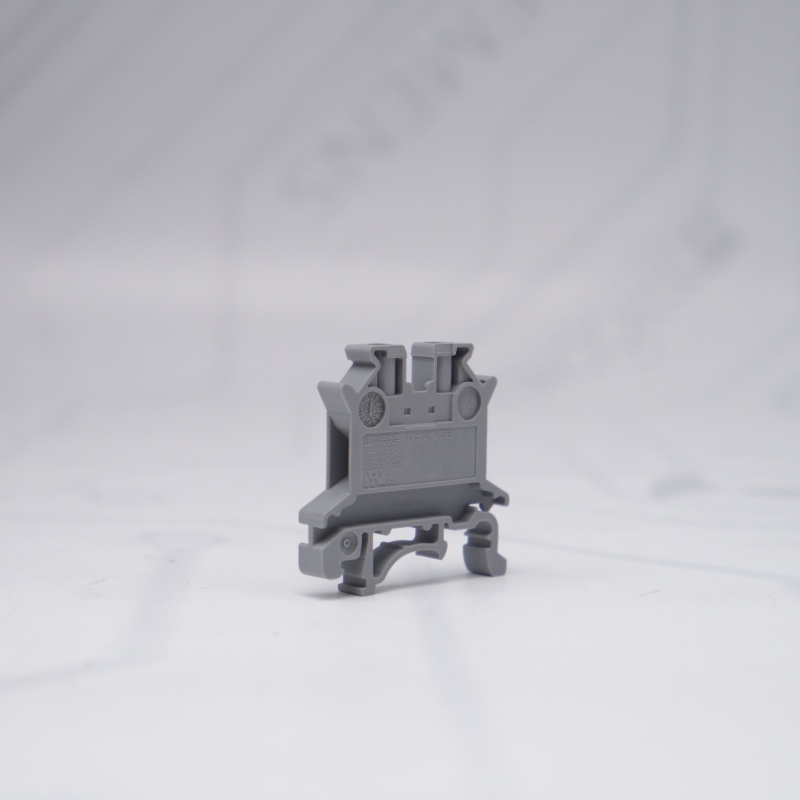

Phoenix Contact Feed-through terminal block(UK2,5B)

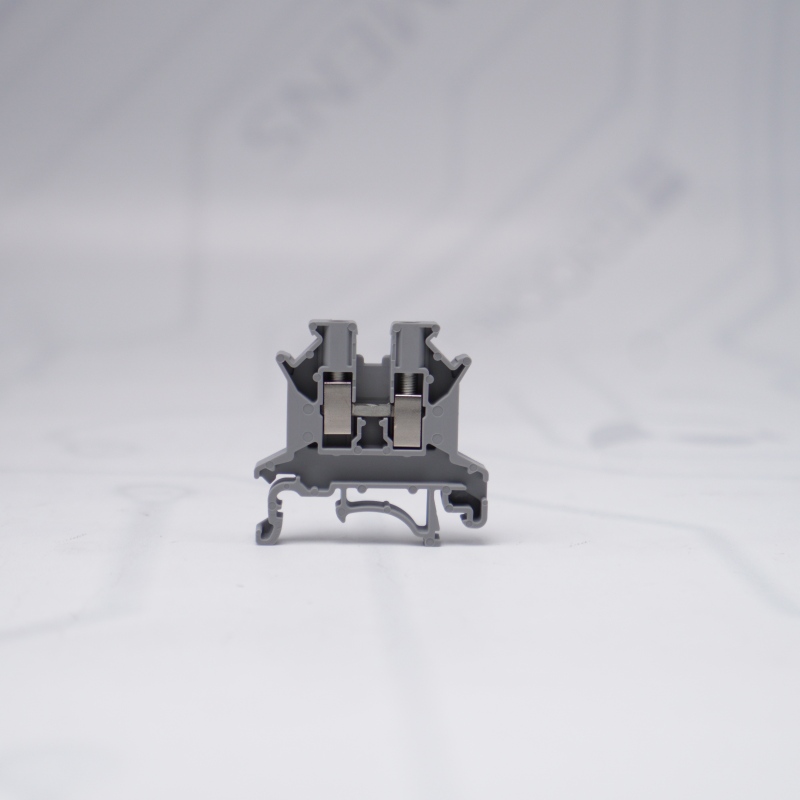

UK2,5B(UK2,5B Phoenix Contact)
The Spare Center Advantage: Fast, Global, Reliable.
Rapid Delivery
Housing Asia’s largest PLC warehouse with over 1 million products, we guarantee same-day shipping and rush processing to eliminate downtime.
Global Brands & Obsolete Parts
We supply major brands like Bently Nevada, GE, ABB, Honeywell, and Emerson, specializing in sourcing rare and obsolete components.
Certified Quality & Logistics
All items pass original tests and support third-party verification. We partner with DHL, FedEx, TNT, and UPS to serve over 100 countries.
Multilingual Support
Our expert team communicates fluently in English, Japanese, German, and Spanish to ensure smooth global purchasing.
UK2,5B(UK2,5B Phoenix Contact) FAQ
Q: Do I need an end cover for the Phoenix Contact UK2,5B row?
A: Yes, because the right side of the UK2,5B Phoenix Contact is open, you must install a compatible end cover (such as the D-UK 4/10) at the end of a terminal row to seal the open housing and prevent accidental touch or short circuits.
A: Yes, because the right side of the UK2,5B Phoenix Contact is open, you must install a compatible end cover (such as the D-UK 4/10) at the end of a terminal row to seal the open housing and prevent accidental touch or short circuits.
Q: What is the recommended tightening torque for the wire screws on the UK2,5B?
A: The M3 terminal screws on the UK2,5B(UK2,5B Phoenix Contact) should be tightened with a torque of 0.6 Nm to 0.8 Nm to ensure a gas-tight, vibration-proof electrical connection without damaging the wire.
A: The M3 terminal screws on the UK2,5B(UK2,5B Phoenix Contact) should be tightened with a torque of 0.6 Nm to 0.8 Nm to ensure a gas-tight, vibration-proof electrical connection without damaging the wire.
Q: Can the Phoenix Contact UK2,5B accept two wires into a single clamping compartment?
A: Yes, the Phoenix Contact UK2,5B is designed to safely clamp two rigid or flexible conductors of the same cross-section simultaneously, provided their individual sizes range between 0.2 mm² and 1 mm².
A: Yes, the Phoenix Contact UK2,5B is designed to safely clamp two rigid or flexible conductors of the same cross-section simultaneously, provided their individual sizes range between 0.2 mm² and 1 mm².
Q: What length of insulation should be stripped from the wire before inserting it into the UK2,5B?
A: You need to strip exactly 7 mm of insulation from the wire end to ensure full insertion into the metal clamping body of the Phoenix Contact UK2,5B without leaving exposed live conductor outside the housing.
A: You need to strip exactly 7 mm of insulation from the wire end to ensure full insertion into the metal clamping body of the Phoenix Contact UK2,5B without leaving exposed live conductor outside the housing.
Q: Is the Phoenix Contact UK2,5B certified for use in hazardous areas or explosive atmospheres?
A: Yes, the Phoenix Contact UK2,5B holds international ATEX and IECEx certifications, making it fully approved for safety-critical installations in Zone 1 and Zone 2 hazardous industrial environments.
A: Yes, the Phoenix Contact UK2,5B holds international ATEX and IECEx certifications, making it fully approved for safety-critical installations in Zone 1 and Zone 2 hazardous industrial environments.
