VT-5006 REXROTH Technical Data

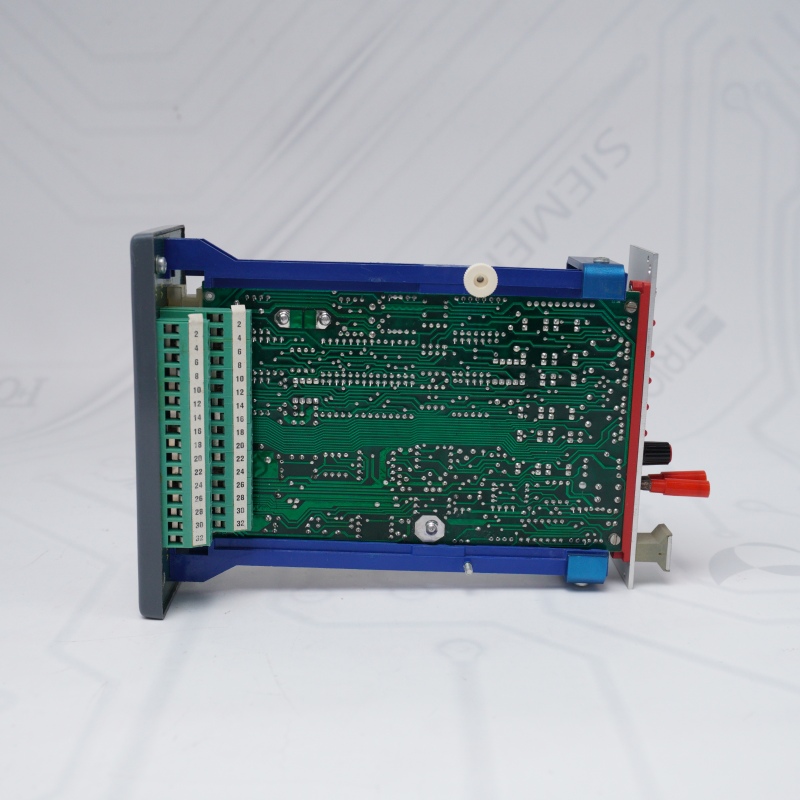

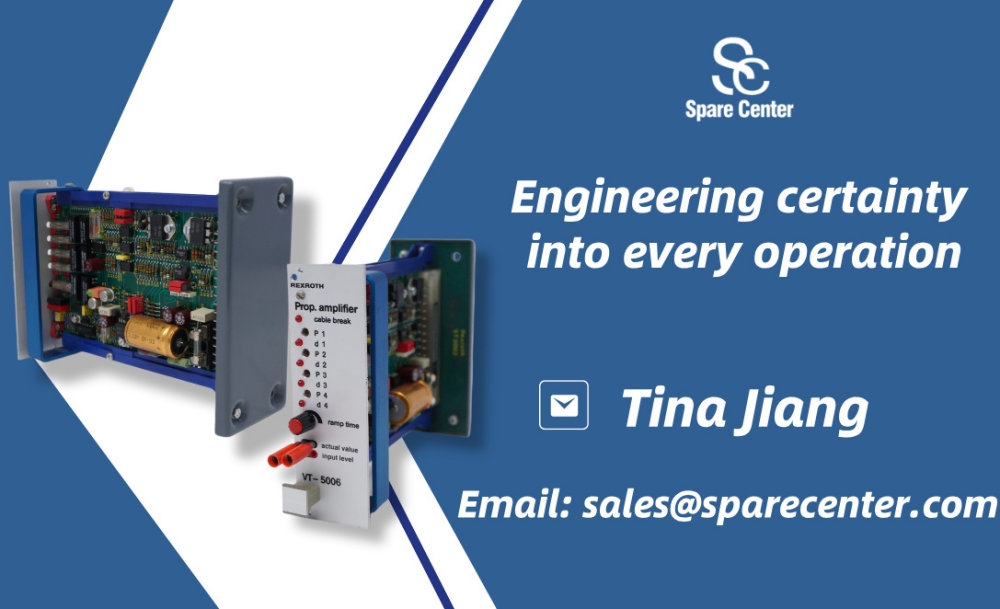

VT-5006 REXROTH Compatibility & Layout Matching Valve: Rexroth 4WRE 10 series (Size 10 proportional directional valve) Card Size: Standard Euro-card (100 x 160 mm), 32-pin male connector (DIN 41 612, Form D) | VT-5006 REXROTH Power Supply Operating Voltage: 24 VDC (Functional range: 22 to 35 V) Max. Consumption: < 50 VA / Current < 2 A Built-in Fuse: 2.5 A slow-blow (T) |
VT-5006 REXROTH Signal Inputs Command Inputs (1–4): ± 9 V (Reference potential is M0) Differential Input (5): 0 to ± 10 V Enable Input: > 8.5 V to activate | VT-5006 REXROTH Driver Outputs Max. Output Current: 2.2 A ± 20% Solenoid Resistance: 10 Ω (at 20 °C) Oscillator Frequency: 2.5 kHz (for valve position transducer) Ramp Time: 30 ms to 1 s or 5 s (adjustable via on-board jumpers) |
If you want to more details about VT-5006 REXROTH，please contact me without hesitate.Email：sales@sparecenter.com
VT-5006 REXROTH Key Application
VT-5006 REXROTH Target Component

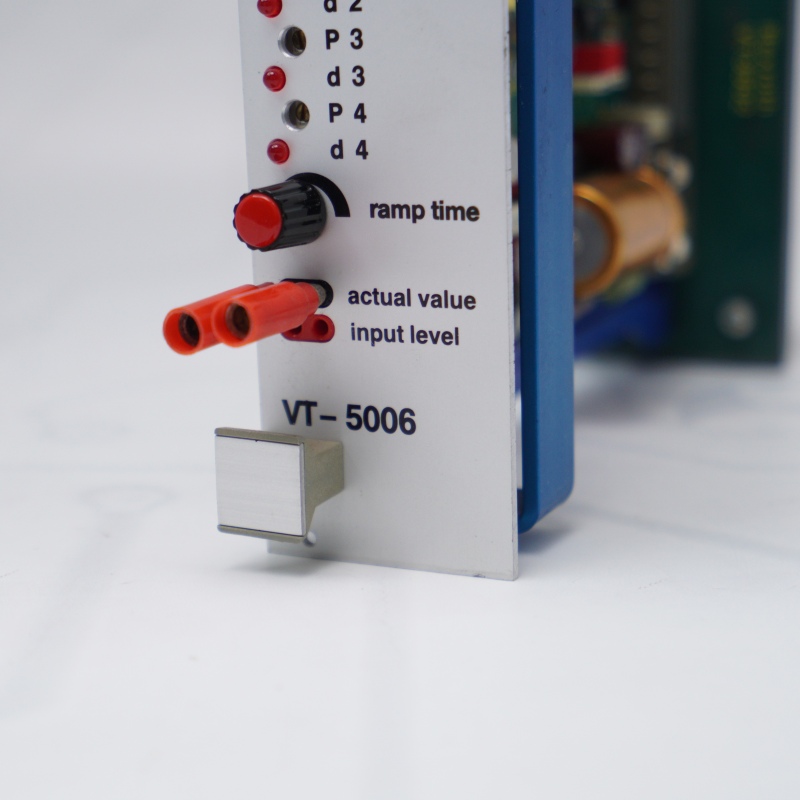

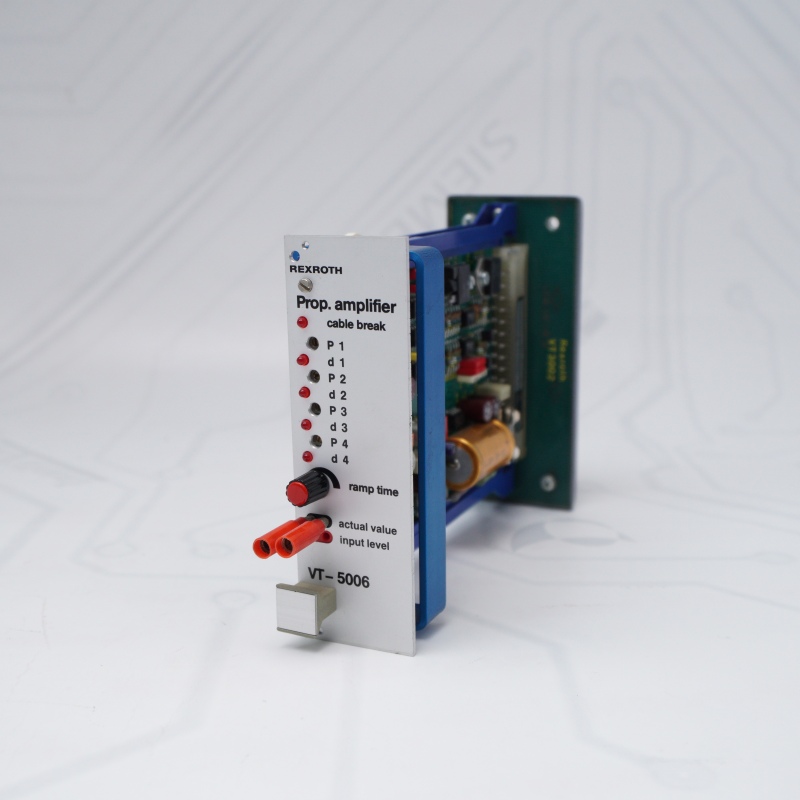

The Rexroth VT-5006 controls 4WRE 10 proportional directional valves with position feedback.
REXROTH Electrical amplifiers Main Machinery
Injection Molding: Injection and clamping control via the VT-5006 Electrical amplifiers.
Die Casting & Presses: Ram speed and position regulation.
Metallurgy: Flow control for high-force hydraulic cylinders.
VT-5006 REXROTH Core Functions
Closed-loop Positioning: The REXROTH VT-5006 maintains continuous valve spool alignment via inductive feedback.
Shock Reduction: Internal ramp adjustments to eliminate pipeline water hammer.
Fast Response: Step generator to quickly bypass valve overlap.
Spare Center Advantages
Zero Lead Time: Eliminates factory downtime with immediate, off-the-shelf parts availability.
100% Genuine: Guarantees factory-tested, authentic components to prevent compatibility issues.
Legacy Support: Stocks rare and hard-to-find legacy models to avoid forced machinery upgrades.
Lower Overhead: Reduces individual factory warehouse costs through centralized inventory.
REXROTH Electrical amplifiers FAQ
Q1: What is the purpose of the step function generator on the REXROTH VT-5006?
A: The REXROTH Electrical amplifiers includes a built-in step function generator designed to bypass the physical overlap of the valve spool. When a command voltage exceeding 100 mV is applied, the Rexroth VT-5006 instantly creates a polarity-dependent step-change signal to rapidly move the valve spool out of its dead-band, drastically improving hydraulic system response times.
A: The REXROTH Electrical amplifiers includes a built-in step function generator designed to bypass the physical overlap of the valve spool. When a command voltage exceeding 100 mV is applied, the Rexroth VT-5006 instantly creates a polarity-dependent step-change signal to rapidly move the valve spool out of its dead-band, drastically improving hydraulic system response times.
Q2: What is the most critical wiring precaution regarding the measurement zero (M0) terminal on a VT-5006 Electrical amplifiers(REXROTH VT-5006)?
A: The measurement zero (M0, pin 26c) on the REXROTH Electrical amplifiers is raised by +9 V relative to the 0V operating voltage line. You must never connect the M0 terminal directly to the 24V DC power supply ground, as this unisolated voltage differential will cause an electrical short and instantly destroy the internal circuitry of the REXROTH Electrical amplifiers.
A: The measurement zero (M0, pin 26c) on the REXROTH Electrical amplifiers is raised by +9 V relative to the 0V operating voltage line. You must never connect the M0 terminal directly to the 24V DC power supply ground, as this unisolated voltage differential will cause an electrical short and instantly destroy the internal circuitry of the REXROTH Electrical amplifiers.
Q3: How do you bypass the external enable signal to keep the Rexroth VT-5006 permanently active?
A: If you want to enable the output stages continuously without relying on an external 24V signal at the enable terminal, you can configure the internal jumpers on the circuit board. By setting jumper J7 on the REXROTH Electrical amplifiers card, the enable input becomes ineffective, and the Rexroth VT-5006 remains continuously operational.
A: If you want to enable the output stages continuously without relying on an external 24V signal at the enable terminal, you can configure the internal jumpers on the circuit board. By setting jumper J7 on the REXROTH Electrical amplifiers card, the enable input becomes ineffective, and the Rexroth VT-5006 remains continuously operational.
Q4: What specific faults will cause the green "ready for operation" LED on the Rexroth VT-5006 to turn off?
A: The green LED (H12) on the Rexroth VT-5006 indicates trouble-free operation and will immediately turn off if a fault occurs. This happens if the internal ±9 V power supply becomes asymmetrical, if there is a short-circuit in the solenoid cables, or if a cable break is detected in the position transducer connected to the VT-5006 Electrical amplifiers.
A: The green LED (H12) on the Rexroth VT-5006 indicates trouble-free operation and will immediately turn off if a fault occurs. This happens if the internal ±9 V power supply becomes asymmetrical, if there is a short-circuit in the solenoid cables, or if a cable break is detected in the position transducer connected to the VT-5006 Electrical amplifiers.
Q5: How does the priority logic work when multiple command values are called up simultaneously on the VT-5006 Electrical amplifiers?
A: The VT-5006 Electrical amplifiers features four independent command value inputs controlled by internal relays (K1 to K4). If more than one input is mistakenly activated at the same time by the PLC, the VT-5006 Electrical amplifiers uses a strict higher-number priority logic; for example, if command 1 and command 3 are energized together, command 3 will take complete precedence.
A: The VT-5006 Electrical amplifiers features four independent command value inputs controlled by internal relays (K1 to K4). If more than one input is mistakenly activated at the same time by the PLC, the VT-5006 Electrical amplifiers uses a strict higher-number priority logic; for example, if command 1 and command 3 are energized together, command 3 will take complete precedence.
