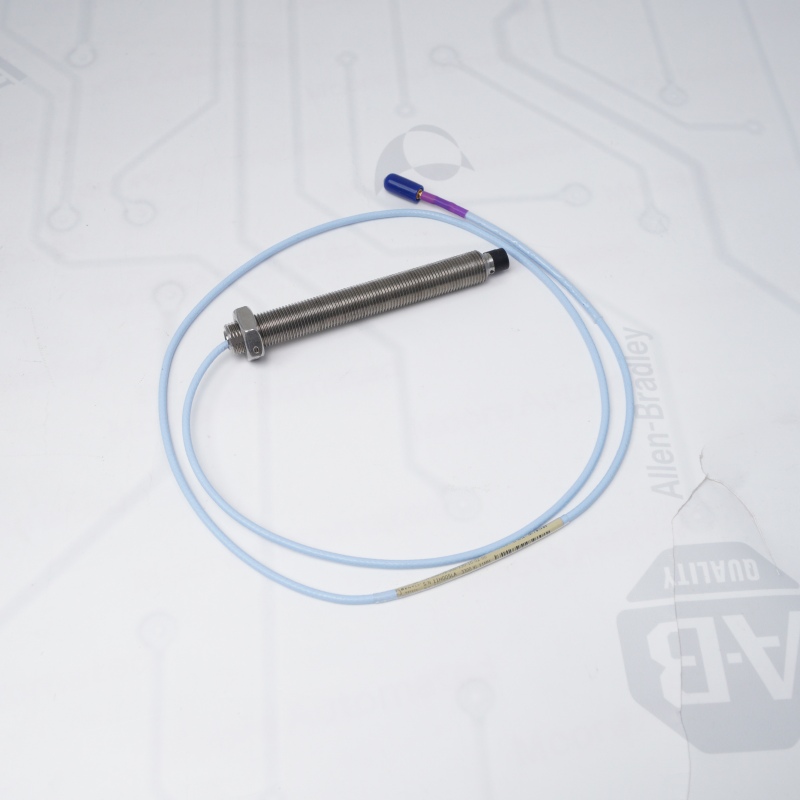

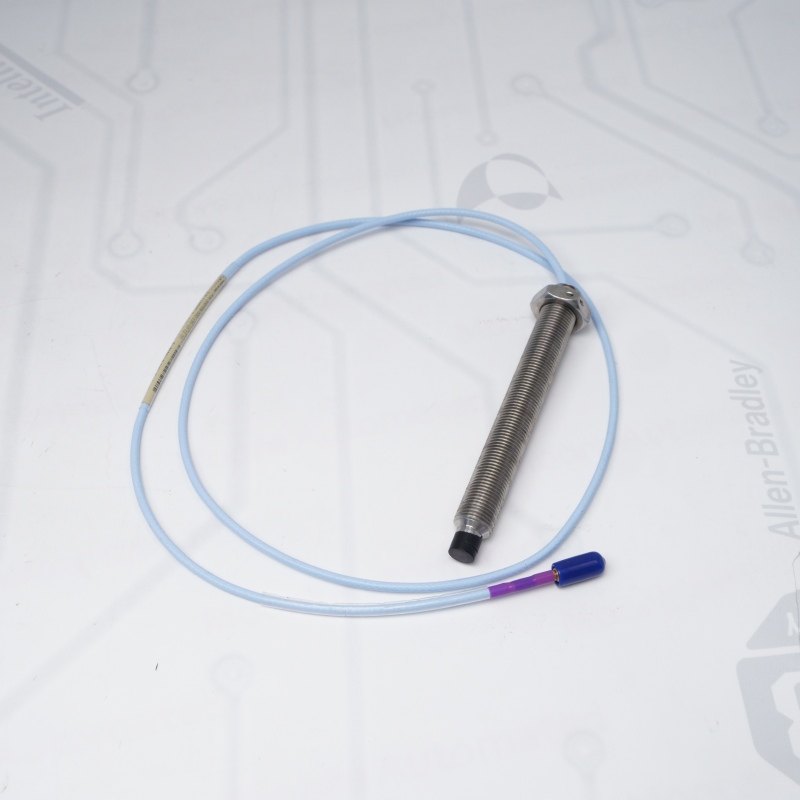

330709-000-130-10-02-00 BENTLY NEVADA Technical Data
330709-000-130-10-02-00 BENTLY NEVADA Probe Diameter: 11 mm
Thread Type: M16 × 1.5 (Metric)
Unthreaded Length (000): 0 mm (Fully threaded)
Case Body Length (130): 130 mm

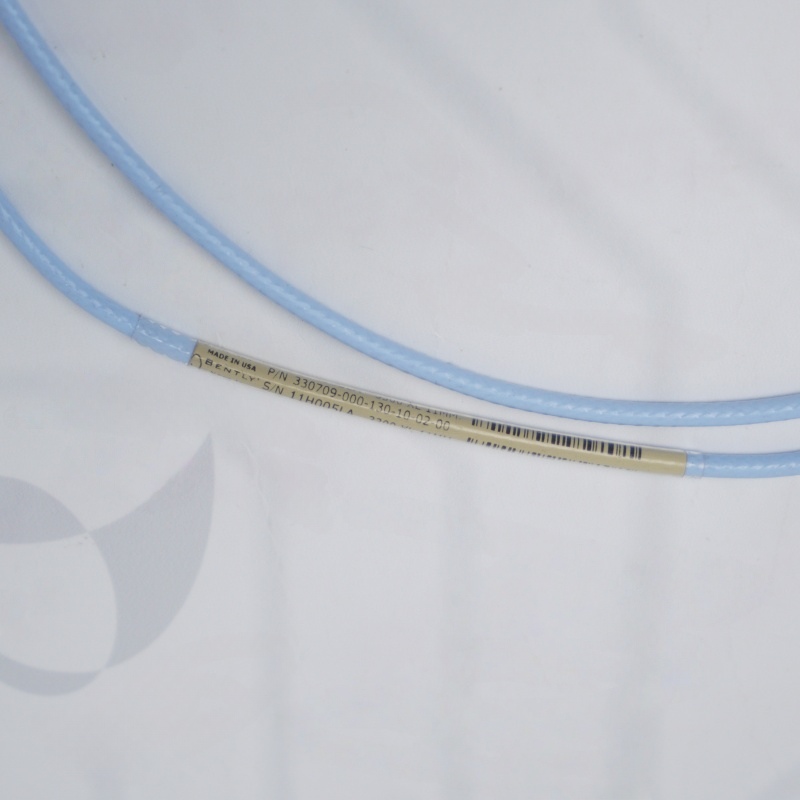

Integrated Cable Length (10): 1.0 meter (3.3 feet)
Cable Armor: None (Standard cable)
Connector Type (02): ClickLoc coaxial connector
Linear Range: 4.0 mm (160 mils)
Scale Factor: 3.94 V/mm (100 mV/mil)
330709-000-130-10-02-00 BENTLY NEVADA Target Material: AISI 4140 steel (Default calibration)
330709-000-130-10-02-00 BENTLY NEVADA Agency Approvals (00): None (No hazardous area certificates)
If you want to more details about 330709-000-130-10-02-00 BENTLY NEVADA，please contact me without hesitation.Email：sales@sparecenter.com
Advantage Of Spare Center
Massive Stock: Large regional inventory of rare and current industrial automation parts.
Global Shipping: Same-day dispatch via major couriers (DHL, FedEx, UPS).
Guaranteed Quality: 100% genuine products backed by full testing and warranty.
Technical Support: Multilingual product support for seamless cross-border ordering.
Premium Brands: Authorized supply for major lines like Bently Nevada and ABB.
BENTLY NEVADA Proximity Probe Key Highlight
Extended Linear Range: BENTLY NEVADA Proximity Probe Offers a wide 4.0 mm (160 mils) linear measurement field, which is double the range of standard 8 mm probes.
Thrust Measurement Ideal: BENTLY NEVADA Proximity Probe is designed specifically for axial thrust (displacement) monitoring on large industrial rotating machinery where larger shaft movements occur.
ClickLoc Connection: BENTLY NEVADA 330709-000-130-10-02-00 Features a gold-plated ClickLoc coaxial connector that prevents loose connections and resists vibration-induced signal noise.
Full-Length Threading: The 0 mm unthreaded length allows maximum depth flexibility inside the mounting bracket or housing.
Standard Calibration: Factory-calibrated for AISI 4140 steel, ensuring high-precision accuracy out of the box without custom tuning.
Interchangeable Design: Fully compatible with any standard 3300 XL 11 mm Proximitor sensor and extension cable system without requiring recalibration.
BENTLY NEVADA Proximity Probe FAQ
Q1: What unique advantage does the ClickLoc connector on the BENTLY NEVADA 330709-000-130-10-02-00 provide over traditional coaxial connectors?
A: The BENTLY NEVADA 330709-000-130-10-02-00 utilizes a gold-plated ClickLoc coaxial connector engineered specifically to withstand heavy industrial machine vibrations. Unlike traditional threaded connectors that can back out or loosen over time, the locking mechanism on the BENTLY NEVADA 330709-000-130-10-02-00 ensures a permanent, low-resistance connection that prevents signal noise, intermittent data dropouts, and false machinery trips.
Q2: How do material variations on the shaft target affect the calibration of the BENTLY NEVADA 330709-000-130-10-02-00?
A: Because the 330709-000-130-10-02-00 Proximity Probe relies on eddy current technology, its performance depends heavily on the electrical conductivity and magnetic permeability of the target surface. If the 330709-000-130-10-02-00 Proximity Probe is mounted facing a shaft made of a material other than standard AISI 4140 steel—such as 17-4 PH stainless steel or chrome-plated alloys—the scale factor will shift, requiring a custom calibration curve or a specialized Proximitor sensor to maintain loop accuracy.
Q3: Can the 330709-000-130-10-02-00 Proximity Probe be submerged directly in industrial lubricating oil during operation?
A: Yes, the tip and case of the 330709-000-130-10-02-00 Proximity Probe are fully sealed against typical industrial turbine oils, water, and synthetic lubricants. However, because this specific variant does not include the FluidLoc oil-barrier cable, care must be taken during the installation of the 330709-000-130-10-02-00 Proximity Probe to ensure that oil does not migrate through the inside of the cable jacket into the terminal housing via capillary action if the probe tip is under high pressure.
Q4: Why is it critical to use a dedicated extension cable with the 330709-000-130-10-02-00 Proximity Probe instead of splicing the integrated lead?
A: The BENTLY NEVADA Proximity Probe relies on a strict, tuned RF capacitance loop where the probe, extension cable, and Proximitor sensor form a unified resonant circuit. Splicing, cutting, or altering the 1.0-meter integrated cable of the BENTLY NEVADA Proximity Probe will permanently corrupt the electrical impedance of the system, resulting in severe measurement errors or a complete failure of the machinery monitoring loop.
