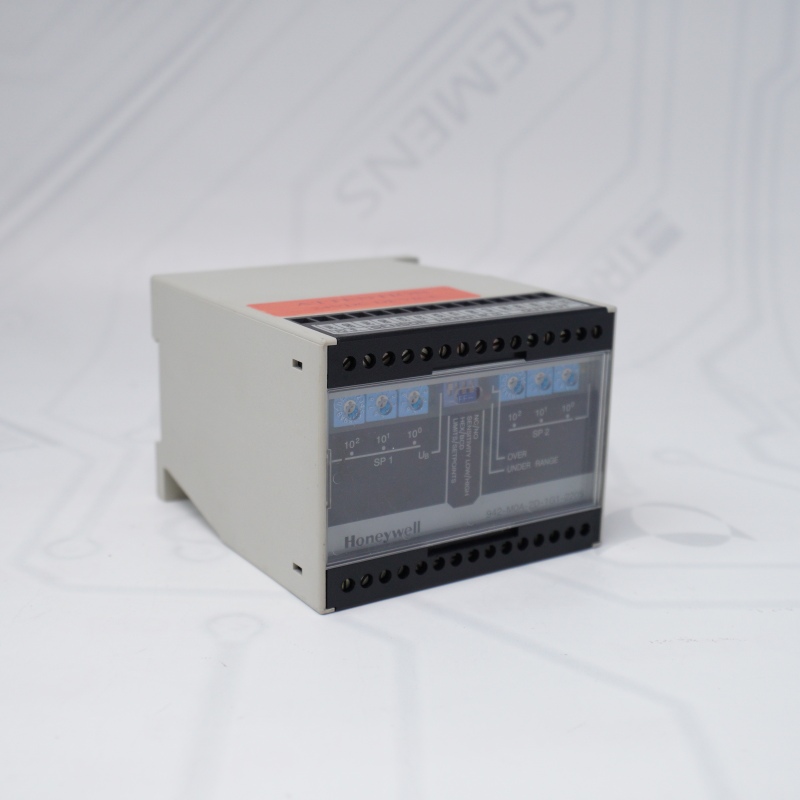

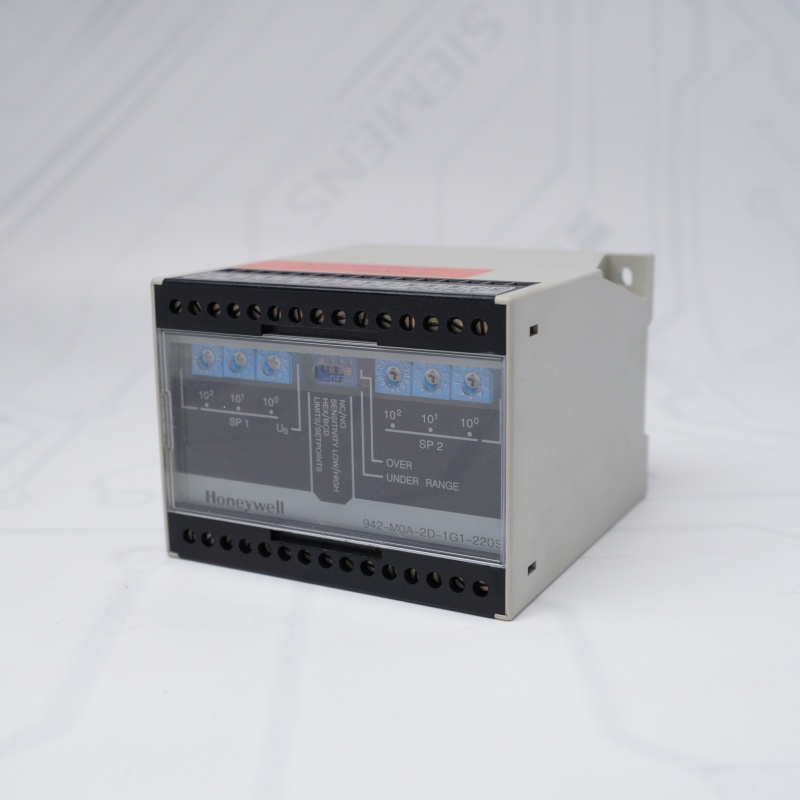

Honeywell Separate control box Details
Overview
Honeywell 942-M0A-2D-1G1-220S Type: Separate electronic evaluation control unit.
Honeywell 942-M0A-2D-1G1-220S Function: Processes remote ultrasonic sensor head signals to measure distance.
Technical Specifications
Frequency: 220 kHz
Range: 150 mm to 1500 mm
Voltage: 19 Vdc to 30 Vdc
Analog Outputs: 0 to 10 V and 4 to 20 mA
Switching Outputs: 2 x PNP (1 NO / 1 NC)
Interface: RS-232 serial port
Key Features

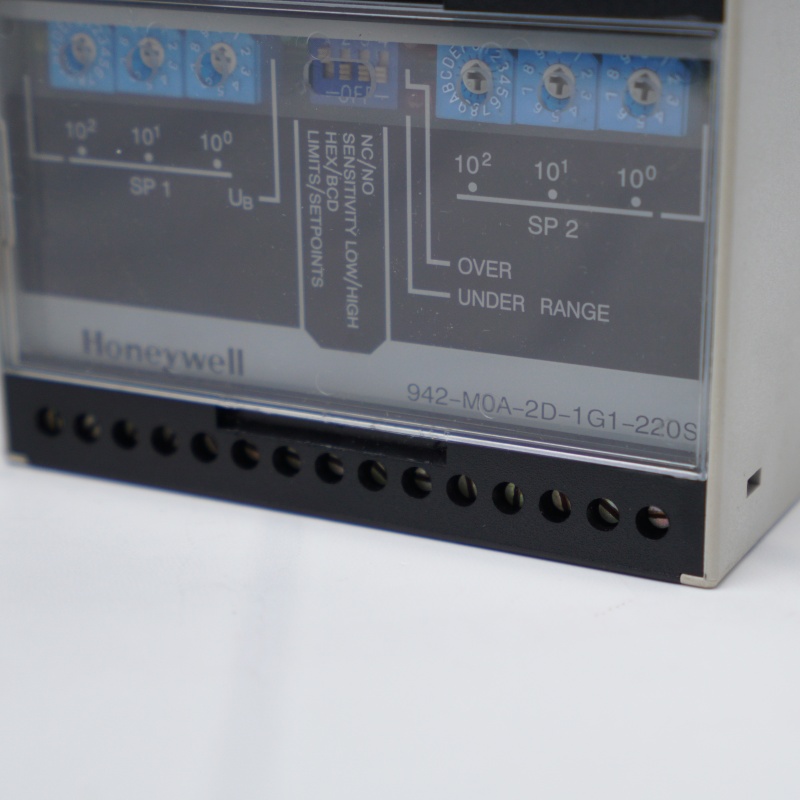

Manual setup via front-panel thumbwheels and switches.
Built-in temperature compensation.
Internal filtering to prevent false echoes.
If you want to more details about 942-M0A-2D-1G1-220S Honeywell，please contact me without hesitation.Email：sales@sparecenter.com
Honeywell Separate control box Installation Notes
Mounting
Rail Mounting: Snap the 942-M0A-2D-1G1-220S Honeywell securely onto a standard 35 mm DIN rail.
Environment: Install the unit inside an IP54-rated control cabinet maintaining ambient temperatures between 0°C and 50°C.
Sensor Alignment: Position the remote ultrasonic head connected to the system clear of debris.
Wiring
Main Power: Wire a stable 19 Vdc to 30 Vdc supply to the 942-M0A-2D-1G1-220S Honeywell upper terminals.
Signal Isolation: Separate the probe cables from heavy high-voltage lines to prevent electrical noise.
Multi-Unit Sync: Bridge HLD/SYNC pins if running multiple 942-M0A-2D-1G1-220S Honeywell units together.
Configuration
Hardware Tuning: Set the target limits using the integrated front-panel thumbwheels.
PC Link: Use the RS-232 port for advanced 942-M0A-2D-1G1-220S Honeywell software diagnostics.
Spare Center | Core Capabilities
Global Reach: Supplying industrial automation parts to 100+ countries.
Massive Inventory: Housing one of Asia's largest PLC warehouses (500㎡).
Same-Day Shipping: Over 1,000,000 products ready for immediate dispatch.
Multilingual Team: Expert support in English, Japanese, German, and Spanish.
Quality Assured: All parts pass origin tests and support third-party inspection.
Global Express: Fast delivery via DHL, FedEx, TNT, and UPS.
Honeywell Separate control box FAQ
Q1: What is the primary function of the 942-M0A-2D-1G1-220S Separate control box in an industrial automation system?
A1: The Honeywell Separate control box functions as a standalone electronic evaluation and control unit. It processes the raw, high-frequency acoustic echo returns from a remote ultrasonic sensor head, executing precision time-of-flight calculations to determine accurate target distances.
A1: The Honeywell Separate control box functions as a standalone electronic evaluation and control unit. It processes the raw, high-frequency acoustic echo returns from a remote ultrasonic sensor head, executing precision time-of-flight calculations to determine accurate target distances.
Q2: Which sensor heads and scanning ranges are compatible with the 942-M0A-2D-1G1-220S Separate control box?
A2: The Honeywell Separate control box is engineered for an operating frequency of 220 kHz, making it natively compatible with Honeywell 942-series 30 mm remote sensor heads to achieve an optimized measurement range of 150 mm to 1500 mm.
A2: The Honeywell Separate control box is engineered for an operating frequency of 220 kHz, making it natively compatible with Honeywell 942-series 30 mm remote sensor heads to achieve an optimized measurement range of 150 mm to 1500 mm.
Q3: What types of signal outputs does the Honeywell 942-M0A-2D-1G1-220S provide for PLC integration?
A3: For maximum system flexibility, the Honeywell Separate control box features concurrent dual analog outputs (0 to 10 V and 4 to 20 mA), alongside two programmable PNP switching outputs (1 Normally Open and 1 Normally Closed).
A3: For maximum system flexibility, the Honeywell Separate control box features concurrent dual analog outputs (0 to 10 V and 4 to 20 mA), alongside two programmable PNP switching outputs (1 Normally Open and 1 Normally Closed).
Q4: How do you adjust the distance setpoints on the Honeywell 942-M0A-2D-1G1-220S without a computer?
A4: Hardware calibration can be performed directly on the front panel of the Honeywell Separate control box utilizing the integrated digital thumbwheel switches, allowing technicians to configure switching thresholds rapidly on the factory floor.
A4: Hardware calibration can be performed directly on the front panel of the Honeywell Separate control box utilizing the integrated digital thumbwheel switches, allowing technicians to configure switching thresholds rapidly on the factory floor.
Q5: What should be done if the front-panel controls on the Honeywell 942-M0A-2D-1G1-220S do not respond?
A5: If the manual controls are locked out, you must interface with the 942-M0A-2D-1G1-220S Separate control box via its built-in RS-232 serial port using a 9-pin Sub-D connector and Honeywell software to override the security lock or change advanced parameters.
A5: If the manual controls are locked out, you must interface with the 942-M0A-2D-1G1-220S Separate control box via its built-in RS-232 serial port using a 9-pin Sub-D connector and Honeywell software to override the security lock or change advanced parameters.
Q6: How does the Honeywell 942-M0A-2D-1G1-220S handle mutual acoustic interference in multi-sensor layouts?
A6: To eliminate cross-talk when multiple units operate in close proximity, the 942-M0A-2D-1G1-220S Separate control box supports hardware synchronization; bridging the HLD/SYNC terminal blocks across units forces them to emit pulses in a coordinated sequence.
A6: To eliminate cross-talk when multiple units operate in close proximity, the 942-M0A-2D-1G1-220S Separate control box supports hardware synchronization; bridging the HLD/SYNC terminal blocks across units forces them to emit pulses in a coordinated sequence.
