BENTLY NEVADA Proximity Probe Overview

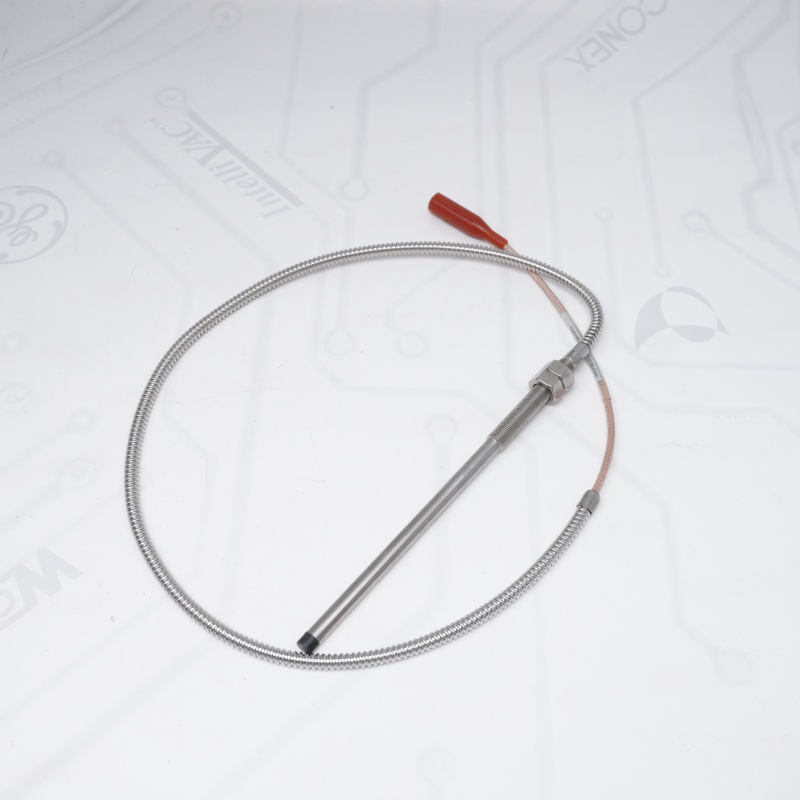

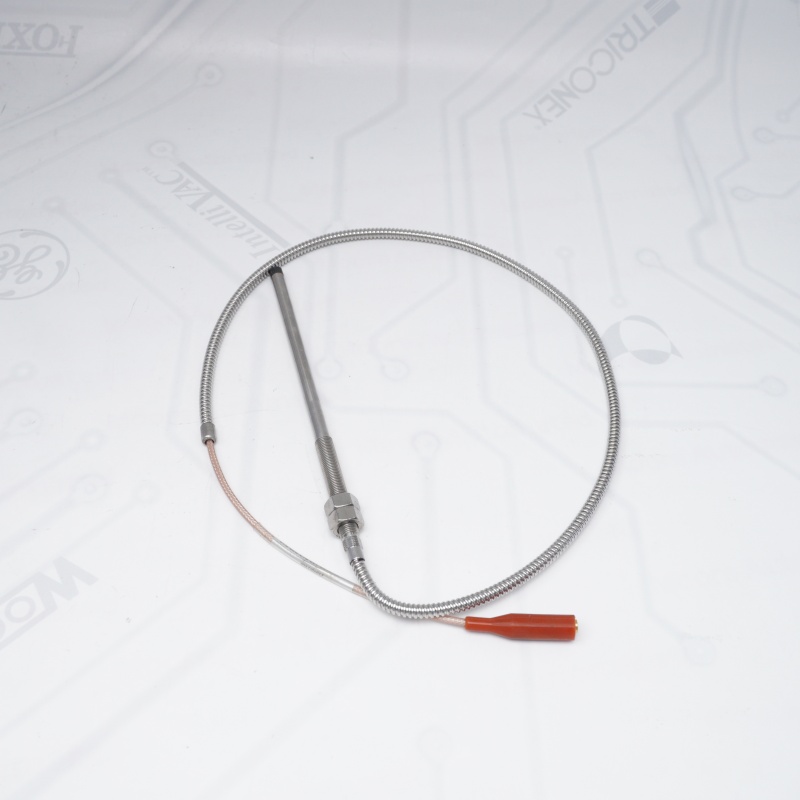

TM0180-A08-B13-C20-D10 is an industrial-grade 8mm Proximity Probe manufactured by ProvibTech, fully compliant with API 670 standards. BENTLY NEVADA Proximity Probe is engineered to measure shaft vibration, axial displacement, and speed/phase reference on critical rotating machinery such as turbines, compressors, and pumps.
BENTLY NEVADA Proximity Probe Key Highlights
100% Bently Nevada Interchangeable: Fully compatible with Bently Nevada (e.g., 3300 XL series) proximity drivers and extension cables without requiring system recalibration.
Reverse Mount Design (B13): Features a Reverse Mount configuration, typically paired with explosion-proof probe housings (like TM0393) for installation in hazardous or tight, confined spaces.
8mm Proximity Probe Harsh Environment Ready: IP67-rated probe tip resistant to oil, moisture, and chemical corrosion, operating reliably from -40°C to +120°C.

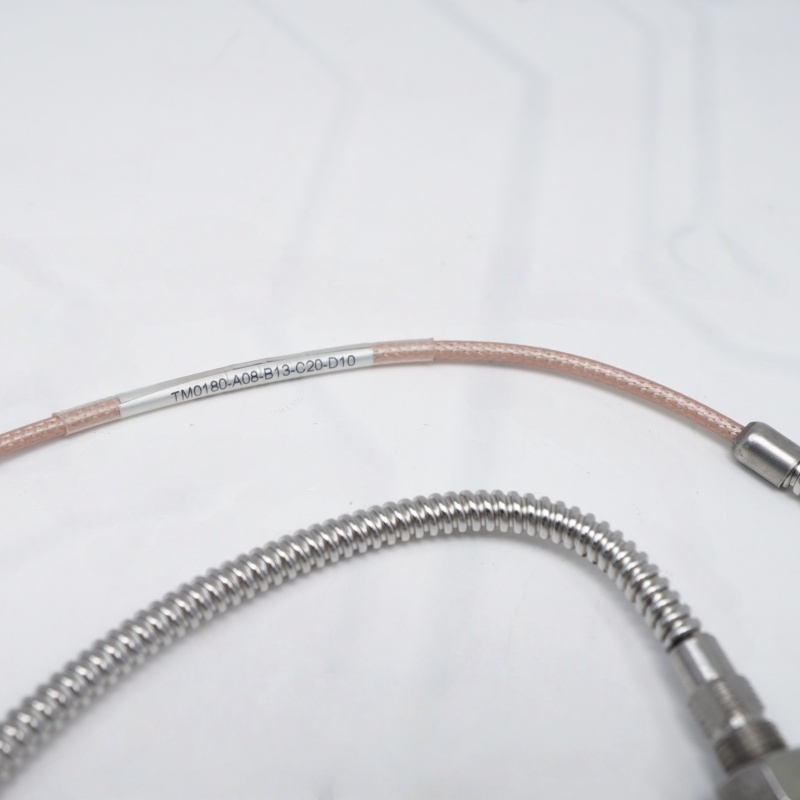

8mm Proximity Probe Core Specifications: 2.0 mm (80 mils) linear range, 200 mV/mil (7.87 mV/µm) sensitivity, calibrated for AISI 4140 steel, with a 1.0-meter integrated unarmored cable (D10).
Common Engineering Field Issues Of BENTLY NEVADA Proximity Probe
1. BENTLY NEVADA Proximity Probe Installation & Physical Damage
8mm Proximity Probe Smashed Probe Tip: Incorrect initial gap voltage adjustment or excessive thermal expansion causes the shaft to physically strike and shatter the tip of the TM0180-A08-B13-C20-D10 BENTLY NEVADA probe.
8mm Proximity Probe Twisted Cable Breakage: Forcing rotation when the reverse-mount threads are seized during removal will easily twist and snap the integrated 1.0-meter cable.
2. BENTLY NEVADA Proximity Probe Signal Interference & Electrical Faults
8mm Proximity Probe Ground Loops (False Alarms): If the connector insulator sleeve is missing, the TM0180-A08-B13-C20-D10 BENTLY NEVADA extension junction will touch the machine housing, triggering massive spike readings or false trips.
8mm Proximity Probe Cross-talk: Mounting multiple 8mm probes too close to each other causes electromagnetic field overlap, resulting in false cyclic oscillations in the vibration data.
3. TM0180-A08-B13-C20-D10 BENTLY NEVADA Environmental & Seal Failures
8mm Proximity Probe Housing Fluid Ingress: Aging seals on the probe enclosure let oil mist or condensation accumulate, rapidly degrading the insulation resistance of the TM0180-A08-B13-C20-D10 BENTLY NEVADA connector and causing signal drift.
4. Calibration & Measurement Errors
8mm Proximity Probe Electrical Runout: Shaft surface scratches, rust, or residual magnetism will be misinterpreted by the probe as actual mechanical shaft vibration.
8mm Proximity Probe Material Mismatch: Target shafts made of non-standard AISI 4140 steel will shift the TM0180-A08-B13-C20-D10 BENTLY NEVADA system scale factor, making readings scale incorrectly high or low.
Service Of Spare Center
Rapid Same-Day Shipping: As a leading automation component supplier in Asia, we maintain a massive in-stock inventory. Orders for in-stock items are shipped on the same day to minimize your equipment downtime.
100% Authentic Quality Guarantee: Every single product undergoes strict origin and quality inspections to ensure original, genuine parts that meet safety standards.
Elite Global Logistics: We partner with top-tier international express couriers to provide secure, traceable, and punctual doorstep delivery worldwide.
Seamless Multilingual Support: Our professional team delivers communication in multiple languages, ensuring frictionless pre-sales consultation and after-sales protection.
BENTLY NEVADA TM0180-A08-B13-C20-D10 FAQ
Q1: What unique design criteria distinguishes the TM0180-A08-B13-C20-D10 from standard forward-mount proximity probes?
A1: The BENTLY NEVADA TM0180-A08-B13-C20-D10 is engineered with a reverse-mount casing geometry (B13), meaning it threads into the mounting adapter from the back rather than the front. This specific mechanical configuration allows the 8mm Proximity Probe to be completely serviced, replaced, or adjusted from outside the machine casing without requiring a bearing housing teardown.
Q2: What is the recommended tightening torque for installing the TM0180-A08-B13-C20-D10 into its sleeve?
A2: When installing the BENTLY NEVADA TM0180-A08-B13-C20-D10, the locknuts and threaded sleeve should be torqued precisely to prevent case distortion or thread stripping. For this standard thread size variant, the BENTLY NEVADA TM0180-A08-B13-C20-D10 requires a nominal tightening torque of 4.5 N·m (40 in·lb), and must never exceed a maximum threshold of 6.8 N·m (60 in·lb).
Q3: Does the TM0180-A08-B13-C20-D10 support hazardous area installations, and what certifications apply?
A3: Yes, the BENTLY NEVADA TM0180-A08-B13-C20-D10 inherits robust global explosion-proof approvals when paired with its certified driver system. The BENTLY NEVADA TM0180-A08-B13-C20-D10 complies with ATEX/IECEx intrinsically safe (Ex ia) regulations, making it safe for Zone 0, Zone 1, and Class I Division 1 hazardous environments when connected via an approved galvanic isolation barrier.
Q4: How do I select the correct extension cable length to complement the TM0180-A08-B13-C20-D10?
A4: Because the BENTLY NEVADA TM0180-A08-B13-C20-D10 features an integrated 1.0-meter cable length (D10), you must pair it with an extension cable that matches your proximity driver's total calibrated system length. If you are using a standard 5-meter driver system, the TM0180-A08-B13-C20-D10 requires a 4.0-meter extension cable; if utilizing a 9-meter driver system, an 8.0-meter extension cable must be used.
