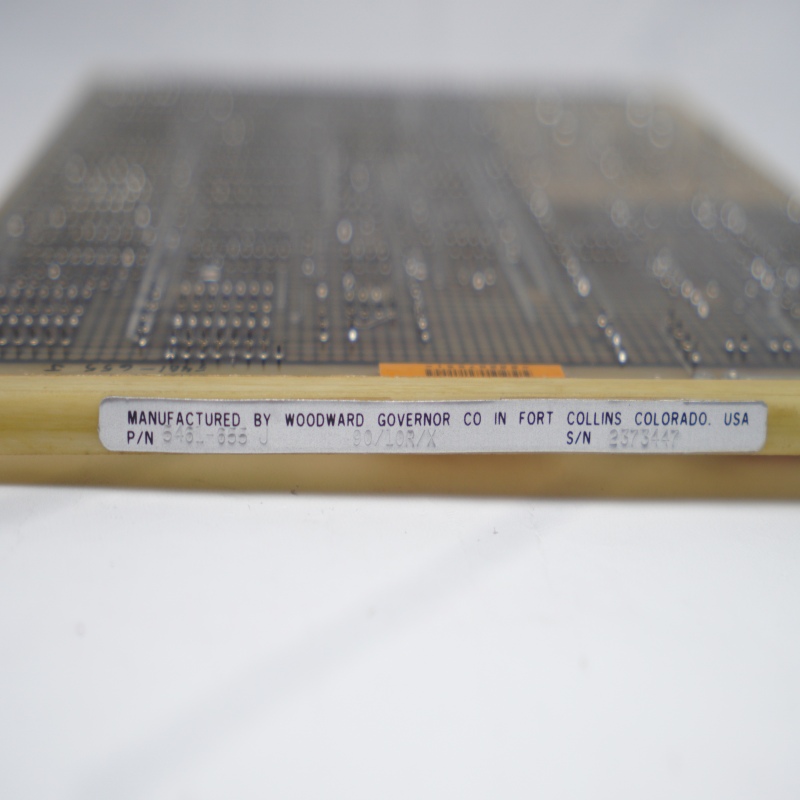

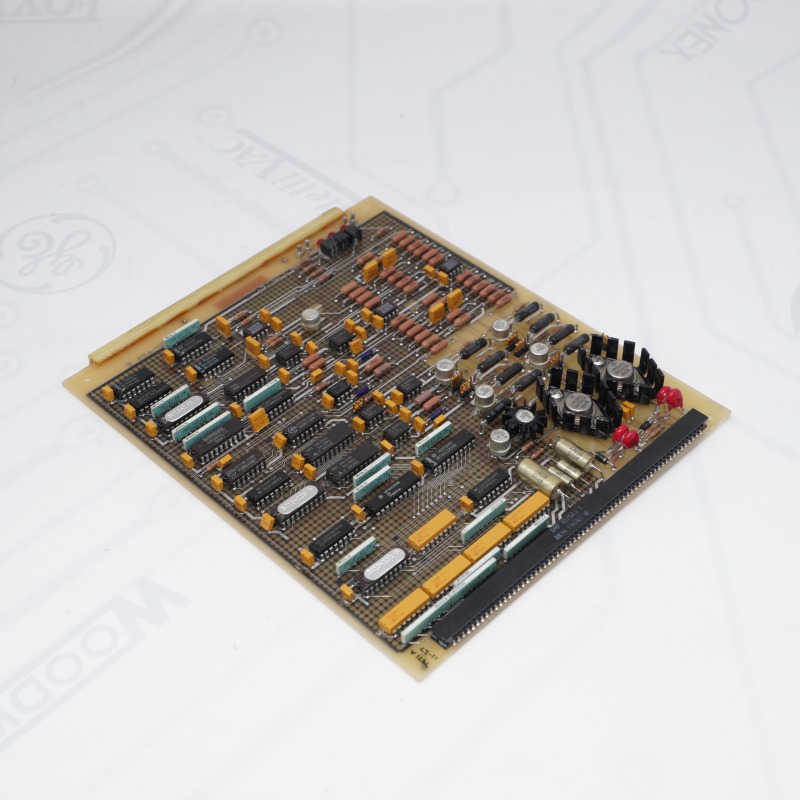

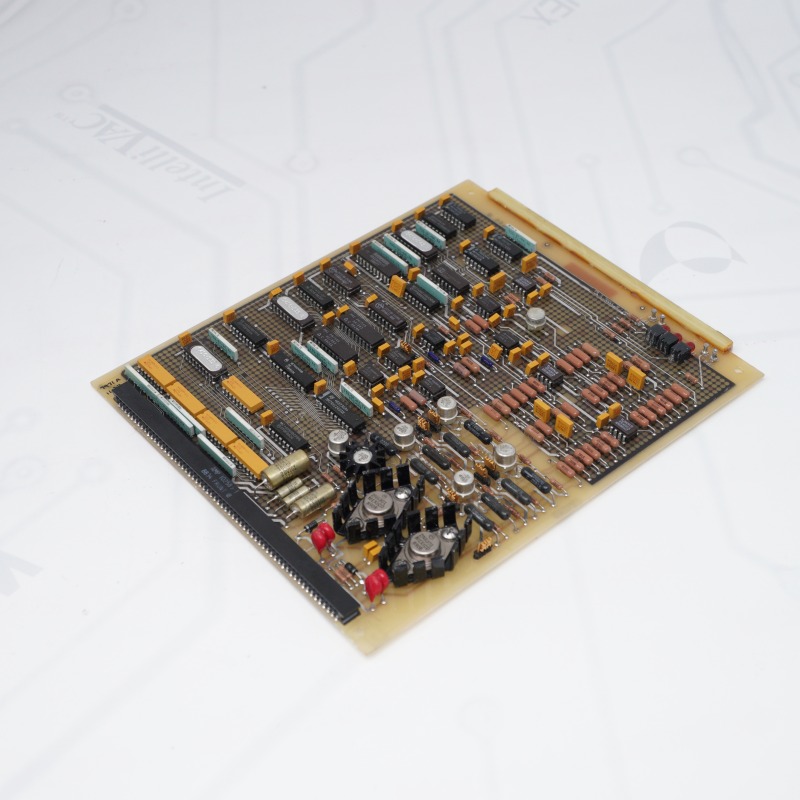

5461-655 Woodward Final Driver Module

Dual Protection & Drive: 5461-655 Final Driver Module combines precise actuator driving capabilities (e.g., for control valves) with robust overvoltage protection circuits.

Dual-Core Architecture: 5461-655 Final Driver Module utilizes an ARM Cortex-A53 + FPGA chipset to deliver an ultra-fast closed-loop response time (τ ≤ 2 ms).

Multi-Protocol Integration: 5461-655 Final Driver Module offers seamless compatibility with standard industrial network protocols, including ProfiNet, Modbus TCP, and EtherCAT.

Advanced Control Support: 5461-655 Final Driver Module handles complex operational demands through built-in support for PID, adaptive, and fuzzy control algorithms.

Rugged Industrial Design: Engineered for harsh environments with high electromagnetic interference (EMI/RFI) immunity and optimized heat dissipation.

5461-655 Final Driver Module Safety First

Power Down: Disconnect all system power before inserting the Woodward Final Driver Module.

ESD Protection: Wear a grounded wrist strap to prevent static damage.

Chassis Slot: Slide the Woodward Final Driver Module firmly into the MicroNet chassis.

Securing: Tighten faceplate screws to ensure proper module grounding.

Airflow: Keep ventilation paths clear to prevent overheating.

Connectors: Use designated plug-in terminal blocks for the Woodward Final Driver Module.

Shielding: Use shielded, twisted-pair cables for all module signal lines.

Grounding: Ground shields at one end only to prevent ground loops.

Isolation: Separate low-voltage Woodward 5461-655 lines from high-voltage cables.

If you want to more details about Woodward Final Driver Module，please contact me without hesitate.Email：sales@sparecenter.com

Driven by a "Customer First" philosophy, Tina Jiang manages key accounts at Spare Center to keep modern production lines running efficiently. Whether you are dealing with an emergency turbine shutdown or upgrading a legacy PLC system, Tina utilizes Spare Center's massive multi-brand inventory to provide fast, multilingual support and verified product quality.

Q: What is the nominal voltage protection threshold for the Woodward 5461-655 module?

A: The Woodward 5461-655 is designed with a nominal protection voltage threshold of 32 VDC, with clamping voltage peaking at 35 VDC to safeguard the system backplane.

Q: How fast does the surge suppression circuitry in the Woodward 5461-655 react to electrical faults?

A: The high-speed transient suppression circuits inside the 5461-655 Woodward clamp down on overvoltage spikes in less than 1 microsecond, preventing damage to downstream CPUs.

Q: Can the Woodward 5461-655 module be hot-swapped while the turbine control system is fully operational?

A: No, hot-swapping the 5461-655 Woodward is strictly prohibited; the host chassis must be entirely powered down before extraction or insertion to protect system integrity.

Q: What is the electrical isolation rating provided by the 5461-655 Woodward module?

A: The 5461-655 Woodward features an internal galvanic isolation rating of 500 Vdc between the control circuitry and external field devices.

Q: What are the allowable storage and operating temperature limits for the 5461-655 Woodward?

A: The 5461-655 Woodward supports an operating range of -30 °C to +65 °C and a storage environment range of -40 °C to +85 °C.

Q: Does the Woodward 5461-655 include on-board relays for monitoring network membership?

A: Yes, the internal architecture of the 5461-655 Woodward tracks load sharing and bus connection statuses, triggering discrete alarm signals if a network member drops out.

Q: Can field engineers recalibrate the internal valve-driver settings of a Woodward 5461-655 module?

A: No, the individual calibrations on the 5461-655 Woodward are performed on special test stands; field service is limited to replacing the component as an assembly.
