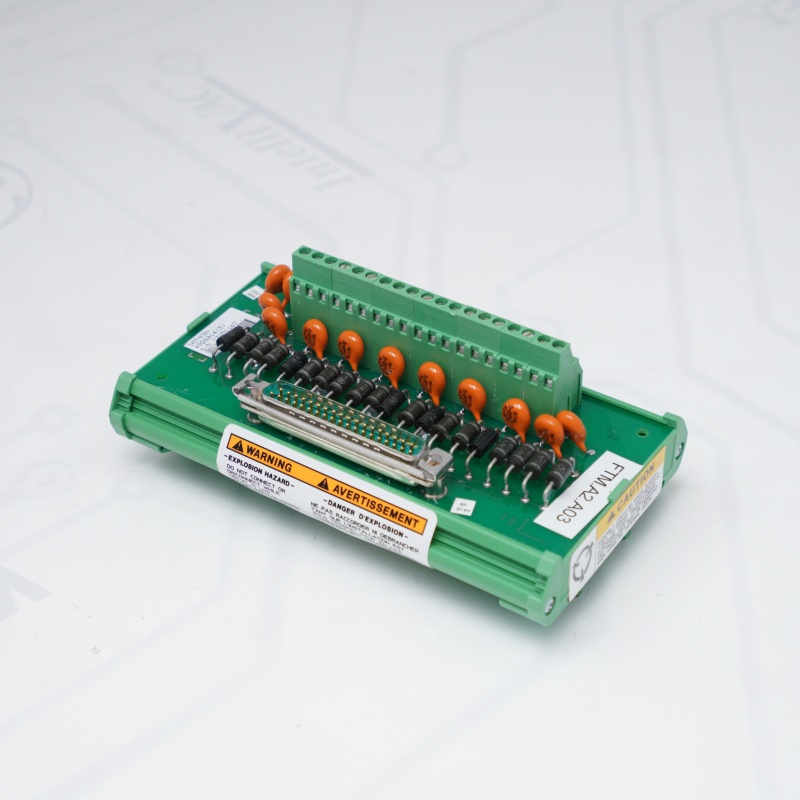

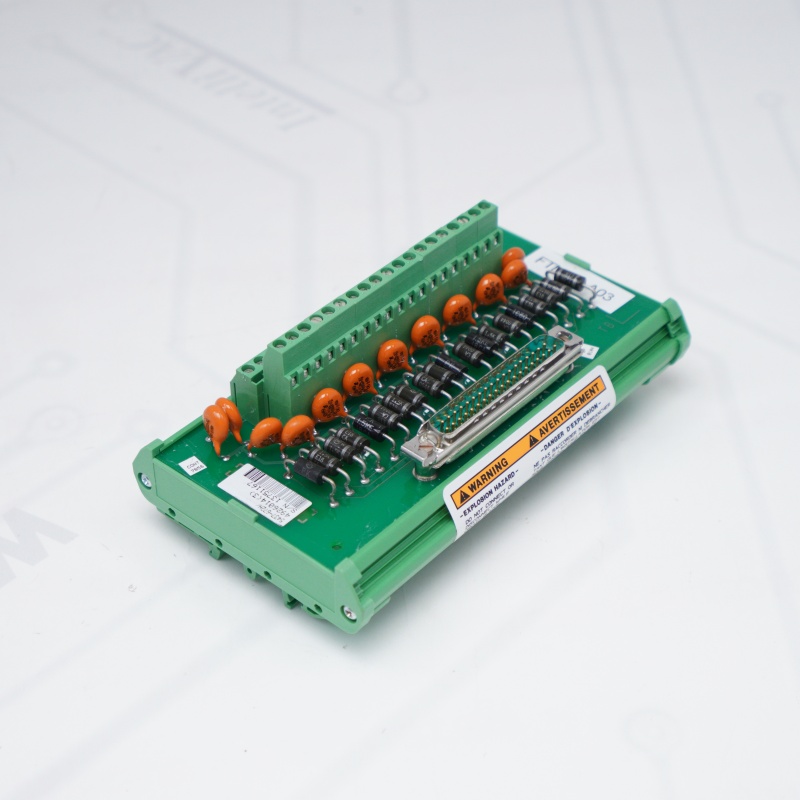

5437-672 Woodward Field Termination Modules

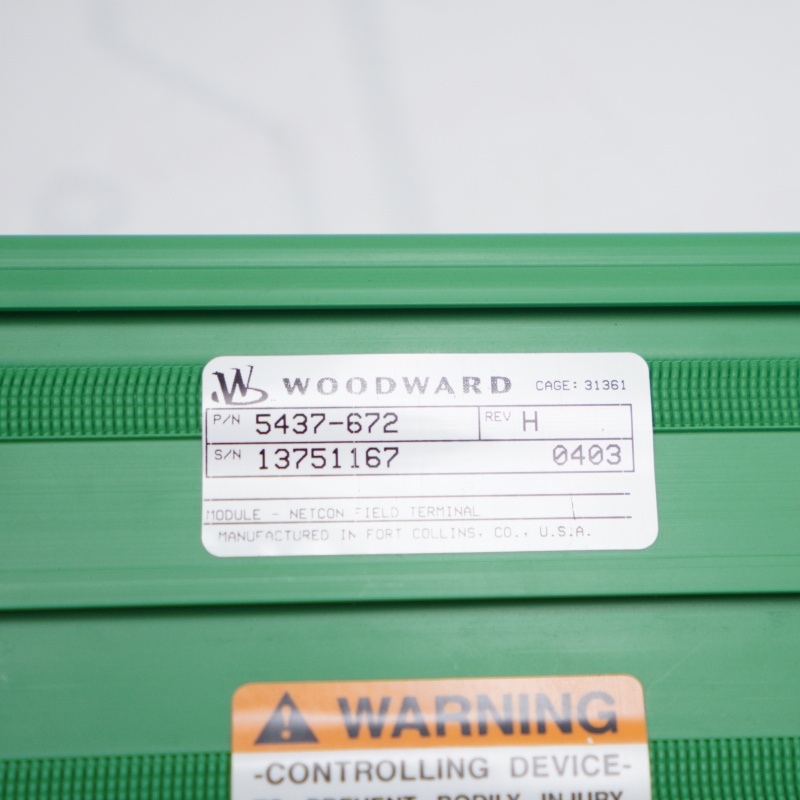

Part Number (P/N): 5437-672

5437-672 Woodward Name: Bi-Polar (±) Actuator Driver Field Termination Module (FTM)

5437-672 Woodward System Family: MicroNet™ Platform (MicroNet+ / MicroNet TMR)

5437-672 Woodward Primary Application: Serves as the field termination terminal block for 2-channel turbine actuator drivers.

5437-672 Woodward Upstream Module Compatibility: Directly pairs with 2-channel integrating or proportional output drivers, including part numbers 5501-1428, 5501-1429, 5501-1430, 5501-1431, and 5501-1432 (supporting output ranges from ±12.25 mA up to ±245 mA).

5437-672 Woodward Interconnection Cable: Requires a standardized Woodward Table K application cable for rack-to-FTM connectivity.

Woodward Field Termination Modules Manufacturer: Woodward, Inc.

Bi-Polar Actuator Signal Termination
The Woodward 5437-672 acts as a dedicated termination point for routing bi-polar (±) currents, managing proportional or integrating signals directly to turbine hydraulic valves.

MicroNet System Bridging
The Woodward 5437-672 serves as the critical hardware connection block that bridges central MicroNet Plus or TMR control racks with physical field equipment.

Multi-Range Driver Support
The Woodward 5437-672 module interfaces seamlessly with 2-channel actuator output drivers across a wide current spectrum from ±12.25 mA up to ±245 mA.

Woodward Field Termination Modules Secure Field Wiring Routing
The Woodward 5437-672 cleans up control cabinet layouts by consolidating raw field wiring into standardized, structured connections using specialized "Table K" system cables.

• A1: The Woodward Field Termination Modules is a specialized Bi-Polar (±) Actuator Driver Field Termination Module (FTM).Woodward Field Termination Modules serves as the dedicated wiring interface designed to route precision proportional or integrating current signals from central control systems directly to hydraulic turbine positioning actuators.

• A2: The Woodward 5437-672 is engineered explicitly for the Woodward MicroNet™ platform, offering full hardware compatibility with both MicroNet Plus and MicroNet Fault-Tolerant (TMR) turbine control chassis.

• A3: The Woodward 5437-672 pairs seamlessly with Woodward’s 2-channel bi-polar actuator driver modules, supporting hardware part numbers 5501-1428, 5501-1429, 5501-1430, 5501-1431, and 5501-1432.

• A4: The Woodward 5437-672 is built to safely handle and route multi-range bi-polar current loops across a broad spectrum, starting from low-current ±12.25 mA drives up to high-current ±245 mA valve actuator demands.

• A5: To establish a secure and noise-immune connection between the MicroNet rack and the 5437-672, system engineers must deploy a standardized Woodward Table K application cable.

• A6: The Woodward 5437-672 is classified as a legacy/discontinued automation component. Facilities needing a reliable replacement unit can purchase the 5437-672 directly from our Spare Parts Center, where we maintain inspected, high-quality inventory ready for immediate dispatch.
