SIEMENS 6ES5316-8FA12 Specification
| Module Type | IM 316F Interface Module |
| Product Family | SIMATIC S5 (specifically S5-90U, S5-95U/F, and S5-100U) |
| Expansion Capacity | Supports the connection of up to 3 expansion racks or distributed I/Os like ET 100U and ET 200U |
| POWER CONSUMPTION | typ. 27 mA (+9 V) |
| DIMENSIONS | 45.4 x 135 x 39 mm |
| WEIGHT | 120 g |
SIEMENS 6ES5316-8FA12 Compatibility
SIEMENS 6ES5316-8FA12 is compatible with several older Siemens automation components, including:
PLC CPUs: S5-90U, S5-95U, S5-95F (failsafe version), and S5-100U
Distributed I/O: ET 100U and ET 200U systems
SIEMENS 6ES5316-8FA12 Key Features
1
Multi-Rack Expansion
SIEMENS 6ES5316-8FA12 allows a central S5 controller (such as the S5-100U or S5-95U) to connect and manage up to three expansion racks, significantly increasing the system's I/O capacity.
2
Enhanced EMC Resistance
The "F" version is specifically designed with superior electromagnetic compatibility, making it highly resistant to electrical noise and interference in harsh industrial environments.
3
Seamless S5 Integration
SIEMENS 6ES5316-8FA12 is fully compatible with the SIMATIC S5-90U, 95U/F, and 100U series, as well as ET 100U and ET 200U distributed I/O systems, ensuring easy integration into legacy setups.
If you want to more details about SIEMENS INTERFACE MODULE，please contact me without hesitate.Email：sales@sparecenter.com
SIEMENS INTERFACE MODULE Images

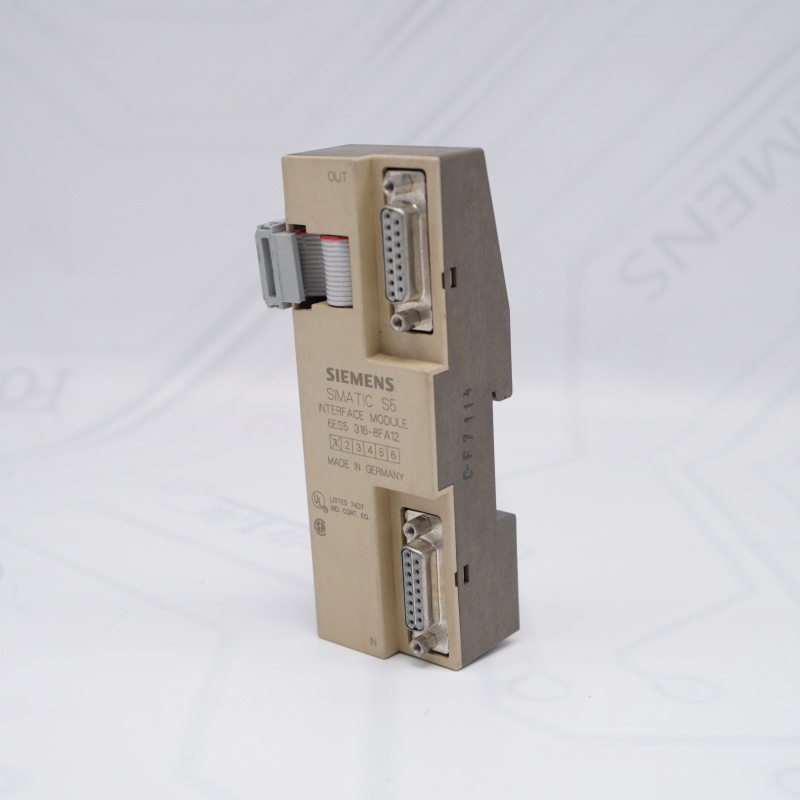

SIEMENS INTERFACE MODULE

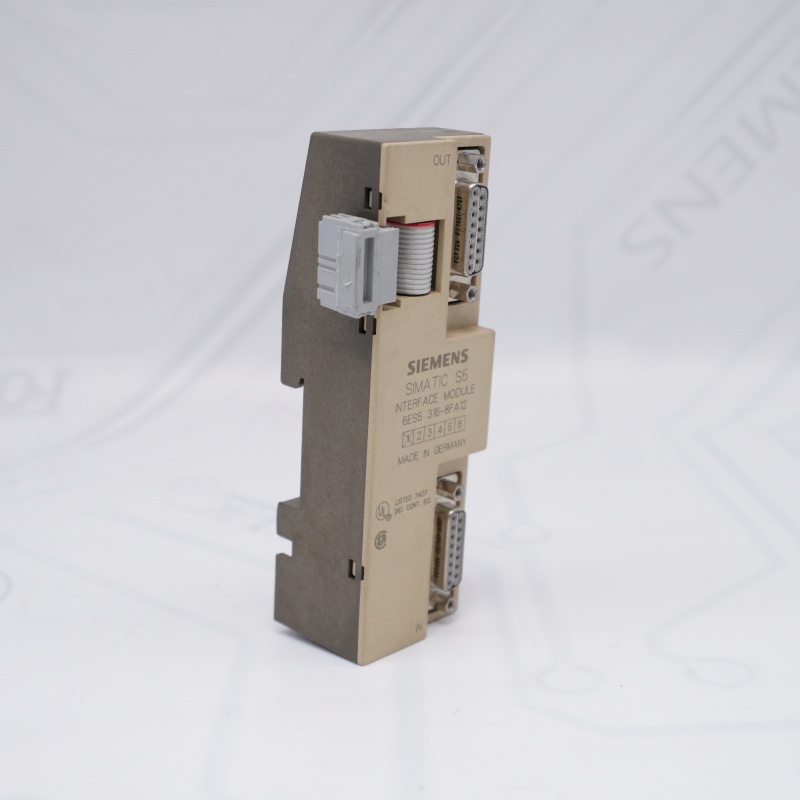

SIEMENS INTERFACE MODULE

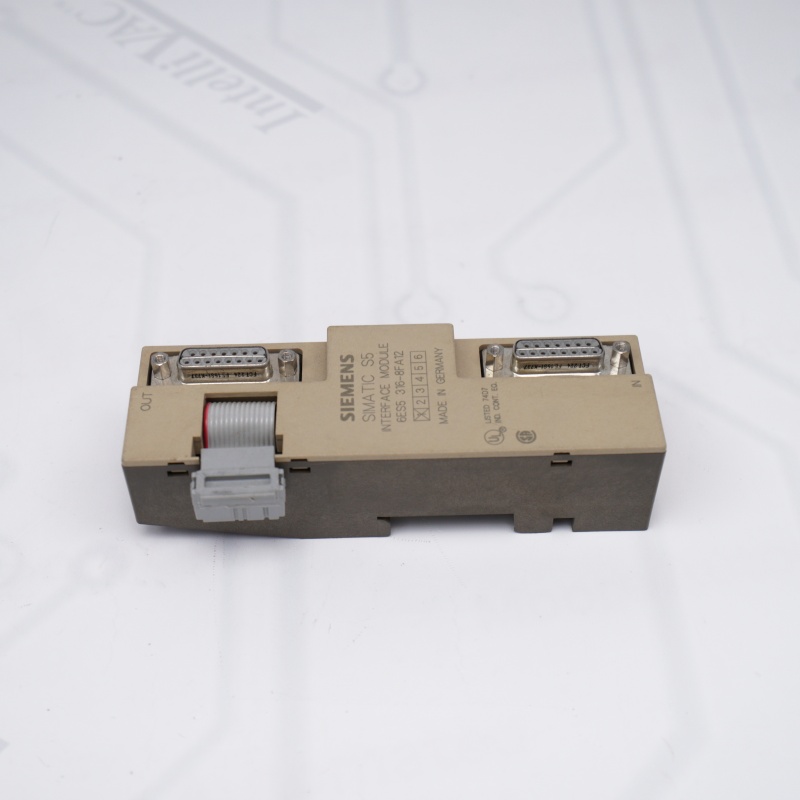

SIEMENS INTERFACE MODULE

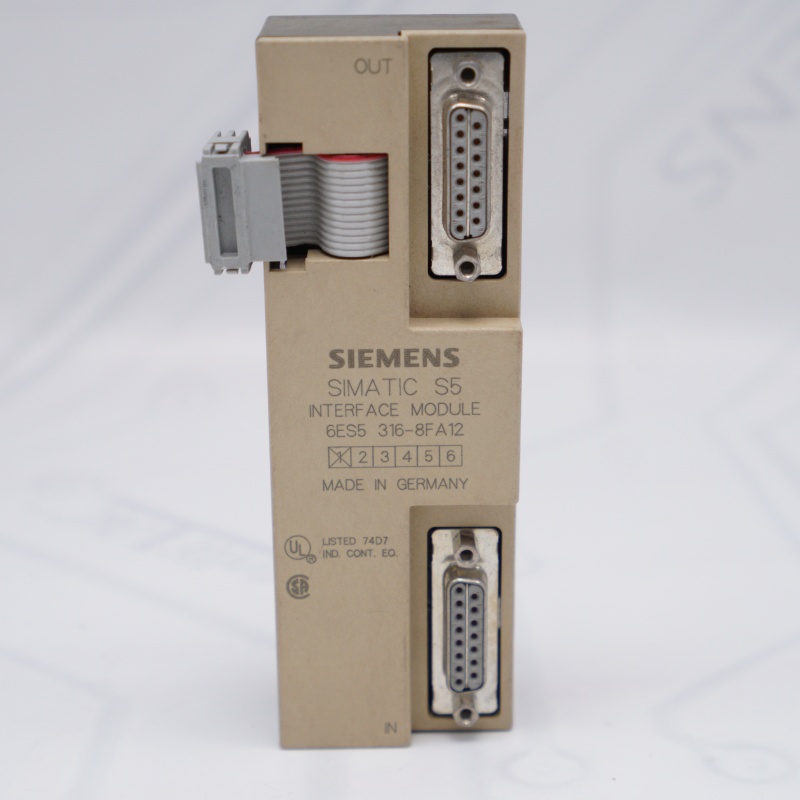

SIEMENS INTERFACE MODULE
SIEMENS INTERFACE MODULE FAQ
1. What is the primary function of the 6ES5316-8FA12?
The 6ES5316-8FA12（6ES5316-8FA12 INTERFACE MODULE) is an Interface Module (IM) used to connect a SIMATIC S5 central controller (such as the S5-100U or S5-95U) to expansion racks. It facilitates the expansion of the I/O configuration, allowing the system to manage up to three expansion racks from a single central unit.
The 6ES5316-8FA12（6ES5316-8FA12 INTERFACE MODULE) is an Interface Module (IM) used to connect a SIMATIC S5 central controller (such as the S5-100U or S5-95U) to expansion racks. It facilitates the expansion of the I/O configuration, allowing the system to manage up to three expansion racks from a single central unit.
2. What does the "F" designation signify in the 6ES5316-8FA12 model?
The "F" in 6ES5316-8FA12(6ES5316-8FA12 INTERFACE MODULE) stands for Enhanced EMC (Electromagnetic Compatibility). This specific version is engineered with superior shielding and noise immunity compared to standard interface modules, ensuring stable data transmission in industrial environments with high electrical interference.
The "F" in 6ES5316-8FA12(6ES5316-8FA12 INTERFACE MODULE) stands for Enhanced EMC (Electromagnetic Compatibility). This specific version is engineered with superior shielding and noise immunity compared to standard interface modules, ensuring stable data transmission in industrial environments with high electrical interference.
3. Which Siemens PLC systems are compatible with the 6ES5316-8FA12?
The 6ES5316-8FA12(6ES5316-8FA12 INTERFACE MODULE) is designed for the SIMATIC S5 ecosystem. It is fully compatible with the following CPUs and distributed systems:
The 6ES5316-8FA12(6ES5316-8FA12 INTERFACE MODULE) is designed for the SIMATIC S5 ecosystem. It is fully compatible with the following CPUs and distributed systems:
CPUs: S5-90U, S5-95U, S5-95F (fail-safe), and S5-100U.
Distributed I/O: ET 100U and ET 200U expansion systems.
4. What are the electrical power requirements for the 6ES5316-8FA12 INTERFACE MODULE?
The 6ES5316-8FA12 INTERFACE MODULE typically draws its power directly from the S5 backplane bus. It has a low internal current consumption of approximately 27 mA at +9 V DC. Note that while the module handles logic communication, the expansion racks it connects to usually require their own independent power supply modules.
The 6ES5316-8FA12 INTERFACE MODULE typically draws its power directly from the S5 backplane bus. It has a low internal current consumption of approximately 27 mA at +9 V DC. Note that while the module handles logic communication, the expansion racks it connects to usually require their own independent power supply modules.
5. How is the 6ES5316-8FA12 INTERFACE MODULE physically installed and connected?
The 6ES5316-8FA12 INTERFACE MODULE is a plug-in module that mounts onto the standard S5 bus rail. It features a specific interface port (typically a 15-pin D-sub or specialized ribbon connector) used to link to the next expansion rack via a dedicated 712-series connecting cable.
The 6ES5316-8FA12 INTERFACE MODULE is a plug-in module that mounts onto the standard S5 bus rail. It features a specific interface port (typically a 15-pin D-sub or specialized ribbon connector) used to link to the next expansion rack via a dedicated 712-series connecting cable.
6. Is the 6ES5316-8FA12 INTERFACE MODULE still in active production?
No, the 6ES5316-8FA12 INTERFACE MODULE is discontinued. However, you can purchase this module directly from us, which can help you maintain your existing system without requiring an expensive full-scale overhaul.
No, the 6ES5316-8FA12 INTERFACE MODULE is discontinued. However, you can purchase this module directly from us, which can help you maintain your existing system without requiring an expensive full-scale overhaul.
