SST 5136-DNP-CPCI interface card

  • SST
  • USA
  • 2024
  • In Stock
The SST 5136-DNP-CPCI is an industrial DeviceNet interface card manufactured by SST (a brand under Molex and Woodhead) designed to connect CompactPCI bus computers to DeviceNet networks. SST interface card is widely used in automation applications like HMI, PC control, and I/O emulation because SST card executes the entire DeviceNet protocol directly in hardware, offloading processing from the host computer.
Annex

SST interface card Specification


ItemSST card Specifications
ModelSST 5136-DNP-CPCI
Form Factor3U 32-bit CompactPCI
ProcessorOnboard 40 MHz AM186EM
Memory256KB Shared RAM / 512KB Flash
Connector5-pin removable DeviceNet terminal
Baud Rates125, 250, 500 Kbaud
Isolation500V optical isolation
OperationSimultaneous Master & Slave
ConnectionsUCMM (Group 1, 2, 3) supported
Compatibility32-bit Windows DLLs & HMI software


SST interface card Features


  • SST card：Entire DeviceNet Protocol is Executed in Hardware

  • SST card：UCMM Capable, Group 1, 2, and 3 Dynamic Explicit Connections Supported

  • SST card：Simultaneous Execution of Group 2 Client (Master) and Server (Slave) Operation

  • SST card：All DeviceNet Standard Baud Rates Supported: 125, 250, and 500 Kbaud

  • SST card：Full DeviceNet Implementation Including Change of State (COS) and Explicit Messaging

  • SST card：DeviceNet Compliance is Ensured at the Card Level for I/O Scanner and Device Applications

If you want to more details about SST interface card，please contact me without hesitate.Email：sales@sparecenter.com


SST interface card Images

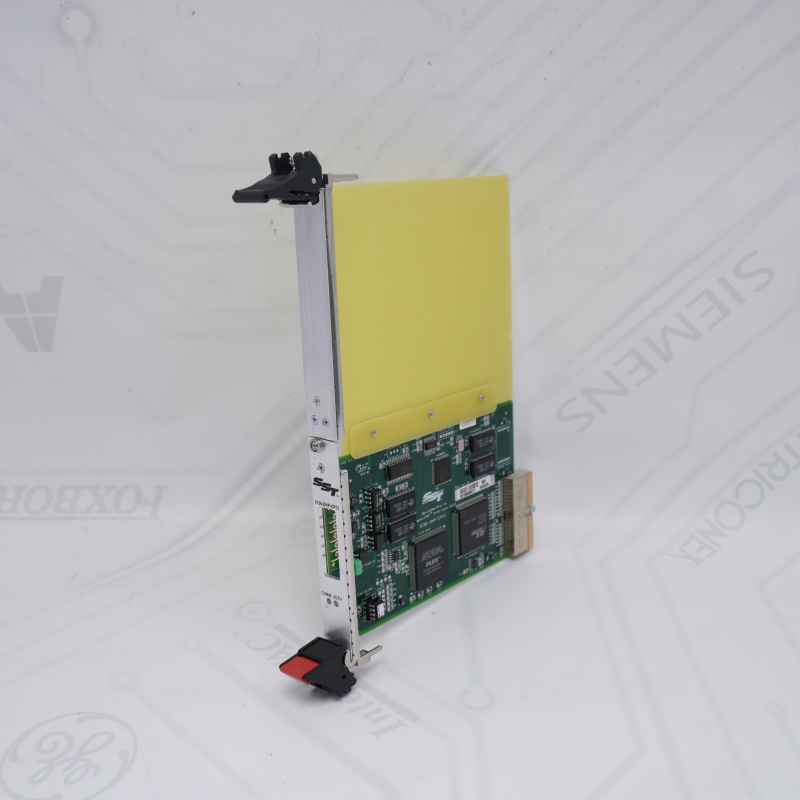

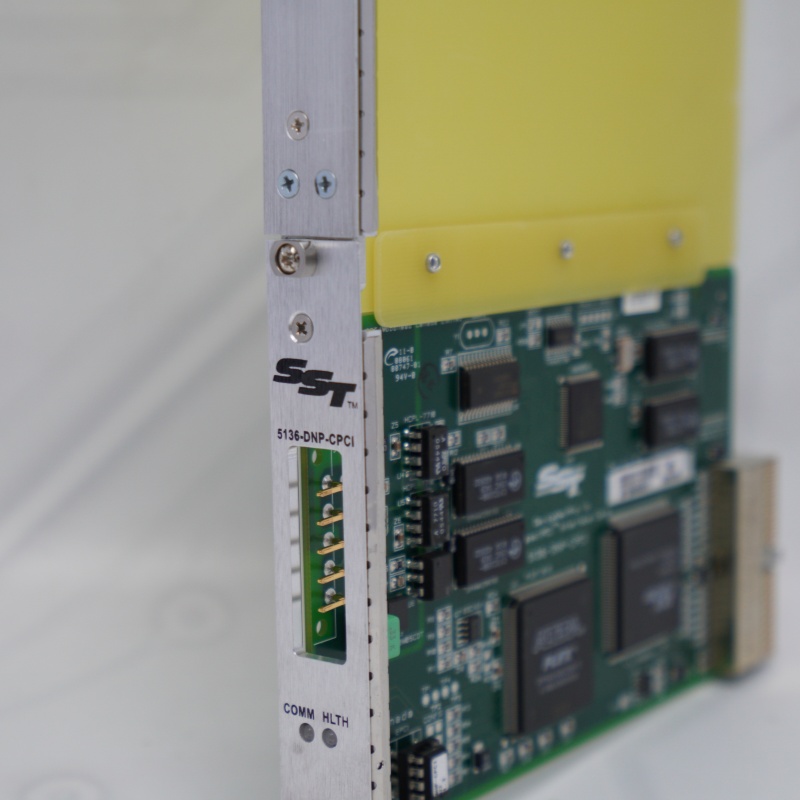

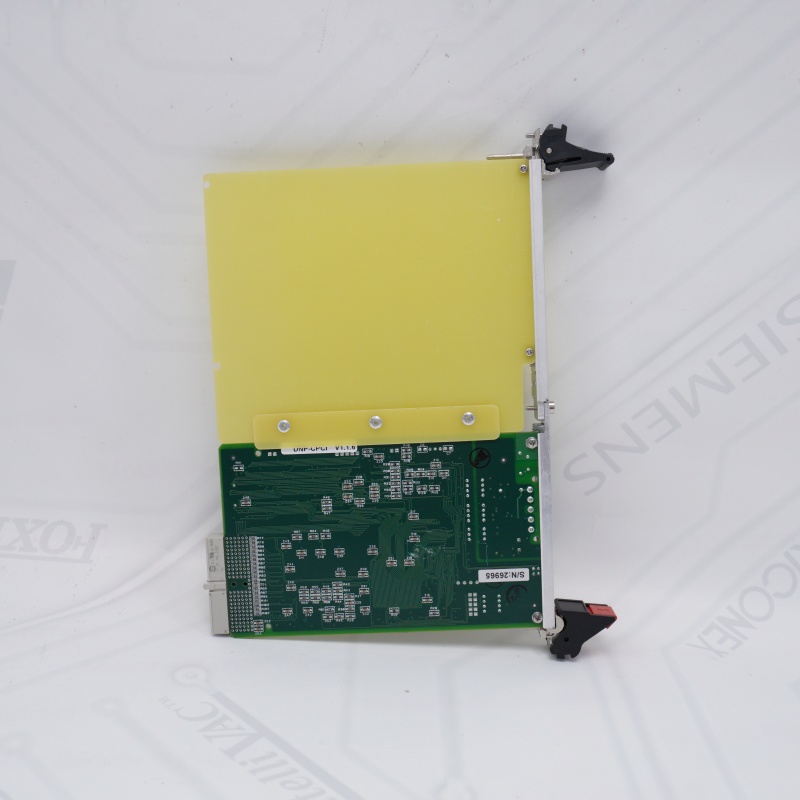

SST 5136-DNP-CPCI

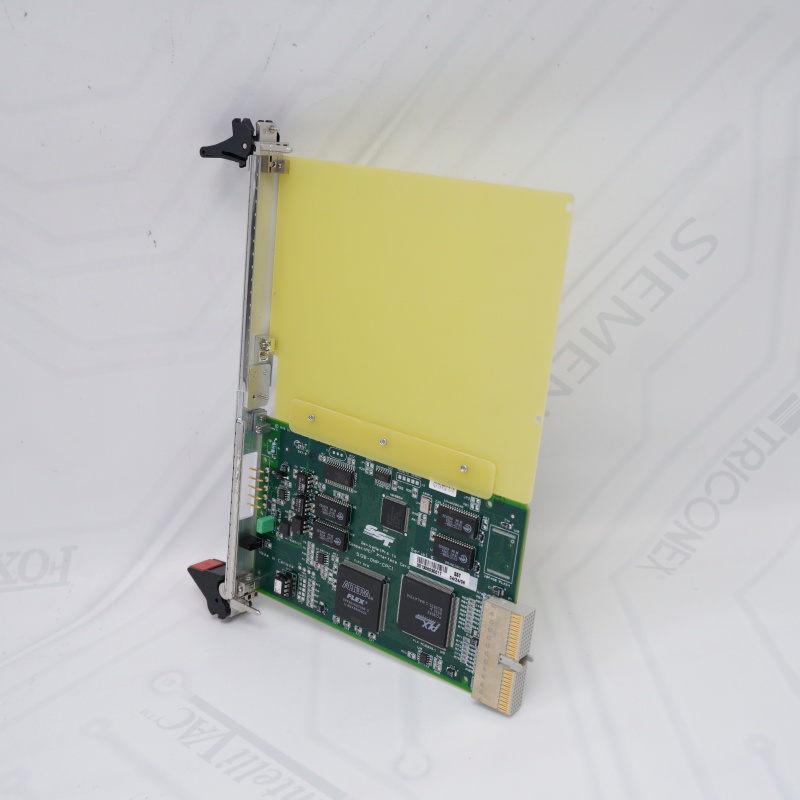

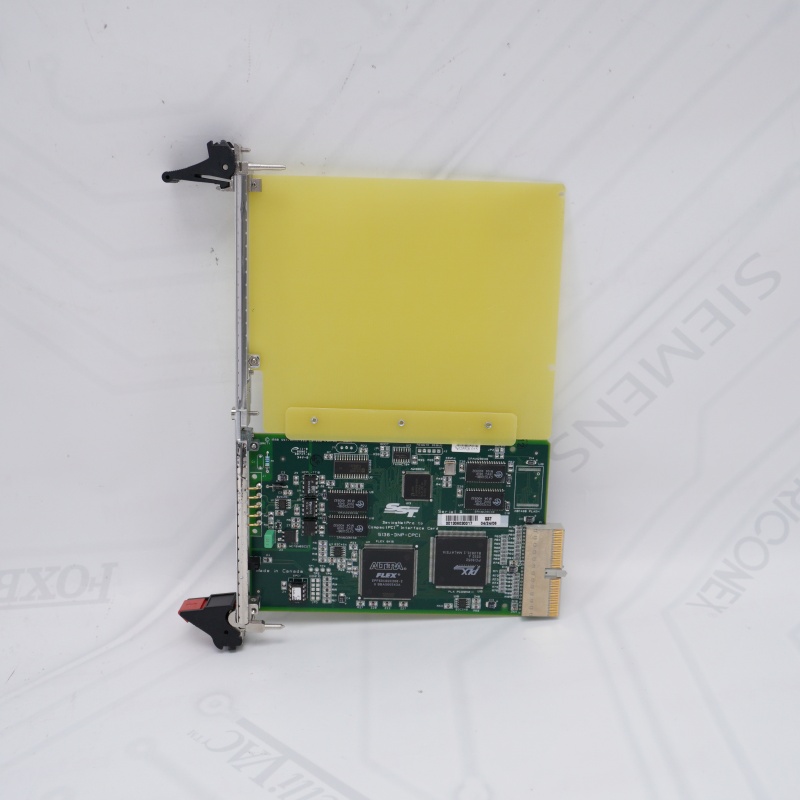

SST interface card

5136-DNP-CPCI

SST interface card

SST interface card

SST interface card

SST 5136-DNP-CPCI

SST interface card


SST card Application


  • SST card Operator Interface (HMI): Connecting PC-based monitoring software to DeviceNet.

  • SST card PC-Based Control: Turning a PC into a logic controller for DeviceNet I/O.

  • SST card Network Configuration: Managing, commissioning, and diagnosing DeviceNet networks.

  • SST card I/O Emulation: Simulating DeviceNet nodes for system testing and development.

  • 5136-DNP-CPCI interface card Industrial Integration: Used in medical, military, and lab equipment requiring cPCI connectivity.

5136-DNP-CPCI interface card（SST card） FAQ



1. Does the SST 5136-DNP-CPCI rely on the host PC's CPU for protocol processing?
No. The SST 5136-DNP-CPCI（SST card） features an onboard 40 MHz AM186EM microprocessor that executes the full DeviceNet protocol stack in hardware, ensuring high-performance data throughput and minimal host CPU overhead.
2. Can the SST 5136-DNP-CPCI（SST card） operate as both a Master and a Slave simultaneously?
Yes. The SST 5136-DNP-CPCI （SST card）supports simultaneous execution of Group 2 Master (Client) and Slave (Server) operations, allowing it to control I/O while appearing as a node to another master.
3. What specific bus architecture does the SST 5136-DNP-CPCI support?
The SST 5136-DNP-CPCI（5136-DNP-CPCI interface card） is designed for the 32-bit CompactPCI (cPCI) bus, typically used in 3U small form factor industrial chassis. SST card is a Plug-and-Play device where BIOS automatically assigns memory and interrupt resources.
4. Does the SST 5136-DNP-CPCI（5136-DNP-CPCI interface card） provide electrical protection against network surges?
Yes. The SST 5136-DNP-CPCI（5136-DNP-CPCI interface card） includes a CAN transceiver interface that is 500V optically isolated from the cPCI bus to protect the host system from ground loops and industrial electrical noise.
5. Is an external power supply required for the SST 5136-DNP-CPCI network interface?
The SST 5136-DNP-CPCI（5136-DNP-CPCI interface card） consumes +5V from the cPCI bus. For the DeviceNet side, 5136-DNP-CPCI interface card can either draw power from the network or be configured to work with non-powered CAN networks using an external 12-24 VDC supply.
6. Which DeviceNet connection types are supported by the SST 5136-DNP-CPCI（5136-DNP-CPCI interface card）?
The SST 5136-DNP-CPCI（5136-DNP-CPCI interface card） is UCMM (Unconnected Message Manager) capable, supporting Group 1, 2, and 3 dynamic explicit connections for versatile communication with various DeviceNet devices.
