FC-TSAOH-0220M HONEYWELL Safe Analog Output FTA

Main Module: For Safe AO Module SAO-0220m

Channels: 2 independent isolated channels (0/4–20 mA)

Digital Communication: Integrated HART interface

Max Voltage / Leakage: 40 Vdc / < 0.05 mA at Off-state

Loop Load (Active): Max 600 Ω

Voltage Drop (Passive): Max 7.5 V

Dimensions / Wiring: 64 × 109 × 66 mm / Max 2.5 mm²

HONEYWELL Safe Analog Output FTA Protection / Connection: Conformal coated / SICC-0001/Lx cable

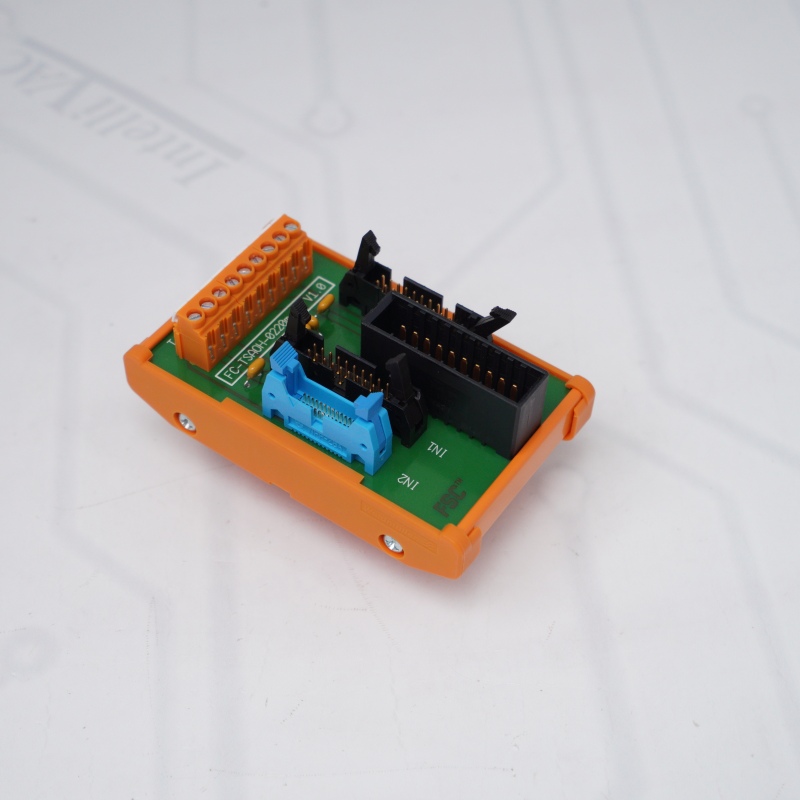

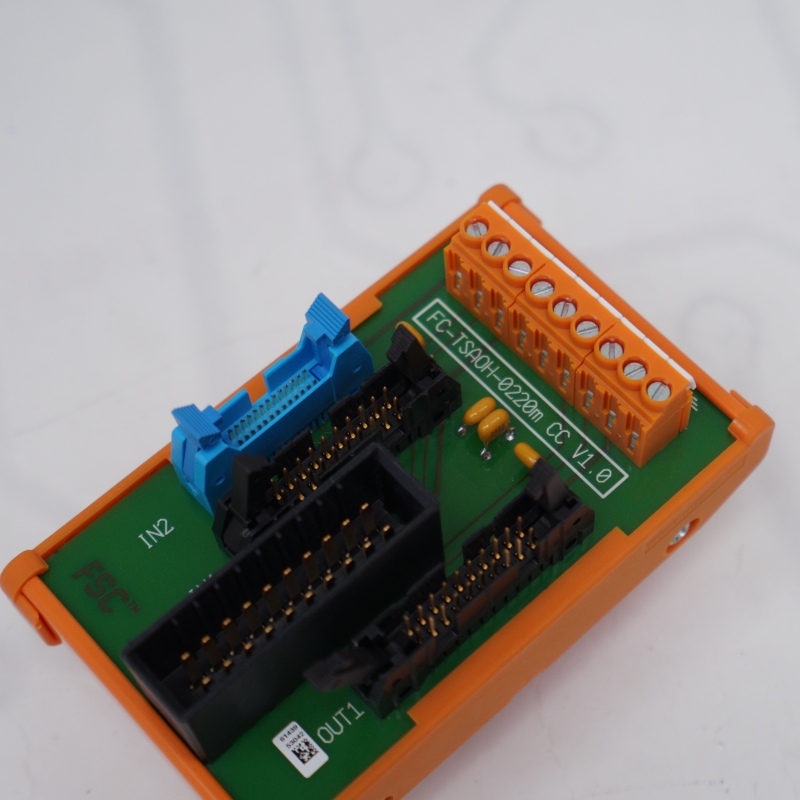

IN2 & OUT1 Headers: Dual connectors (Blue IN2 / Black OUT1) for host signal entry and redundant channel cascading via SICC cables.

HART Pass-Through: Integrated male pin arrays for direct flatcable coupling to a HART multiplexer without disrupting safety loops.

DIN Rail Mounting: Heavy-duty snap-on base on the reverse side for secure tool-free latching onto standard 35mm DIN rails.

Isolated Terminals: 9-position screw block supporting wires up to 2.5 mm² (AWG 14) with full galvanic isolation.

Global Procurement: Providing new, surplus, and hard-to-find components across major automation brands.

Same-Day Delivery: Immediate stock processing and global shipping via DHL, FedEx, UPS, and TNT.

Massive PLC Inventory: Immediate access to one of Asia's largest programmable controller warehouses.

Strict Quality Testing: Mandatory origin verification supporting independent third-party component testing.

Multilingual Assistance: Around-the-clock sales support fluent in English, Spanish, German, and Japanese.

Q1: What makes FC-TSAOH-0220M HONEYWELL different from standard analog output FTAs?

A1: The FC-TSAOH-0220M HONEYWELL is engineered for critical safety loops up to SIL3. It guarantees a strict off-state leakage current of < 0.05 mA to prevent accidental actuator movement during trips.

Q2: How does FC-TSAOH-0220M HONEYWELL handle active versus passive field loop powering?

A2: No jumper adjustment is needed on the FC-TSAOH-0220M HONEYWELL. Active loops support up to 600 Ω, while passive loops require the external supply to accommodate the module's ≤ 7.5 V internal drop.

Q3: Why choose FC-TSAOH-0220M HONEYWELL for harsh industrial environments?

A3: The "FC-" prefix ensures the HONEYWELL FC-TSAOH-0220M comes with a factory-applied conformal coating. This safeguards the circuitry against humidity, moisture, and airborne chemical corrosion.

Q4: How is HART communication connected to the HONEYWELL FC-TSAOH-0220M?

A4: The HONEYWELL FC-TSAOH-0220M  features a built-in HART flatcable interface. This permits direct linking to a HART multiplexer for smart device diagnostics without disrupting the safety signal.
