ABB Sensor Module Assembly Specifications
| Manufacturer | ABB |

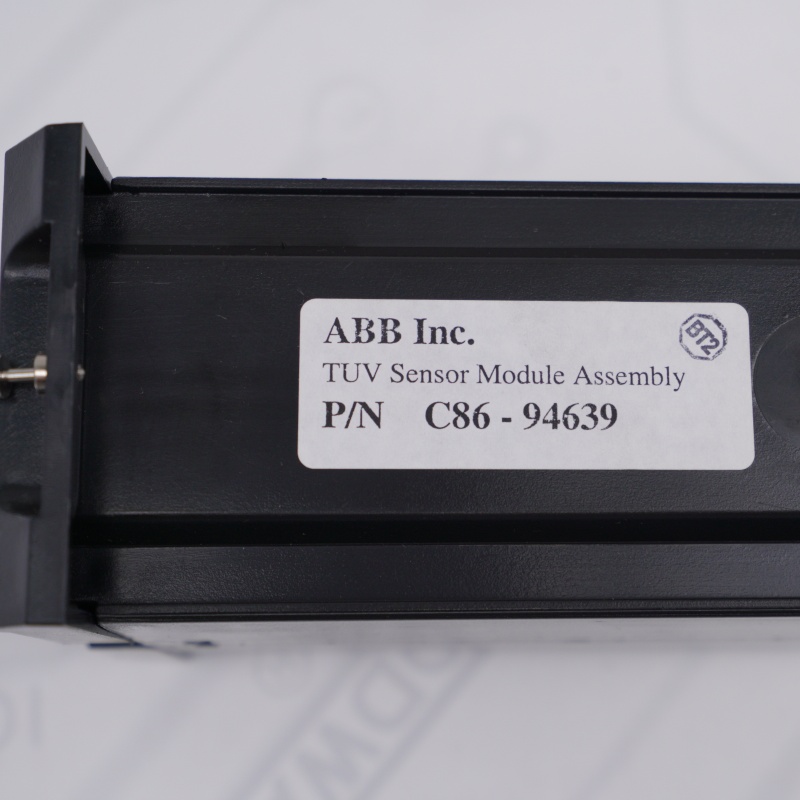

Product No. | C86-94639 |
Product Type | Sensor Module Assembly,PCBA,TUV |
| Front End Filter | FlameScanner |
| Gross Weight | 1.3 lb |
ABB Sensor Module Assembly Details

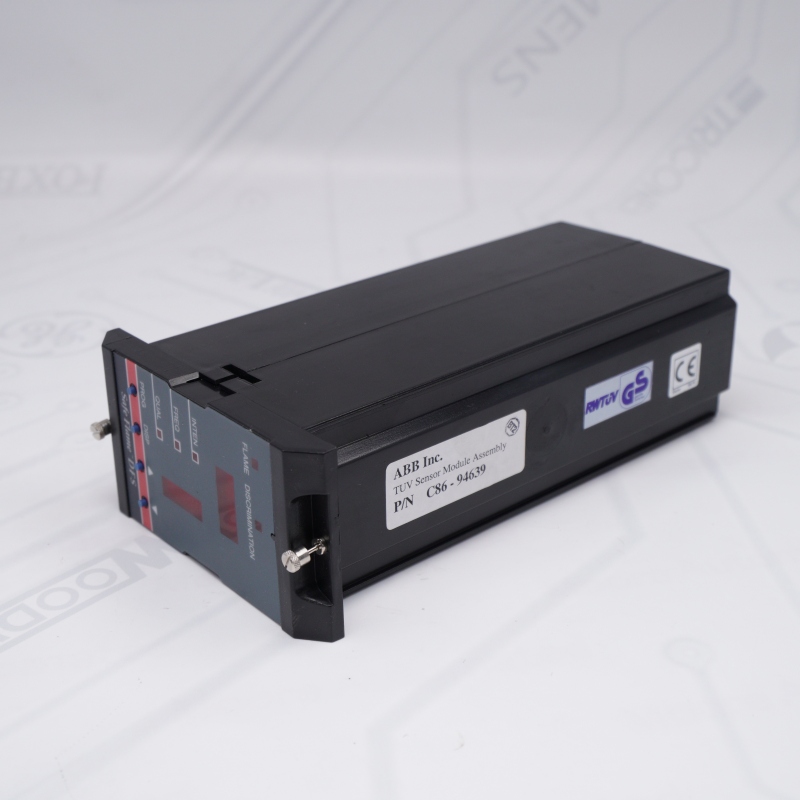

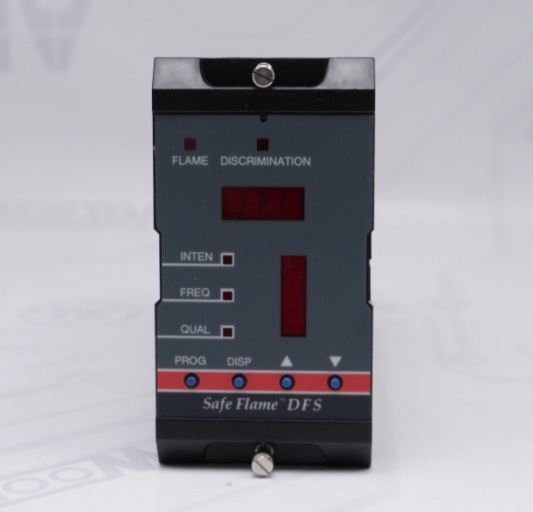

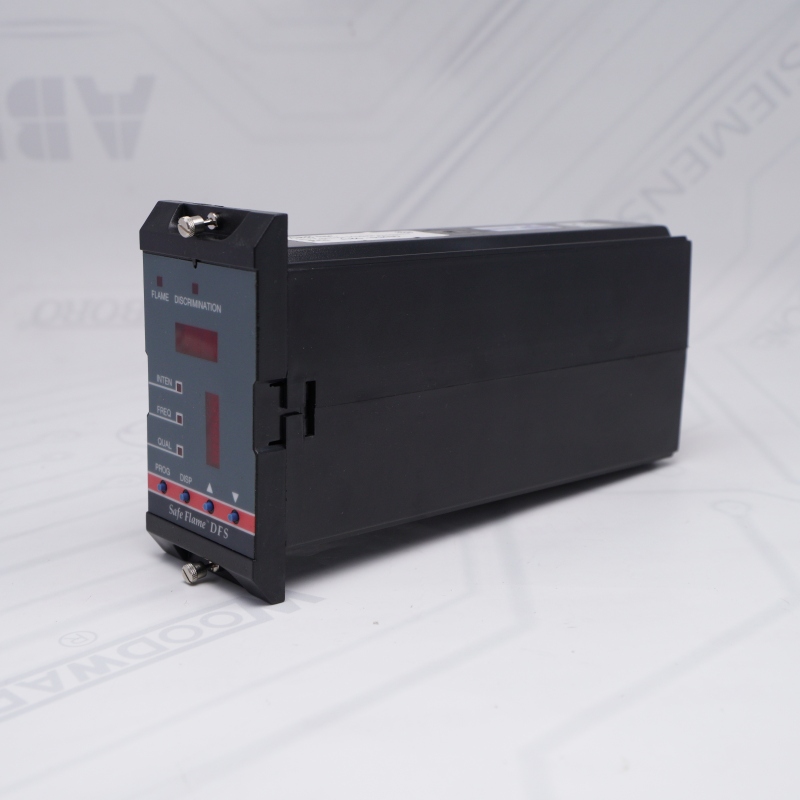

Description: The ABB C86-94639 is a Safe Flame DFS Sensor Module Assembly designed for industrial flame scanner systems. ABB Sensor Module Assembly is a critical component used in industrial automation to provide high-precision flame detection in hazardous environments like manufacturing and power generation. Feature： ABB Sensor Module Assembly Dual-Spectrum Detection: Utilizes both UV and IR technologies to ensure high-precision flame identification and eliminate false signals from background radiation. ABB Sensor Module Assembly Real-Time Quality Monitoring: Calculates a specific "Flame Quality" value, allowing operators to detect combustion degradation before a total flame failure occurs. ABB Sensor Module Assembly Rapid Safety Response: Features a response time of under 2 seconds, enabling immediate safety shutdowns to prevent fuel buildup in the event of a flameout. ABB Sensor Module Assembly Rugged Industrial Rating: Built for extreme environments with an operational temperature range of -40°C to +85°C, ideal for power and chemical plants. ABB Sensor Module Assembly Standard System Integration: Provides 4-20mA analog and relay outputs, ensuring seamless compatibility with standard DCS and Burner Management Systems (BMS). ABB Sensor Module Assembly TUV Safety Certification: The ABB C86-94639 is TUV-certified, meeting rigorous international safety standards for use in critical Safety Instrumented Systems (SIS). ABB Sensor Module Assembly Advanced Self-Diagnostics: The ABB C86-94639 features built-in self-checking logic that continuously monitors its own internal circuitry and sensor health to prevent "fail-to-danger" scenarios. |  |
C86-94639 Sensor Module Assembly Application
C86-94639 Sensor Module Assembly is a standard component for monitoring various burner and boiler types.
Power Generation: Used in utility and industrial boilers to prevent the accumulation of unburned fuel, thus avoiding the risk of explosion.
Manufacturing and Petrochemical: Used in process heaters and furnaces in chemical detection and petroleum control systems.
Multi-Fuel Combustion: Suitable for plants burning exhaust gases or multiple fuels, providing reliable flame data in the event of standard sensor failure.
Renewable Energy: Integrated into thermal and wind power systems as part of a broader industrial automation framework.
C86-94639 Sensor Module Assembly FAQ
1. What is the primary function of the ABB C86-94639 within a combustion system?
The ABB C86-94639（C86-94639 Sensor Module Assembly） serves as the central signal processing component of the Safe Flame DFS (Digital Flame Scanner) system. The ABB C86-94639 analyzes raw signals from remote optical scanners to determine flame presence, stability, and quality, providing critical data to the Burner Management System (BMS).
The ABB C86-94639（C86-94639 Sensor Module Assembly） serves as the central signal processing component of the Safe Flame DFS (Digital Flame Scanner) system. The ABB C86-94639 analyzes raw signals from remote optical scanners to determine flame presence, stability, and quality, providing critical data to the Burner Management System (BMS).
2. Which flame characteristics does the ABB C86-94639 monitor simultaneously?
The ABB C86-94639（C86-94639 Sensor Module Assembly） is designed for dual-channel processing. The ABB C86-94639 independently monitors the average DC intensity (flame brightness) and the AC pulse frequency (flame flicker), allowing it to distinguish the target flame from background radiation or adjacent burner interference.
The ABB C86-94639（C86-94639 Sensor Module Assembly） is designed for dual-channel processing. The ABB C86-94639 independently monitors the average DC intensity (flame brightness) and the AC pulse frequency (flame flicker), allowing it to distinguish the target flame from background radiation or adjacent burner interference.
3. How does the ABB C86-94639 handle different fuel types or firing conditions?
The ABB C86-94639 supports "Parameter Set Switching." Through its digital inputs, the ABB C86-94639 can switch between different pre-configured profiles (e.g., setpoints for oil vs. coal) in real-time, ensuring optimal detection sensitivity as combustion conditions change.
The ABB C86-94639 supports "Parameter Set Switching." Through its digital inputs, the ABB C86-94639 can switch between different pre-configured profiles (e.g., setpoints for oil vs. coal) in real-time, ensuring optimal detection sensitivity as combustion conditions change.
4. What are the output interface options available on the ABB C86-94639?
The ABB C86-94639 offers comprehensive connectivity for industrial integration. The ABB C86-94639 includes two Form C (SPDT) relays for flame status and marginal alerts, a 4-20mA analog output for flame intensity, and an optically isolated RS-232 port for digital diagnostics.
The ABB C86-94639 offers comprehensive connectivity for industrial integration. The ABB C86-94639 includes two Form C (SPDT) relays for flame status and marginal alerts, a 4-20mA analog output for flame intensity, and an optically isolated RS-232 port for digital diagnostics.
5. How does the ABB C86-94639 ensure hardware reliability in safety-critical loops?
The ABB C86-94639 incorporates a continuous "Self-Check" logic. Every 0.1 seconds, the ABB C86-94639 performs an internal electronic health test; if a component failure is detected within the ABB C86-94639, it automatically triggers a "flame-off" state to prevent a fail-to-danger condition.
The ABB C86-94639 incorporates a continuous "Self-Check" logic. Every 0.1 seconds, the ABB C86-94639 performs an internal electronic health test; if a component failure is detected within the ABB C86-94639, it automatically triggers a "flame-off" state to prevent a fail-to-danger condition.
6. Can multiple ABB C86-94639 modules be installed in a single system?
Yes, the ABB C86-94639 is a modular plug-in card designed for the DFS Flame Analysis Unit rack. A single rack chassis can house up to four ABB C86-94639 modules, allowing for the independent monitoring of four separate burner scanners in one compact enclosure.
Yes, the ABB C86-94639 is a modular plug-in card designed for the DFS Flame Analysis Unit rack. A single rack chassis can house up to four ABB C86-94639 modules, allowing for the independent monitoring of four separate burner scanners in one compact enclosure.
