PROSOFT MVI69-PDPMV1 Specification
| Item | PROSOFT MVI69-PDPMV1 Specification |
|---|---|
| Manufacturer | ProSoft Technology (USA) |
| Platform | Allen-Bradley CompactLogix / MicroLogix 1500 LRP |
| Slot Width | 1 Slot (Standard 1769 module) |
| Backplane Current | 800 mA @ 5 VDC |
| Power Distance Rating | 2 (Max. 2 slots from power supply) |
| PROFIBUS Protocol | Master DP-V0 and DP-V1 |
| Max. Slaves | Up to 125 slaves |
| Baud Rate | 9.6 kbps to 12 Mbps (Auto-detection supported) |
| Input Data | Max. 5,712 Bytes |
| Output Data | Max. 5,760 Bytes |
| Acyclic Data | Supports DP-V1 Class 1 & 2 services |
| Comm. Port | 1 x RS-485 (PROFIBUS DB9 Female) |
| Config. Port | 1 x RJ45 (RS-232 Serial) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5% to 95% (Non-condensing) |
| LED Indicators | Power, Module Status, App Status, Serial Activity |
PROSOFT MVI69-PDPMV1 Details
Description
The MVI69-PDPMV1(PROFIBUS MASTER DPV1 COMMUNICATION MODULE) is a PROFIBUS DP-V1 Master communication module designed to allow Rockwell Automation® CompactLogix or MicroLogix 1500 LRP processors to interface with a PROFIBUS network. This single-slot solution acts as the network master, managing all cyclic and acyclic data exchange between the PLC and connected slave devices. PROSOFT MVI69-PDPMV1 effectively bridges the gap between the Allen-Bradley backplane and the PROFIBUS protocol, making PROSOFT MVI69-PDPMV1 possible to integrate third-party field devices into a Rockwell-based control system.
Features
The MVI69-PDPMV1(PROFIBUS MASTER DPV1 COMMUNICATION MODULE) is a high-performance PROFIBUS DP-V1 Master module that supports up to 125 slaves and baud rates up to 12 Mbps, providing robust cyclic and acyclic data exchange (DP-V0/V1) with a massive capacity of over 5,700 bytes for both input and output.
PROSOFT MVI69-PDPMV1's seamless integration into CompactLogix systems via Add-On Instructions (AOI) and ProSoft Configuration Builder eliminates the need for complex ladder logic, while PROSOFT MVI69-PDPMV1's FDT/DTM compatibility ensures advanced remote asset management and simplified device diagnostics.
Application
PROSOFT MVI69-PDPMV1(PROFIBUS MASTER DPV1 COMMUNICATION MODULE) is primarily used to bridge Allen-Bradley CompactLogix processors with third-party PROFIBUS field devices, such as VFDs, flow meters, and specialized sensors, across industries like process automation and manufacturing.
MVI69-PDPMV1 DPV1 COMMUNICATION MODULE is an ideal solution for centralizing control of diverse hardware, integrating legacy PROFIBUS networks into modern EtherNet/IP environments, and managing complex motor control centers where high-speed, multi-device communication is critical.
If you want to more details about MVI69-PDPMV1 DPV1 COMMUNICATION MODULE，please contact me without hesitate.Email：sales@sparecenter.com

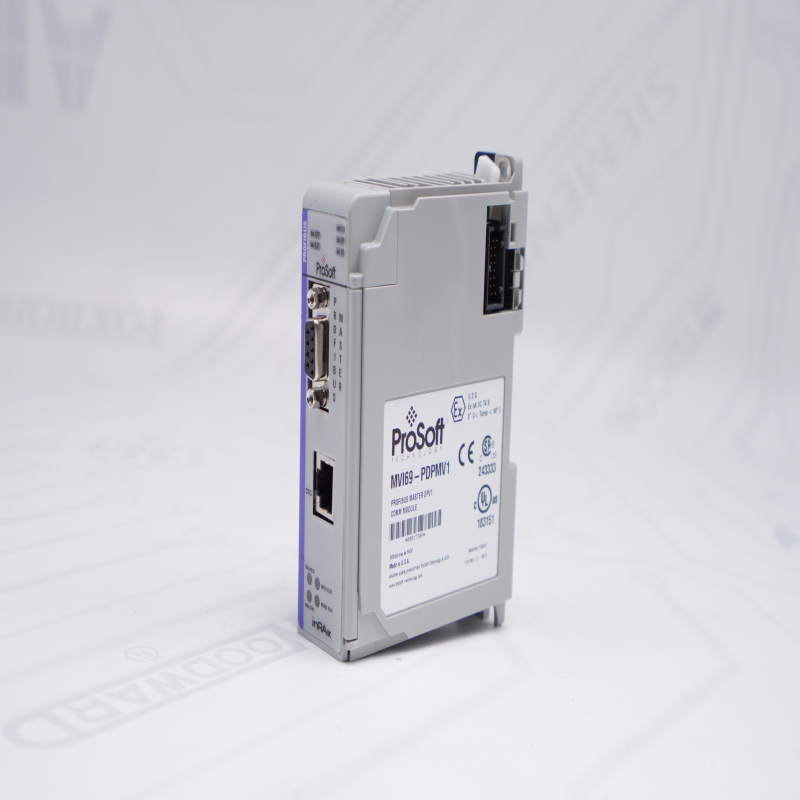

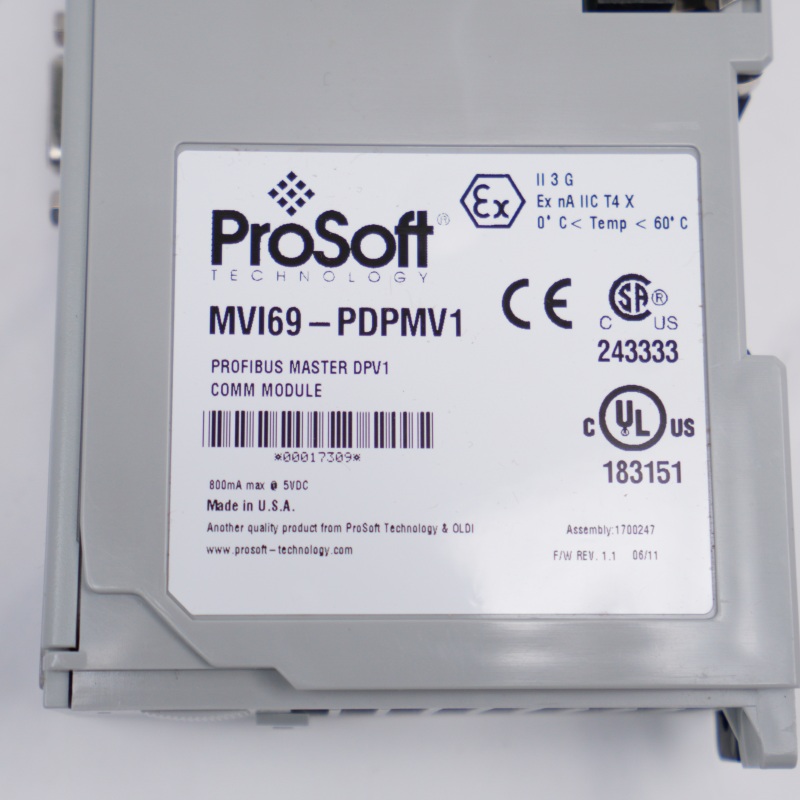

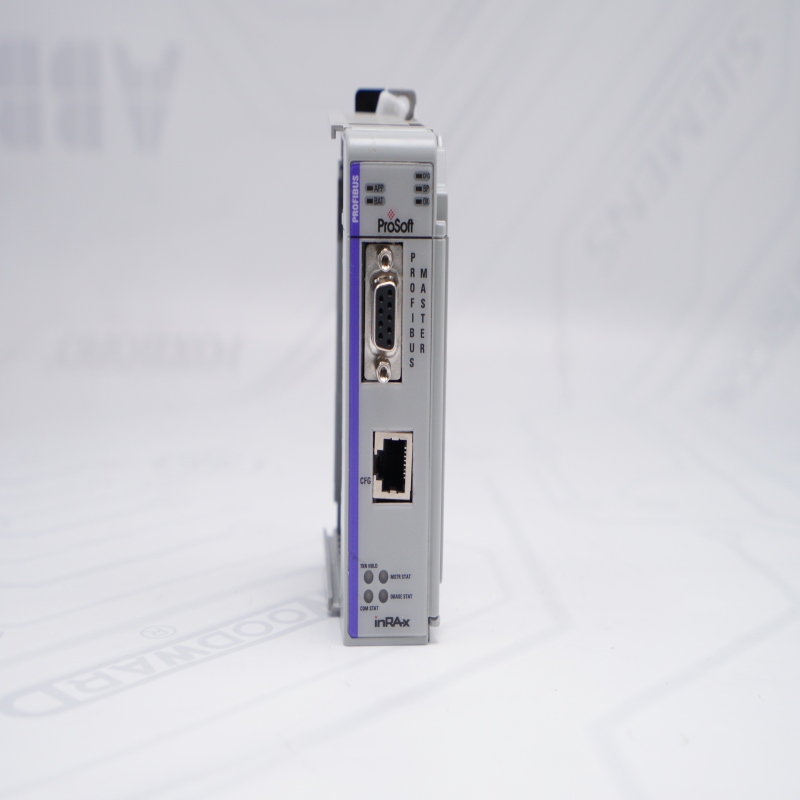

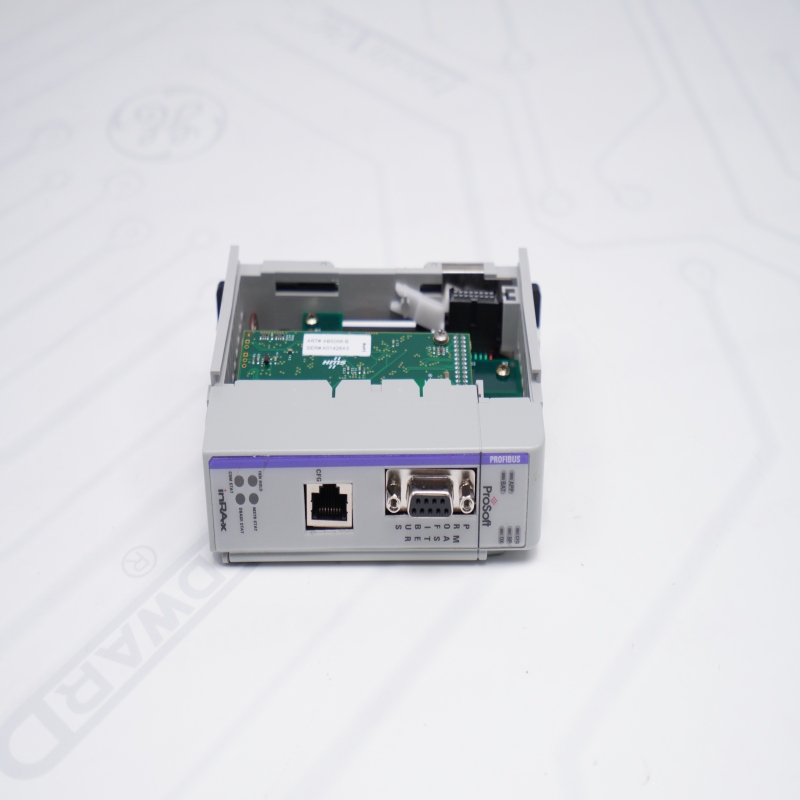

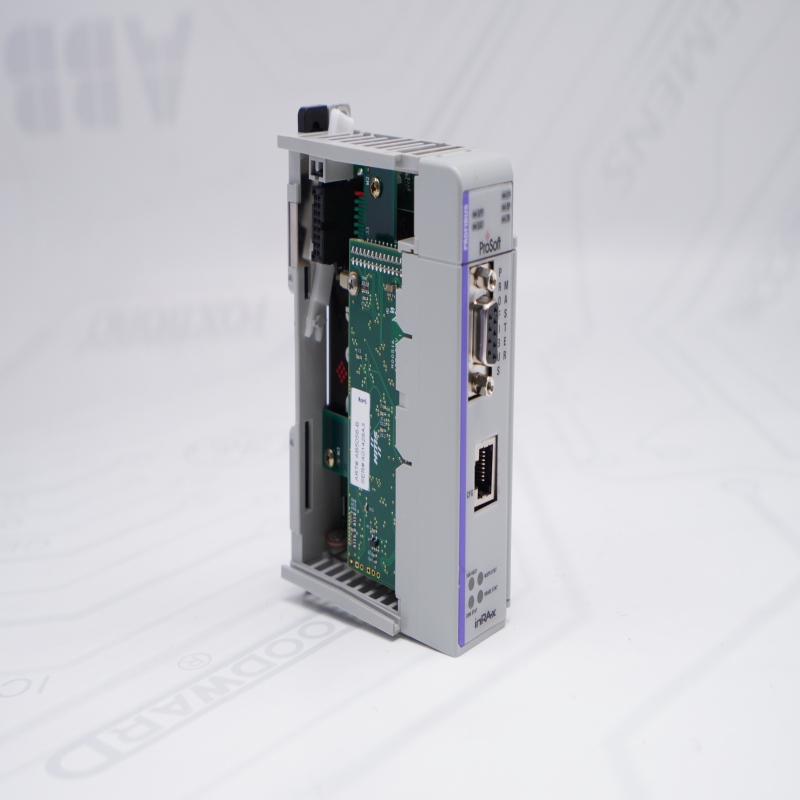

MVI69-PDPMV1 DPV1 COMMUNICATION MODULE Images
MVI69-PDPMV1 DPV1 COMMUNICATION MODULE
MVI69-PDPMV1 DPV1 COMMUNICATION MODULE
MVI69-PDPMV1 PROSOFT
MVI69-PDPMV1 PROSOFT FAQ
1. Which Rockwell Automation controller platforms are compatible with the MVI69-PDPMV1(PROFIBUS MASTER DPV1 COMMUNICATION MODULE)?
The MVI69-PDPMV1 is specifically designed for the CompactLogix platform and the MicroLogix 1500 LRP processor. MVI69-PDPMV1 PROSOFT resides in a standard 1769 I/O slot and communicates via the backplane to provide these controllers with PROFIBUS DP Master capabilities.
The MVI69-PDPMV1 is specifically designed for the CompactLogix platform and the MicroLogix 1500 LRP processor. MVI69-PDPMV1 PROSOFT resides in a standard 1769 I/O slot and communicates via the backplane to provide these controllers with PROFIBUS DP Master capabilities.
2. What is the maximum number of slave devices that a single MVI69-PDPMV1 can support?
A single MVI69-PDPMV1 module can act as a Master for up to 125 PROFIBUS DP slave devices. MVI69-PDPMV1 PROSOFT manages the network efficiently by supporting all standard baud rates from 9.6 kbps up to 12 Mbps, ensuring high-speed data exchange across large-scale architectures.
A single MVI69-PDPMV1 module can act as a Master for up to 125 PROFIBUS DP slave devices. MVI69-PDPMV1 PROSOFT manages the network efficiently by supporting all standard baud rates from 9.6 kbps up to 12 Mbps, ensuring high-speed data exchange across large-scale architectures.
3. Does the MVI69-PDPMV1 support acyclic data exchange for device diagnostics?
Yes, the MVI69-PDPMV1 fully supports PROFIBUS DP-V1 services. MVI69-PDPMV1 PROSOFT allows the module to handle not only cyclic I/O data (DP-V0) but also acyclic parameter data, which is essential for advanced device configuration, asset management (via FDT/DTM), and detailed hardware diagnostics.
Yes, the MVI69-PDPMV1 fully supports PROFIBUS DP-V1 services. MVI69-PDPMV1 PROSOFT allows the module to handle not only cyclic I/O data (DP-V0) but also acyclic parameter data, which is essential for advanced device configuration, asset management (via FDT/DTM), and detailed hardware diagnostics.
4. What are the maximum input and output data capacities for the MVI69-PDPMV1(MVI69-PDPMV1 PROSOFT)?
The MVI69-PDPMV1 offers a high-density data memory map, supporting up to 5,712 bytes of Input data and 5,760 bytes of Output data. This large memory capacity makes MVI69-PDPMV1 PROSOFT suitable for complex applications involving multiple high-density I/O slaves or sophisticated motor control centers.
The MVI69-PDPMV1 offers a high-density data memory map, supporting up to 5,712 bytes of Input data and 5,760 bytes of Output data. This large memory capacity makes MVI69-PDPMV1 PROSOFT suitable for complex applications involving multiple high-density I/O slaves or sophisticated motor control centers.
5. How is the MVI69-PDPMV1 configured and integrated into the PLC project?
MVI69-PDPMV1 PROSOFT is configured using the ProSoft Configuration Builder (PCB) software via its dedicated RS-232 serial port. For logic integration, the MVI69-PDPMV1 utilizes a sample ladder or Add-On Instruction (AOI) to facilitate the movement of PROFIBUS data into the controller’s tag database.
MVI69-PDPMV1 PROSOFT is configured using the ProSoft Configuration Builder (PCB) software via its dedicated RS-232 serial port. For logic integration, the MVI69-PDPMV1 utilizes a sample ladder or Add-On Instruction (AOI) to facilitate the movement of PROFIBUS data into the controller’s tag database.
6. What is the power distance rating for the MVI69-PDPMV1(PROFIBUS MASTER DPV1 COMMUNICATION MODULE) within a 1769 rack?
The MVI69-PDPMV1 has a Power Distance Rating of 2. This means MVI69-PDPMV1 PROSOFT must be installed within two slots of the CompactLogix power supply to ensure MVI69-PDPMV1 PROSOFT receives the required 800 mA at 5 VDC backplane current for stable operation.
The MVI69-PDPMV1 has a Power Distance Rating of 2. This means MVI69-PDPMV1 PROSOFT must be installed within two slots of the CompactLogix power supply to ensure MVI69-PDPMV1 PROSOFT receives the required 800 mA at 5 VDC backplane current for stable operation.
