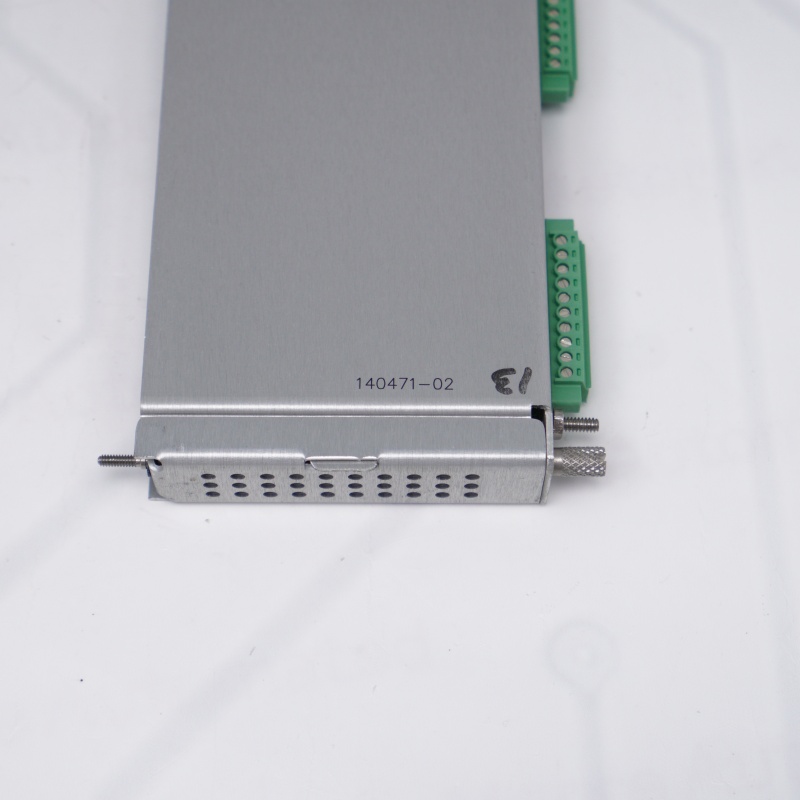

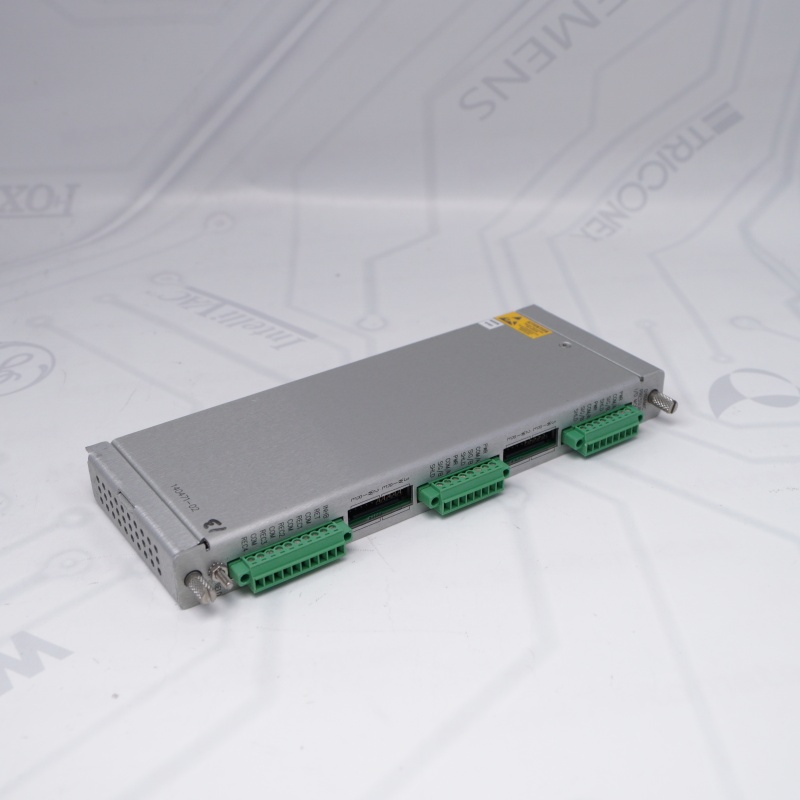

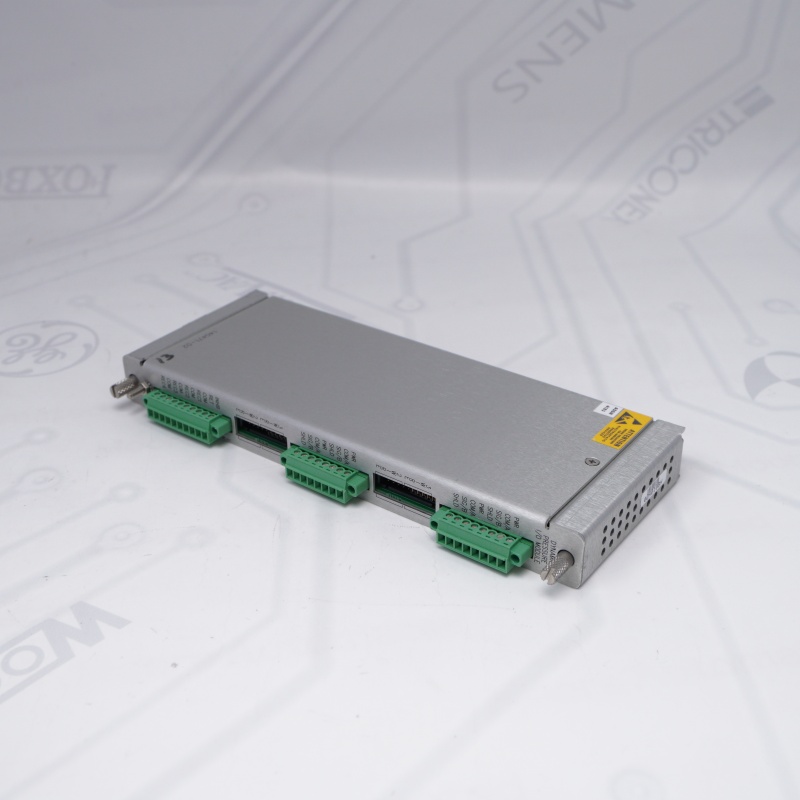

BENTLY NEVADA 140471-02 3500/64M Dynamic Pressure I/O Module

BENTLY NEVADA 140471-02 Application: F-Class and H-Class Heavy-Duty Gas Turbines (400MW+).

BENTLY NEVADA 140471-02 Challenge: During high-load summer operations, fluctuations in ambient temperature and fuel composition cause acoustic resonance within the combustion chambers. This "combustion hum" leads to nozzle erosion and catastrophic thermal fatigue.

BENTLY NEVADA 140471-02 Solution: High-temperature dynamic pressure sensors are installed on the annular combustors and wired directly to the Bently Nevada 140471-02 Internal Termination I/O Module. Using the 3500 rack configuration software, field engineers set custom band-pass filters to capture the exact acoustic frequency of the hum through the BENTLY NEVADA I/O Module channels.

140471-02 BENTLY NEVADA Result: When dynamic pressure spikes beyond 0.5 psi, the BENTLY NEVADA I/O Module triggers an immediate alarm relay to the plant DCS. The DCS automatically tunes the fuel-to-air ratio to eliminate the acoustic wave, preventing unplanned trips and saving millions in potential turbine damage.

Case 2: Reciprocating Compressor Pipe Pulsation Control (Petrochemical Plant)

140471-02 BENTLY NEVADA Application: High-Pressure Hydrogen Reciprocating Compressors in Oil Refineries.

140471-02 BENTLY NEVADA Challenge: The cyclic opening and closing of compressor valves create severe pressure pulsations in the suction and discharge piping, causing piping bracket fractures and fatigue cracks.

140471-02 BENTLY NEVADA Solution: High-frequency dynamic pressure transducers are deployed at the cylinder discharge and pulsation dampener tanks, feeding directly into the BENTLY NEVADA I/O Module module. Leveraging the 140471-02 high-speed sampling rate and excellent noise immunity, the module tracks pressure variations tied to machine run speeds.

140471-02 BENTLY NEVADA Result: The BENTLY NEVADA I/O Module converts raw dynamic data into 4-20mA proportional values sent to the plant DCS. When valve wear or leakage causes the pulsation profile to deviate from baseline trends, the 140471-02 system triggers a maintenance flag, moving the facility from reactive repairs to predictive maintenance.

Case 3: Hydroelectric Turbine Draft Tube Vortex Monitoring (Hydropower)

140471-02 BENTLY NEVADA Application: Large Francis Hydro-Turbine Units.

140471-02 BENTLY NEVADA Challenge: Operating a hydro-turbine under low-load conditions causes a "vortex rope" to form inside the draft tube. This vortex generates severe low-frequency pressure pulsations that shake the entire powerhouse structure.

140471-02 BENTLY NEVADA Solution: Piezoelectric dynamic pressure sensors are mounted symmetrically on the draft tube wall and wired to the BENTLY NEVADA I/O Module module. Engineers apply a built-in Notch Filter via the 140471-02 to filter out 50Hz/60Hz grid electrical noise, isolating the low-frequency vortex pulsations (0.1Hz to 10Hz).

140471-02 BENTLY NEVADA Result: The BENTLY NEVADA I/O Module system calculates the Peak-to-Peak (Pk-Pk) pressure value in real-time. If the vortex intensity crosses a critical safety limit, the BENTLY NEVADA I/O Module signals the system to automatically open an air injection valve to disrupt the vortex rope, stabilizing the turbine and protecting the concrete foundations.
