EMERSON 12P4686X052 Description
Looking for a reliable KJ2003X1-BK1(EMERSON KJ2003X1-BK1) to minimize your factory downtime? This genuine Emerson DeltaV 12P4686X052 SD Plus Controller module is the ultimate solution for your industrial automation needs. Engineered for high-performance process control, this DeltaV distributed control system (DCS) hardware ensures seamless integration and high-speed communication within your existing system architecture.
Whether you need a DeltaV system replacement part, an urgent industrial automation surplus module, or a reliable KJ2003X1-BK1(EMERSON KJ2003X1-BK1) BK2 upgrade component, this module delivers robust safety and logic execution. It is widely used as a DeltaV SIS safety instrumented system controller in demanding environments like oil, gas, and chemical processing plants.
EMERSON 12P4686X052 Key Features & Specifications:
Model Number: KJ2003X1-BK1
Alternate Part Number: 12P4686X052 / SE3006
Product Type: DeltaV SD Plus Local Bussed Controller Module
Local Bus Power: 12 VDC at 75 mA
Bussed Field Power: 24 VDC at 150 mA
Application: Ideal for PLC DCS hardware maintenance, industrial process control loops, and DeltaV automation system troubleshooting.
EMERSON 12P4686X052 Images

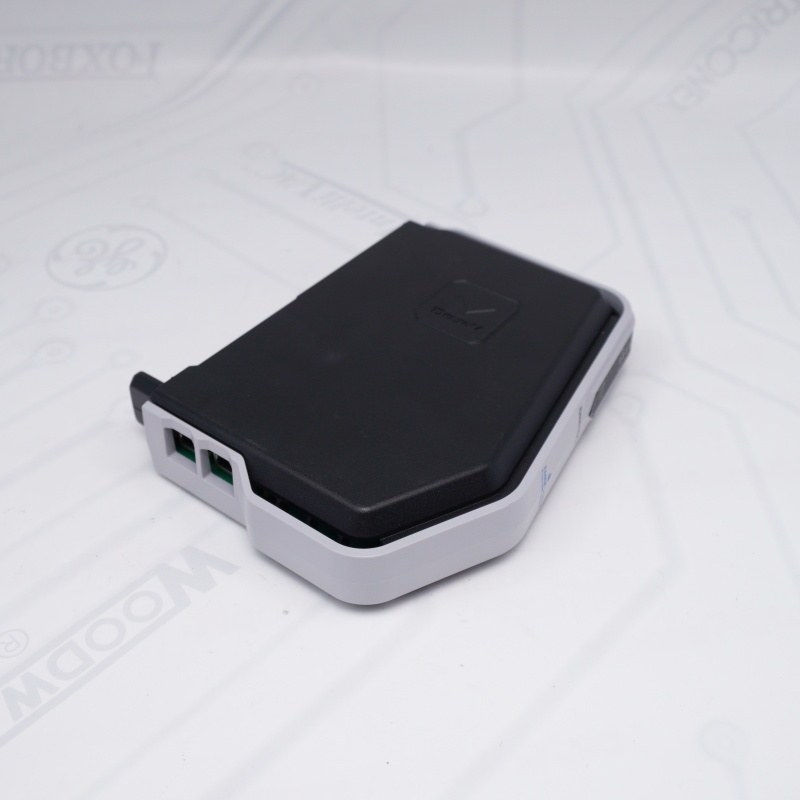

EMERSON 12P4686X052(EMERSON SD Plus Controller module)

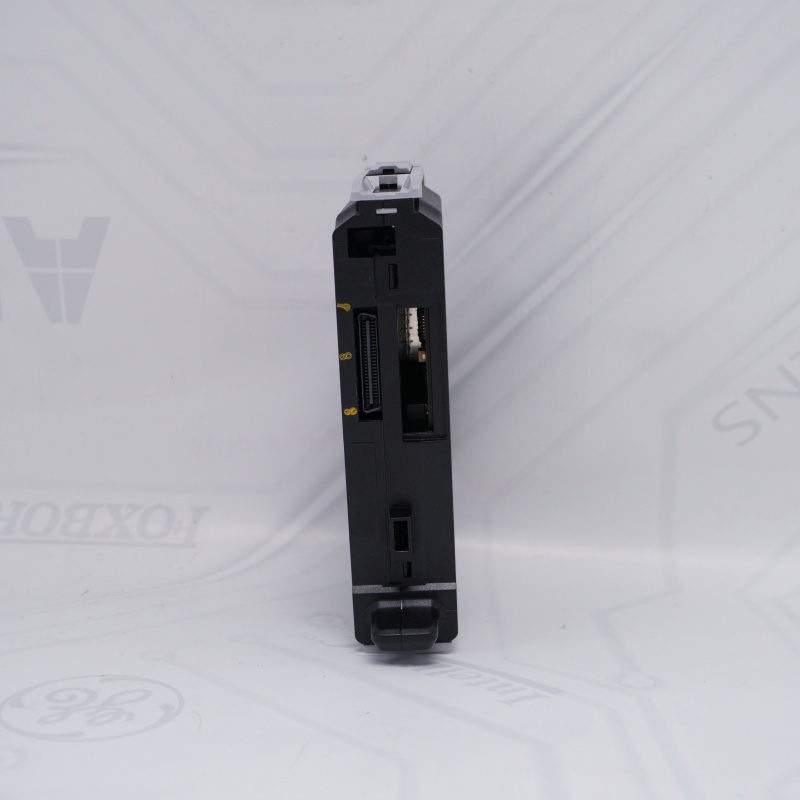

EMERSON 12P4686X052(KJ2003X1-BK1 12P4686X052)

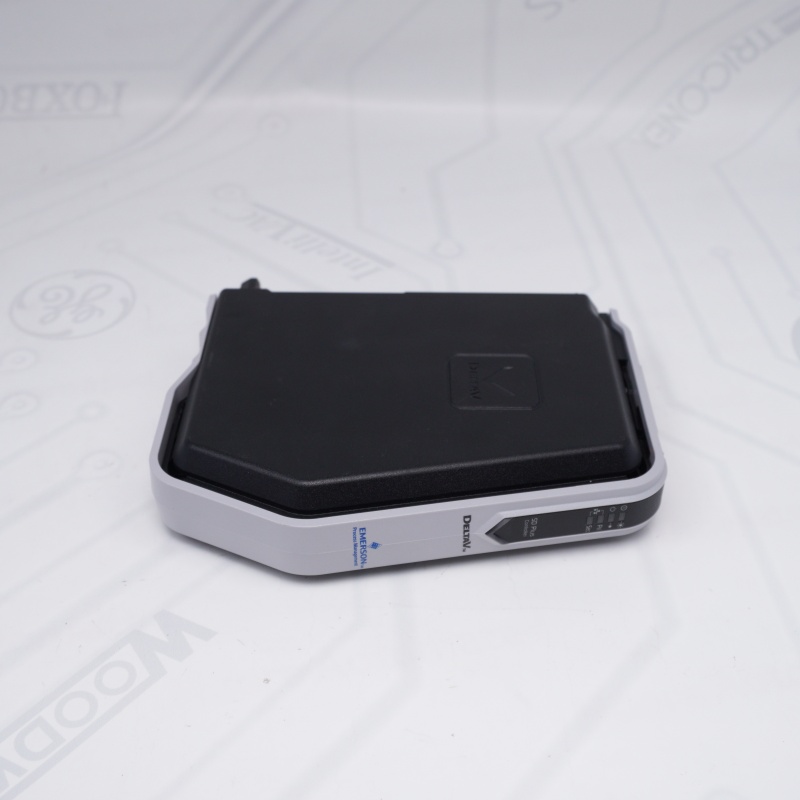

EMERSON 12P4686X052(KJ2003X1-BK1 12P4686X052)

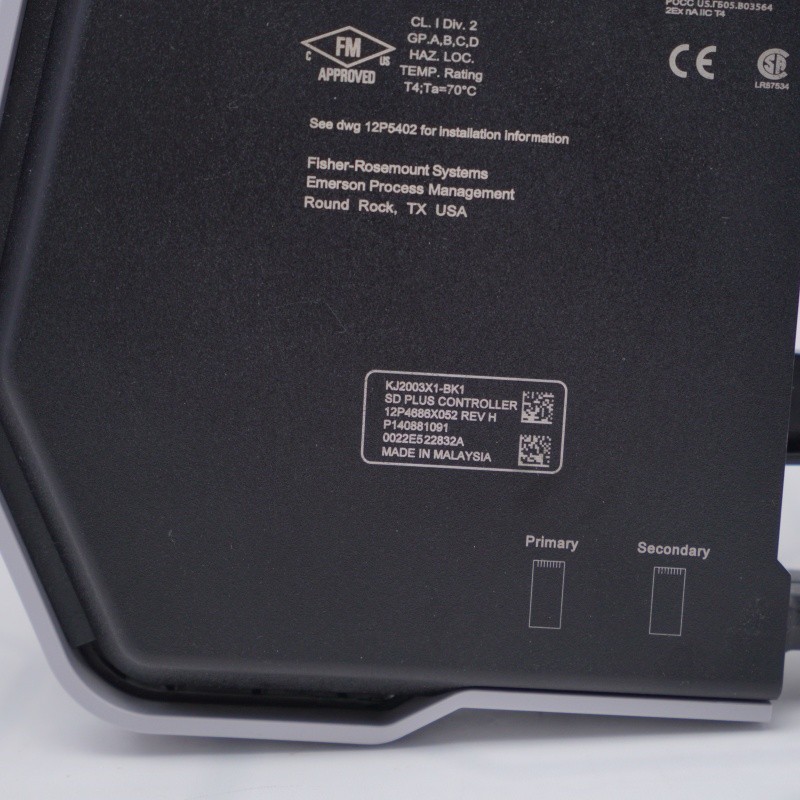

EMERSON 12P4686X052(KJ2003X1-BK1 12P4686X052)
If you want to more details about EMERSON 12P4686X052，please contact me without hesitate. Email：sales@sparecenter.com
EMERSON KJ2003X1-BK1 FAQ
Q1: What is the primary function of the Emerson DeltaV KJ2003X1-BK1 12P4686X052 module in an industrial control network?
A: The EMERSON SD Plus Controller module operates as an SD Plus Controller hardware component within the Emerson DeltaV Distributed Control System (DCS). It is engineered to execute advanced process control algorithms, manage local input/output (I/O) bus communications, and maintain high-speed logic synchronization for automated industrial plants.
Q2: What are the exact electrical power input specifications for the KJ2003X1-BK1 12P4686X052 controller?
A: The EMERSON SD Plus Controller module relies on dual-source power distribution across the DeltaV carrier chassis. It requires a local bus power input of 12 VDC at a current consumption of 75 mA, alongside a bussed field power input of 24 VDC at 150 mA to supply the field circuitry.
Q3: Is the KJ2003X1-BK1 12P4686X052 module hot-swappable during live DCS system operations?
A: Yes, the EMERSON KJ2003X1-BK1 features hot-swappable architecture, allowing plant engineers to replace a faulted module under energized field conditions. However, when hot-swapping the EMERSON SD Plus Controller module, ensure the redundancy framework is properly synchronized to prevent process disturbances or safety interlock trips.
Q4: How do I troubleshoot a flashing red error LED on a deployed KJ2003X1-BK1 12P4686X052 controller?
A: A flashing red error LED on the EMERSON KJ2003X1-BK1 typically indicates a hardware fault, firmware mismatch, or loss of communication with the local bus carrier. To troubleshoot the EMERSON SD Plus Controller module, connect to the DeltaV Diagnostics application to extract the active error codes and verify the backplane connection integrity.
Q5: Can the KJ2003X1-BK1 12P4686X052 module be cross-referenced with Emerson part number SE3006?
A: Yes, the EMERSON KJ2003X1-BK1 is identical to the Emerson ordering catalog number SE3006. While SE3006 is the commercial order code used for purchasing, the physical hardware label displays EMERSON KJ2003X1-BK1, meaning they represent the exact same physical controller module.
