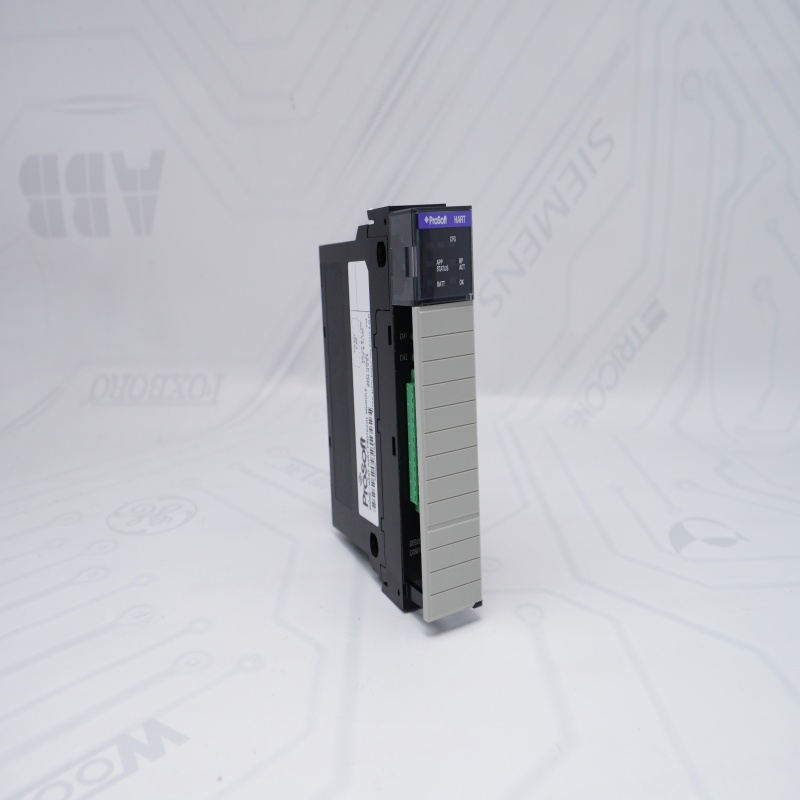

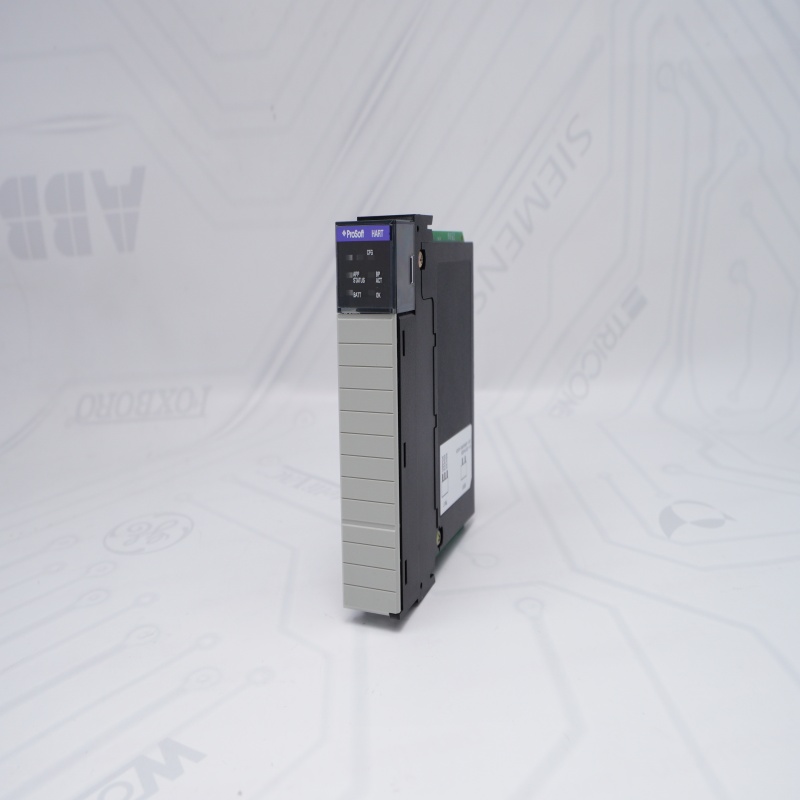

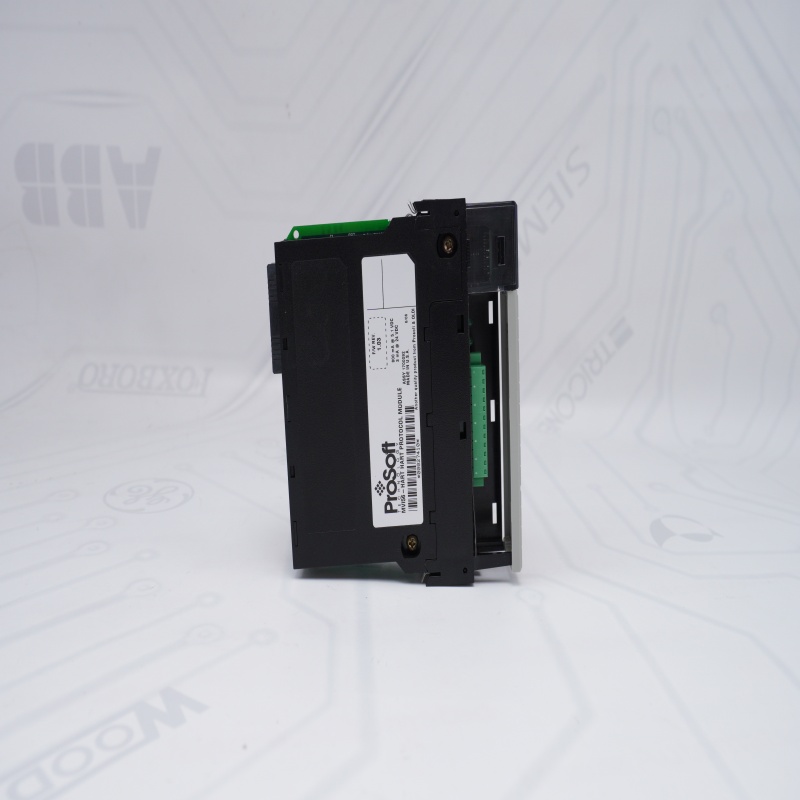

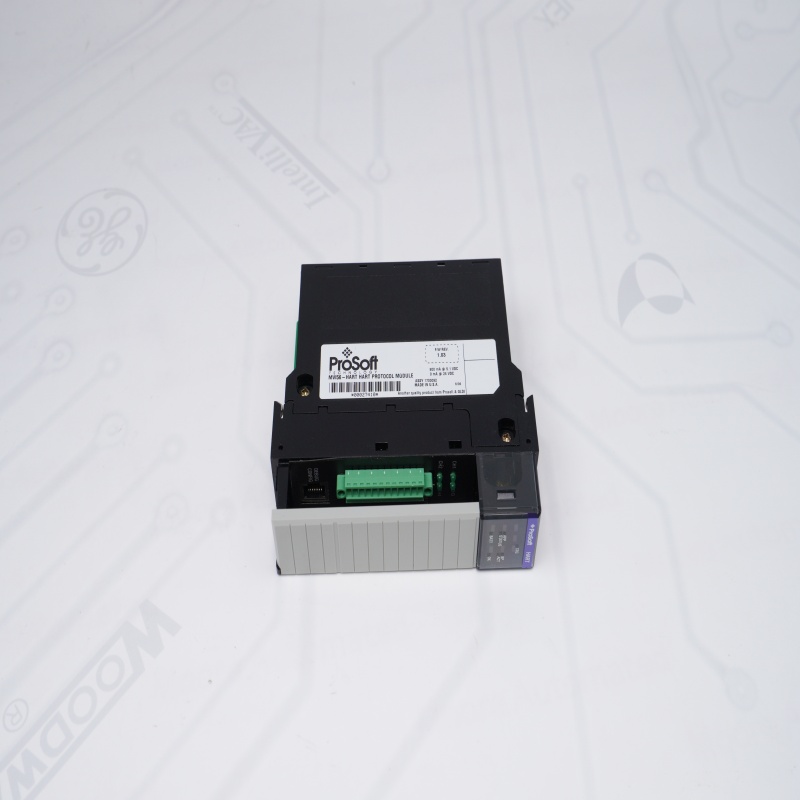

PROSOFT MVI56-HART HART Multi-drop Master Communication Module

• PROSOFT MVI56-HART Seamless Integration: Designed as a single-slot module that fits directly into Allen-Bradley ControlLogix backplanes for high-speed data exchange.

• MVI56-HART PROSOFT HART Master Capability: Acts as a HART Master, allowing the processor to read and write process variables, status data, and device configuration.

• MVI56-HART PROSOFT Multi-drop Support: Each of the 4 isolated channels supports up to 15 HART-compliant field devices (total of 60 devices per module).

• MVI56-HART PROSOFT Asset Management Compatibility: Supports "Pass-Through" communication, allowing FDT/DTM or asset management software to configure field instruments remotely.

• MVI56-HART PROSOFT Floating Point Data Support: Provides easy mapping of 32-bit floating point HART variables directly into ControlLogix controller tags.

• MVI56-HART PROSOFT Diagnostic Tools: Includes a built-in serial configuration port for real-time monitoring of HART network traffic and module health.

• MVI56-HART PROSOFT Redundancy Support: Compatible with ControlLogix redundant chassis for high-availability process control environments.

• MVI56-HART PROSOFT No Ladder Logic Complexity: Uses a standard block transfer mechanism to move data between the module’s database and the CPU without complex programming.

If you want to more details about MVI56-HART PROSOFT(PROSOFT MVI56-HART)，please contact me without hesitate. Email：sales@sparecenter.com

• MVI56-HART Communication Module Process Variable Monitoring: The MVI56-HART(MVI56-HART PROSOFT) is widely used to bring primary and secondary process variables (such as pressure, temperature, and level) from field instruments into the ControlLogix controller without requiring additional analog input cards.

• MVI56-HART Communication Module Asset Management and Maintenance: By utilizing the MVI56-HART(MVI56-HART PROSOFT), maintenance teams can perform remote diagnostics and calibration of field devices, reducing the need for technicians to enter hazardous areas for manual checks.

• MVI56-HART Communication Module Inventory and Tank Farm Management: In large-scale storage facilities, the MVI56-HART(MVI56-HART PROSOFT) efficiently manages multi-drop networks of level sensors and temperature probes, providing real-time data for precise inventory tracking.

• MVI56-HART Communication Module Equipment Health Diagnostics: The MVI56-HART allows for the continuous monitoring of device status and "Valve Signature" data from smart positioners, enabling predictive maintenance and reducing unexpected downtime.

• MVI56-HART Communication Module Smart Field Device Integration: In chemical and oil & gas plants, the MVI56-HART serves as the bridge between sophisticated HART-enabled "smart" instruments and the PLC, ensuring high-fidelity digital data transfer.

• MVI56-HART Communication Module Legacy System Modernization: The MVI56-HART(PROSOFT Communication Module) is an ideal solution for upgrading older control systems to ControlLogix while retaining existing HART field wiring and instruments, significantly lowering migration costs.

PROSOFT MVI56-HART

PROSOFT MVI56-HART

PROSOFT MVI56-HART

PROSOFT MVI56-HART

• Q1: How many HART field devices can be connected to a single MVI56-HART module?
  A: The PROSOFT Communication Module features 4 isolated channels, and each channel can support up to 15 devices in a multi-drop configuration. This allows a single MVI56-HART module to communicate with a total of 60 HART-compliant field instruments.

• Q2: Does the MVI56-HART support "Pass-Through" communication for asset management?
  A: Yes. The PROSOFT Communication Module supports pass-through capabilities, enabling software like ProSoft’s FDT Communication DTM or Emerson AMS to configure and calibrate field devices remotely through the ControlLogix backplane.

• Q3: What is the current availability of the MVI56-HART since it is a legacy product?
  A: Although the manufacturer has officially discontinued this series, we can provide the PROSOFT Communication Module module from our extensive inventory. We offer reliable supply options for both new and refurbished units to support your existing systems.

• Q4: Is a separate power supply required for the field devices connected to the MVI56-HART?
  A: Yes. The PROSOFT Communication Module does not provide loop power to the field devices. You must provide an external 24 VDC power supply to the HART loop for the instruments to function and communicate with the PROSOFT Communication Module.

• Q5: How does the MVI56-HART exchange data with the ControlLogix processor?
  A: The PROSOFT Communication Module uses a 5,000-word internal database and transfers data to the ControlLogix CPU via 120-word input/output blocks over the backplane. This allows the processor to access HART variables as standard controller tags.

• Q6: Can the MVI56-HART be used in a ControlLogix Redundant system?
  A: Absolutely. The PROSOFT Communication Module is designed to be compatible with Rockwell Automation’s redundancy adapters (1756-RM/SRM), ensuring that HART data remains available to the controller even during a system switchover.
