KONTRON CompactPCI System Controller SBC Technical Data
Form Factor: 6U CompactPCI system controller (Single Slot, 4HP width).
Processor: Intel Pentium M 1.8 GHz.
Memory: Up to 2GB PC333 DDR SDRAM with ECC support.
Networking: 4x Gigabit Ethernet ports (2x front panel, 2x routed to backplane via PICMG 2.16).
Storage: 1x CompactFlash Type II socket + 1x 2.5-inch IDE/SATA drive interface.
Expansion: 1x 64-bit / 66MHz PMC (PCI Mezzanine Card) slot.
Management: IPMI V1.5 compliant, supports Hot Swap.
If you want to more details about KONTRON CompactPCI System Controller SBC，please contact me without hesitate.Email：sales@sparecenter.com

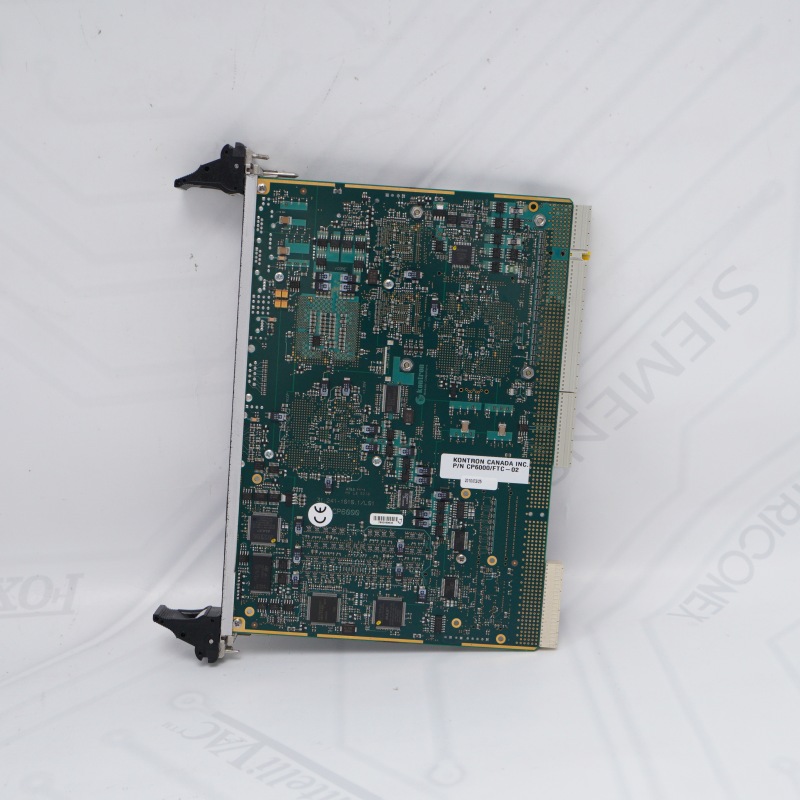

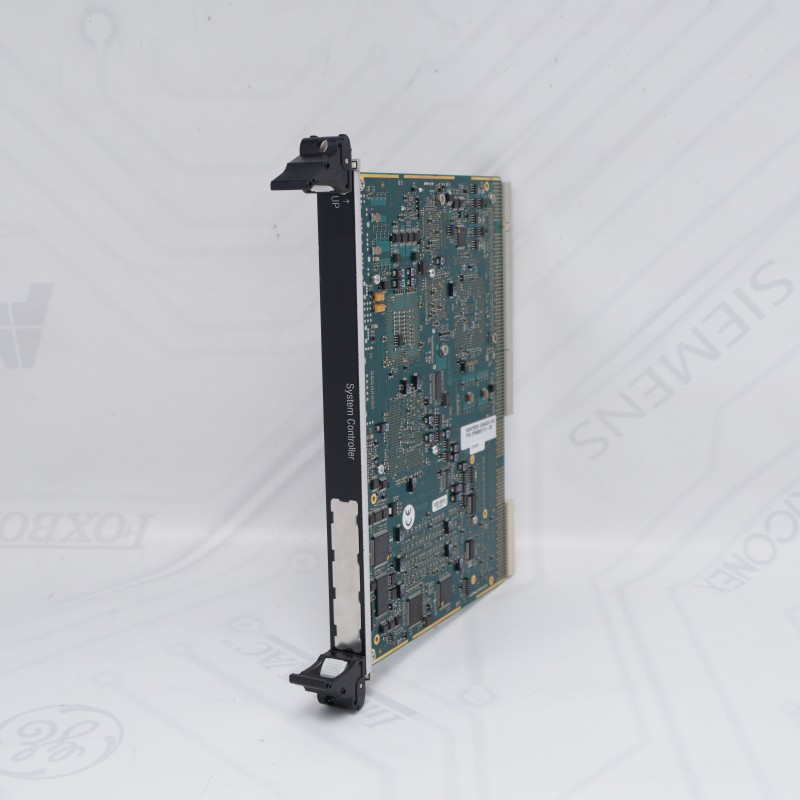

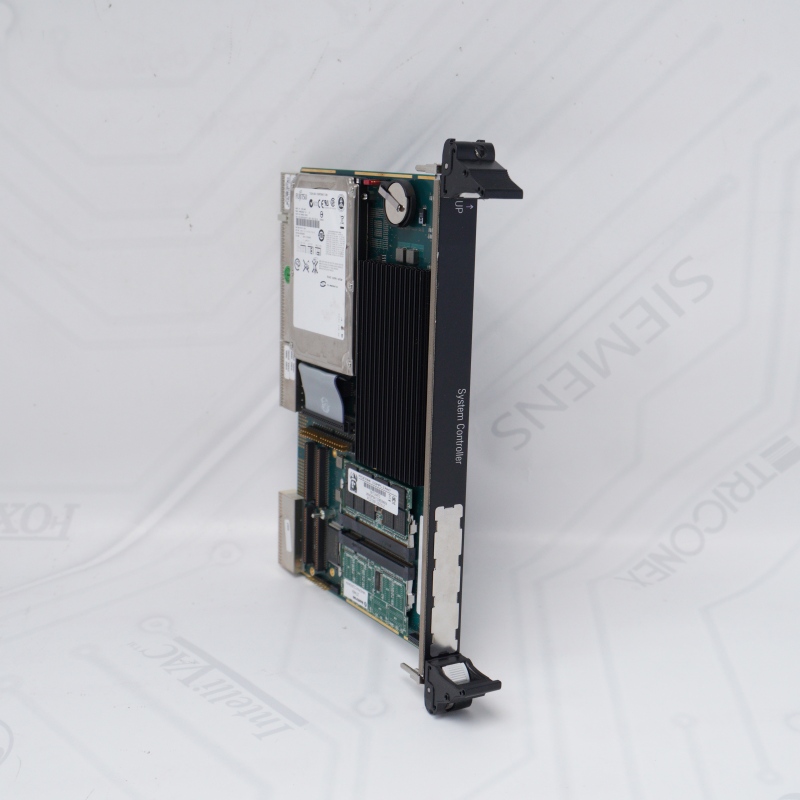

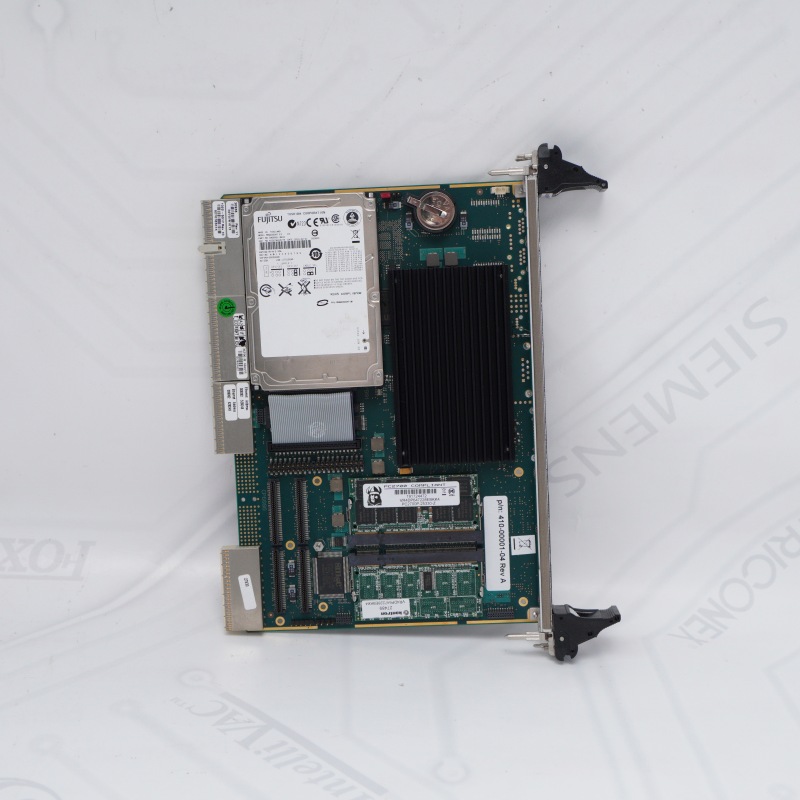

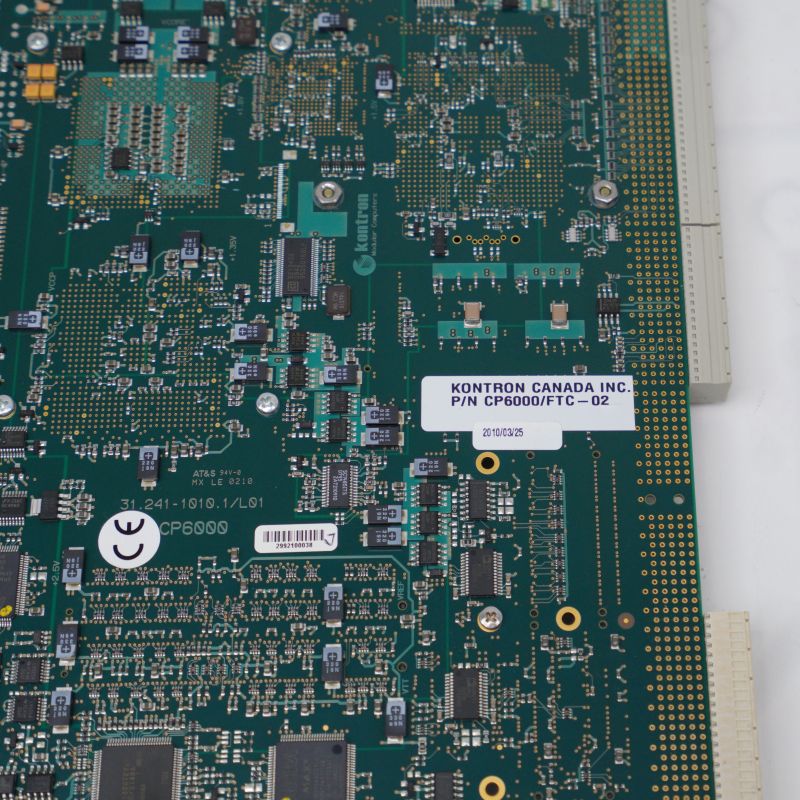

KONTRON CompactPCI System Controller SBC Images
CompactPCI System Controller SBC
CompactPCI System Controller SBC
CompactPCI System Controller SBC
CompactPCI System Controller SBC FAQ
Q1: What are the primary applications and system roles designed for the Kontron CP6000-FTC-02?
A: The CP6000-FTC-02 KONTRON is engineered as a high-performance, industrial-grade 6U CompactPCI System Controller Single Board Computer (SBC). It is heavily utilized in telecommunications, data routing, industrial automation, and specialized manufacturing hardware—such as legacy Bystronic laser cutting machines. Architecturally, the CP6000-FTC-02 KONTRON serves as the master system slot controller, executing high-reliability computing tasks and managing data traffic across the backplane.
Q2: What processor architecture and memory capacities are supported by the KONTRON CP6000-FTC-02?
A: The CP6000-FTC-02 KONTRON is built upon a low-power, high-efficiency mobile embedded architecture. It features an Intel Pentium M processor clocked at 1.8 GHz with a 400MHz Front Side Bus (FSB). For volatile storage, the CP6000-FTC-02 KONTRON houses two 200-pin SODIMM sockets supporting up to 2GB of PC333 DDR SDRAM, fully equipped with Error-Correcting Code (ECC) to maintain data integrity under continuous operational conditions.
Q3: How is network connectivity configured on the Kontron KONTRON CP6000-FTC-02?
A: The CP6000-FTC-02 KONTRON offers advanced networking capabilities featuring up to four Gigabit Ethernet ports driven by a 64-bit PCI bus controller. The physical deployment on the CP6000-FTC-02 KONTRON splits these ports evenly: two 10/100/1000Base-T copper ports are directly accessible on the front panel for external networking, while the remaining two ports are routed to the rear J3 connector to support full PICMG 2.16 packet switching backplane architectures.
Q4: What onboard storage expansion options are available on the KONTRON CP6000-FTC-02?
A: Storage versatility on the CP6000-FTC-02 KONTRON includes both solid-state and magnetic media support. The CP6000-FTC-02 KONTRON integrates an onboard CompactFlash Type II socket for rugged, shock-resistant operating system deployment. Additionally, the CP6000-FTC-02 KONTRON provides secondary storage paths via an standard interface accommodating a 2.5-inch internal hard disk drive (HDD), allowing concurrent usage of both storage mediums.
Q5: Does the CP6000-FTC-02 support modular hardware extensions?
A: Yes, the modularity of the KONTRON CP6000-FTC-02 is facilitated by an onboard expansion slot. The KONTRON CP6000-FTC-02 features a standard 64-bit / 66MHz PMC (PCI Mezzanine Card) slot, allowing engineers to integrate custom I/O modules, communication cards, or fieldbus interfaces without exceeding the board's single-slot (4HP) footprint.
Q6: What platform management features are embedded within the CP6000-FTC-02?
A: For system monitoring and remote maintenance, the KONTRON CP6000-FTC-02 is fully compliant with the Intelligent Platform Management Interface (IPMI) V1.5 specification. This subsystem enables the KONTRON CP6000-FTC-02 to report vital board telemetry—such as voltages and thermal metrics—and coordinates with the backplane logic to safely support full hardware Hot Swap functionality during live system operations.
Q7: How should thermal dissipation be managed for the CP6000-FTC-02?
A: The KONTRON CompactPCI System Controller SBC relies on a passive cooling design utilizing a high-density, onboard aluminum heatsink. Because the KONTRON CompactPCI System Controller SBC does not feature local active fans, its reliable operation is strictly dependent on the forced convection airflow provided by the host CompactPCI chassis fans, requiring a minimum specified linear airflow to prevent thermal throttling.
