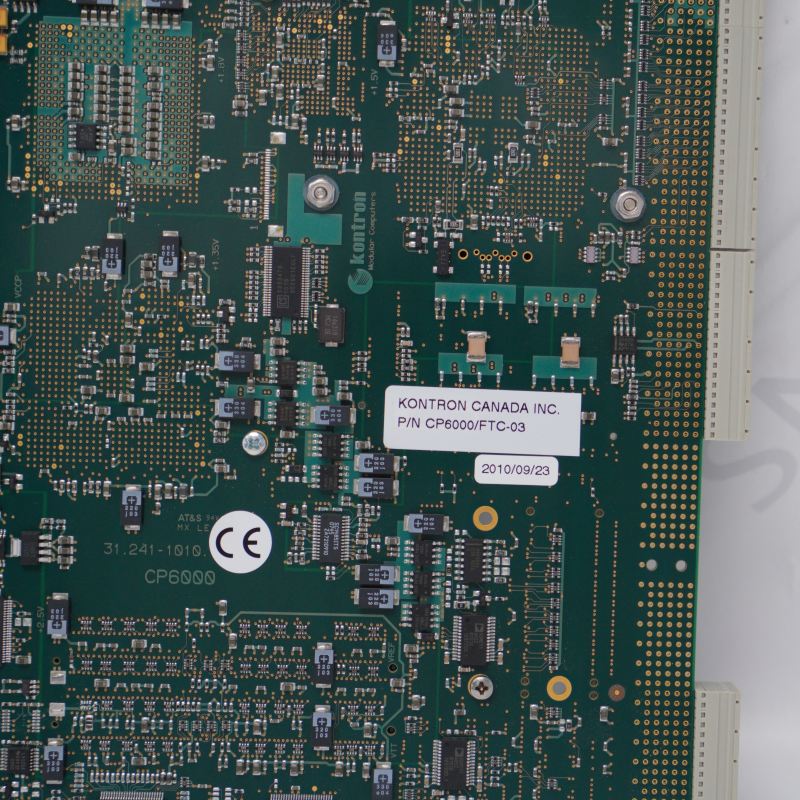

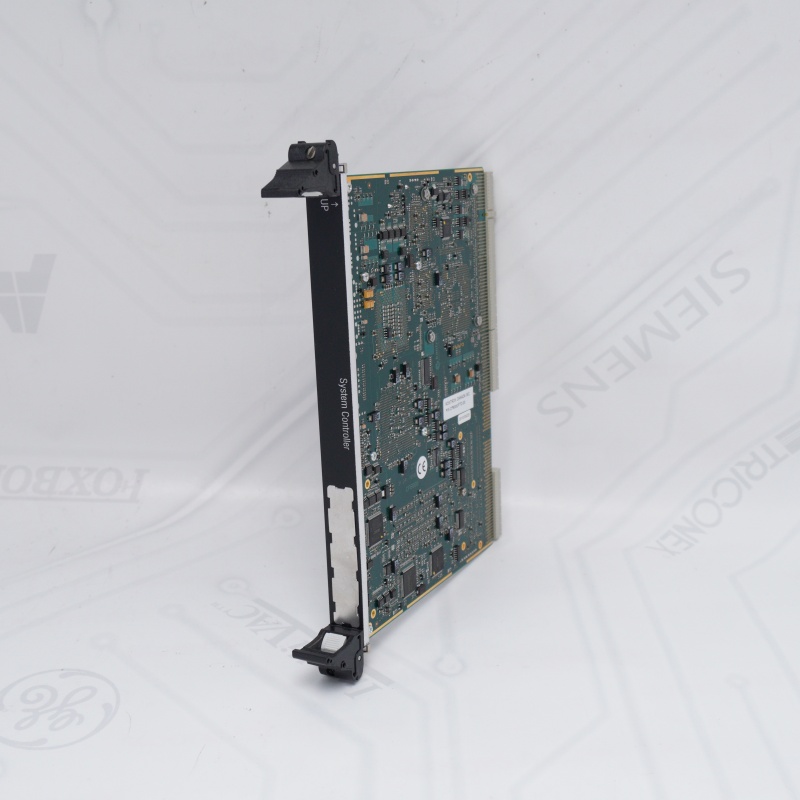

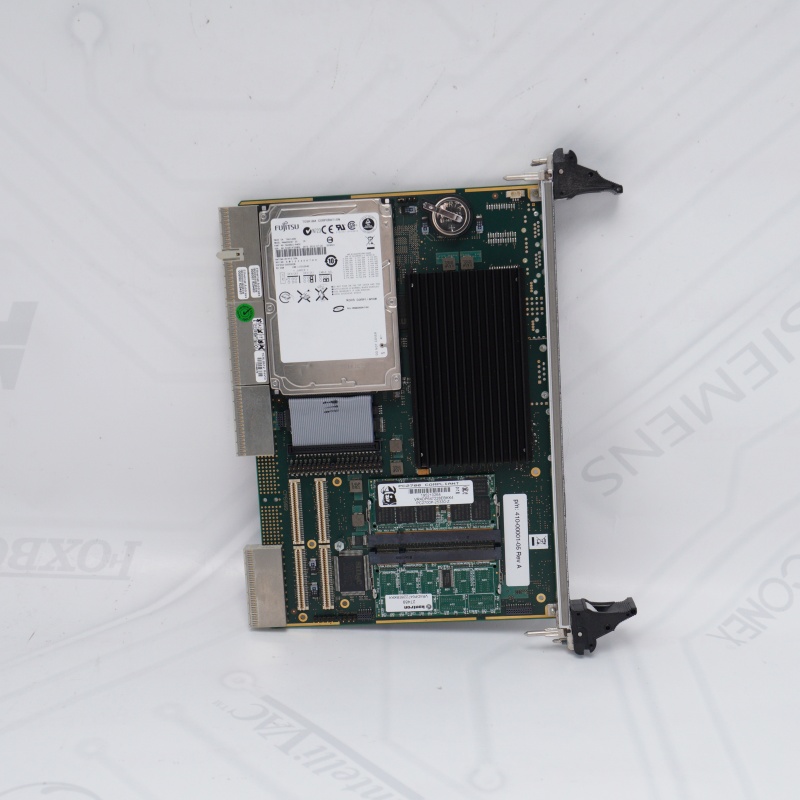

KONTRON CompactPCI Single Board Computer Overview
The Kontron CP6000-FTC-03 is a high-reliability 6U CompactPCI (cPCI) Single Board Computer (SBC) designed to act as a system controller in telecom, defense, and industrial automation.
KONTRON CompactPCI Single Board Computer Key Highlights
KONTRON CompactPCI Single Board Computer Processor: Intel Pentium M 1.8 GHz with high-density, low-power processing.
KONTRON CompactPCI Single Board Computer Memory: Up to 2 GB DDR ECC RAM ensuring 24/7 data integrity.
Networking: 4 Gigabit Ethernet ports supporting PICMG 2.16 backplane switching.
Storage: Dual onboard support for a 2.5-inch HDD and a CompactFlash card.
Management: Compliant with IPMI v1.5 for remote health monitoring and recovery.
If you want to more details about CP6000-FTC-03 KONTRON，please contact me without hesitate.Email：sales@sparecenter.com
Choose Spare Center
Massive Stock: Large regional inventory of rare and current industrial automation parts.
Global Shipping: Same-day dispatch via major couriers (DHL, FedEx, UPS).
Guaranteed Quality: 100% genuine products backed by full testing and warranty.
Technical Support: Multilingual product support for seamless cross-border ordering.
Premium Brands: Authorized supply for major lines like Bently Nevada and ABB.
KONTRON CPCI SBC FAQ
Q1: What operating systems are supported by the Kontron CP6000-FTC-03?
A: The CP6000-FTC-03 KONTRON supports VxWorks, Linux (kernels 2.4/2.6), Windows XP Embedded, and Windows Server 2003. For modern x86 installations, separate integration of the Intel 855GME chipset and Intel 82546GB Ethernet drivers is required to prevent initialization failures.
A: The CP6000-FTC-03 KONTRON supports VxWorks, Linux (kernels 2.4/2.6), Windows XP Embedded, and Windows Server 2003. For modern x86 installations, separate integration of the Intel 855GME chipset and Intel 82546GB Ethernet drivers is required to prevent initialization failures.
Q2: How is the CP6000-FTC-03 KONTRON configured for peripheral slot operation?
A: System controller functions must be disabled via the hardware jumpers located near the front panel. Additionally, enter the AMI BIOS of the KONTRON cPCI SBC and disable the internal PCI arbiter to allow an external master board to manage the backplane.
A: System controller functions must be disabled via the hardware jumpers located near the front panel. Additionally, enter the AMI BIOS of the KONTRON cPCI SBC and disable the internal PCI arbiter to allow an external master board to manage the backplane.
Q3: What are the memory replacement specifications for the Kontron CP6000-FTC-03?
A: The Kontron CP6000-FTC-03 requires 200-pin PC333 DDR SDRAM SODIMMs, supporting a maximum capacity of 2 GB (2 x 1 GB). Replacement modules must feature Error-Correcting Code (ECC). Non-ECC memory will result in POST failure or operating system instability.
A: The Kontron CP6000-FTC-03 requires 200-pin PC333 DDR SDRAM SODIMMs, supporting a maximum capacity of 2 GB (2 x 1 GB). Replacement modules must feature Error-Correcting Code (ECC). Non-ECC memory will result in POST failure or operating system instability.
Q4: What causes IPMI v1.5 communication loss on the CP6000-FTC-03 KONTRON?
A: Intermittent loss of the PICMG 2.16 backplane interface typically indicates thermal degradation of the onboard voltage regulator modules (VRMs). This thermal stress stalls the Baseboard Management Controller (BMC) firmware while the primary Pentium M processor remains operational.
A: Intermittent loss of the PICMG 2.16 backplane interface typically indicates thermal degradation of the onboard voltage regulator modules (VRMs). This thermal stress stalls the Baseboard Management Controller (BMC) firmware while the primary Pentium M processor remains operational.
Q5: What are the cooling and power requirements for the Kontron CP6000-FTC-03?
A: The CP6000-FTC-03 KONTRON has a nominal power consumption of 25 to 30 Watts. The board relies on passive heatsinks and requires a minimum chassis forced airflow velocity of 1.5 to 2.0 m/s to prevent thermal throttling near the +60°C operating threshold.
A: The CP6000-FTC-03 KONTRON has a nominal power consumption of 25 to 30 Watts. The board relies on passive heatsinks and requires a minimum chassis forced airflow velocity of 1.5 to 2.0 m/s to prevent thermal throttling near the +60°C operating threshold.
