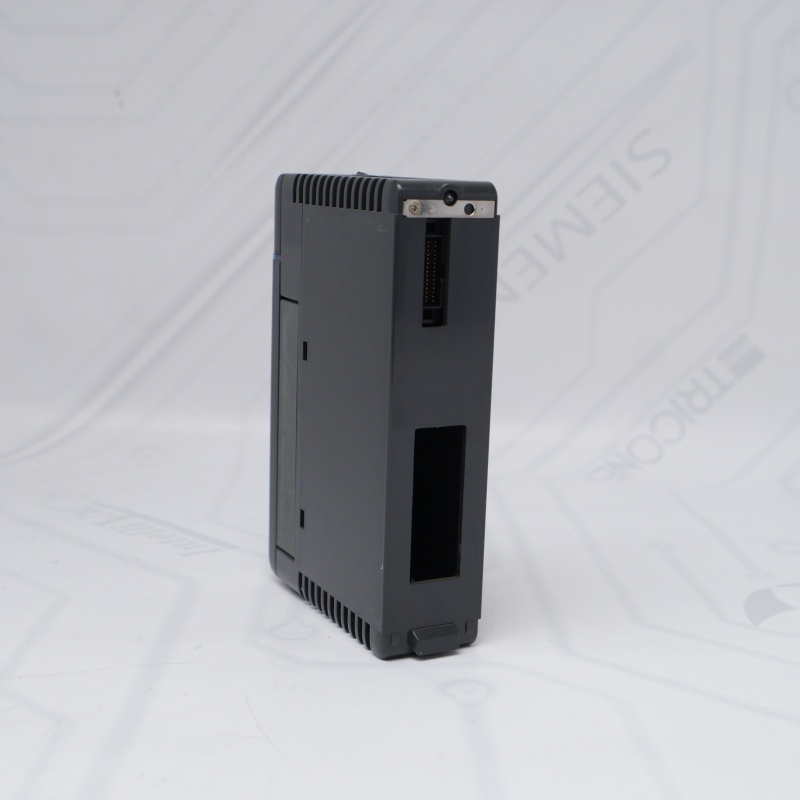

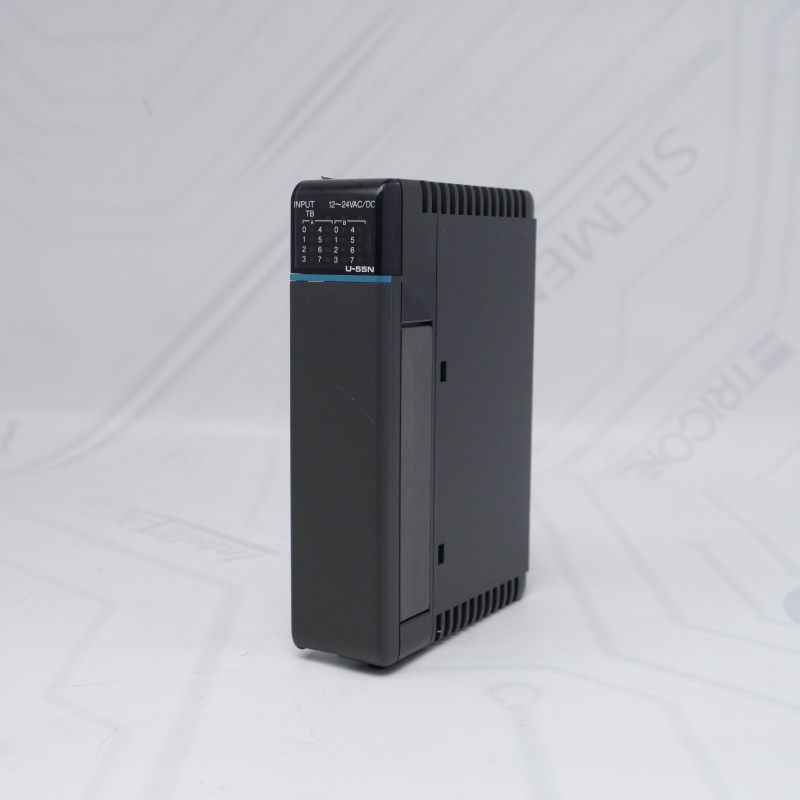

SIEMENS U-55N Summary

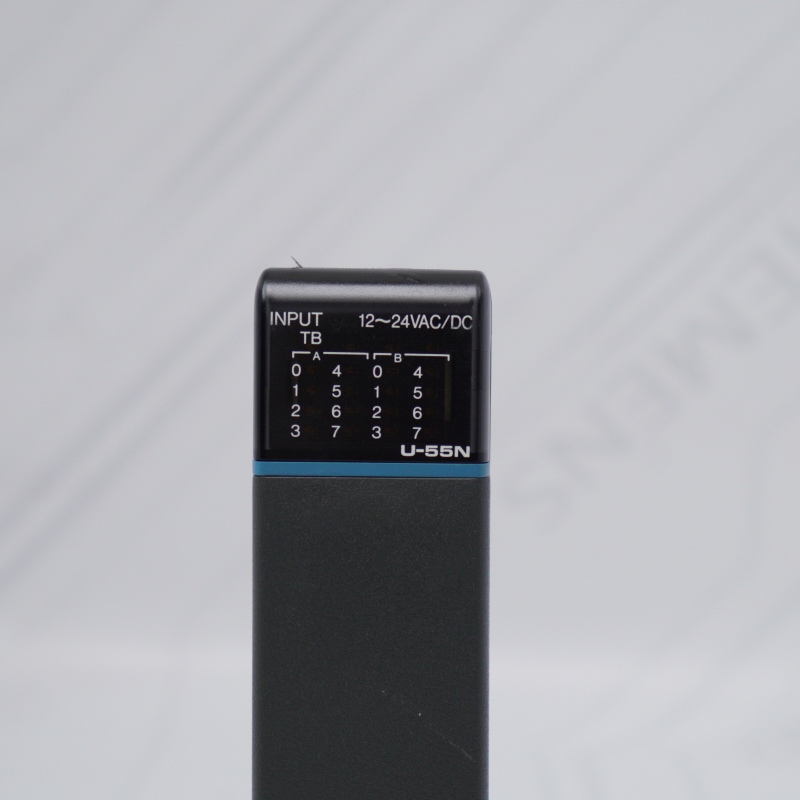

U-55N Input Channels: 16 points.
U-55N input module Rated Input Voltage: 12V to 24V AC/DC (Universal AC/DC).
U-55N input module Operating Voltage Range: 10.2V to 26.4V AC/DC.
U-55N input module Input Current Range: 4 mA to 18 mA.
U-55N input module Signal Frequency: 50/60 Hz (for AC) or DC.
U-55N input module System Family: Siemens SIMATIC / TI405 architecture
If you want to more details about U-55N，please contact me without hesitate. Email：sales@sparecenter.com
U-55N Key Application
SIEMENS input module Discrete Sensor Interfacing: The U-55N SIEMENS module reads on/off states from proximity switches, limit switches, and photoelectric sensors.
SIEMENS input module Operator Interface Monitoring: Tracks manual control inputs from field pushbuttons, selector switches, and emergency stops directly through the U-55N SIEMENS channels.
SIEMENS input module Legacy Machine Control: Orchestrates basic logic sequencing in older manufacturing lines and assembly equipment powered by the U-55N SIEMENS architecture.
SIEMENS input module Mixed AC/DC Environment Control: Utilizes the unique capabilities of the U-55N SIEMENS to handle distinct electrical control circuits ranging from 12V DC up to 24V AC on a single module.
SIEMENS input module Industrial Facility Automation: Processes basic digital alerts from HVAC systems, level indicators, and pressure switches.
U-55N input module FAQ
Q1: How do I diagnose input channel faults on a live U-55N?
A1: Check the front-panel status LEDs. If a field sensor is physically active but the corresponding Siemens U-55N LED is off, measure the voltage at the rack backplane terminal; if voltage is present within the operational range, the internal optocoupler of the Siemens U-55N has failed.
A1: Check the front-panel status LEDs. If a field sensor is physically active but the corresponding Siemens U-55N LED is off, measure the voltage at the rack backplane terminal; if voltage is present within the operational range, the internal optocoupler of the Siemens U-55N has failed.
Q2: Is the internal CPU bus protected from field wiring spikes inside the Siemens U-55N(U-55N input module)?
A2: Yes, the U-55N SIEMENS features internal optical isolation. This separation prevents electrical noise and voltage surges on the field side from breaching the backplane and damaging the master processor connected to the Siemens U-55N.
A2: Yes, the U-55N SIEMENS features internal optical isolation. This separation prevents electrical noise and voltage surges on the field side from breaching the backplane and damaging the master processor connected to the Siemens U-55N.
Q3: Can the Siemens U-55N module be safely replaced without disconnecting individual field wires?
A3: Yes, the TI405 rack architecture utilizes a baseplate-terminal design. The field wiring terminates directly onto the permanent rack housing, allowing the U-55N SIEMENS(SIEMENS input module) hardware module to be slid out and replaced without disturbing any physical field connections to the Siemens U-55N.
A3: Yes, the TI405 rack architecture utilizes a baseplate-terminal design. The field wiring terminates directly onto the permanent rack housing, allowing the U-55N SIEMENS(SIEMENS input module) hardware module to be slid out and replaced without disturbing any physical field connections to the Siemens U-55N.
Q4: Does the Siemens U-55N(SIEMENS input module) support hot-swapping under live rack power?
A4: No, the U-55N SIEMENS does not support hot-swapping. Extracting or inserting a U-55N SIEMENS while the TI405 backplane power is active can cause electrical arcing, which risks destroying the module electronics or halting the PLC CPU.
A4: No, the U-55N SIEMENS does not support hot-swapping. Extracting or inserting a U-55N SIEMENS while the TI405 backplane power is active can cause electrical arcing, which risks destroying the module electronics or halting the PLC CPU.
