ABB DPW03 Specification
| Manufacturer | ABB | Model | DPW03 |
| Module Type | Auxiliary Power Supply Module | System Compatibility | ABB Freelance / Freelance 2000 |
| Input Voltage | 115 V AC / 230 V AC | Output Voltage | 24 V DC |
| Output Current | 5 A | Protection Features | Overload and Overvoltage Protection |
ABB DPW03 Overview
The ABB DPW03(ABB auxiliary power supply module) is a high-performance auxiliary power supply module specifically engineered for the ABB Freelance and Freelance 2000 Distributed Control Systems (DCS). ABB auxiliary power supply module serves as the critical energy backbone for controller racks, converting AC mains into a stabilized 24V DC output. Whether you are maintaining a legacy installation or replacing a failed unit, the ABB DPW03(ABB auxiliary power supply module) ensures your process automation remains operational with industrial-grade reliability.
DPW03 ABB DCS Native Integration
DPW03(DPW03 ABB) is specifically engineered for the ABB Freelance (including Freelance 2000) Distributed Control System, ensuring seamless mechanical and electrical compatibility within the system racks.
DPW03 ABB Robust Industrial Power Conversion
DPW03(DPW03 ABB) converts standard 115/230 V AC utility power into a stabilized 24 V DC output, delivering a consistent 5 A current to power critical process controllers and I/O modules.
DPW03 ABB Dual-Voltage Versatility
ABB DPW03(DPW03 ABB) features a flexible input range (115/230 V AC), allowing for global deployment across different regional power standards without requiring external transformers.
DPW03 ABB Comprehensive Circuit Protection
ABB DPW03(DPW03 ABB) is equipped with built-in Overload and Overvoltage Protection to safeguard downstream DCS components from electrical faults, spikes, or short circuits.
DPW03 ABB Industrial-Grade Reliability
ABB DPW03(DPW03 ABB) is designed for 24/7 continuous operation in process industries; built to withstand the thermal and electromagnetic demands of high-density automation cabinets.
DPW03 ABB Compact DIN Rail/Rack Mounting
ABB DPW03(DPW03 ABB) is optimized for space-saving installation, fitting standard industrial mounting configurations to reduce the overall footprint of the control panel.
If you want to more details about ABB DPW03，please contact me without hesitate. Email：sales@sparecenter.com
ABB DPW03 Application
ABB auxiliary power supply module DCS Core Powering
ABB DPW03(DPW03 ABB) serves as the primary or auxiliary power source for ABB Freelance 2000 and AC 800F controller racks, providing the stable 24V DC required for processor modules and communication interfaces.
ABB auxiliary power supply module Field Instrument Supply
ABB DPW03(ABB DPW03) is used to power loops for field devices such as pressure transmitters, flow meters, and temperature sensors that require clean, regulated DC power to maintain signal accuracy.
ABB DPW03 I/O Module Support
DPW03(ABB DPW03) provides dedicated power for digital and analog I/O cards within the DCS cabinet, ensuring that industrial signals are processed without interference from voltage fluctuations.
DPW03 ABB Continuous Process Industries
DPW03(ABB DPW03) is extensively applied in Chemical, Pharmaceutical, and Water Treatment plants where system uptime is critical and power interruptions to the control logic cannot be tolerated.
DPW03 ABB Control Cabinet Integration
DPW03(ABB DPW03) acts as a centralized power hub within industrial control panels, converting AC mains to DC for various DIN-rail mounted components like relays, signal isolators, and small HMI panels.
DPW03 ABB Legacy System Retrofitting
DPW03(ABB DPW03) functions as a crucial spare part for maintaining and extending the lifecycle of existing Freelance automation installations, ensuring older systems remain operational with original manufacturer specs.
ABB DPW03 Images and Compatibility

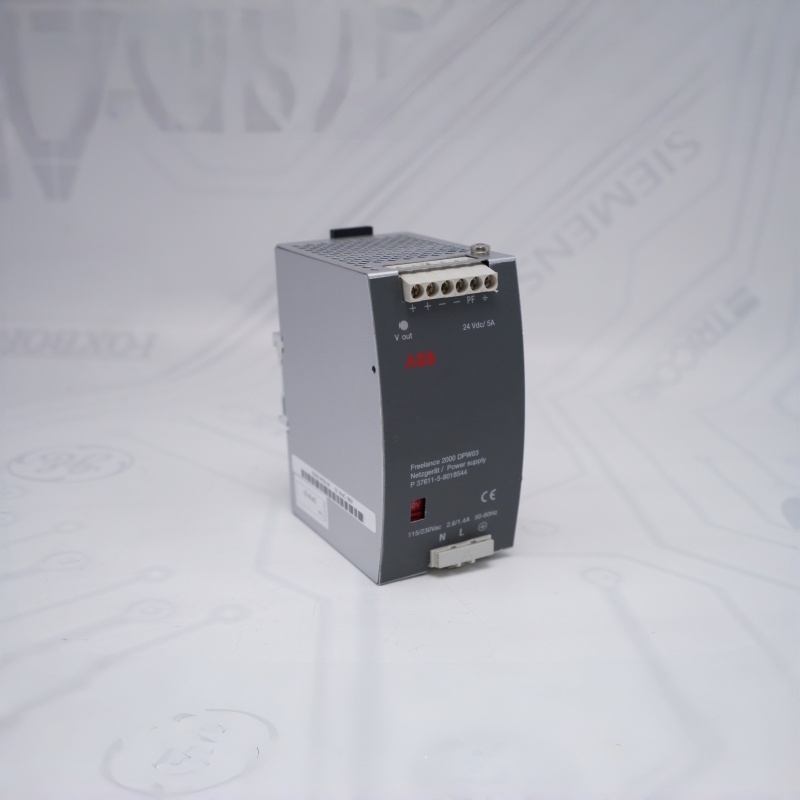

ABB DPW03(DPW03 ABB)

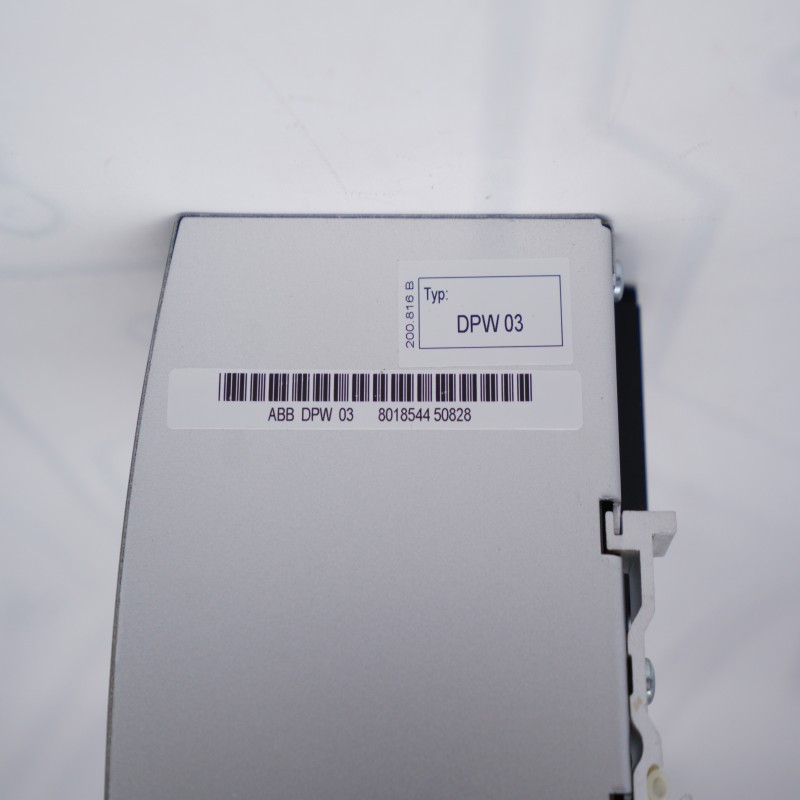

ABB DPW03(DPW03 ABB)

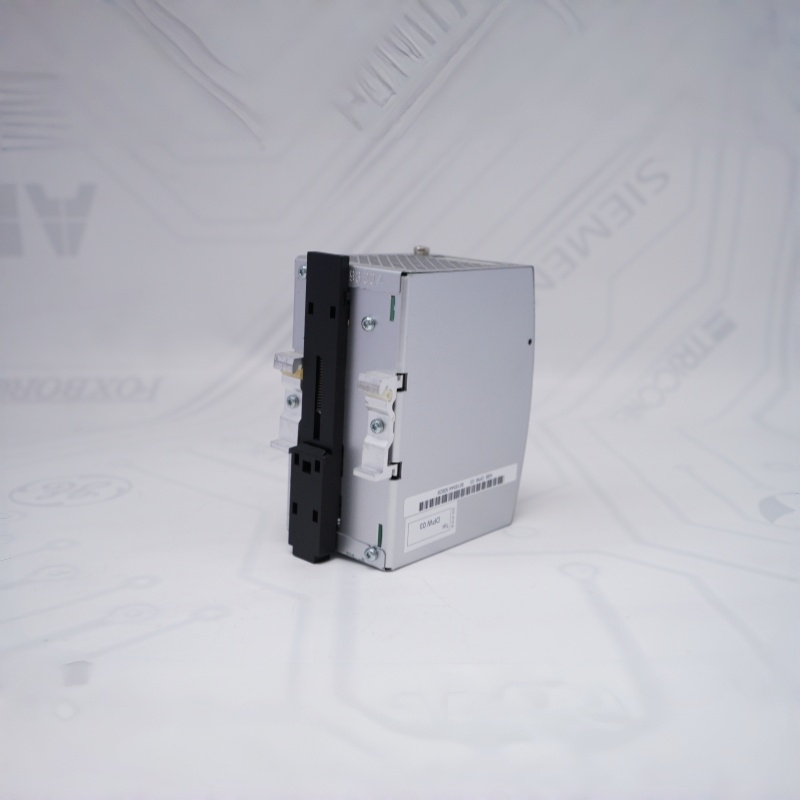

ABB DPW03(DPW03 ABB)

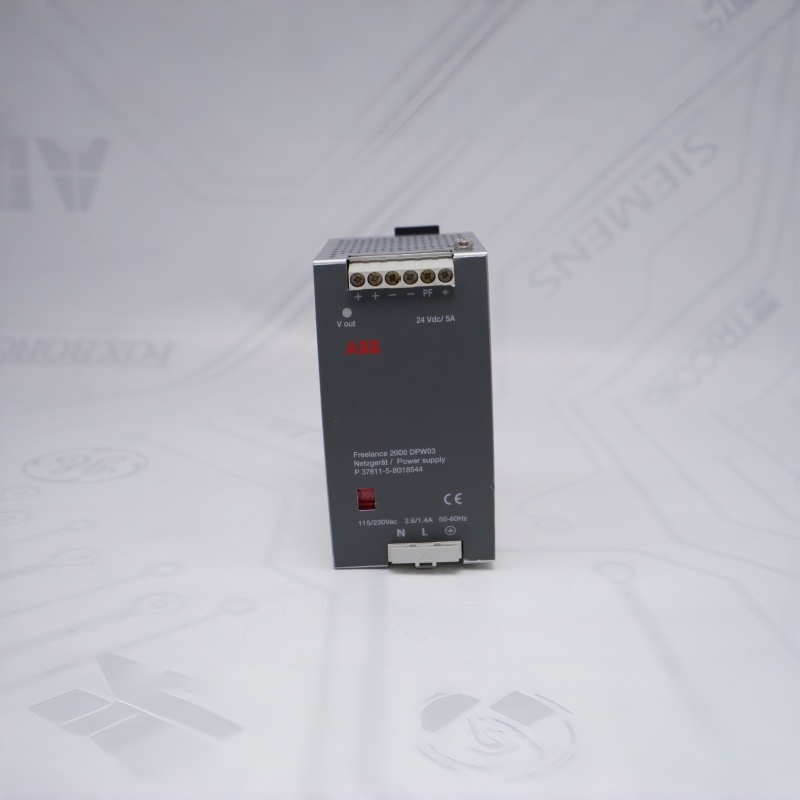

ABB DPW03(DPW03 ABB)
The DPW03(ABB DPW03) is more than just a standalone power supply; it is a foundational component of the ABB Freelance ecosystem. To ensure seamless integration into your existing control cabinets, please refer to the following compatibility details:
Controller Compatibility
The DPW03(DPW03 auxiliary power supply module) is engineered to provide the high-stability 24V DC bus required by the ABB AC 800F and AC 700F series controllers.DPW03 auxiliary power supply module ensures that processor logic remains uninterrupted during industrial power fluctuations, preventing "CPU Halt" or communication dropouts.
Supported I/O Families
DPW03 auxiliary power supply module provides the necessary current for large-scale S800 I/O stations. DPW03 auxiliary power supply module is designed to handle the inrush current of multiple digital and analog modules, ensuring that field signals from sensors and actuators remain accurate and noise-free.
Communication Module Support
The DPW03(DPW03 auxiliary power supply module) is the preferred power source for high-speed fieldbus interfaces. DPW03 auxiliary power supply module provides dedicated power to modules such as:
EI 813F: Ethernet Interface modules.
FI 810F / FI 820F / FI 830F: Fieldbus modules (Profibus, FF, CAN).
AM 811F: Analog input modules requiring precise voltage references.
Mechanical & Rack Integration
The DPW03(DPW03 auxiliary power supply module) is a native fit for the Freelance 2000 sub-rack architecture. DPW03 auxiliary power supply module(ABB DPW03) occupies a specific slot footprint, allowing for "slide-in" installation that aligns perfectly with the backplane connectors. This eliminates the need for custom mounting brackets or haphazard wiring often found with third-party power supplies.
Redundancy Configurations
In critical applications, the DPW03(DPW03 auxiliary power supply module) can be integrated into redundant power schemes alongside the SA 811F power voting module to ensure that a single power failure does not result in a total plant shutdown.
ABB DPW03 FAQ
Q1: What is the primary function of the DPW03 ABB(ABB auxiliary power supply module) module within a control system?
A: The DPW03 ABB is a dedicated auxiliary power supply module designed to convert 115/230 V AC input into a regulated 24 V DC output. Its primary role is to provide stable, industrial-grade power to controllers and I/O components within the ABB Freelance 2000 automation platform.
Q2: Can the DPW03 ABB be used with different international line voltages?
A: Yes, the DPW03 ABB is designed for global compatibility. It supports a dual-input voltage range of 115 V AC and 230 V AC, allowing the module to be deployed in various geographical regions with different power grid standards.
A: Yes, the DPW03 ABB is designed for global compatibility. It supports a dual-input voltage range of 115 V AC and 230 V AC, allowing the module to be deployed in various geographical regions with different power grid standards.
Q3: What safety mechanisms are built into the DPW03 ABB to protect downstream hardware?
A: The DPW03 ABB features integrated electronic protection against overloads and overvoltages. These safeguards ensure that if a fault occurs, the DPW03 prevents electrical damage from reaching sensitive processor modules or field instruments.
A: The DPW03 ABB features integrated electronic protection against overloads and overvoltages. These safeguards ensure that if a fault occurs, the DPW03 prevents electrical damage from reaching sensitive processor modules or field instruments.
Q4: Is the DPW03 ABB compatible with the latest ABB AC 800F controllers?
A: The DPW03 ABB was originally engineered for the Freelance 2000 series; however, it is frequently utilized across the Freelance family (including certain AC 800F configurations) where a 24 V DC / 5 A auxiliary power source is required by the hardware manual.
A: The DPW03 ABB was originally engineered for the Freelance 2000 series; however, it is frequently utilized across the Freelance family (including certain AC 800F configurations) where a 24 V DC / 5 A auxiliary power source is required by the hardware manual.
Q5: What should be checked if the DPW03 ABB fails to provide a 24 V DC output?
A: First, verify that the input voltage at the DPW03 ABB terminals matches the configured setting (115V vs 230V). If the input of ABB DPW03 is correct but the output is missing, check for external short circuits on the load side that may have triggered the DPW03 internal protection circuit.
A: First, verify that the input voltage at the DPW03 ABB terminals matches the configured setting (115V vs 230V). If the input of ABB DPW03 is correct but the output is missing, check for external short circuits on the load side that may have triggered the DPW03 internal protection circuit.
Q6: Can multiple DPW03(ABB auxiliary power supply module) modules be installed in the same cabinet?
A: Yes, multiple DPW03(ABB DPW03) units can be installed within a single cabinet to provide segmented power to different I/O racks, provided that the thermal dissipation requirements and spacing specified in the DPW03 technical data sheet are maintained.
Q7: How quickly can the DPW03(ABB auxiliary power supply module) be delivered to resolve a system emergency?
A: We prioritize all DPW03 ABB(ABB DPW03) orders to ensure the fastest possible turnaround. Typically, ABB auxiliary power supply moduleis processed and dispatched from our warehouse within 24 to 48 hours of order confirmation. When combined with our express shipping partners like DHL or FedEx, most customers receive their ABB DPW03 within 3 to 5 business days, significantly reducing costly industrial downtime.
