SIEMENS Add-on Front End Module Details
Siemens AddFEM Module (6DL3100-8AC)
Brand and Origin: SIEMENS / Made in Germany
Core Function: PROFIBUS high-speed front-end I/O processing module with onboard coprocessor (supports module redundancy)
Electrical and Environmental
Supply Voltage: DC 24V / 1A
Max Operating Temperature: 60 degree C
Input and Output Channels
Digital Inputs (DI): 15 channels (DC 24V)
Digital Outputs (DO): 16 channels (DC 24V / 0.5A, resistive load, protective diode)
Analog Inputs (AI): 12 channels total (6x supporting 0 to 10V, plus-minus 10V, plus-minus 20mA, 0/4 to 20mA; 6x supporting plus-minus 20mA, 0/4 to 20mA)
Analog Outputs (AO): 8 channels (plus-minus 20mA, 0/4 to 20mA)
SIEMENS Add-on Front End Module Key Features
Dynamic Parameterization: Supports DPV1 services for configuration changes during RUN mode
Typical Applications: Integrated into SIMATIC PCS 7 systems for Sequence of Events (SoE) time-stamping or Positioner Control (PoCo)
If you want to more details about SIEMENS Add-on Front End Module，please contact me without hesitate. Email：sales@sparecenter.com
SIEMENS Add-on Front End Module Application Scope
Power and Energy: The 6DL3100-8AC SIEMENS provides microsecond-level Sequence of Events (SoE) logging for turbine trips and high-precision valve control.
Oil, Gas, and Chemical: Hazardous processing units deploy the 6DL3100-8AC SIEMENS to ensure hardware redundancy and continuous plant operation.
Metallurgy and Heavy Industry: The 6DL3100-8AC SIEMENS delivers millisecond-level closed-loop position control for steel rolling mills and hydraulic servos.
Large-Scale Process Control: The 6DL3100-8AC SIEMENS offloads the main CPU by preprocessing high-speed field I/O signals locally.
Core Advantages of Spare Center
1
Massive Stock
Over 1M products ready for same-day shipping.
2
Global Support
Multilingual team serving 100+ countries.
3
Guaranteed Quality
Original origin testing with third-party verification.
4
Flexible Shipping
Global delivery via DHL, FedEx, TNT, and UPS.

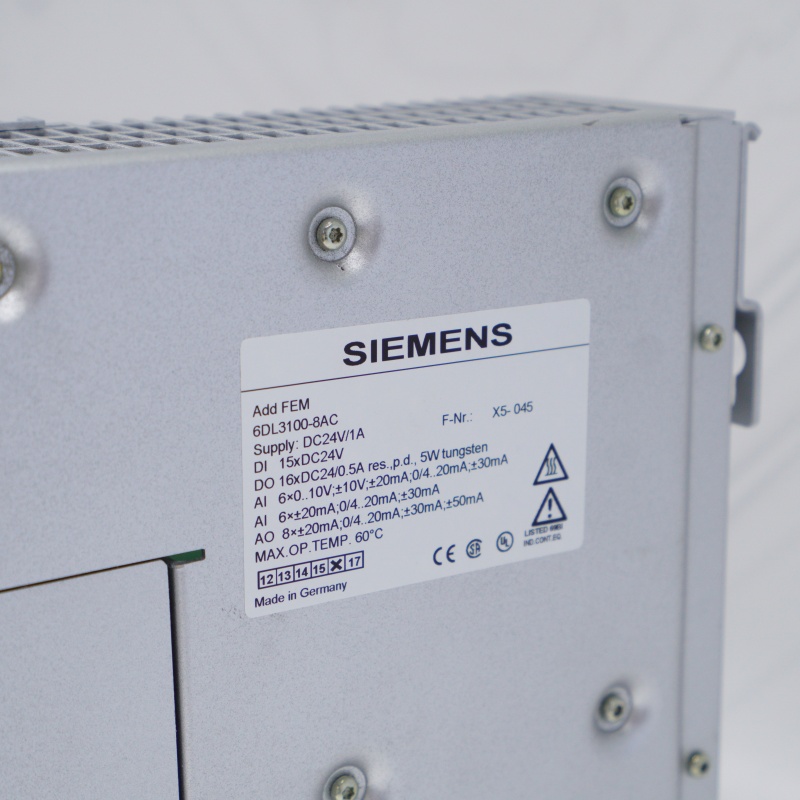

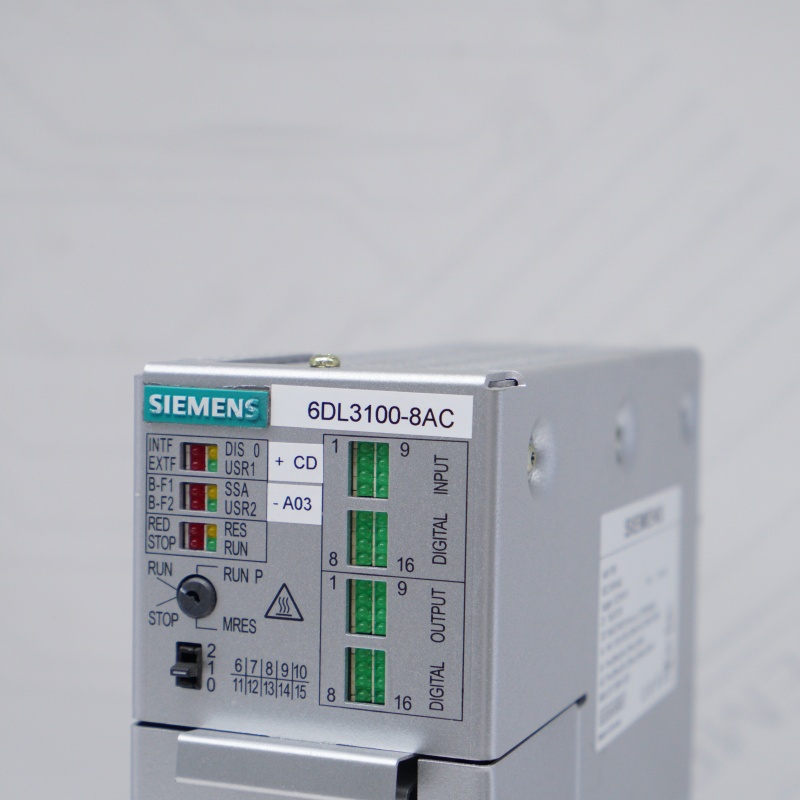

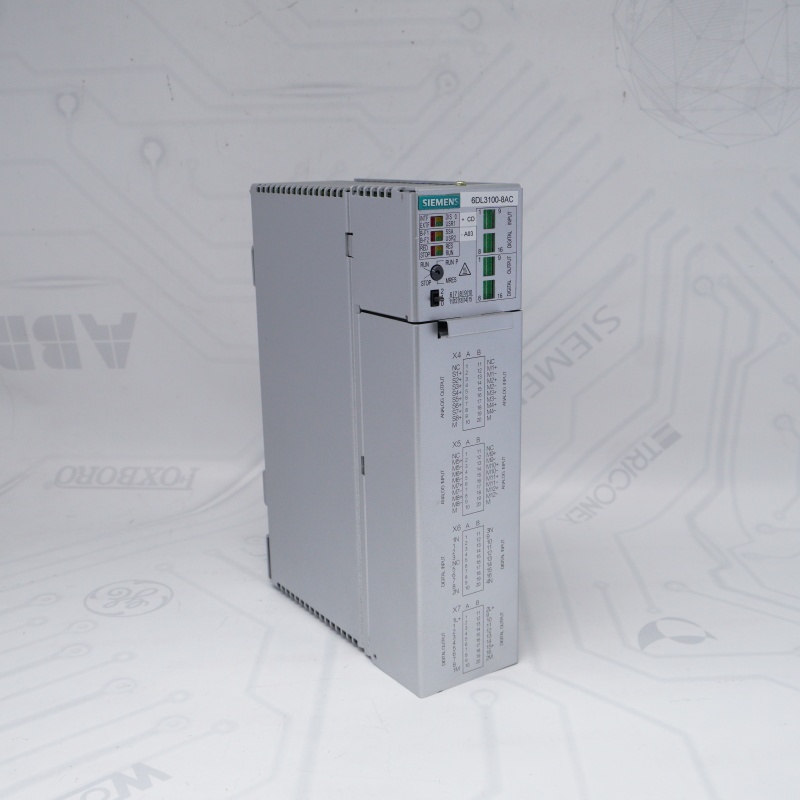

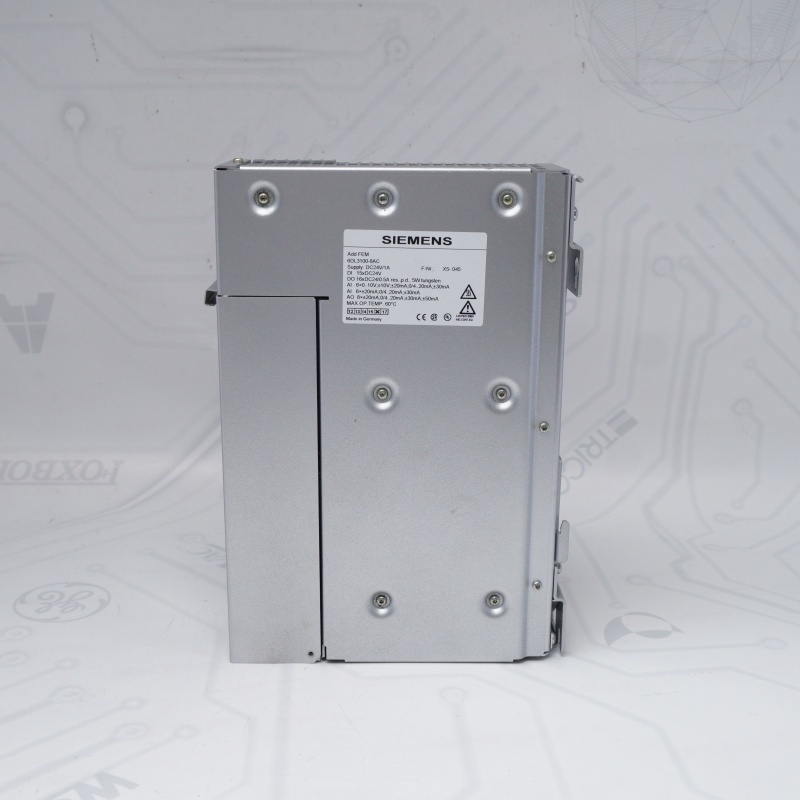

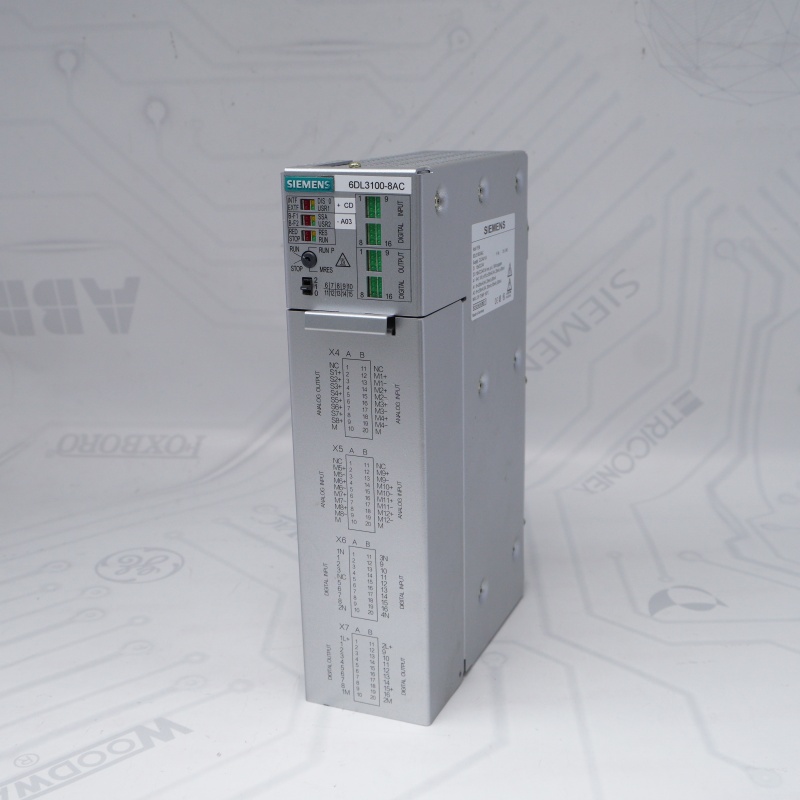

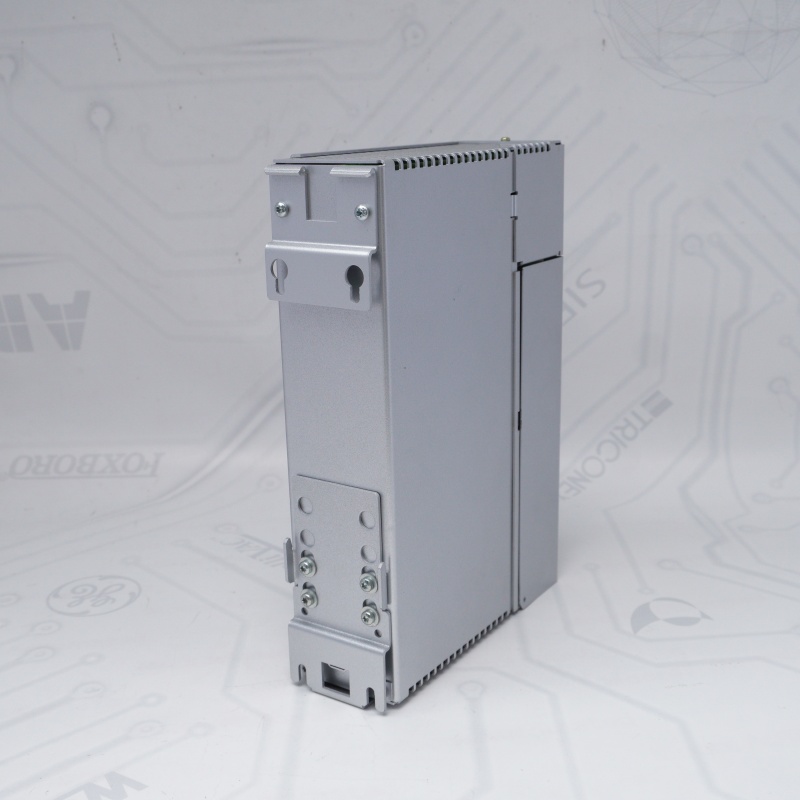

SIEMENS Add-on Front End Module Images
SIEMENS 6DL3100-8AC
SIEMENS 6DL3100-8AC
SIEMENS 6DL3100-8AC
SIEMENS 6DL3100-8AC
SIEMENS 6DL3100-8AC FAQ
Q1: What is the primary function of the 6DL3100-8AC SIEMENS module?
A1: The 6DL3100-8AC SIEMENS is an AddFEM front-end I/O processor that handles high-speed signal preprocessing locally on PROFIBUS, reducing the main CPU communication load.
A1: The 6DL3100-8AC SIEMENS is an AddFEM front-end I/O processor that handles high-speed signal preprocessing locally on PROFIBUS, reducing the main CPU communication load.
Q2: Does the 6DL3100-8AC SIEMENS support hardware redundancy?
A2: Yes, the 6DL3100-8AC SIEMENS supports full module redundancy, allowing two units to run in a redundant pair to ensure zero downtime during critical plant operations.
A2: Yes, the 6DL3100-8AC SIEMENS supports full module redundancy, allowing two units to run in a redundant pair to ensure zero downtime during critical plant operations.
Q3: How does the 6DL3100-8AC SIEMENS perform Sequence of Events (SoE) logging?
A3: With dedicated SoE firmware, the 6DL3100-8AC SIEMENS records digital input transitions with microsecond-level time-stamping, delivering highly precise chronological data for post-fault analysis.
A3: With dedicated SoE firmware, the 6DL3100-8AC SIEMENS records digital input transitions with microsecond-level time-stamping, delivering highly precise chronological data for post-fault analysis.
Q4: Can the 6DL3100-8AC SIEMENS be reconfigured online during plant operation?
A4: Yes, the SIEMENS 6DL3100-8AC supports DPV1 acyclic services, which enables engineers to modify channel parameters dynamically while the system is running (in RUN mode).
A4: Yes, the SIEMENS 6DL3100-8AC supports DPV1 acyclic services, which enables engineers to modify channel parameters dynamically while the system is running (in RUN mode).
Q5: What are the main software application variants for the 6DL3100-8AC SIEMENS?
A5: The SIEMENS 6DL3100-8AC features two primary variants: the SoE software for high-speed fault recording, and the PoCo (Positioner Control) software for fast closed-loop valve positioning.
A5: The SIEMENS 6DL3100-8AC features two primary variants: the SoE software for high-speed fault recording, and the PoCo (Positioner Control) software for fast closed-loop valve positioning.
