VIPA Ethernet communication module Technical Data

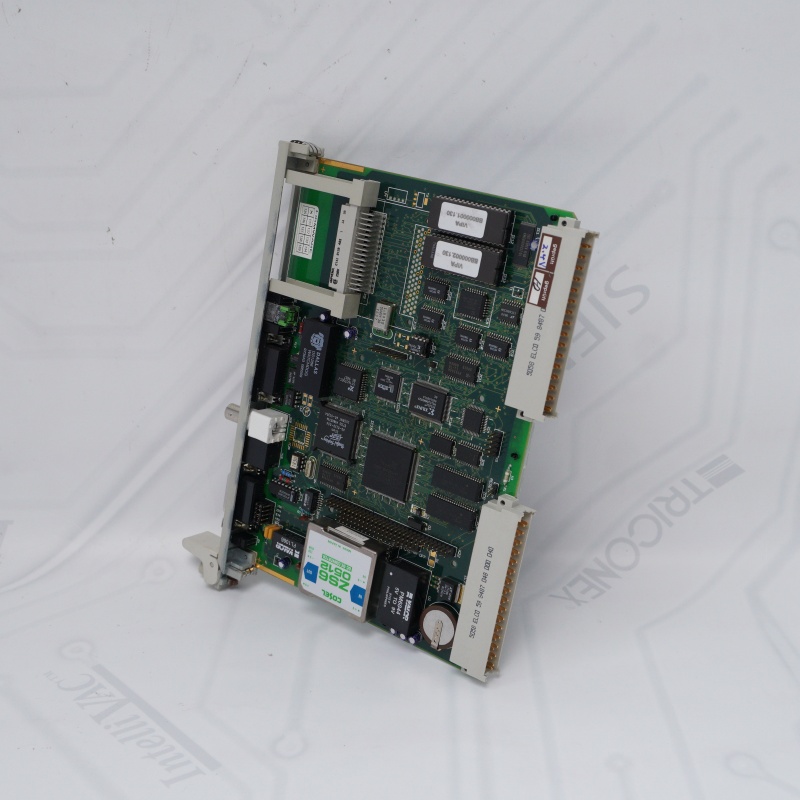

VIPA Ethernet communication module Role: Industrial Ethernet Communication Processor for Siemens S5-135U / 155U PLCs (compatible with Siemens CP143).

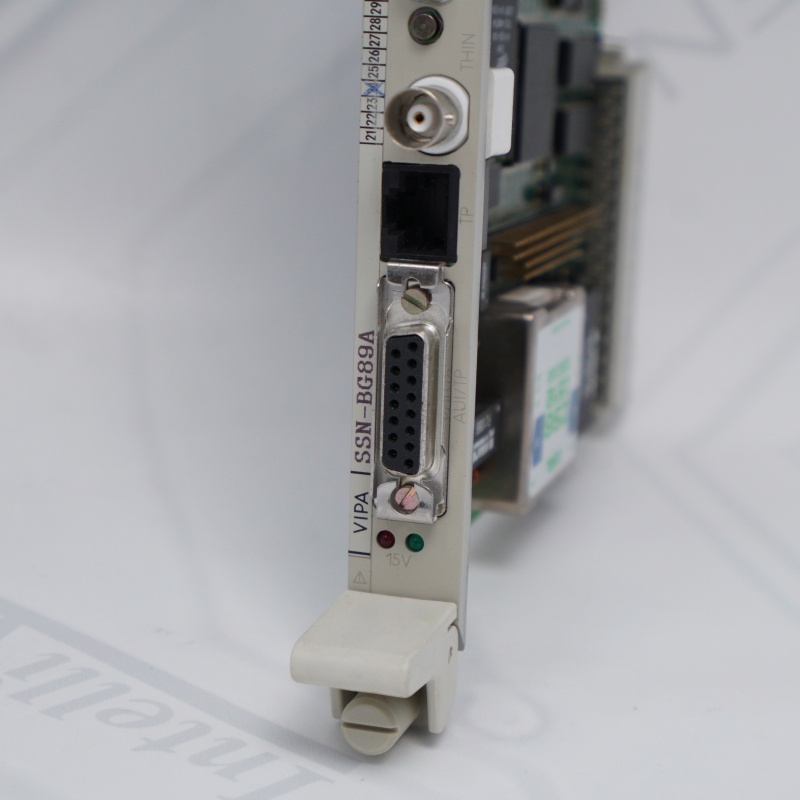

VIPA Ethernet communication module Ports: AUI (15-pin D-sub) and BNC (coaxial). Note: Connecting to standard RJ45 network cables requires an external AUI-to-RJ45 transceiver.
VIPA Ethernet communication module Protocols: Supports TCP/IP and Siemens SINEC H1.
VIPA Ethernet communication module Configuration: Initialized via STEP 5 software. Onboard jumpers are used to set base addresses and interrupts.
Power: Powered directly via the S5 backplane bus (no external power supply needed).

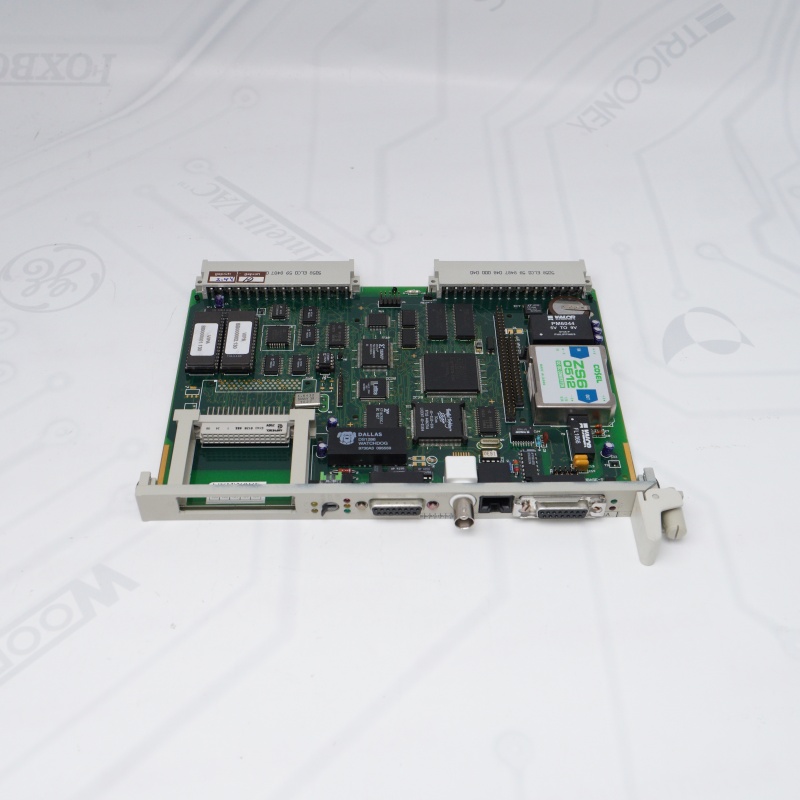

Form Factor: Standard S5 large card layout.
If you want to more details about SSN-BG89A VIPA，please contact me without hesitate.Email：sales@sparecenter.com
VIPA Ethernet communication module Key Function
Legacy Ethernet Bridging: Enables legacy Siemens SIMATIC S5 (135U/155U) PLCs to connect directly to modern networks using the SSN-BG89A VIPA communication processor.
Siemens CP143 Emulation: The SSN-BG89A VIPA serves as a direct, drop-in functional replacement for the discontinued Siemens 6GK1143 (CP143) network card.
Dual-Protocol Communication: Built to handle both modern TCP/IP data transfers and legacy Siemens SINEC H1 industrial network protocols, the SSN-BG89A VIPA ensures flexible connectivity.
SCADA & MES Integration: By acting as a secure hardware bridge, the SSN-BG89A VIPA links old shop-floor machinery with modern factory monitoring and control systems.
PLC-to-PLC Data Exchange: Installing the SSN-BG89A VIPA facilitates fast peer-to-peer data sharing between multiple S5 controllers or between legacy S5 and modern S7 systems.
SSN-BG89A VIPA FAQ
Q1: How do I troubleshoot the "ERROR" LED on the VIPA SSN-BG89A front panel during startup?
A: If the red indicator stays on, it usually signals a hardware configuration mismatch or a failure during power-on self-test. First, verify that the base address and interrupt VIPA SSN-BG89A onboard jumpers do not conflict with other cards on your S5 backplane. If the jumpers are correct, reload the database (DB) initialized via your STEP 5 software to clear potential memory corruption inside the VIPA SSN-BG89A flash storage.
Q2: Can the SSN-BG89A VIPA module co-exist with original Siemens CP cards on the same S5 backplane?
A: Yes, the VIPA SSN-BG89A can work alongside other communication processors as long as each card is assigned a unique base address. To prevent data collisions on the S5 backplane, you must manually adjust the DIP-switches and jumpers on the VIPA SSN-BG89A circuit board so its hardware resources do not overlap with existing Siemens modules.
A: Yes, the VIPA SSN-BG89A can work alongside other communication processors as long as each card is assigned a unique base address. To prevent data collisions on the S5 backplane, you must manually adjust the DIP-switches and jumpers on the VIPA SSN-BG89A circuit board so its hardware resources do not overlap with existing Siemens modules.
Q3: What accessories or external hardware are required to plug a standard Cat5/Cat6 RJ45 patch cable into the SSN-BG89A VIPA?
A: Because the VIPA SSN-BG89A relies on legacy network interfaces, you cannot plug a modern RJ45 cable into it directly. You will need an external active AUI-to-RJ45 transceiver (sometimes called a MAU or micro-transceiver) that converts the 15-pin D-sub port of the VIPA SSN-BG89A to a modern twisted-pair Ethernet port.
A: Because the VIPA SSN-BG89A relies on legacy network interfaces, you cannot plug a modern RJ45 cable into it directly. You will need an external active AUI-to-RJ45 transceiver (sometimes called a MAU or micro-transceiver) that converts the 15-pin D-sub port of the VIPA SSN-BG89A to a modern twisted-pair Ethernet port.
Q4: Is the SSN-BG89A VIPA compatible with modern firmware updates or programming via TIA Portal?
A: No, the VIPA SSN-BG89A is a mature, discontinued hardware line engineered strictly for legacy S5 platforms. It cannot be discovered or configured using TIA Portal or modern WinPLC7 software; all parameter settings and operational parameters for the VIPA SSN-BG89A must be managed through traditional COM 143 or STEP 5 software environments.
A: No, the VIPA SSN-BG89A is a mature, discontinued hardware line engineered strictly for legacy S5 platforms. It cannot be discovered or configured using TIA Portal or modern WinPLC7 software; all parameter settings and operational parameters for the VIPA SSN-BG89A must be managed through traditional COM 143 or STEP 5 software environments.
Q5: What is the recommended preventive maintenance routine for an operational SSN-BG89A VIPA unit?
A: To ensure long-term stability in harsh factory environments, periodically check that the heavy card locking screws holding the VIPA SSN-BG89A(SSN-BG89A VIPA) to the S5 rack are tight to prevent vibration-induced bus disconnects. Additionally, during scheduled plant shutdowns, inspect the gold-plated edge connectors of the VIPA SSN-BG89A for oxidation and clean them with a contact cleaner to preserve data integrity across the backplane.
