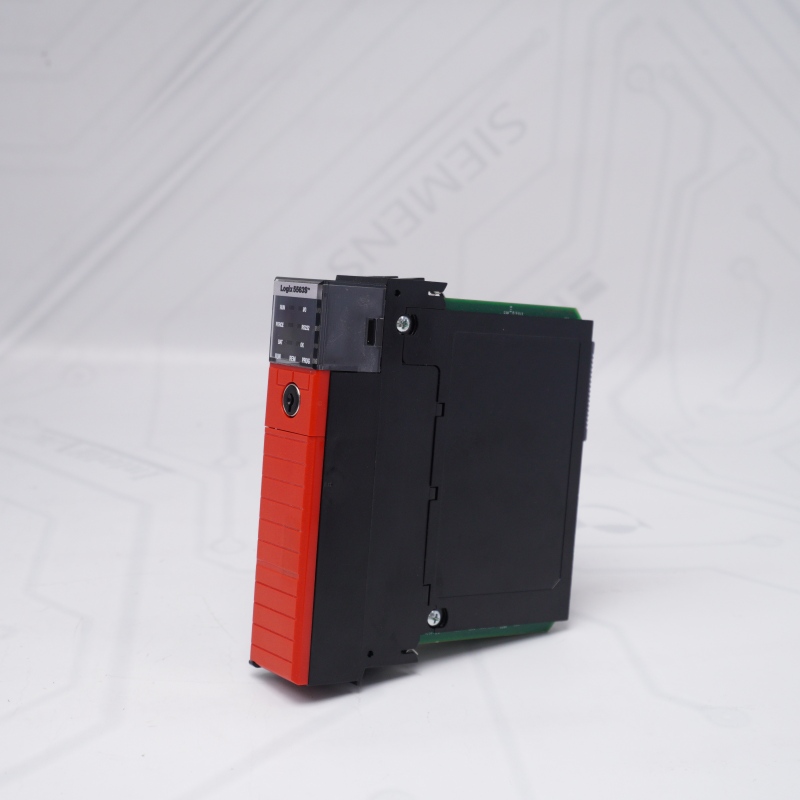

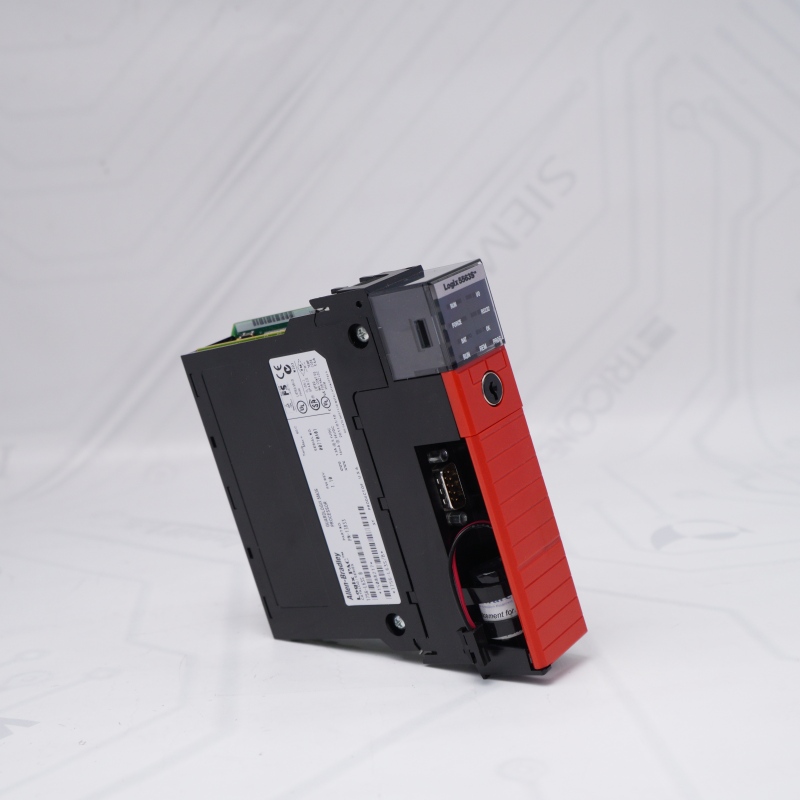

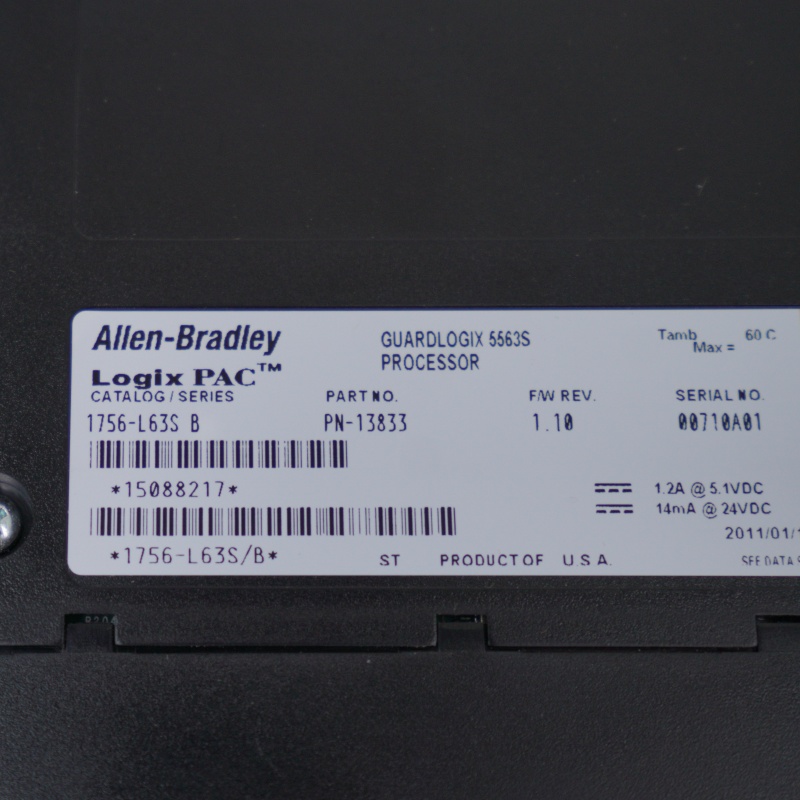

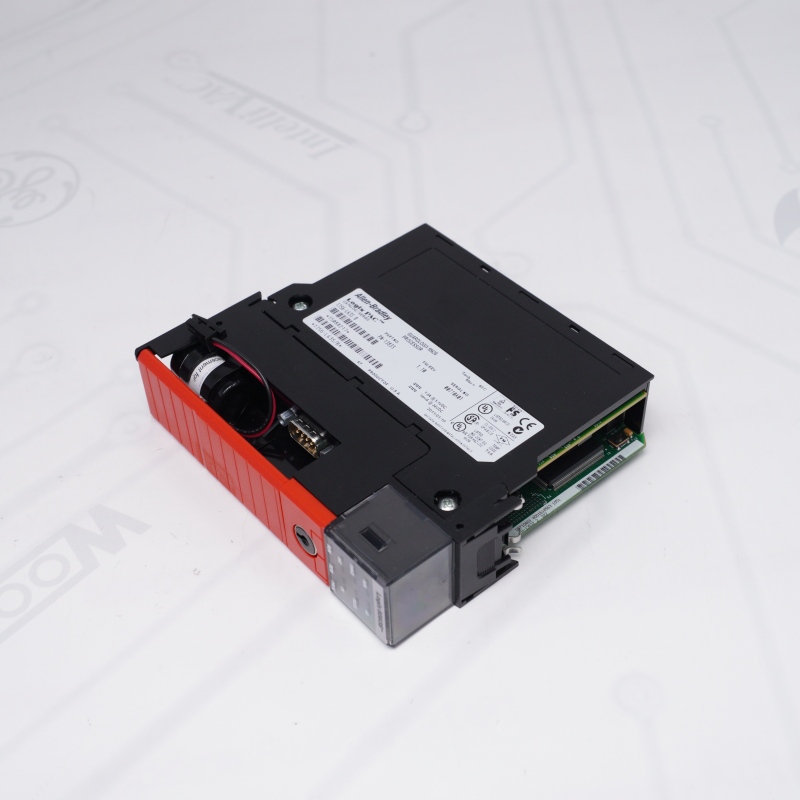

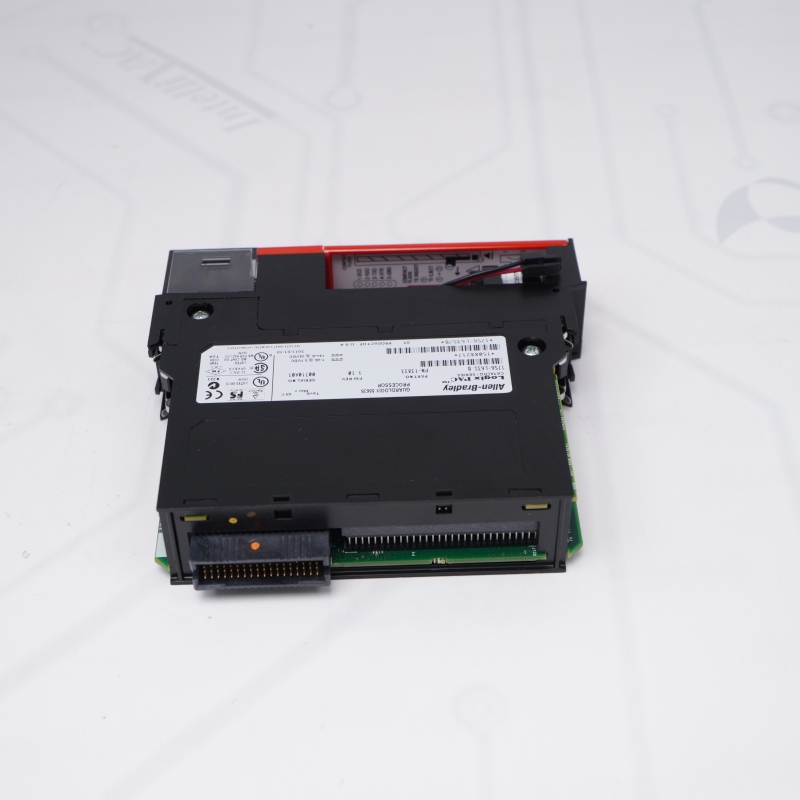

1756-L63S Allen Bradley GuardLogix 8 MB Standard Mem Controller

Q: What is the primary function of the Allen-Bradley 1756-L63S controller?
A: The 1756-L63S is basically a GuardLogix controller in the ControlLogix platform. In real use it handles both normal automation logic and safety logic together, so things like interlocks and emergency stop functions can run in the same system instead of being separated.

Q: Can the 1756-L63S operate as a safety-rated controller completely on its own?
A: No, not really. Allen Bradley 1756-L63S can’t be used alone for a full safety-rated setup. Allen Bradley 1756-L63S needs to work with a 1756-LSP safety partner module next to it. Without that partner, the safety side isn’t complete and you won’t reach the required certification level.

Q: What are the exact user memory allocations available on the 1756-L63S?
A: Memory is split quite clearly. Around 8 MB is used for standard control tasks like sequencing and normal logic. Another 4 MB is reserved only for safety programs and safety data. The two parts are kept separate rather than mixed together.

Q: What safety integrity levels does the 1756-L63S comply with when paired with its partner?
A: When it’s properly paired with the 1756-LSP, the system is typically certified up to SIL 3 under IEC 61508, and also PL e / Category 4 under ISO 13849-1. In most applications, it’s used in higher-risk machinery safety protection.

Q: Does the 1756-L63S feature any built-in Ethernet or fieldbus network ports?
A: Allen Bradley 1756-L63S does not have built-in Ethernet or EtherNet/IP. On the controller itself you only get a single RS-232 serial port. That port is mainly for programming, diagnostics, and simple protocols like DF1 or Modbus. For network communication, you usually rely on separate communication modules in the chassis.

Q: What type of non-volatile storage and backup battery does the 1756-L63S use?
A: Allen Bradley 1756-L63S uses a CompactFlash card slot for non-volatile storage. For power backup, it relies on a 1756-BA2 lithium battery to retain volatile memory. In practice, the battery is considered a consumable part and is replaced during maintenance cycles.

Q: What is the current lifecycle status of the Allen Bradley 1756-L63S, and what is its migration path?
A: Allen Bradley 1756-L63S is discontinued, with production ending around 2017. For replacements or upgrades, the common migration path is toward the 1756-L73S, which is the newer ControlLogix safety processor and fits better with modern system architecture.
