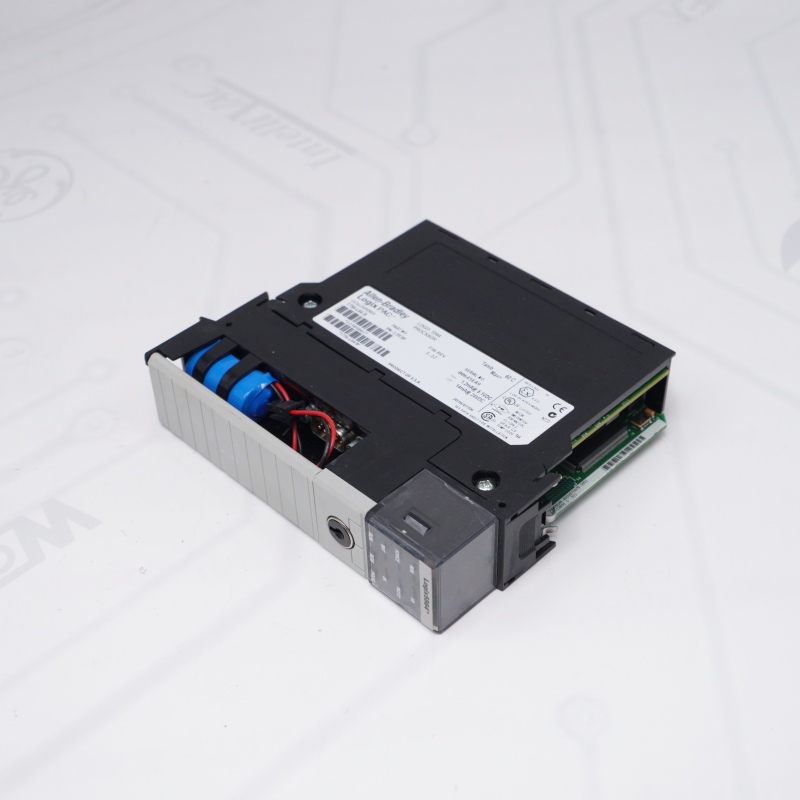

1756-L64 B Allen Bradley ControlLogix 16 MB Memory Controller

Large-Scale Process Control: The 1756-L64 B Allen-Bradley acts as a DCS-level brain for water treatment and chemical plants, running hundreds of PID loops and thousands of analog interlocks.

Automotive & Heavy Assembly Lines: 1756-L64 B Controller is deployed as an area master controller on automotive assembly/painting lines, leveraging its 16 MB memory to store massive product recipes and track production barcodes.

Multi-Axis Motion Control: Allen Bradley 1756-L64 B Drives high-speed packaging and printing lines, controlling 32+ servo axes and allowing seamless on-the-fly switching of complex cam profiles.

Data Concentrator & Gateway: Serves as a central data hub in power plants or factory retrofits, buffering tens of thousands of tags to prevent data loss during network disruptions.

If you want to more details about 1756-L64 B Controller，please contact me without hesitation.Email：sales@sparecenter.com

Massive Stock: 1,000,000+ PLC and DCS parts in Hong Kong.

Obsolete Experts: Specializing in rare and discontinued industrial components.

Fast Delivery: Same-day worldwide shipping reduces unexpected plant downtime.

Global Reach: Serving industrial buyers across over 100 countries.

Quality Assured: Rigorous testing backed by certified third-party inspection options.

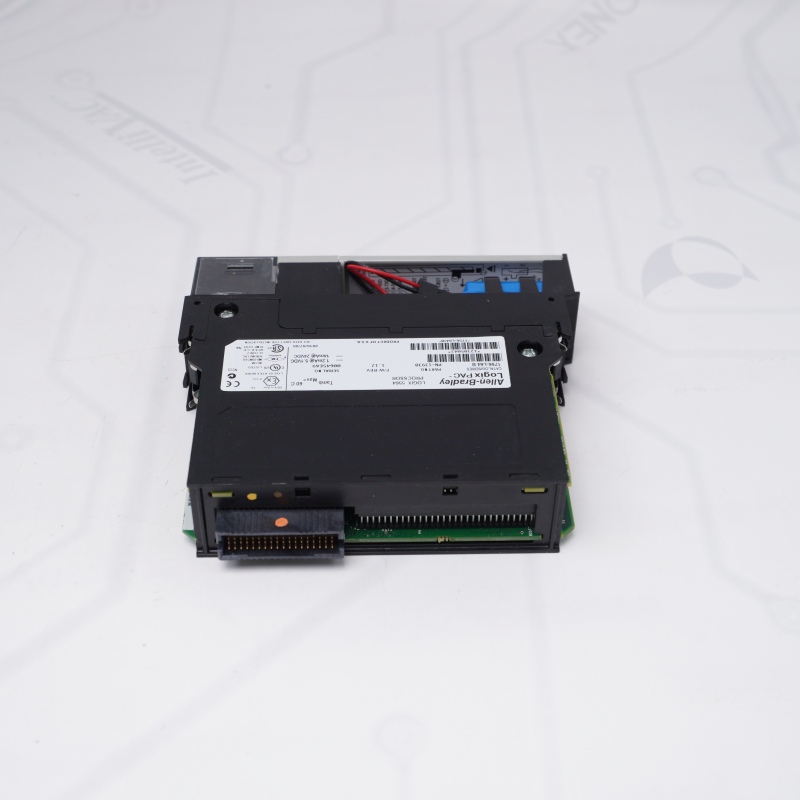

1756-L64 B Controller

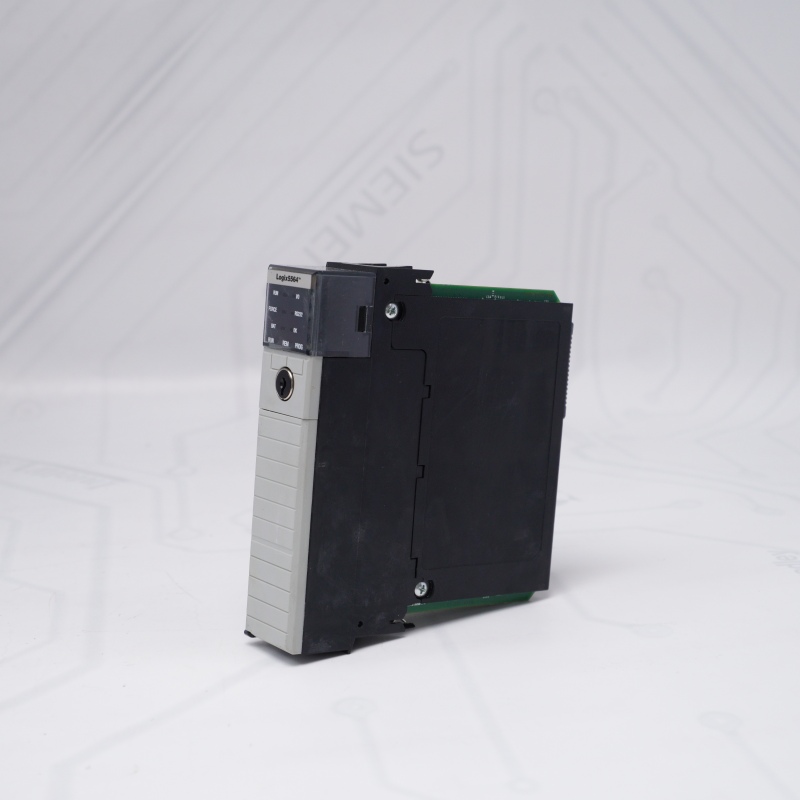

1756-L64 B Controller

1756-L64 B Controller

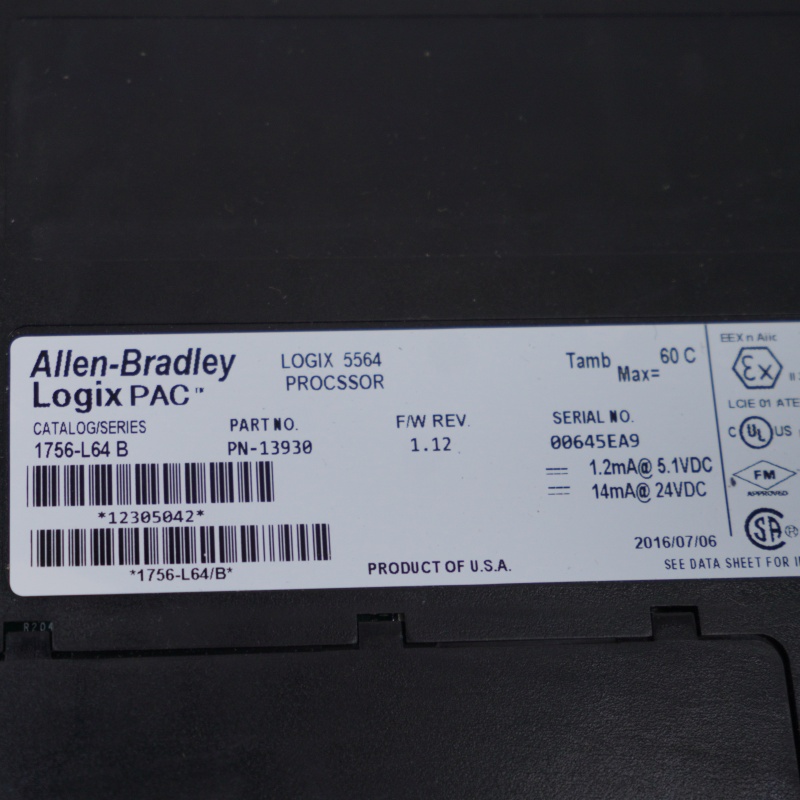

Allen Bradley 1756-L64 B

Q1: What is the maximum firmware revision supported by the Allen Bradley 1756-L64 B?

• A1: The Allen Bradley ControlLogix 16 MB Memory Controller controller belongs to the L6 (Logix5560) architecture. Due to physical hardware and chipset design limits, the highest supported major firmware revision is V20 (e.g., V20.019). The 1756-L64 B Allen Bradley cannot be upgraded to V21 or higher versions of Studio 5000.

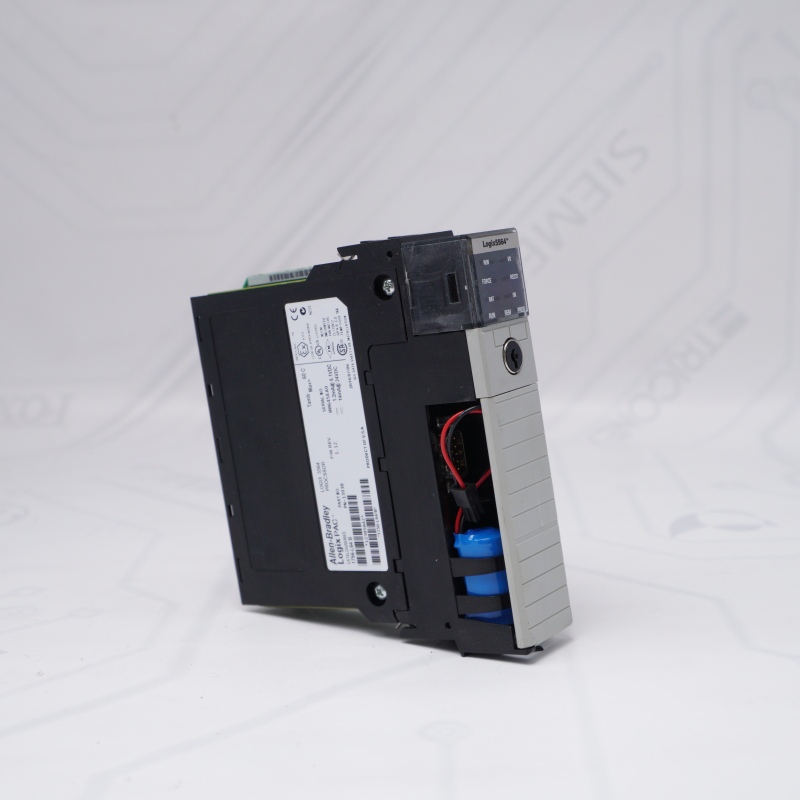

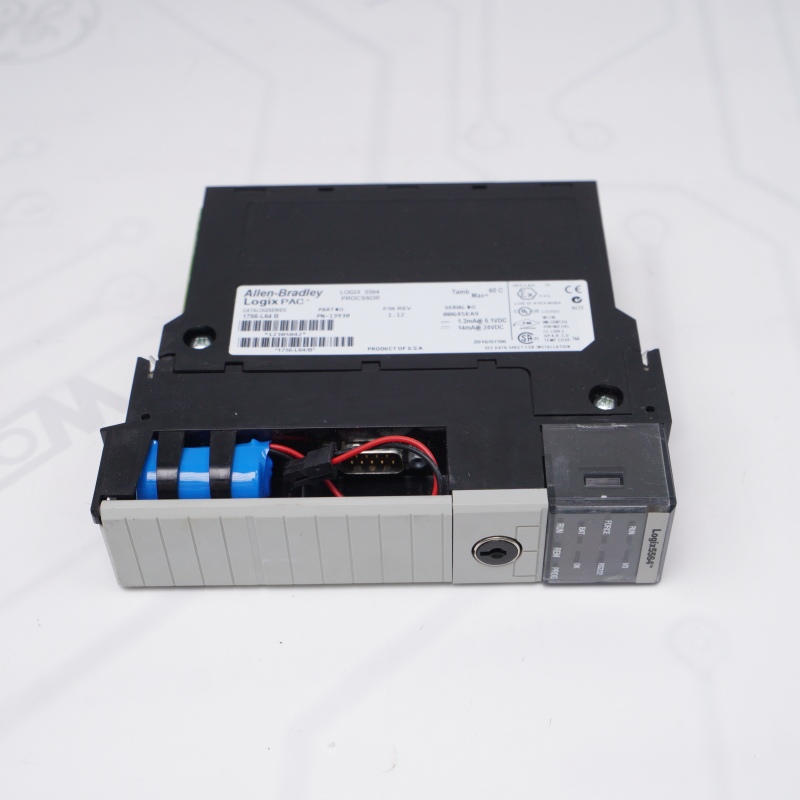

• A2: The front door of the Allen Bradley ControlLogix 16 MB Memory Controller opens to the left (Series A opens to the right). Furthermore, the 1756-L64 B Allen Bradley has its CompactFlash expansion slot relocated behind this left-opening door, and it utilizes a 2-pin female battery connector located at the bottom of the module (Series A uses a 3-pin male connector at the top).

• A3: Unlike the older Series A which relies entirely on battery power to sustain volatile RAM during long shutdowns, the Allen Bradley ControlLogix 16 MB Memory Controller features an onboard, permanently soldered non-volatile flash chip. Upon a main power-down sequence, the 1756-L64 B Allen Bradley uses the battery's energy strictly to copy the active project from RAM to this flash memory immediately before shutting off, vastly extending the standby lifespan of the battery.

• A4: The Allen Bradley ControlLogix 16 MB Memory Controller strictly requires the 1756-BA2 3V lithium battery assembly (do not mix or attempt to install the Series A 1756-BA1 battery). While the ControlLogix chassis is fully powered on, the battery of the 1756-L64 B Allen Bradley can be safely hot-swapped because the backplane power maintains the controller's memory and internal real-time clock during the exchange.

• A5: Rockwell Automation officially discontinued the Allen Bradley 1756-L64 B on June 01, 2017. Due to its 16 MB large memory capacity tier, the modern 1:1 functional replacement recommended to migrate the 1756-L64 B Allen Bradley to the latest quad-core architecture is the 1756-L84E ControlLogix controller.
