YOKOGAWA NFAP135-S00 S2（YOKOGAWA modular controller） Specification
| Module Type | 8-channel, Pulse count, 0 to 10 kHz, Isolated channels |
| Number of Input Channels | 8 (Isolated channels) |
| Input Frequency | 0 to 10 kHz |
| Minimum Input Pulse Width | 40 μs |
| Pull-up Resistance | 68 kΩ (12 V DC or 24 V DC) |
| Transmitter Power Supply | 12 V DC ±10 %: 40 mA, 24 V DC ±10 %: 30 mA |
| Maximum Current Consumption | 300 mA (5 V DC), 400 mA (24 V DC) |
YOKOGAWA NFAP135-S00 S2（YOKOGAWA modular controller） Figure And Tables
The Yokogawa NFAP135-S00 S2 is a high-performance pulse input module designed for precise signal acquisition and processing in industrial control systems. This module features 8 isolated input channels capable of handling contact ON/OFF signals, voltage pulses, and current pulses with input frequencies ranging from 0 to 10 kHz. It supports both 2-wire and 3-wire types, with the ability to provide power to connected transmitters. The NFAP135-S00 S2 offers high reliability with a 500 V AC withstand voltage between inputs and the system, as well as between channels. Its data refresh cycle is 2 ms, ensuring rapid signal processing, while the filter function helps eliminate signal noise or chattering. The module is designed for flexibility, allowing users to select different shunt resistances and providing transmitter power supplies of 12 V DC or 24 V DC. |
 |
| YOKOGAWA NFAP135-S00 S2 |
YOKOGAWA NFAP135-S00 S2（YOKOGAWA modular controller） Features
1
NFAP135-S00 S2 controller Pulse Input Module
The NFAP135-S00 S2 is an 8-channel pulse input module designed for precise and reliable pulse signal measurement in industrial automation systems.
It can handle a wide range of input signal types, including contact ON/OFF, voltage pulses, and current pulses, making it highly versatile.
2
NFAP135-S00 S2 controller Selectable Shunt Resistance
NFAP135-S00 S2 controller can be selected from OFF, 200 Ω, 500 Ω, and 1000 Ω, giving users the flexibility to adapt the module to different system requirements.
The NFAP135-S00 S2 controller shunt resistance automatically opens when power is off, preventing unnecessary current flow.
3
NFAP135-S00 S2 controller Versatile Applications
The NFAP135-S00 S2 is ideal for a variety of industrial applications, including pulse counting, flow measurement, energy consumption monitoring, and process control.
4
NFAP135-S00 S2 controller Durability and High Voltage Tolerance
It has an impressive withstanding voltage of 500 V AC for 1 minute, both between the input and system, and between channels, offering robust protection against electrical surges or faults.
If you want to more details about NFAP135-S00 S2 modular controller，please contact me without hesitate.Email：sales@sparecenter.com
YOKOGAWA NFAP135-S00 S2（YOKOGAWA modular controller） Images

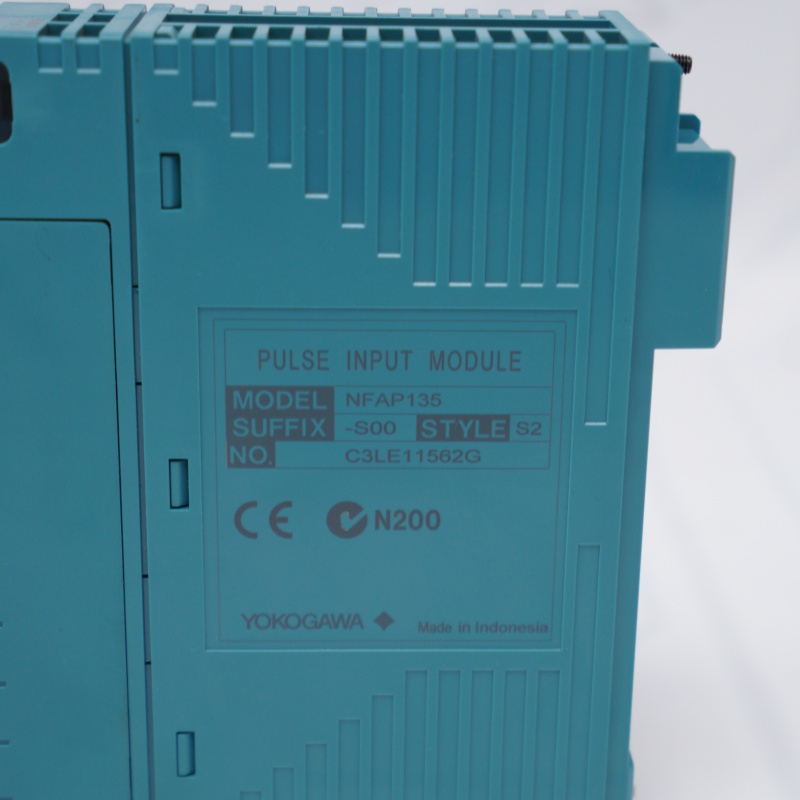

NFAP135-S00 S2 modular controller（YOKOGAWA modular controller）

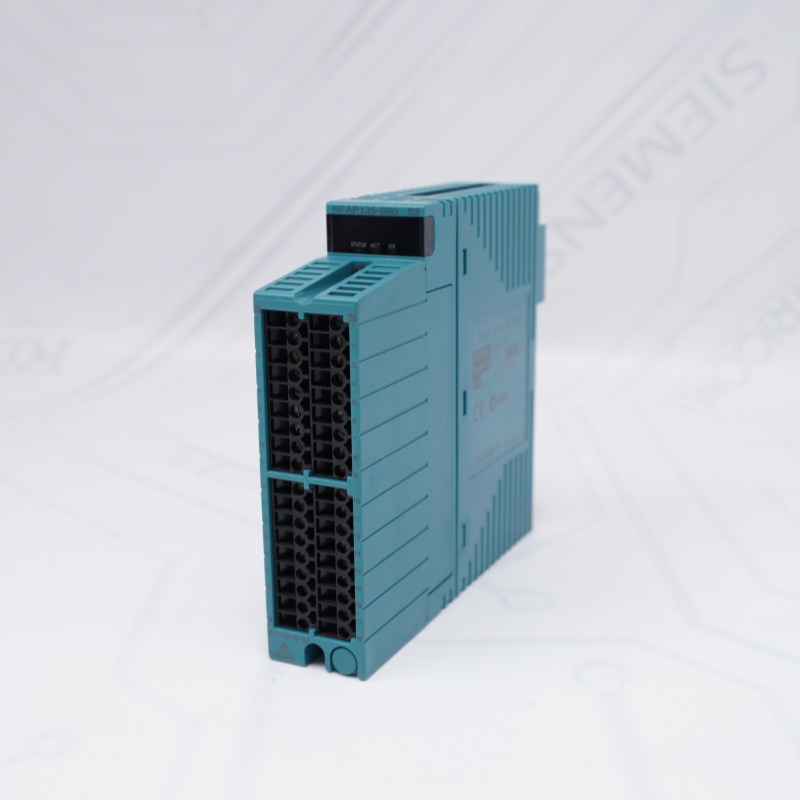

NFAP135-S00 S2 modular controller（YOKOGAWA modular controller）

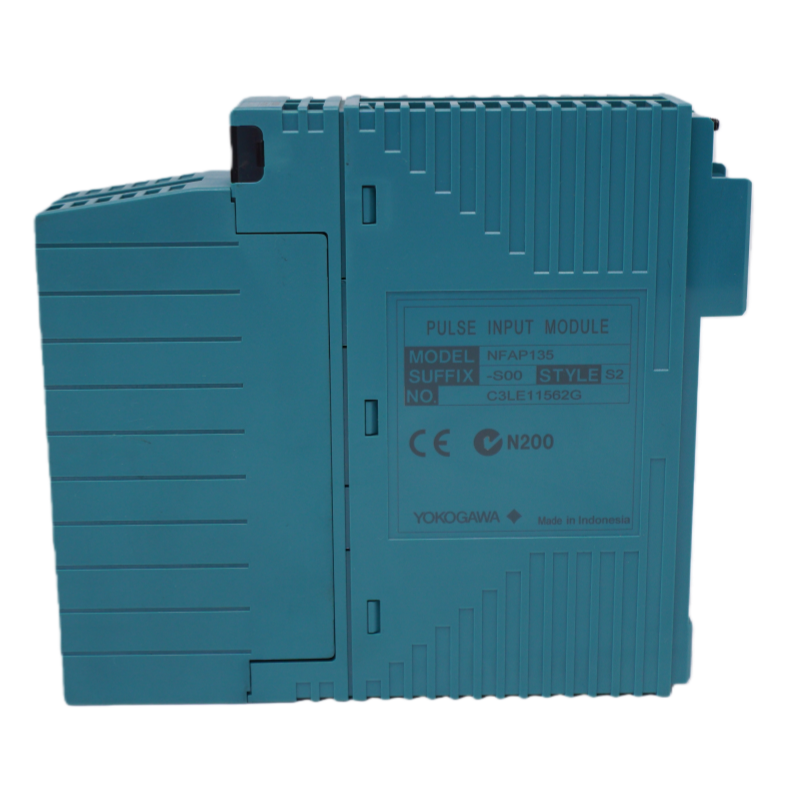

NFAP135-S00 S2 modular controller（YOKOGAWA modular controller）
