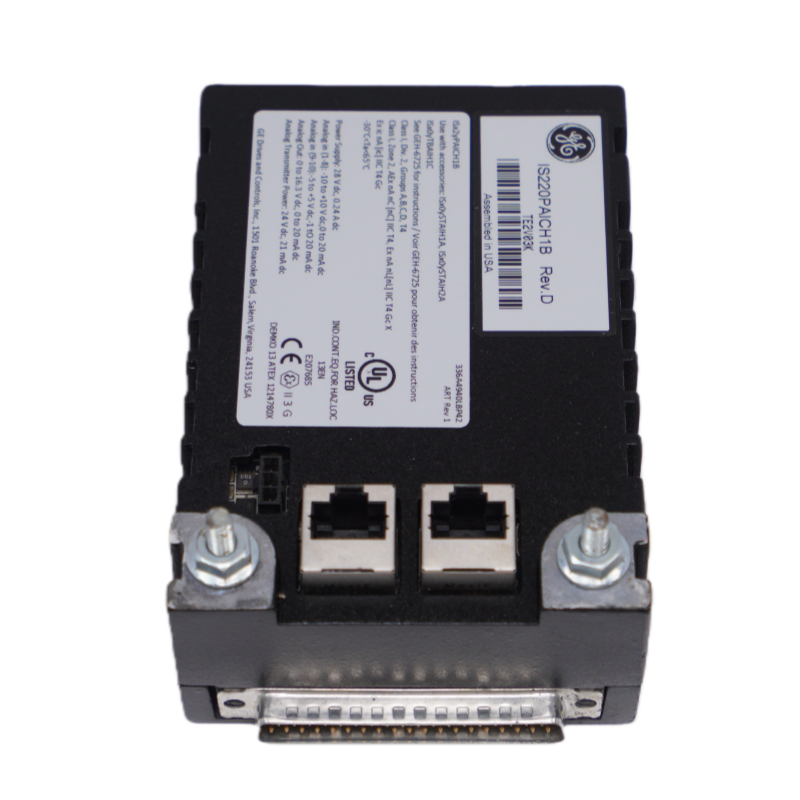

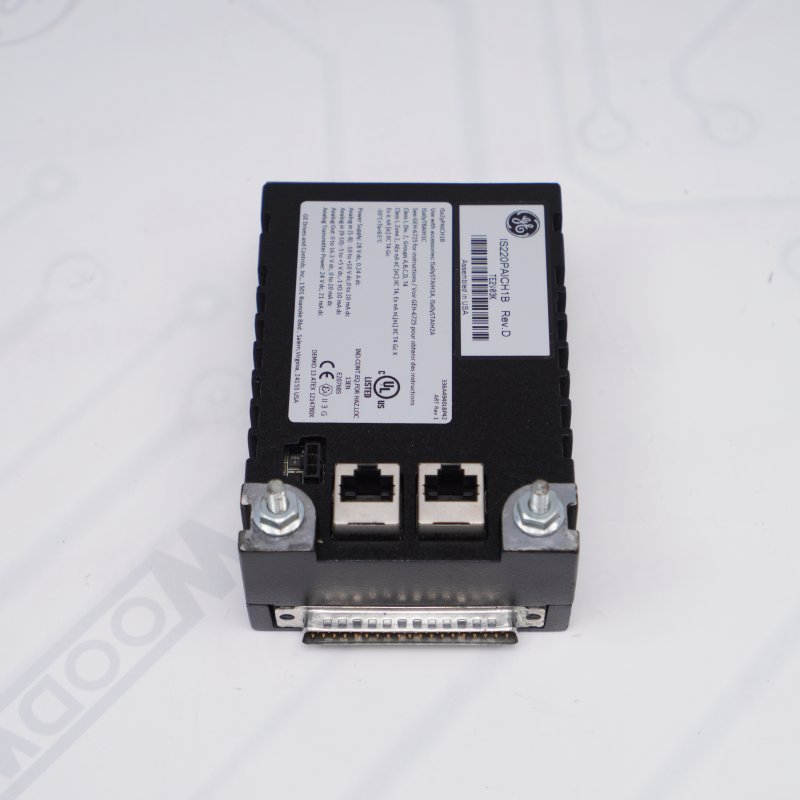

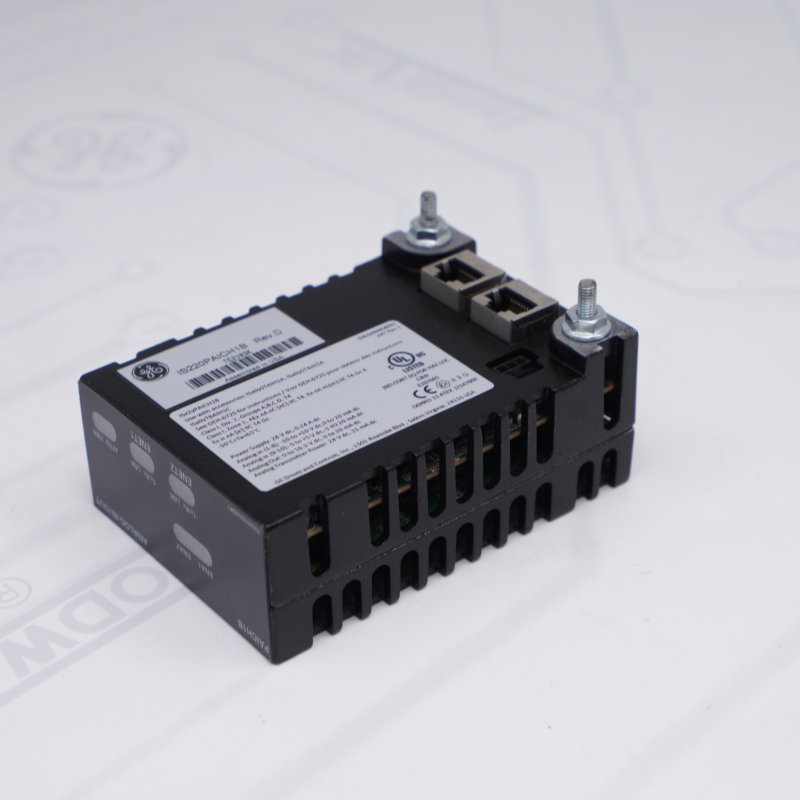

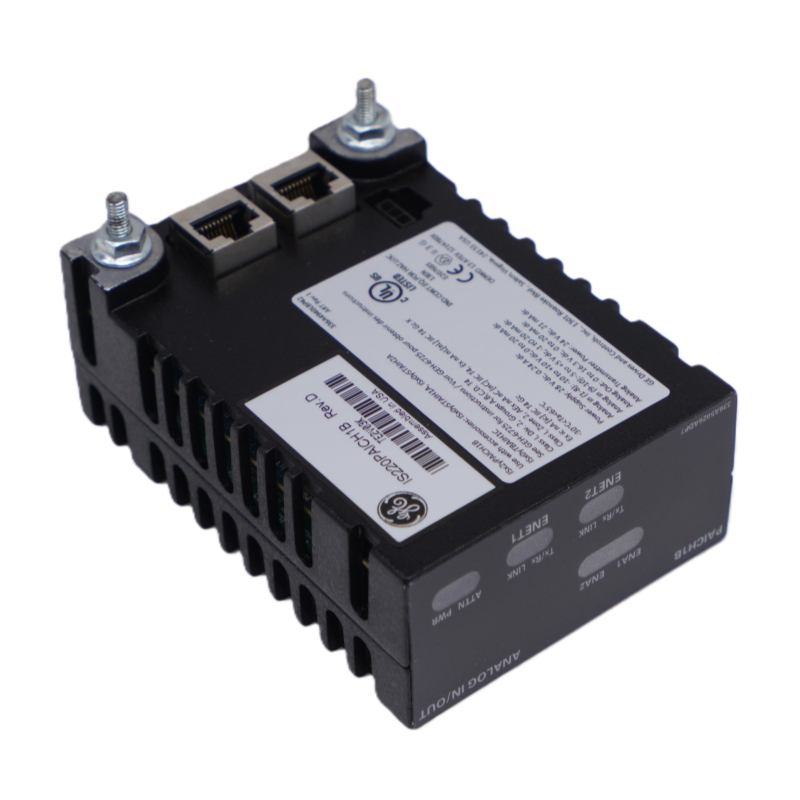

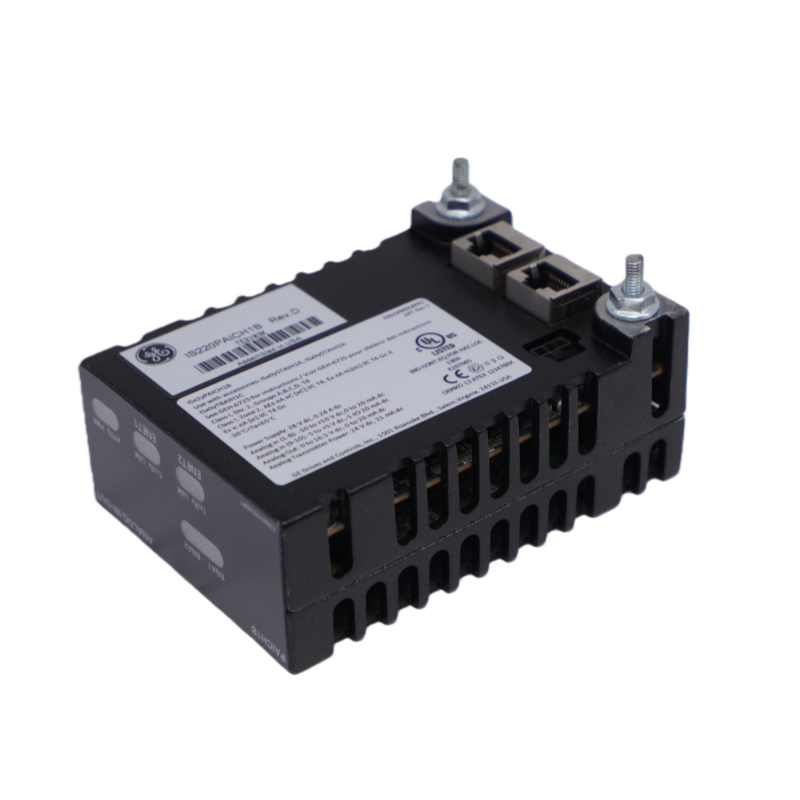

General Electric IS220PAICH1B Analog I/O Pack Module

IS220PAICH1B Analog I/O Pack Module Description

The IS220PAICH1B Pack Module is an Analog Input/Output (I/O) Pack designed and manufactured by General Electric (GE) as part of the Mark VI Series Turbine Control System.

 IS220PAICH1B Pack Module is the second version (V2) of the PAIC units, featuring a different minimum operating voltage than its predecessor.

 The IS220PAICH1B Pack Module number itself encodes key hardware information through a series of functional naming chunks.

Due to the discontinuation of the Mark VI series, official technical documentation for this device is scarce.

IS220PAICH1B Analog I/O Pack Module Feature

Ambient Temperature Range: IS220PAICH1B Analog I/O Pack Module Operates from -40°F to 158°F (-40°C to +70°C), suitable for extreme environments.

Power Supply (Analog Transmitter): IS220PAICH1B Analog I/O Pack Module 22.8 VDC, typically used to power connected 2-wire or 4-wire transmitters.

Model Type: Module Analog I/O Pack.

IS220PAICH1B Analog I/O Pack Module Application

Primary System: Designed exclusively for the GE Mark VI Turbine Control System, serving as a core module for analog signal interfacing and processing.

Application Scope: Used in the automated control, monitoring, and management of gas turbines, steam turbines, and some wind turbine drive systems.

Current Status: As a component of the discontinued Mark VI series, its primary current application is providing maintenance, spare parts support, and potential upgrades for existing, operational Mark VI control systems.
