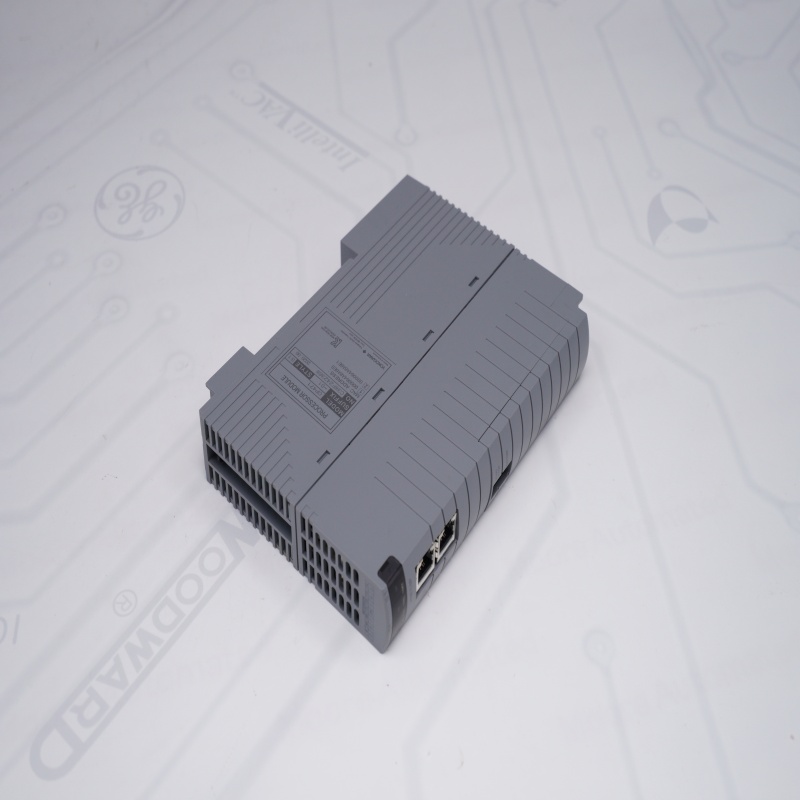

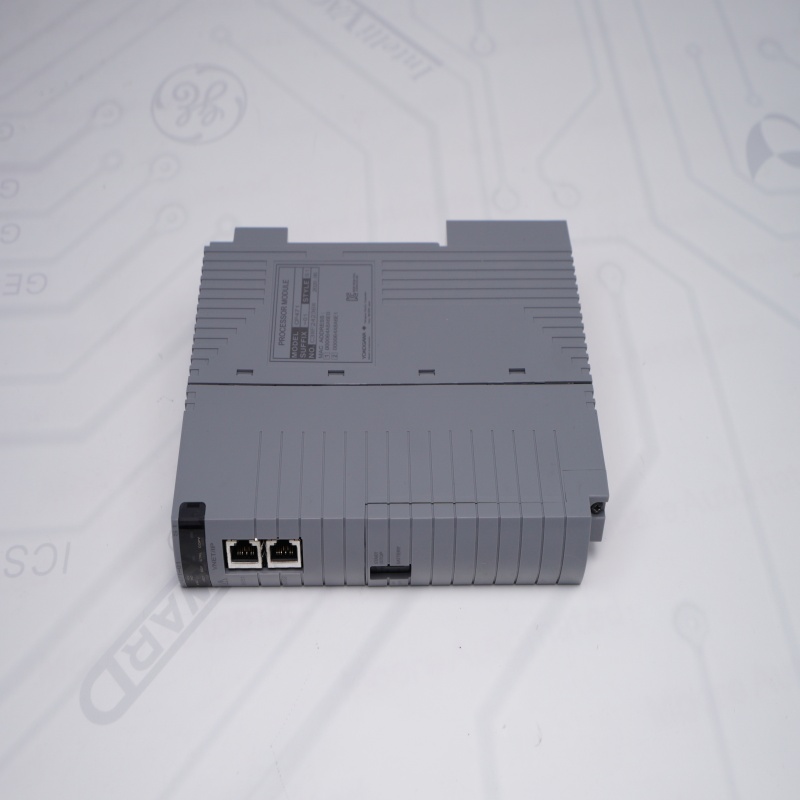

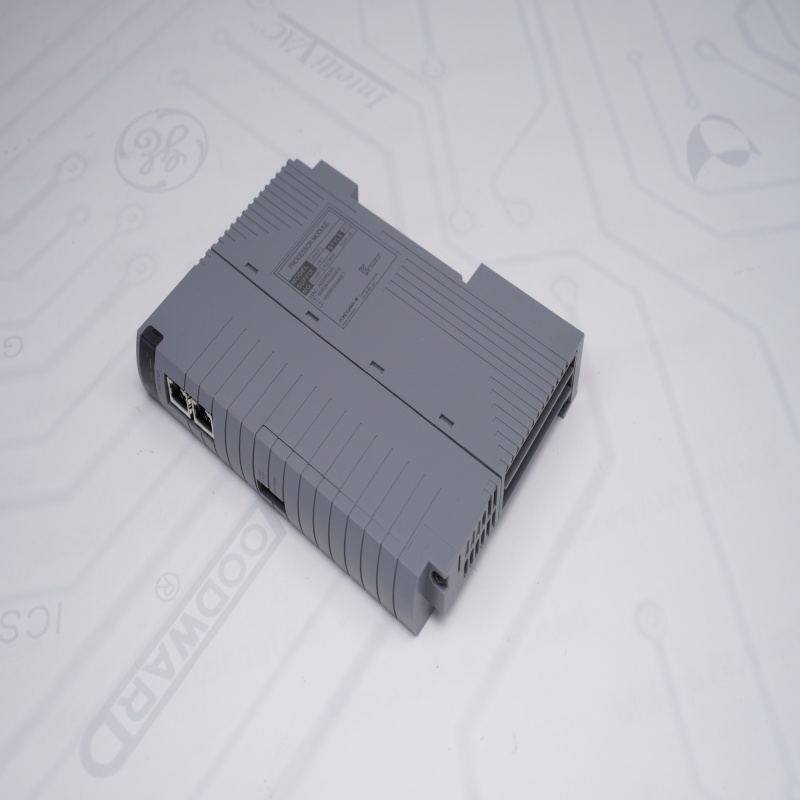

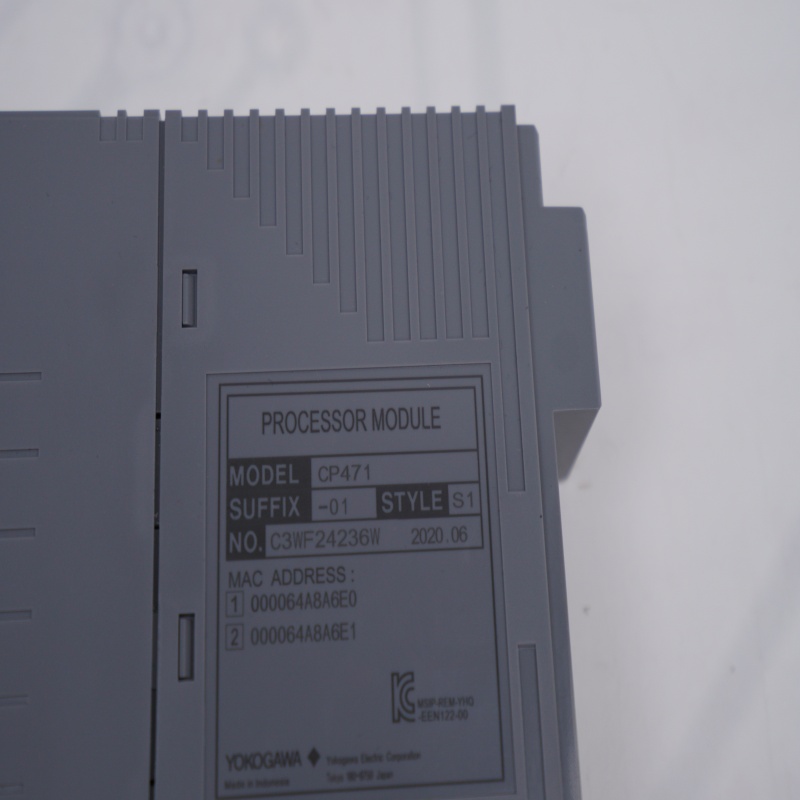

YOKOGAWA CP471-01 S1 high-performance Processor Module

• YOKOGAWA Processor Module High-Speed Processing: Equipped with a high-performance processor designed specifically for the CENTUM VP R6 environment, enabling faster execution of complex control logic and large-scale data handling.

• YOKOGAWA Processor Module Dual-Redundancy Support: Supports a dual-redundant configuration where two modules work in parallel. In the event of a hardware failure, the system performs a "bumpless" switchover to the standby module without affecting the process.

• YOKOGAWA Processor Module Vnet/IP Connectivity: Features integrated support for Vnet/IP, a high-speed (1 Gbps) and highly reliable control network communication protocol used for real-time plant control.

• YOKOGAWA Processor Module Hot-Swappable Design: Allows the module to be replaced while the system is powered and the process is running (when used in a redundant setup), minimizing downtime during maintenance.

• YOKOGAWA Processor Module Backward & Forward Compatibility: Designed for use with AFV30, AFV40, and the latest A2FV50/A2FV70 field control units, providing a flexible upgrade path for aging DCS systems.

• YOKOGAWA Processor Module Industrial-Grade Reliability: Built to withstand harsh industrial environments, featuring high electromagnetic compatibility (EMC) and a wide operating temperature range.

• YOKOGAWA Processor Module Advanced Self-Diagnostics: Continuously monitors internal hardware health, memory integrity, and communication status, triggering immediate system alerts if any abnormality is detected.

• YOKOGAWA Processor Module Efficient Power Consumption: Engineered for low heat dissipation (20W), which extends the lifespan of the module and reduces the cooling load on the control cabinet.

If you want to more details about YOKOGAWA CP471-01 S1(YOKOGAWA CP471-01 S1)，please contact me without hesitate. Email：sales@sparecenter.com

• Central Processing Unit for DCS: CP471-01 S1 Processor Module acts as the "brain" for Yokogawa’s CENTUM VP Field Control Units (such as the AFV30, AFV40, and A2FV50/70), executing all control logic and calculations.

• Dual-Redundant Control: CP471-01 S1 Processor Module is used in pairs to provide high-availability automation. If the primary module detects a fault, the S1 processor handles an instantaneous, bumpless switchover to the backup unit to prevent plant shutdowns.

• High-Speed Algorithm Execution: CP471-01 S1 Processor Module is specifically applied to handle complex PID loops, sequence control, and advanced regulatory control (ARC) in real-time.

• Network Gateway Management: CP471-01 S1 Processor Module manages high-speed data traffic between the Vnet/IP control network and the local I/O expansion buses (ESB/ER bus), ensuring synchronized data flow across the system.

• Field Data Aggregation: CP471-01 S1 Processor Module processes and filters large volumes of raw digital and analog signals from field instruments, converting them into meaningful data for operator stations.

YOKOGAWA CP471-01 S1

CP471-01 S1 Processor Module

CP471-01 S1 Processor Module

CP471-01 S1 Processor Module

• Q: What is the primary function of the Yokogawa CP471-01 S1 in a DCS environment?
  A: The CP471-01 S1 YOKOGAWA serves as the high-performance central processing unit for Field Control Units in the CENTUM VP system, responsible for executing complex control logic and managing real-time communication across the Vnet/IP network.

• Q: Which specific system versions support the CP471-01 S1 module?
  A: The CP471-01 S1 YOKOGAWA  is specifically designed for use with CENTUM VP R6.05 or later versions, ensuring compatibility with modern industrial automation requirements and enhanced processing speeds.

• Q: Can the CP471-01 S1 YOKOGAWA be used in a dual-redundant configuration?
  A: Yes, the CP471-01 S1 YOKOGAWA fully supports dual-redundant operation, where two modules are installed in the same Field Control Unit to provide a seamless, bumpless failover mechanism if the primary unit detects a fault.

• Q: Is the CP471-01 S1 YOKOGAWA module hot-swappable during plant operation?
  A: When configured in a redundant setup, the CP471-01 S1 YOKOGAWA is hot-swappable, meaning a faulty module can be replaced while the system is powered and the process remains under active control by the secondary module.

• Q: What are the compatible Field Control Units for the CP471-01 S1 processor?
  A: The CP471-01 S1 YOKOGAWA is compatible with several Yokogawa Field Control Units, including the AFV30S/D, AFV40S/D, A2FV50S/D, and the high-capacity A2FV70S/D models.

• Q: What power consumption should be planned for when installing a CP471-01 S1?
  A: Each CP471-01 S1 YOKOGAWA module has a rated power consumption of 20 Watts, which must be factored into the overall thermal and power budget of the control cabinet.

• Q: Does the CP471-01 S1 require specific bus coupler versions for ESB bus expansion?
  A: To ensure full compatibility and stable communication when using the CP471-01 S1 YOKOGAWA, it is recommended to use the EC401 bus coupler module with a style code of S3 or later.

• Q: What is the typical country of origin for the CP471-01 S1 hardware?
  A: The CP471-01 S1 YOKOGAWA is manufactured by Yokogawa Electric Corporation, and its primary country of origin is Japan, adhering to strict industrial quality and reliability standards.
