Westinghouse 1X00188H01 Overview
1X00188H01 Westinghouse Definition: The Westinghouse 1X00188H01 is a genuine P-mod Cavity Insert utilized within the Emerson Ovation Distributed Control System (DCS).
Westinghouse 1X00188H01 Core Function: It is specifically designed to house and support the 4-Channel HART High-Performance Analog Output (AO) module, serving as the physical and electrical bridge between the electronic I/O module and field wiring.

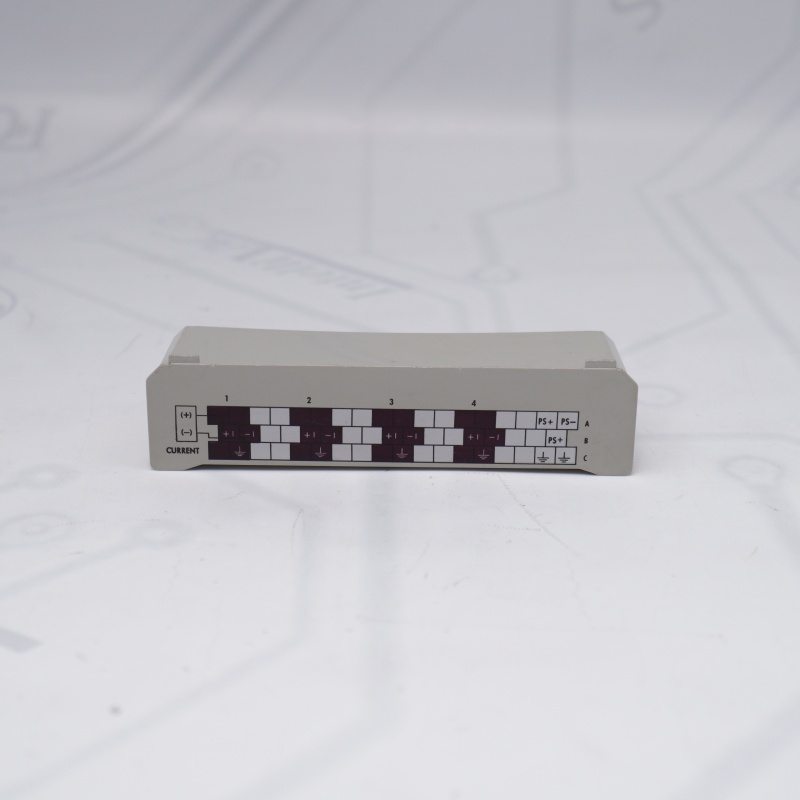

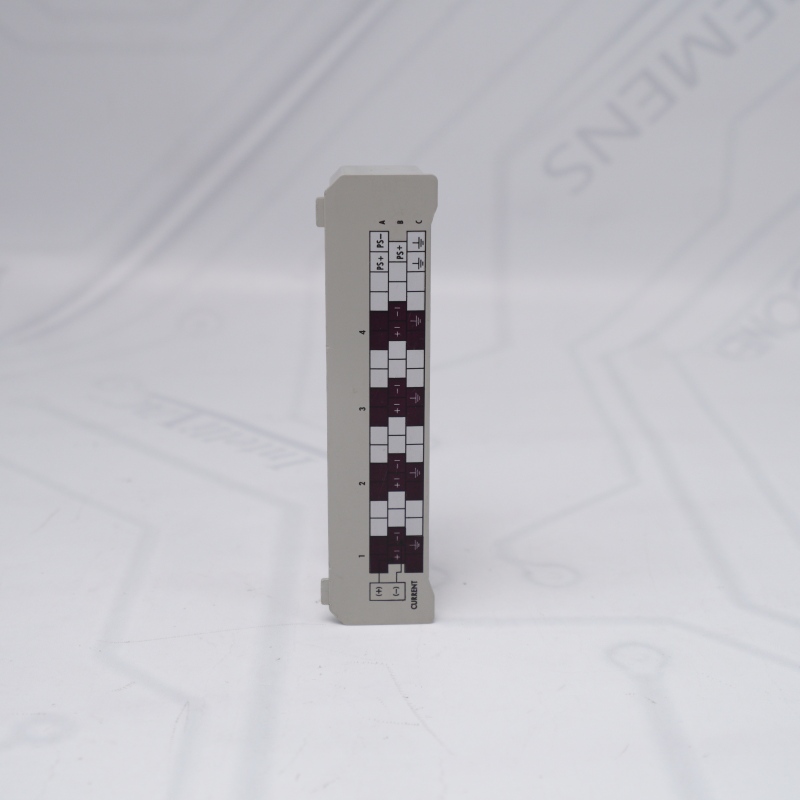

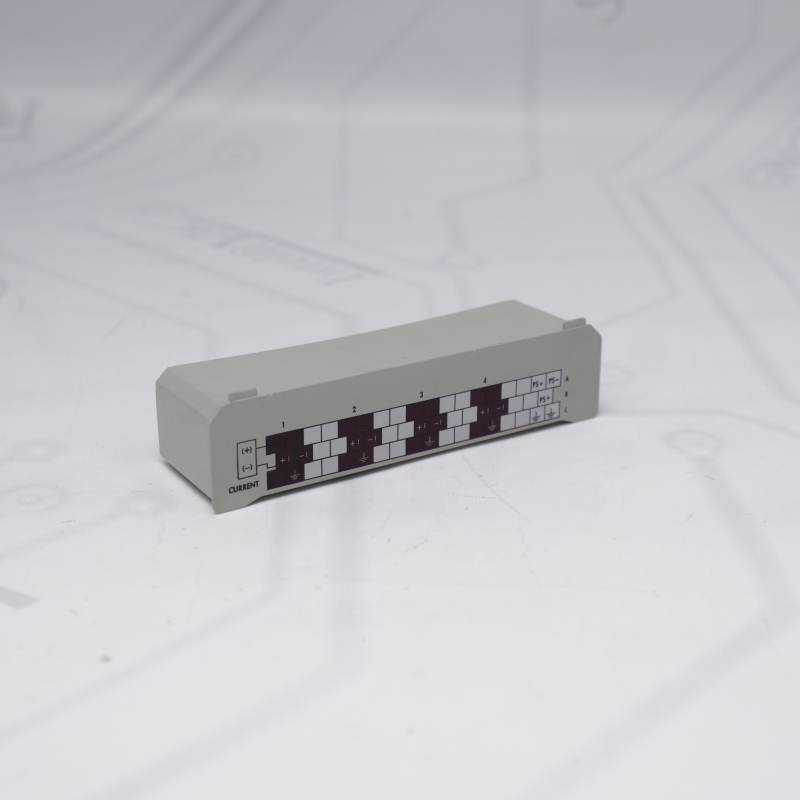

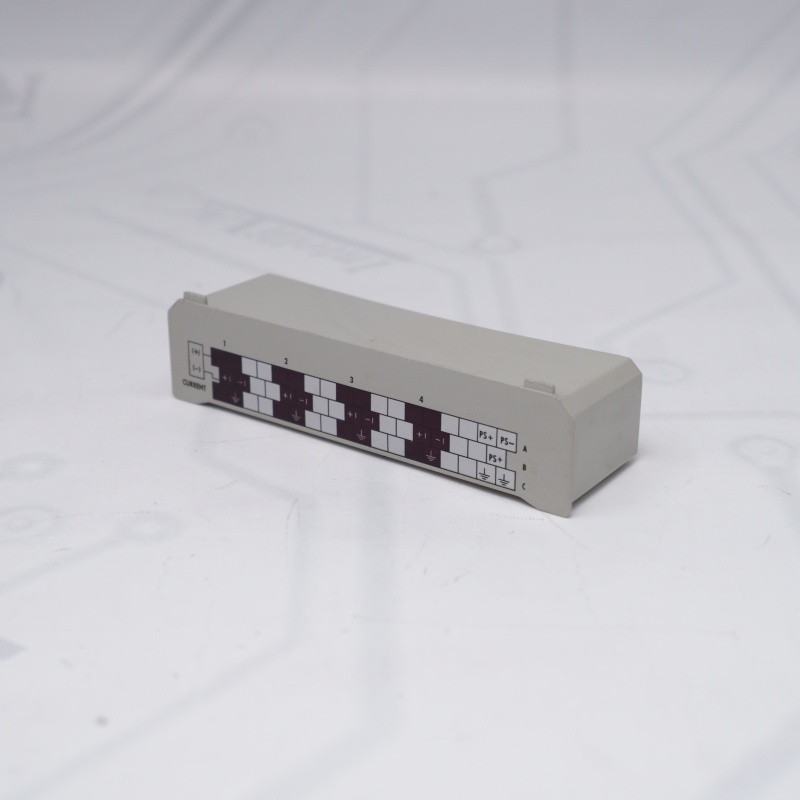

1X00188H01 Westinghouse Physical Attributes: Manufactured from high-grade white industrial plastic, the Westinghouse 1X00188H01 features surface-printed circuit diagrams to guide field-termination wiring.
1X00188H01 Westinghouse Application: Widely deployed in power generation and water treatment plants to ensure secure module seating, prevent incorrect module insertion, and protect open backplane slots from dust and debris.

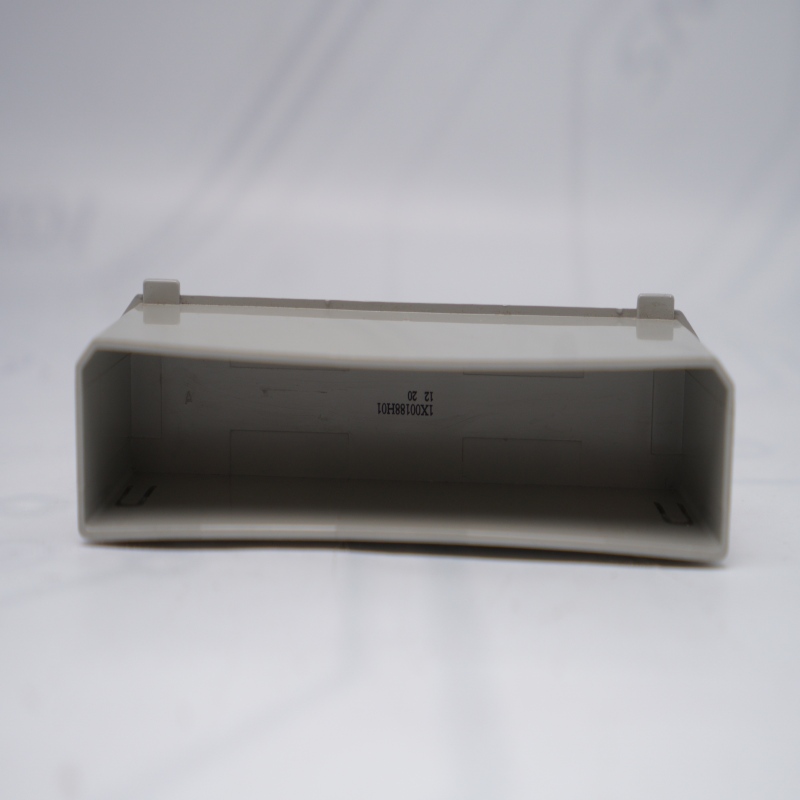

1X00188H01 Westinghouse Images
1X00188H01 Westinghouse
ABB FPR3323101R1012-M(ICSF08D1 FPR3323101R1012-M)
1X00188H01 Westinghouse
If you want to more details about Westinghouse 1X00188H01 (1X00188H01 Westinghouse)，please contact me without hesitate. Email：sales@sparecenter.com
Westinghouse P-mod Cavity Insert FAQ
Q1: What is the exact technical function of the Westinghouse 1X00188H01 within the Ovation DCS?
A: The 1X00188H01 functions as a high-performance P-mod Cavity Insert. It is not an active electronic processing module; rather, the 1X00188H01 provides the critical mechanical alignment, physical housing, and electrical trace bridging required to interface the 4-Channel HART High-Performance Analog Output (AO) electronic module with the system backplane assembly.
Q2: Is the 1X00188H01 manufactured by Westinghouse or Emerson?
A: While originally branded and cataloged under the Westinghouse legacy part numbers, the 1X00188H01 is actively maintained, supported, and distributed under the Emerson Ovation product portfolio following Emerson's acquisition of the Westinghouse Process Control division. The part number 1X00188H01 remains identical across both legacy and modern equipment manifests.
Q3: Can the 1X00188H01 be substituted with a generic Ovation I/O module blank or a different P-mod insert?
A: No. The P-mod Cavity Insert is engineered with specific structural keying and internal termination routing dedicated strictly to the 4-Channel HART High-Performance Analog Output architecture. Attempting to substitute the 1X00188H01 with a different P-mod part number will cause physical misalignment or signal mismatches on the I/O slot.
Q4: What field-wiring assistance does the physical shell of the 1X00188H01 provide?
A: The exterior casing of the Westinghouse P-mod Cavity Insert features high-contrast, factory-stenciled circuit silkscreens. These silkscreen diagrams on the Westinghouse P-mod Cavity Insert show terminal designations and pinouts, allowing field engineers to correctly route and verify field-termination wiring for the HART AO channels without needing to consult paper manuals during hot-swapping or installation.
Q5: What are the environmental operating thresholds for the 1X00188H01 insert?
A: The Westinghouse P-mod Cavity Insert is built from industrial-grade thermoplastic rated for rugged plant deployments. The Westinghouse P-mod Cavity Insert operates reliably within a temperature range of -40°C to 70°C and can withstand relative humidity environments ranging from 5% to 95% (non-condensing), preventing mechanical degradation in harsh marshaling cabinets.
