Westinghouse 1C31142G01 Key Function
Dry Contact Monitoring: 1C31142G01 Contact Input Module collects binary (open/closed) state data from field switches, valves, and circuit breakers.
48V DC Wetting Supply: 1C31142G01 Contact Input Module provides on-card 48V DC excitation current to clear contact oxidation and ensure reliable signal transmission.
Galvanic & Opto-Isolation: Westinghouse Contact Input Module protects internal system backplane circuits from field-side electrical surges and high-voltage spikes.
Signal Debouncing & Filtering: Westinghouse Contact Input Module filters out mechanical contact chatter and electromagnetic interference to prevent false alarms.
Real-Time Data Bus Upload: Westinghouse Contact Input Module delivers high-speed, deterministic status updates directly to the Ovation Controller for interlocking logic.
Westinghouse 1C31142G01 FAQ
Q1: What is the primary function of the Westinghouse 1C31142G01 within a DCS architecture?
A1: The 1C31142G01 is a specialized, industrial-grade Contact Input Module designed for the Emerson Ovation Distributed Control System (DCS). Its primary function is to monitor and capture digital binary states (open/closed, on/off) from field-side dry contacts—such as limit switches, relay contacts, and circuit breakers—and securely transmit this real-time telemetry to the Ovation controller for process loop evaluation.
Q2: Does the 1C31142G01 module require an external power supply to sense dry contacts?
A2: No, the Westinghouse Contact Input Module features an integrated, on-card 48V DC wetting power supply. This onboard loop excitation voltage is driven directly through the input channels to clear potential surface oxidation or film buildup on mechanical field contacts, eliminating the need to route separate external loop power to the field devices.
Q3: How does the 1C31142G01 handle signal noise and electrical surges common in power plants?
A3: The 1C31142G01 implements high-grade opto-isolation (optical coupling) between the field wiring terminals and the internal system backplane logic to block high-voltage transients. Additionally, the 1C31142G01 incorporates hardware filtering and digital debouncing circuits to eliminate mechanical contact chatter and electromagnetic interference (EMI), preventing false state transitions in the control database.
Q4: Which system platforms and software environments are fully compatible with the 1C31142G01?
A4: The Westinghouse Contact Input Module is natively compatible with the Emerson / Westinghouse Ovation DCS platform. It offers broad downward compatibility, functioning seamlessly across legacy Westinghouse WDPF architectures up to modern Emerson Ovation 2.x and 3.x+ control platforms, and is configured via the standard Ovation Developer Studio software.
Q5: What base hardware component is required to physically deploy the 1C31142G01 in an I/O cabinet?
A5: To be properly integrated into an Ovation I/O branch, the Westinghouse Contact Input Module electronic card must be seated into a matching personality/termination base, most commonly the 1C31110G03 terminal block. The base handles the permanent field wiring terminations while allowing the 1C31142G01 module itself to be hot-swapped if maintenance is required.
Westinghouse 1C31142G01 Images

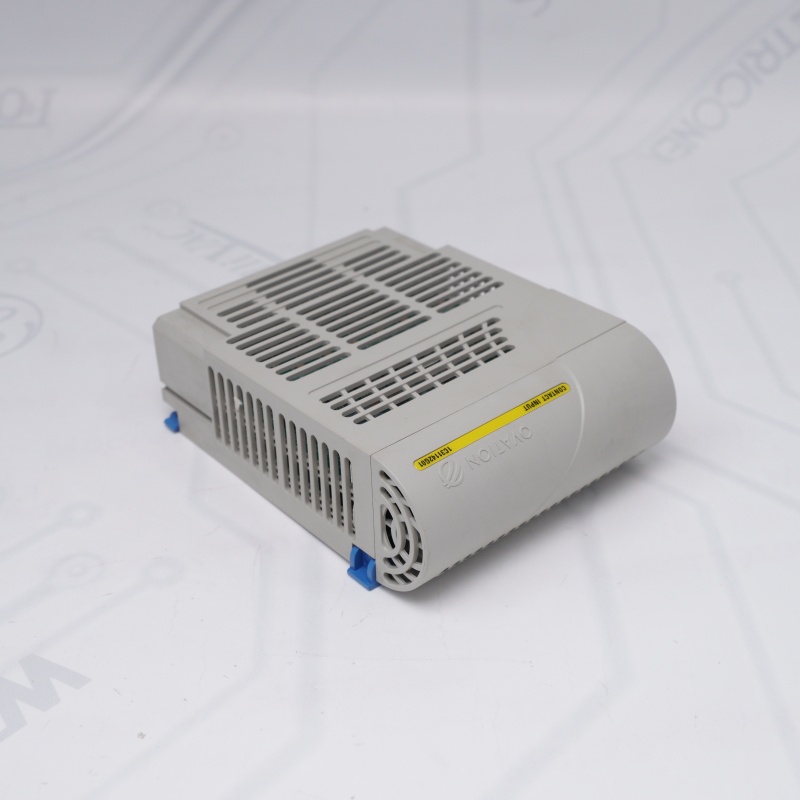

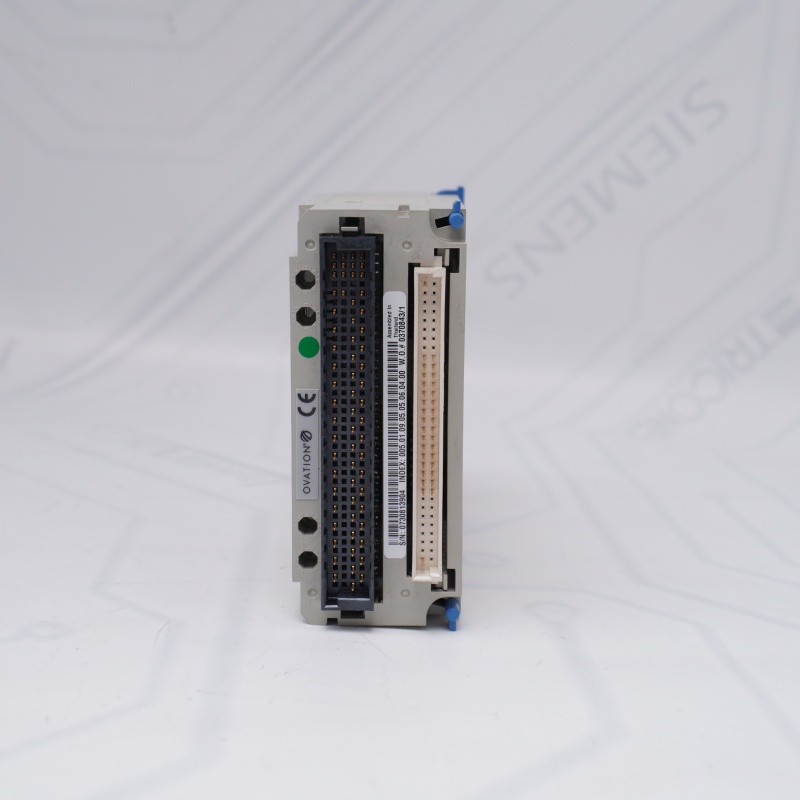

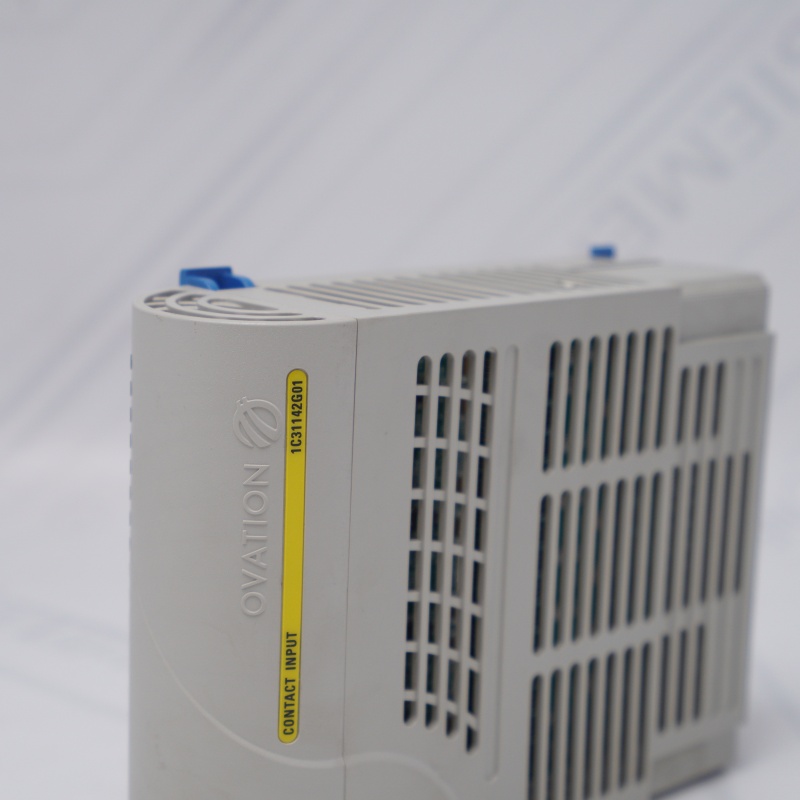

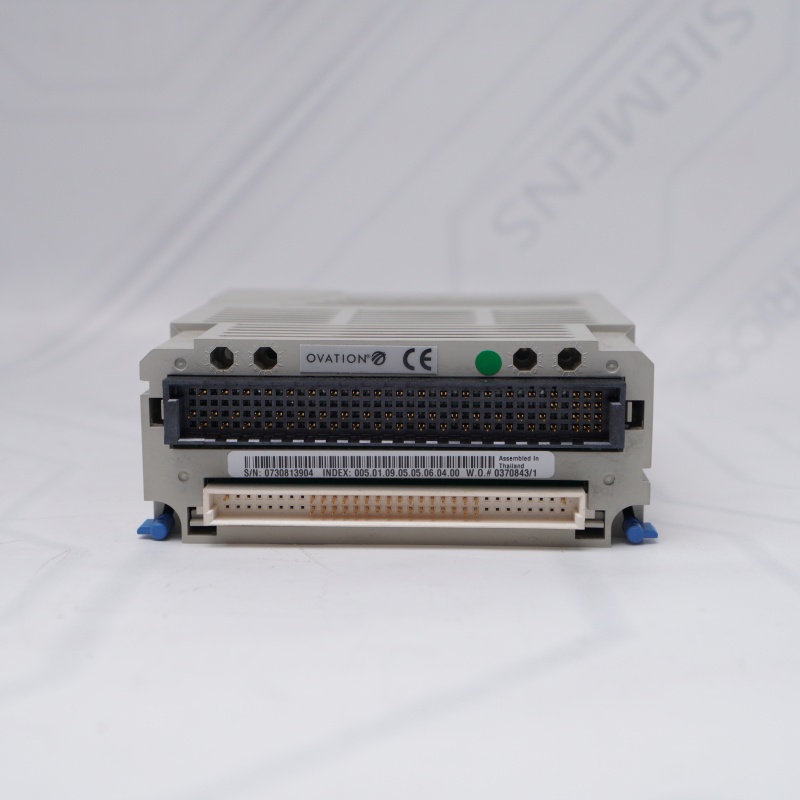

Westinghouse 1C31142G01

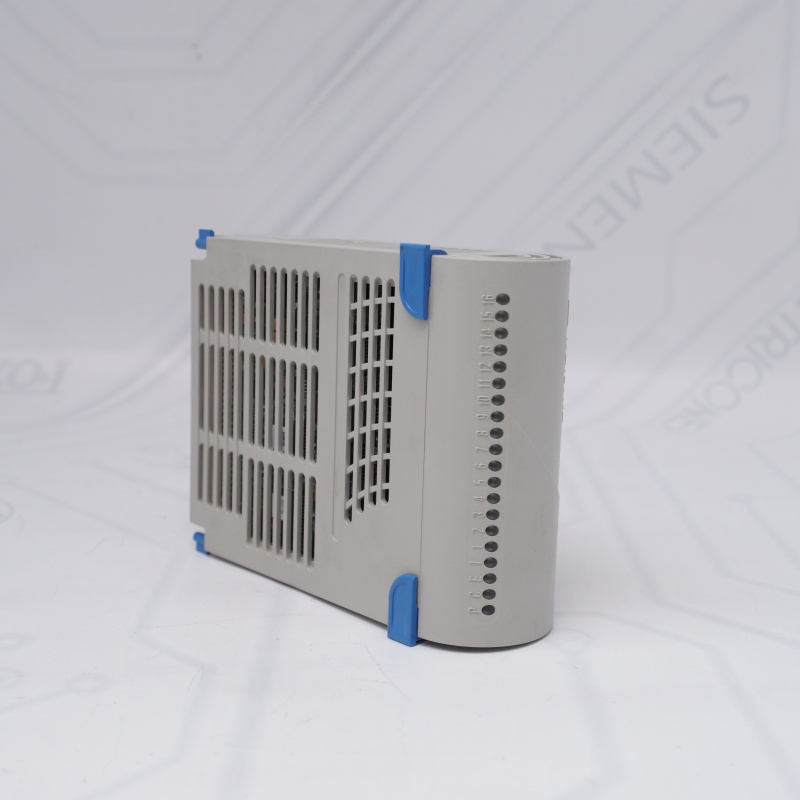

1C31142G01 Contact Input Module

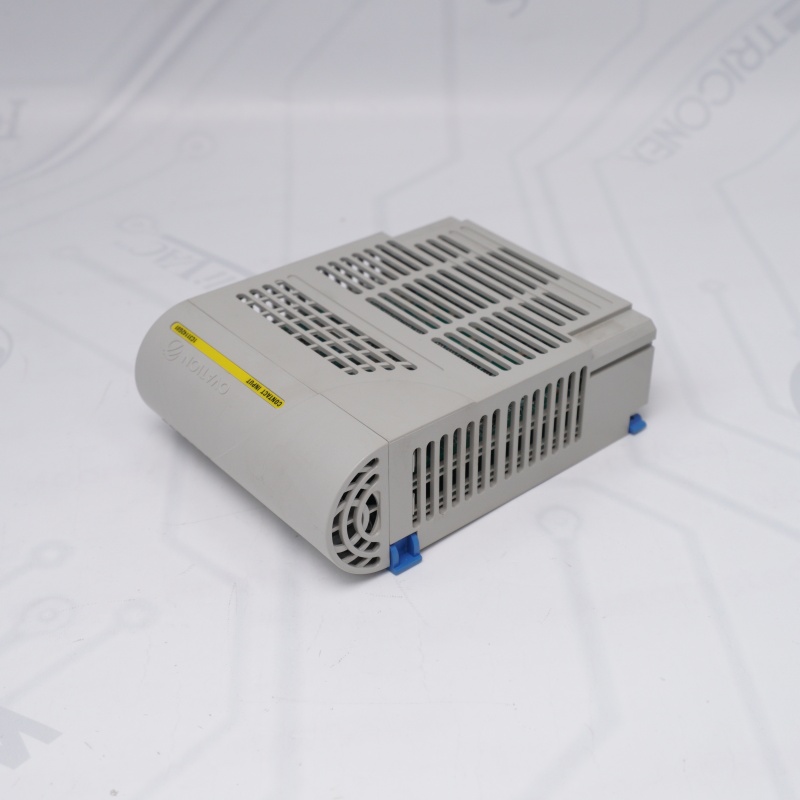

1C31142G01 Contact Input Module

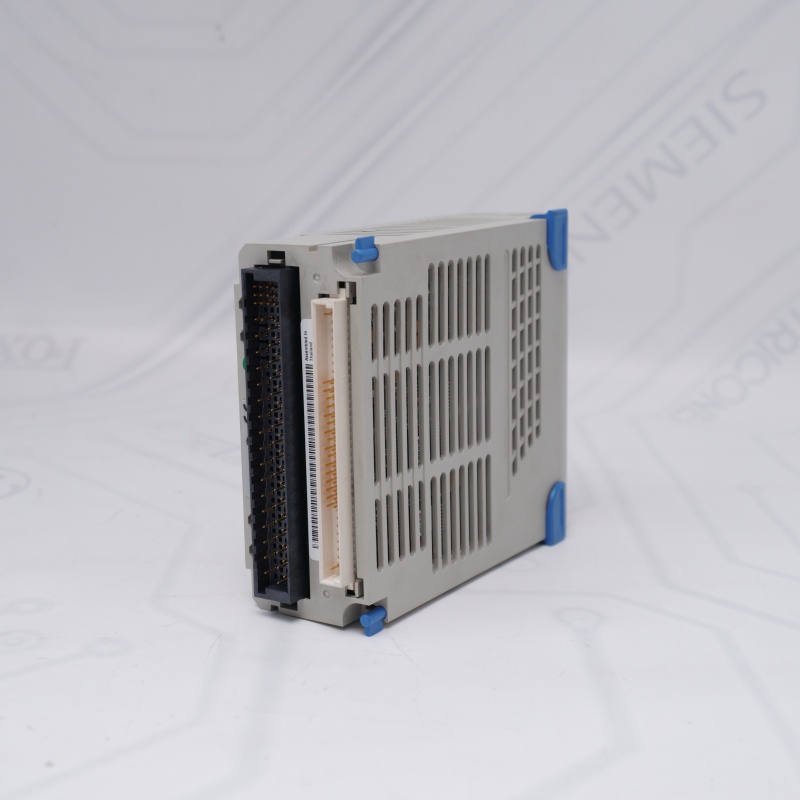

1C31142G01 Contact Input Module
