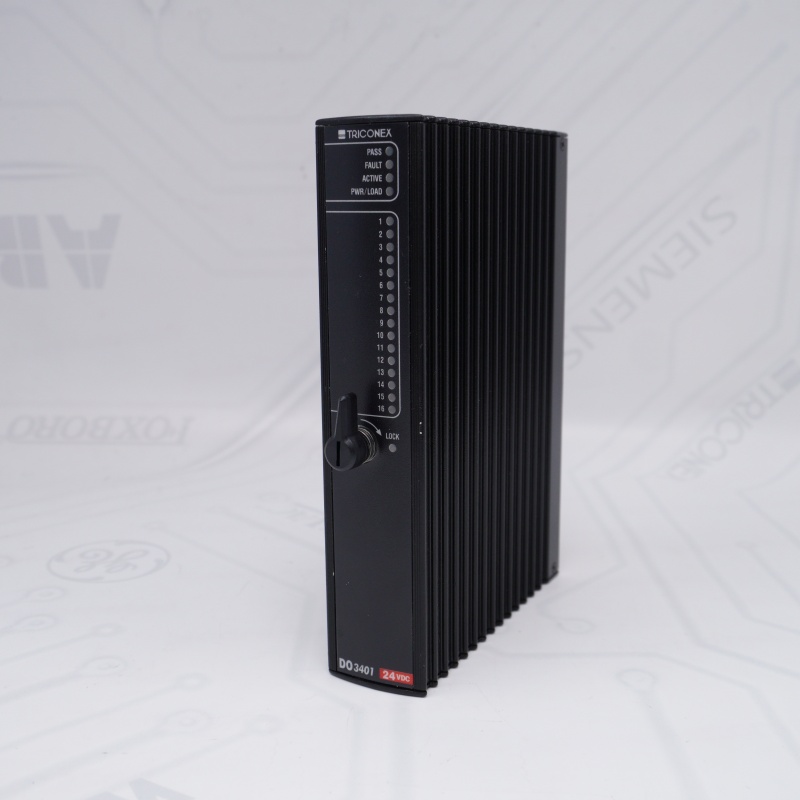

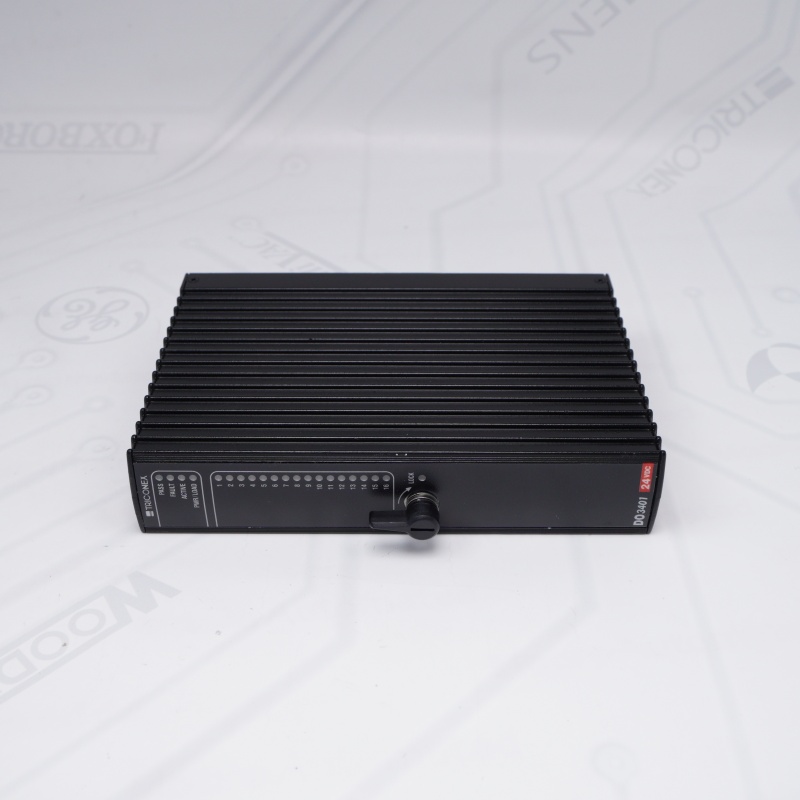

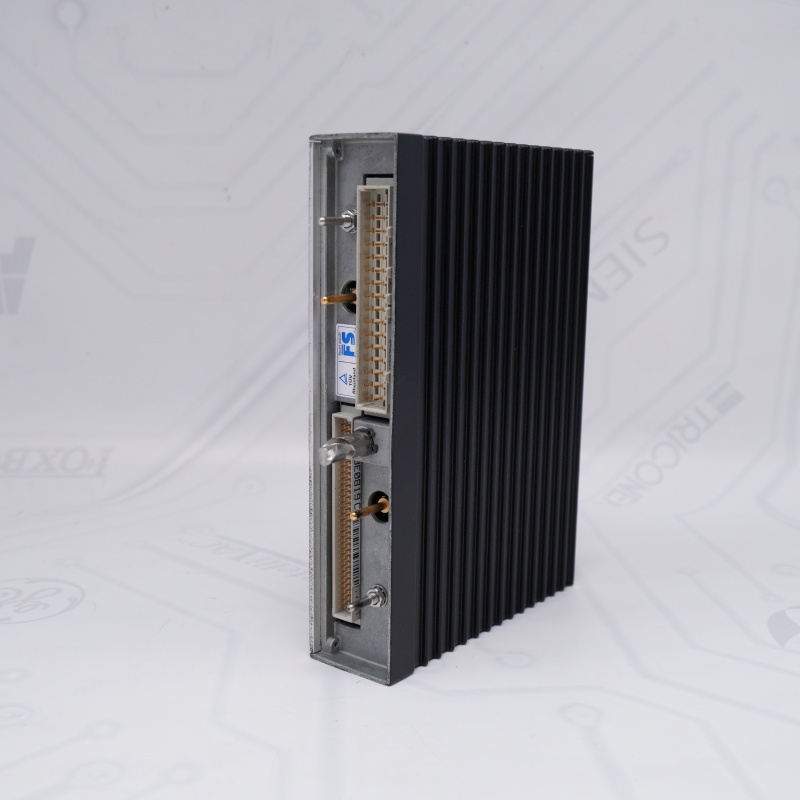

TRICONEX DO3401 Triple Modular Redundant (TMR) Digital Output Module

- Triple Modular Redundant (TMR) Architecture: TRICONEX Digital Output Module which has three isolated channels process outputs independently for maximum fault tolerance.

- Quad Voter Circuitry: TRICONEX Digital Output Module uses a parallel-series switch matrix to ensure safe execution via a 2-out-of-3 majority vote.

- Output Voter Diagnostic (OVD): TRICONEX Digital Output Module automatically runs continuous background diagnostics to detect stuck-on/off switches.

- Rapid Fault Detection: TRICONEX Digital Output Module identifies and reports internal hardware anomalies in less than 500 milliseconds.

- Hot-Swappable Design: TRICONEX Digital Output Module allows online module replacement without interrupting system operation or field device power.

- Galvanic Isolation: TRICONEX Digital Output Module provides high-level electrical isolation to protect internal logic from field-side surges.

- SIL 3 Certified: DO3401 Digital Output Module meets strict IEC 61508 safety standards for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems.

If you want to more details about DO3401，please contact me without hesitate. Email：sales@sparecenter.com

- Emergency Shutdown (ESD) Systems: DO3401 Digital Output Module controls critical safety valves and trip actuators to ensure safe plant shutdown.

- Fire and Gas (F&G) Systems: Triggers visual/audible alarms, deluge valves, and fire suppression systems upon hazard detection.

- Burner Management Systems (BMS): DO3401 Digital Output Module manages fuel safety shutoff valves and ignition systems in industrial boilers and furnaces.

- Turbomachinery Control (TMC): DO3401 Digital Output Module safely operates trip valves and speed controls for high-speed turbines and compressors.

- Critical Process Control: DO3401 Digital Output Module drives solenoids and contactors in high-availability chemical, petro-chemical, and refining processes.

- Nuclear Safety Systems: DO3401 Digital Output Module is deployed in reactor trip systems and engineered safety features requiring SIL 3 compliance.

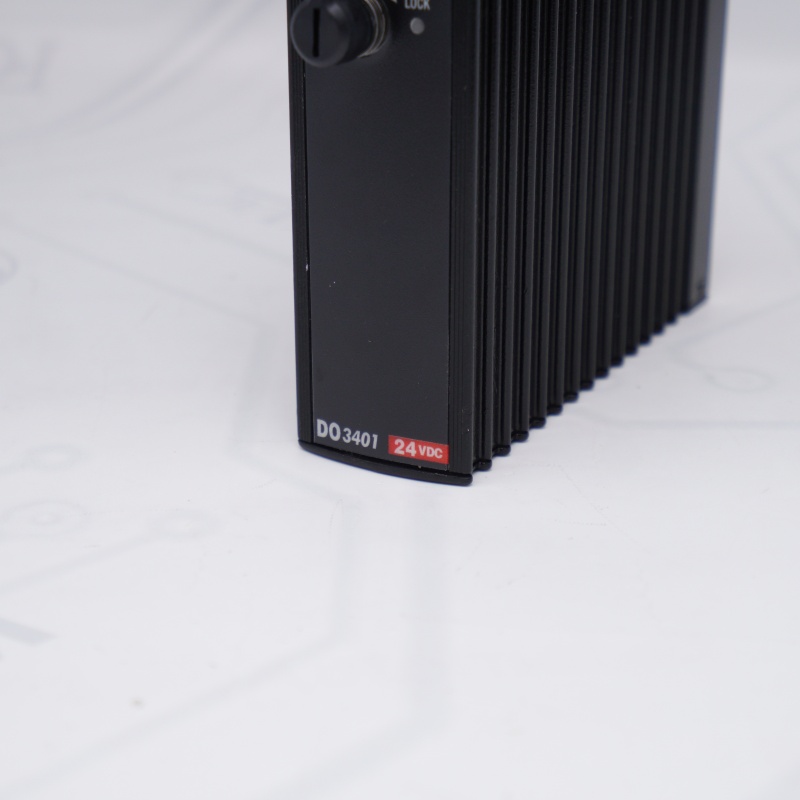

DO3401 TRICONEX

DO3401 TRICONEX

DO3401 TRICONEX

DO3401 TRICONEX

Q: What is the primary function of the TRICONEX DO3401 module in an industrial safety system?

A: The DO3401 TRICONEX is a Triple Modular Redundant (TMR) digital output module designed to safely control critical field devices like solenoids, actuators, and valves by executing commands with high availability and fault tolerance.

Q: How does the TRICONEX DO3401 guarantee safety integrity if an internal hardware failure occurs?

A: The DO3401 TRICONEX utilizes a Quad Voter Circuitry configuration that relies on a parallel-series switch matrix, ensuring that a 2-out-of-3 majority vote must occur to pass power to the field load.

Q: What diagnostic mechanism does the TRICONEX DO3401 use to detect hidden faults in its switches?

A: The DO3401 TRICONEX features an integrated Output Voter Diagnostic (OVD) routine that periodically tests for stuck-on and stuck-off conditions without interrupting the active output signals to the field.

Q: How quickly can the TRICONEX DO3401 identify and isolate an internal component fault?

A: The onboard diagnostic capabilities of the DO3401 TRICONEX allow it to detect and isolate hardware failures in less than 500 milliseconds, preventing dangerous undetected failure modes.

Q: Can the TRICONEX DO3401 module be replaced while the process control system is actively running?

A: Yes, the DO3401 TRICONEX supports full hot-swappable online replacement, allowing maintenance teams to swap a faulted module without interrupting system operation or dropping field load power.

Q: What are the nominal and absolute maximum operational voltages for the TRICONEX DO3401?

A: The DO3401 TRICONEX operates at a nominal voltage of 24 VDC, with a functional range of 15 to 30 VDC and an absolute maximum voltage rating of 33 VDC.

Q: Which industry safety standards and certifications does the TRICONEX DO3401 comply with?

A: The DO3401 TRICONEX is TUV certified up to Safety Integrity Level 3 (SIL 3) in accordance with the IEC 61508 standard for emergency shutdown and fire and gas applications.

Q: What current ratings are available for the individual output channels of the TRICONEX DO3401?

A: Depending on the specific hardware sub-variant and field termination selection, the TRICONEX DO3401 can be configured to support current loops of 100 mA, 250 mA, or 500 mA.
