SIEMENS 6SN1118-0DK23-0AA2 Specification
| Manufacturer | SIEMEN | Product Model | SIMODRIVE 611 Digital Control Loop Block |
| Article Number | 6SN1118-0DK23-0AA2 | Product Series | SIMODRIVE 611-D |
| Number of Axes | 2-Axis Control | Control Type | Closed-loop control (Digital Setpoint) |
| Encoder Interface | Sin/Cos 1 Vpp signals | Measuring System | Direct Measuring System (DMS) Support |
| Supported Motors | 1FT6, 1FK, 1FE1, 1FW6, 2SP1, 1PH, 1PM, 1FN, 1LA | Country of Origin | Germany |
SIEMENS Digital Control Loop Block Application
CNC Machine Tools: The SIEMENS Digital Control Loop Block is most commonly found in complex CNC systems like the SINUMERIK 840D/810D, where it handles high-speed milling, turning, and grinding operations.
Multi-Axis Coordination: Because the SIEMENS Digital Control Loop Block supports 2-axis control, it is the standard choice for synchronized tasks such as interpolating feed drives.
Main Spindle Control: In addition to feed drives, the SIEMENS Digital Control Loop Block can be utilized for main spindle drive (MSD) applications requiring precise speed and position control.
High-Resolution Manufacturing: Industries involving semiconductor fabrication or medical device manufacturing use the SIEMENS Digital Control Loop Block due to its compatibility with high-resolution direct measuring systems.
If you want to more details about SIEMENS 6SN1118-0DK23-0AA2，please contact me without hesitate.Email：sales@sparecenter.com
SIEMENS Digital Control Loop Block Features
Dual-Axis Efficiency: A single SIEMENS Digital Control Loop Block module can manage two independent axes simultaneously, significantly reducing the hardware footprint in the control cabinet.
Direct Measuring System (DMS): The SIEMENS Digital Control Loop Block(6SN1118-0DK23-0AA2 SIEMENS) includes an interface for direct measurement, allowing the system to compensate for mechanical backlash by reading the position directly from the machine scale.
Sin/Cos 1 Vpp Interface: The SIEMENS Digital Control Loop Block is engineered to process high-frequency 1 Vpp analog signals, ensuring ultra-smooth motion and sub-micron positioning accuracy.
Digital Control Loop: As a "Digital" High Performance block, the SIEMENS Digital Control Loop Block ensures rapid signal processing with minimal latency, which is critical for high-speed cutting.
Backward Compatibility: The SIEMENS Digital Control Loop Block is designed to work seamlessly with existing SIMODRIVE 611 power modules, making it an ideal component for upgrading or maintaining legacy SINUMERIK systems.
Robust Diagnostic Support: When integrated with Siemens commissioning software, the SIEMENS Digital Control Loop Block provides detailed error feedback for quick troubleshooting of encoder or drive faults.
SIEMENS Digital Control Loop Block FAQ
1. What exactly does the 6SN1118-0DK23-0AA2 Digital Control Loop Block do in a machine setup?
It is a 2-axis digital control loop block. It acts as the brain for the SIMODRIVE 611 drive, handling the high-speed math needed for closed-loop position and speed control by talking to both the CNC controller and the motor encoders.
It is a 2-axis digital control loop block. It acts as the brain for the SIMODRIVE 611 drive, handling the high-speed math needed for closed-loop position and speed control by talking to both the CNC controller and the motor encoders.
2. Can I use the 6SN1118-0DK23-0AA2 Digital Control Loop Block for both spindles and feed motors?
Yes. It is versatile enough to manage high-performance Feed Drives (FD) or Main Spindle Drives (MSD). Its fast processing makes the SIEMENS 6SN1118-0DK23-0AA2 a go-to for demanding machining tasks.
Yes. It is versatile enough to manage high-performance Feed Drives (FD) or Main Spindle Drives (MSD). Its fast processing makes the SIEMENS 6SN1118-0DK23-0AA2 a go-to for demanding machining tasks.
3. What kind of encoder feedback does the 6SN1118-0DK23-0AA2 Digital Control Loop Block look for?
It is built for sinusoidal encoders with a 1 Vpp signal. By using these analog signals, the SIEMENS 6SN1118-0DK23-0AA2 achieves very high resolution, which is why it’s so effective for smooth, low-speed movement.
It is built for sinusoidal encoders with a 1 Vpp signal. By using these analog signals, the SIEMENS 6SN1118-0DK23-0AA2 achieves very high resolution, which is why it’s so effective for smooth, low-speed movement.
4. Does the 6SN1118-0DK23-0AA2 Digital Control Loop Block support direct scales (DMS)?
Yes, it does. The 6SN1118-0DK23-0AA2 SIEMENS includes a Direct Measuring System interface. This allows it to read position data straight from a linear scale, bypassing mechanical errors like backlash in the gearbox or ballscrew.
Yes, it does. The 6SN1118-0DK23-0AA2 SIEMENS includes a Direct Measuring System interface. This allows it to read position data straight from a linear scale, bypassing mechanical errors like backlash in the gearbox or ballscrew.
5. Are there specific software requirements for the 6SN1118-0DK23-0AA2 Digital Control Loop Block?
You need NC Software version 06.04.09 or higher. If you try to run the 6SN1118-0DK23-0AA2 SIEMENS on older firmware, you’ll likely run into compatibility errors or find that certain parameters won't load.
You need NC Software version 06.04.09 or higher. If you try to run the 6SN1118-0DK23-0AA2 SIEMENS on older firmware, you’ll likely run into compatibility errors or find that certain parameters won't load.
6. How many motors can one 6SN1118-0DK23-0AA2 Digital Control Loop Block manage?
One 6SN1118-0DK23-0AA2 SIEMENS is designed to control two axes. This 2-in-1 design means you can use a single SIEMENS 6SN1118-0DK23-0AA2 to handle two separate motors, saving a lot of physical space in the control cabinet.
One 6SN1118-0DK23-0AA2 SIEMENS is designed to control two axes. This 2-in-1 design means you can use a single SIEMENS 6SN1118-0DK23-0AA2 to handle two separate motors, saving a lot of physical space in the control cabinet.
7. Is the 6SN1118-0DK23-0AA2 Digital Control Loop Block still in production?
Siemens officially discontinued it in 2015, making it hard to find through standard factory channels. However, our spare center can provide the 6SN1118-0DK23-0AA2 SIEMENS directly from our stock to keep your machines running without long lead times.
Siemens officially discontinued it in 2015, making it hard to find through standard factory channels. However, our spare center can provide the 6SN1118-0DK23-0AA2 SIEMENS directly from our stock to keep your machines running without long lead times.
8. What are the common warning signs of a failing 6SN1118-0DK23-0AA2 Digital Control Loop Block?
If it starts failing, you’ll often see codes like E-A031 (encoder issues) or E-A039 (parameter errors) on the drive display. If these persist after checking cables, the internal logic of the 6SN1118-0DK23-0AA2 SIEMENS is likely damaged.
If it starts failing, you’ll often see codes like E-A031 (encoder issues) or E-A039 (parameter errors) on the drive display. If these persist after checking cables, the internal logic of the 6SN1118-0DK23-0AA2 SIEMENS is likely damaged.

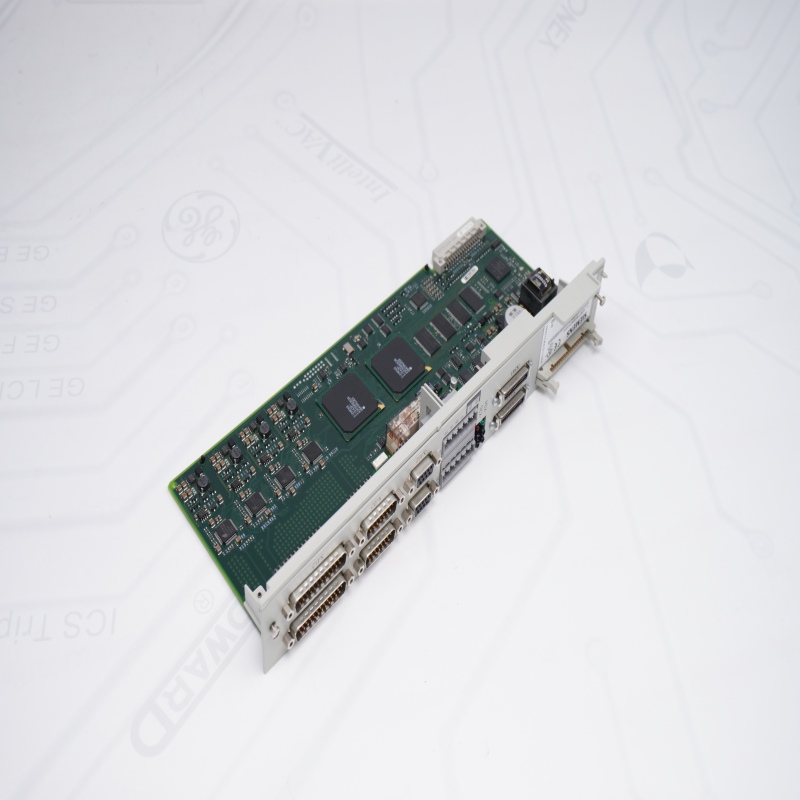

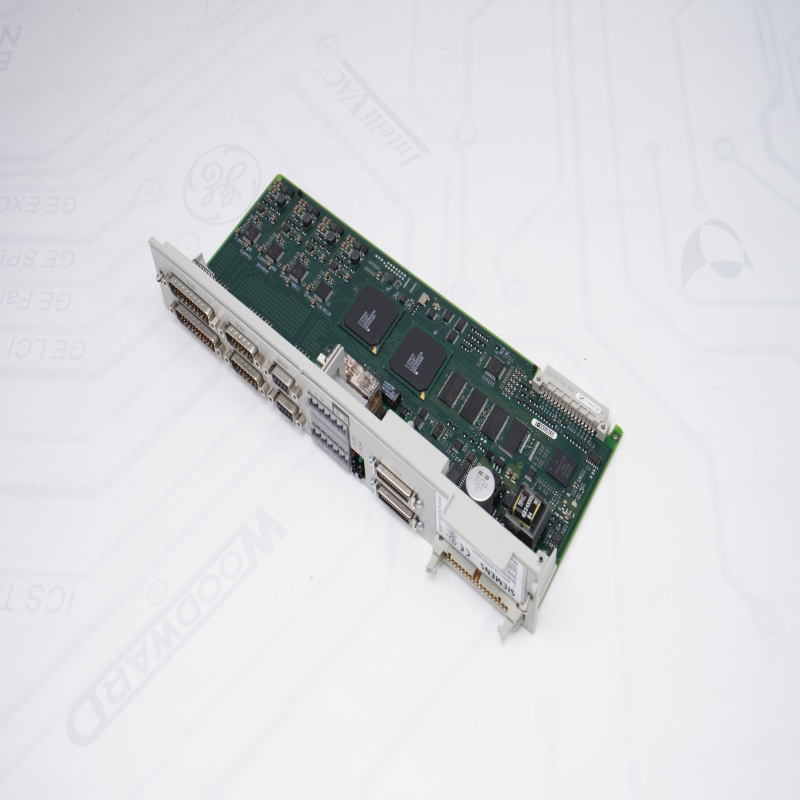

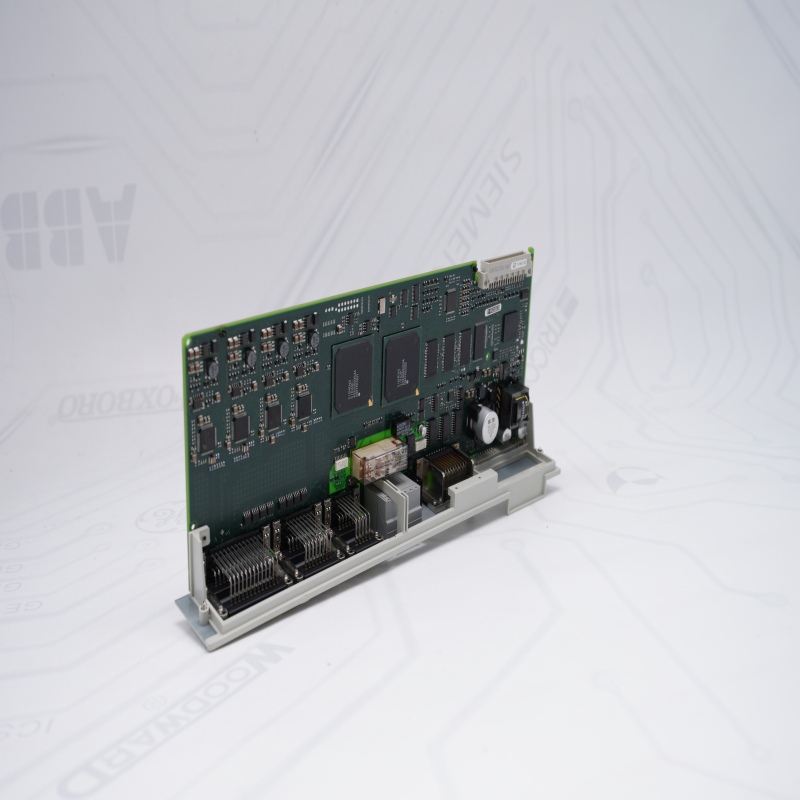

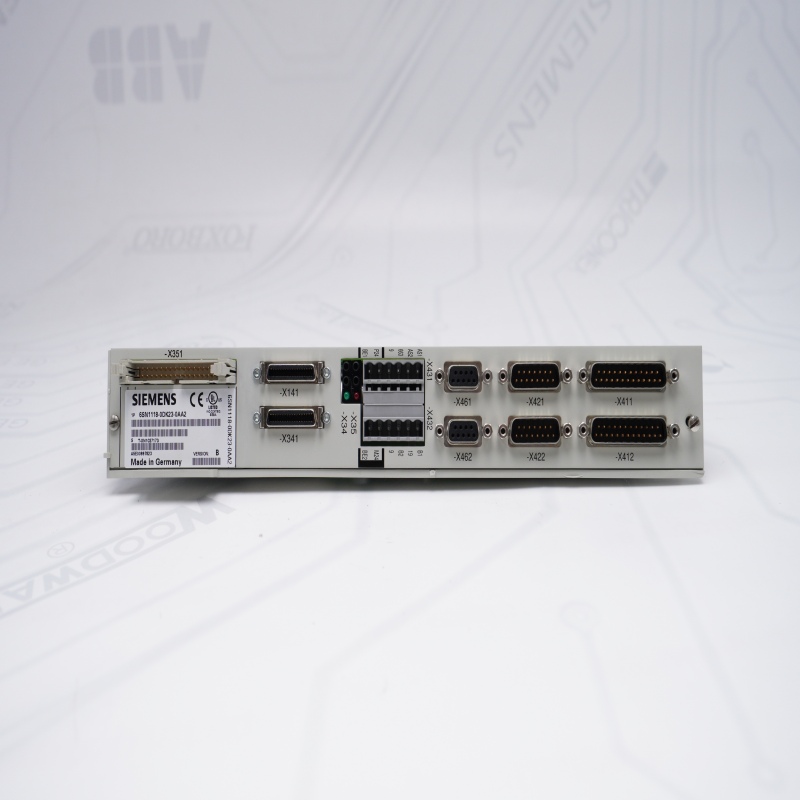

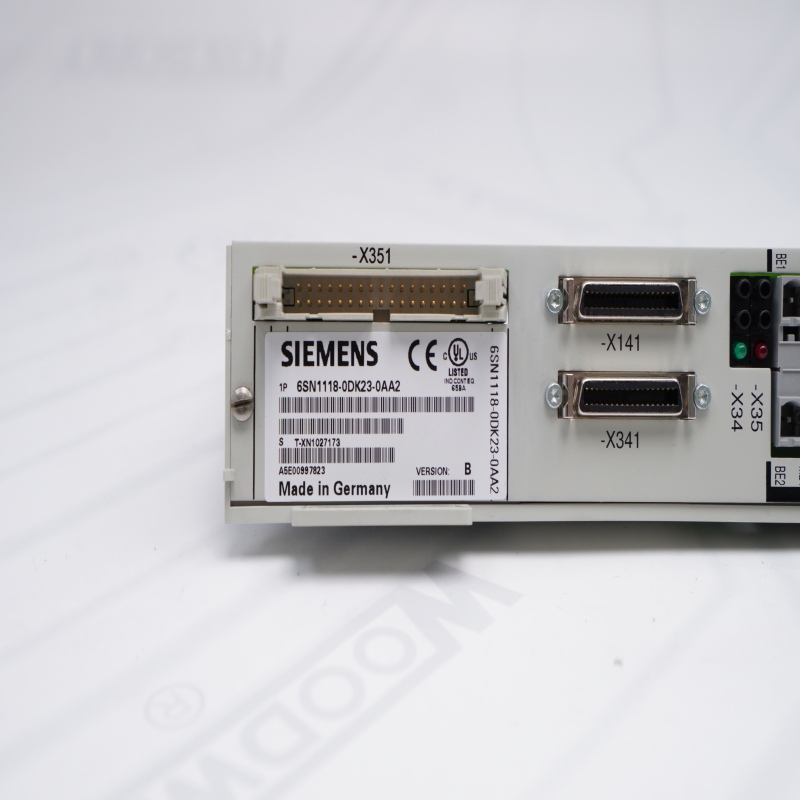

SIEMENS 6SN1118-0DK23-0AA2 Images
6SN1118-0DK23-0AA2 SIEMENS
6SN1118-0DK23-0AA2 SIEMENS
6SN1118-0DK23-0AA2 SIEMENS
6SN1118-0DK23-0AA2 SIEMENS
