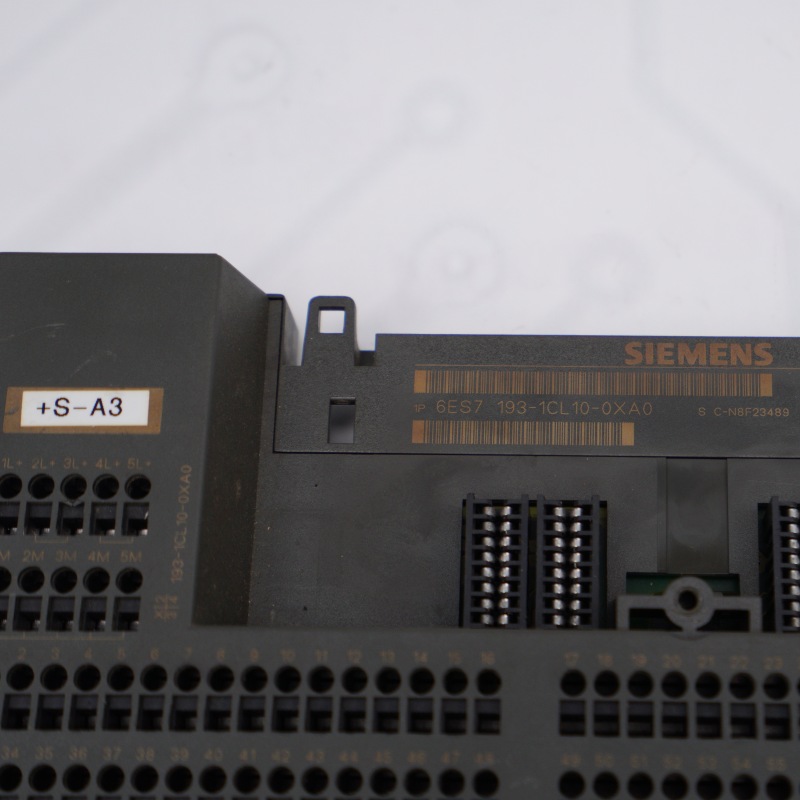

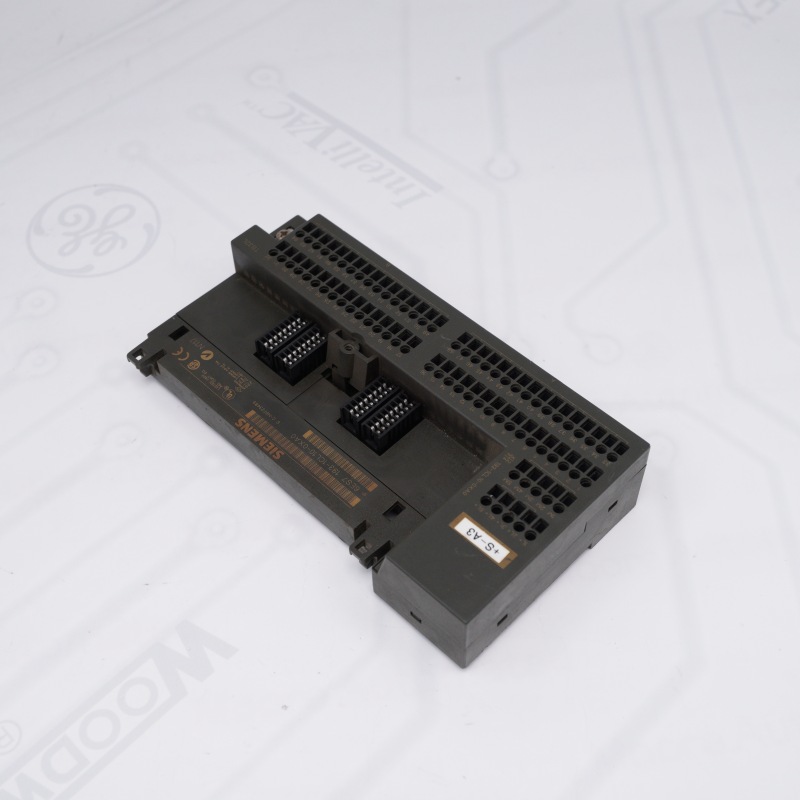

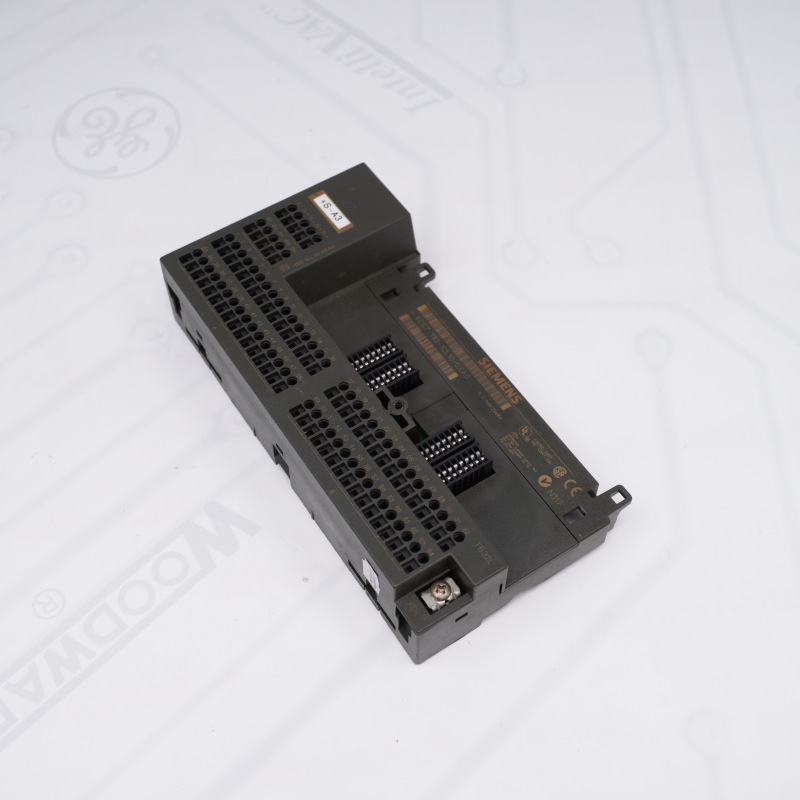

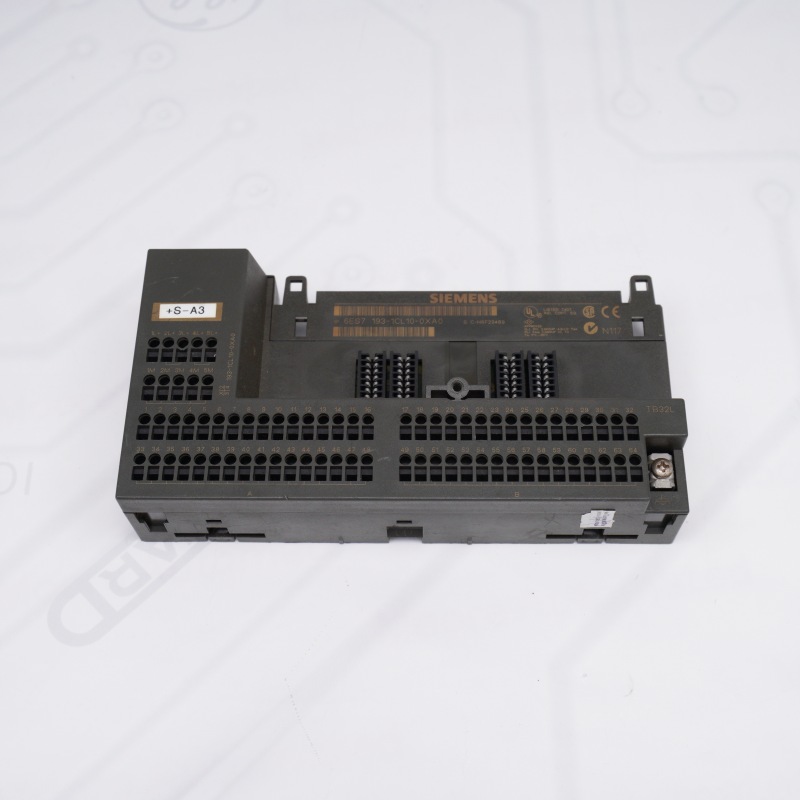

SIEMENS 6ES7193-1CL10-0XA0 Terminal Block TB32L

High-Density Channel Interface: SIEMENS 6ES7193-1CL10-0XA0 integrates 32 channels into a single block to minimize panel footprint for ET 200L submodules.

Maintenance-Free Wire Clamping: SIEMENS Terminal Block TB32L uses spring-type terminals (cage clamp) to ensure gas-tight, vibration-proof wire connections.

Tool-Free Terminal Wiring: SIEMENS Terminal Block TB32L enables quick and secure wiring of field devices without the need for specialized termination tools.

Pre-Wiring Capability: SIEMENS Terminal Block TB32L allows the terminal block to be wired completely before the electronic submodule is plugged in.

Hot-Swappable Module Design: SIEMENS Terminal Block TB32L permits the replacement of the upper electronic submodule without disrupting the permanent field wiring.

Rugged Industrial Build: SIEMENS Terminal Block TB32L is built for standard DIN rail mounting inside industrial control panels under high-vibration conditions.

If you want to more details about  SIEMENS 6ES7193-1CL10-0XA0，please contact me without hesitate. Email：sales@sparecenter.com

SIEMENS Terminal Block TB32L

SIEMENS Terminal Block TB32L

SIEMENS Terminal Block TB32L

SIEMENS Terminal Block TB32L

Q1: What is the primary function of the Siemens 6ES7193-1CL10-0XA0 within an automation system?
A1: The SIEMENS Terminal Block TB32L serves as a 32-channel TB32L terminal block that establishes the physical and electrical connections between field sensors/actuators and the plugged-in ET 200L or ET 200SC electronic submodules.

Q2: Which connection technology is utilized on the terminal side of the 6ES7193-1CL10-0XA0?
A2: The SIEMENS Terminal Block TB32L utilizes maintenance-free spring-type terminals (cage clamps), ensuring gas-tight, vibration-proof, and reliable wire termination without requiring periodic retightening.

Q3: Where can I source the 6ES7193-1CL10-0XA0 since it is a discontinued legacy item?
A3: You can purchase the SIEMENS Terminal Block TB32L directly from us, as we supply certified new, used, and fully refurbished industrial surplus components to support legacy automation systems.

Q4: Does the 6ES7193-1CL10-0XA0 support hot-swapping of the electronic submodules?
A4: Yes, the permanent wiring feature of the SIEMENS Terminal Block TB32Lallows the upper electronic submodules to be replaced without disconnecting or disrupting any of the field wiring.

Q5: What are the exact physical dimensions required to mount the 6ES7193-1CL10-0XA0 Terminal Block TB32L in a panel?
A5: The 6ES7193-1CL10-0XA0 Terminal Block TB32L features dimensions of 191 mm in width, 100 mm in height, and 40.5 mm in depth, requiring a matching footprint on a standard DIN rail.

Q6: Can a 16-channel digital electronic submodule be mounted onto the 6ES7193-1CL10-0XA0 Terminal Block TB32L terminal block?
A6: No, the 6ES7193-1CL10-0XA0 Terminal Block TB32L is a TB32L block specifically engineered and keyed to interface with 32-channel digital electronic submodules within the ET 200L/ET 200SC system.

Q7: Is special tooling required to attach field wires to the 6ES7193-1CL10-0XA0?
A7: No specialized tooling is required; field wires are inserted directly into the 6ES7193-1CL10-0XA0 Terminal Block TB32L by using a standard screwdriver to depress the integrated spring clamp mechanism.

Q8: What is the differences between the 6ES7193-1CL10-0XA0 and the older 6ES7193-1CL00-0XA0 variant?
A8: The 6ES7193-1CL10-0XA0 Terminal Block TB32L features a spring-type cage clamp connection system, whereas the older 6ES7193-1CL00-0XA0 model uses traditional screw-type terminal connections for its 32 channels.
