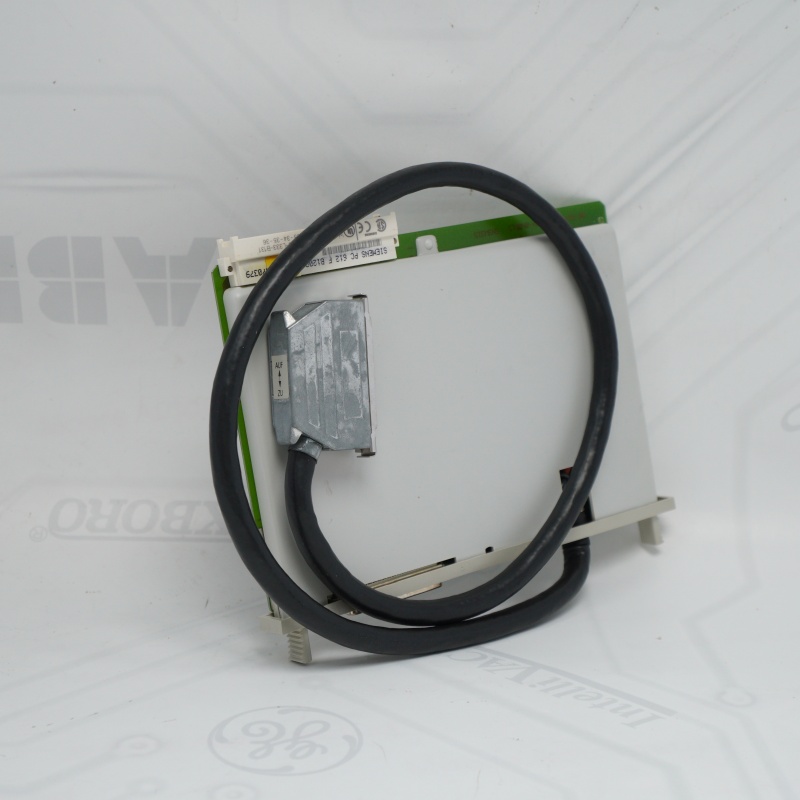

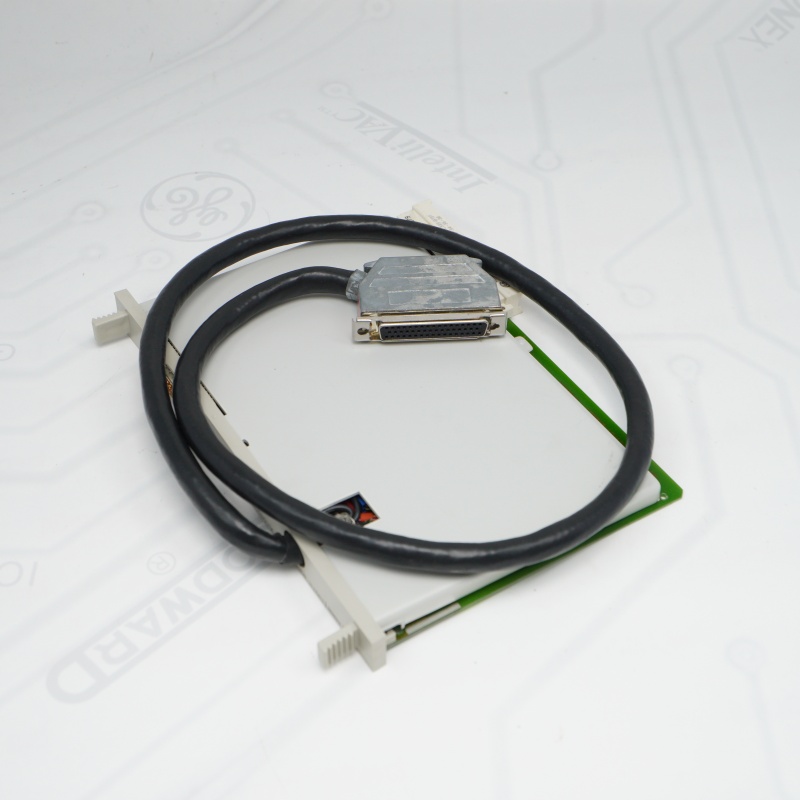

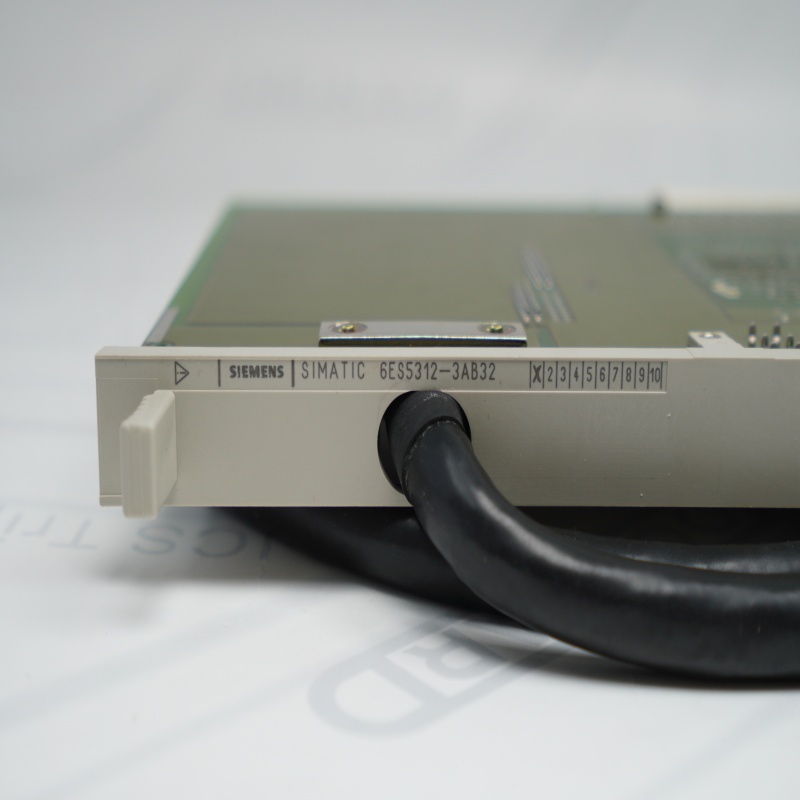

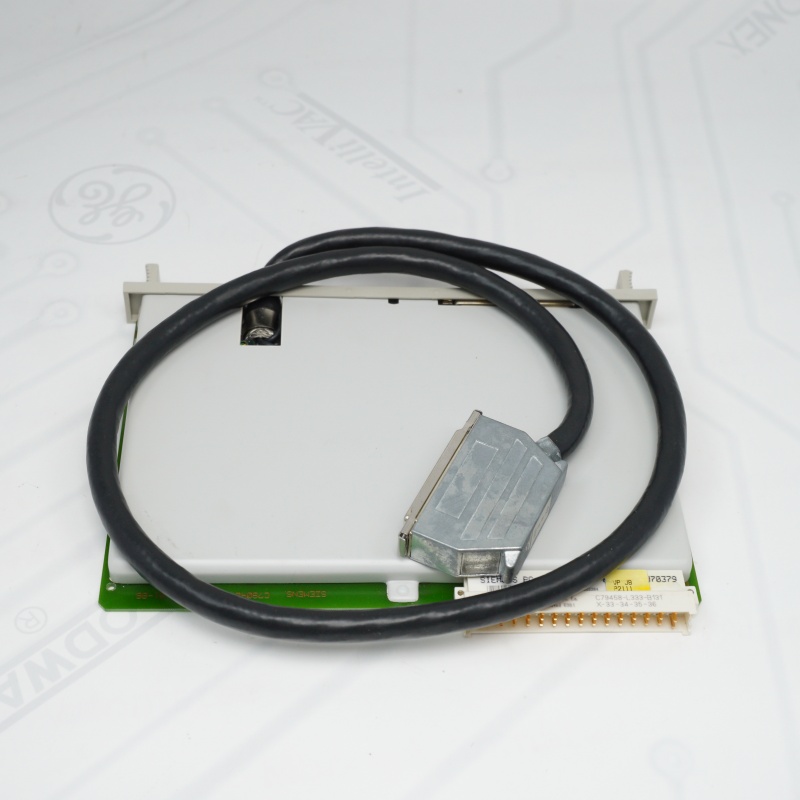

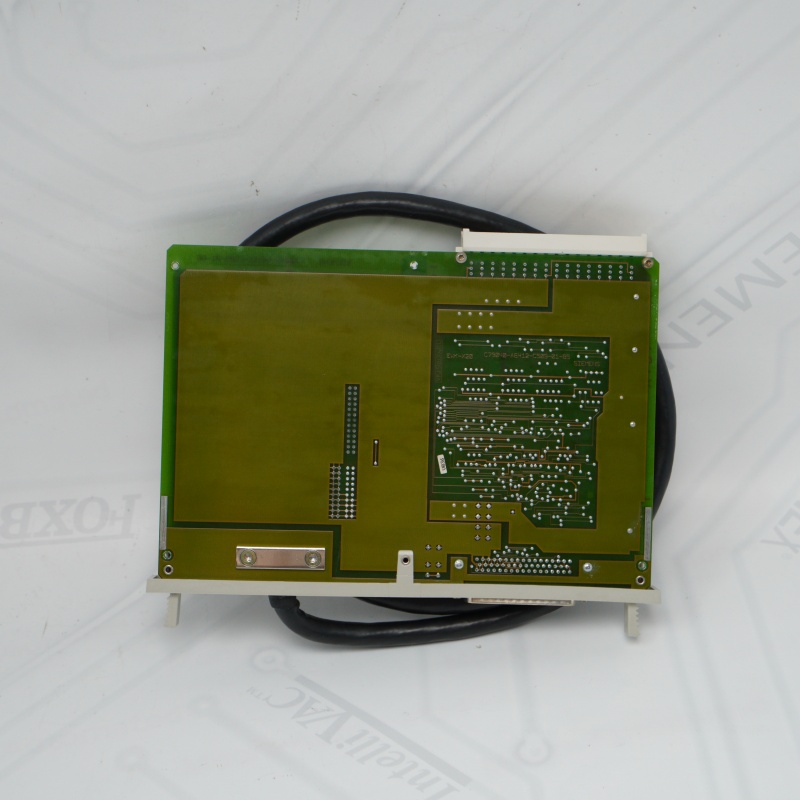

SIEMENS 6ES5312-3AB32 IM 312 Centralized Interface Module

The Siemens 6ES5312-3AB32 is a traditional SIMATIC S5 interface module (IM 312) designed for centralized rack expansion of S5-115U, S5-135U, and S5-155U PLC systems. Equipped with a single 0.95-meter integrated cable, the SIEMENS 6ES5312-3AB32 provides a direct, high-speed connection between the central controller and adjacent independently powered expansion units. As the final engineering version of this series, the SIEMENS 6ES5312-3AB32 seamlessly replaces the discontinued 6ES5312-3AB11 and 6ES5312-3AB31 modules, making it a critical spare for maintaining traditional factory automation infrastructure.

6ES5312-3AB32 Interface Module

SIEMENS Interface Module

6ES5312-3AB32 Interface Module

• SIEMENS Interface Module Visual Inspection: Thoroughly checked for trace corrosion, pin integrity, and cable wear.

• SIEMENS Interface Module Power-On Test: Backplane current draw verified under standard 0.2A operating limits.

• SIEMENS Interface Module Communication Test: Tested on an actual SIMATIC S5 rack to ensure error-free data transmission.

• SIEMENS Interface Module Real Photos: 100% actual product photos. What you see in the images is exactly the Siemens 6ES5312-3AB32 unit you will receive. (Testing videos can be provided upon request).

Q1: Which PLC architectures are fully compatible with the Siemens 6ES5312-3AB32 interface module?

A1: The 6ES5312-3AB32 SIEMENS is designed for traditional SIMATIC S5 central and expansion rack layouts. It is fully compatible with the Siemens S5-115U, S5-135U, and S5-155U series of programmable logic controllers, enabling centralized communication between the main controller and expansion units.

Q2: Can the Siemens 6ES5312-3AB32 directly replace older modules, such as the 6ES5312-3AB11 or 6ES5312-3AB31?

A2: Yes, the 6ES5312-3AB32 SIEMENS is the final version of this product line and the latest engineering version. It is fully backward compatible and can directly replace the discontinued part numbers 6ES5312-3AB11 and 6ES5312-3AB31 without any wiring modifications or hardware reconfiguration.

Q3: Where can I find the official standalone datasheet or technical manual for 6ES5312-3AB32 SIEMENS?

A3: Siemens has not published a separate manual for 6ES5312-3AB32 SIEMENS because it is a non-programmable, passive hardware bridge. All complete technical data, configuration rules, and pin assignments for 6ES5312-3AB32 are documented in the "Interface Modules" section of the Siemens SIMATIC S5-115U and S5-135U/155U system manuals.

Q4: What are the physical installation and distance limitations when deploying the 6ES5312-3AB32 SIEMENS module?

A4: The 6ES5312-3AB32 SIEMENS has a built-in connecting cable approximately 0.95 meters long. Due to this hardware design, the 6ES5312-3AB32 is only suitable for centralized, tightly coupled rack configurations where expansion units (EUs) are mounted directly next to or below the central controller (CC).

Q5: Does the 6ES5312-3AB32 SIEMENS require an external power supply when operating in a SIMATIC S5 rack?

A5: The 6ES5312-3AB32 SIEMENS itself draws a maximum internal current of 0.2 A from the backplane. However, the 6ES5312-3AB32 must be connected to an expansion unit (EU) equipped with its own local power supply to ensure proper signal transmission on the centralized bus.
