Supply SIEMENS 6DS1222-8BA Teleperm M interface module Wholesale Factory

SIEMENS 6DS1222-8BA Specification

Manufacturer: Siemens

Part Number:6DS1222-8BA

Product Line: TELEPERM M

Function: N-AT Nahbus Terminal Interface Board

Bus Interface: ISA (Industry Standard Architecture)

Card Format: Short Version (Half-Length)

Application: Local Bus (Nahbus) Connection for Industrial PCs

Interface Type: Bus Connection Module

SIEMENS 6DS1222-8BA Application

TELEPERM M System Integration: SIEMENS Teleperm M interface module serves as the dedicated hardware communication link between an Industrial PC (IPC) and the TELEPERM M automation network, specifically facilitating connection to the N-AT Nahbus (Local Bus) architecture.

Real-Time Process Data Exchange: SIEMENS Teleperm M interface module manages high-speed, bidirectional data transmission required for the centralized monitoring and control of automated industrial processes within the local bus segment.

Industrial Infrastructure Deployment: 6DS1222-8BA Teleperm M interface module extensively utilized in large-scale process industries, including thermal power plant control systems, chemical manufacturing facilities, and maritime engineering automation.

Legacy System Maintenance and Retrofitting: 6DS1222-8BA Teleperm M interface module provides a critical interface solution for maintaining operational continuity in existing TELEPERM M installations where modern PCs must communicate with older field-level hardware.

System Diagnostics and Configuration: 6DS1222-8BA Teleperm M interface module acts as the physical access point for diagnostic tools and engineering software to configure and troubleshoot local bus nodes and terminal devices.

If you want to more details about SIEMENS 6DS1222-8BA，please contact me without hesitate.Email：sales@sparecenter.com

SIEMENS 6DS1222-8BA Features

Standardized ISA Interface: 6DS1222-8BA Teleperm M interface module utilizes the Industry Standard Architecture (ISA) bus protocol, ensuring direct hardware-level integration with industrial-grade personal computers and legacy control stations.

Compact Form Factor: 6DS1222-8BA Teleperm M interface module is designed as a "Short Version" (half-length) ISA card, allowing for installation in space-constrained industrial enclosures and various PC chassis configurations.

N-AT Nahbus Connectivity: 6DS1222-8BA Teleperm M interface module features a dedicated terminal interface specifically engineered for the proprietary Siemens N-AT Local Bus (Nahbus), providing reliable communication within the TELEPERM M ecosystem.

Industrial-Grade Reliability: 6DS1222-8BA Teleperm M interface module is built with high-durability components to withstand the rigorous demands of continuous 24/7 operation in harsh industrial environments.

Seamless Teleperm Compatibility: 6DS1222-8BA SIEMENS is fully optimized for seamless integration with TELEPERM M software drivers and diagnostic tools, ensuring stable data synchronization between the PC and field-level controllers.

Hardware-Level Addressing: 6DS1222-8BA SIEMENS supports manual configuration through onboard hardware components to define specific bus addresses and system parameters for precise network identification.

SIEMENS 6DS1222-8BA FAQ

Q: What is the primary function of the Siemens 6DS1222-8BA module?
A: The 6DS1222-8BA SIEMENS serves as an N-AT Nahbus (Local Bus) terminal interface board, acting as the essential communication link between an Industrial PC and the TELEPERM M process control system.

Q: Which bus architecture does the 6DS1222-8BA use for installation?
A: The 6DS1222-8BA SIEMENS is designed as a short-version ISA (Industry Standard Architecture) card, requiring a standard ISA expansion slot on the host computer's motherboard or backplane.

Q: Is the 6DS1222-8BA compatible with modern PCI or PCIe slots?
A: No, the 6DS1222-8BA SIEMENS is a legacy ISA-based hardware component and is not physically or electrically compatible with modern PCI or PCI Express slots.

Q: In which industrial environments is the 6DS1222-8BA typically deployed?
A: The 6DS1222-8BA SIEMENS is widely utilized in heavy industrial sectors such as power generation plants, chemical processing facilities, and maritime automation systems.

Q: Does the 6DS1222-8BA require specific drivers for operation?
A: Yes, the 6DS1222-8BA SIEMENS requires specific TELEPERM M software drivers and communication protocols to be installed on the host operating system to facilitate proper data exchange.

Q: Can the 6DS1222-8BA be repaired if it experiences hardware failure?
A: Yes, specialized industrial automation service providers offer testing and component-level repair services specifically for the 6DS1222-8BA SIEMENS to extend the lifecycle of legacy systems.

Q: What is the physical size advantage of the 6DS1222-8BA card?
A: As a "Short Version" ISA card, the 6DS1222-8BA SIEMENS features a compact form factor that allows it to fit into small-footprint industrial PC chassis where full-length cards cannot be accommodated.

Q: How are the network addresses configured on a 6DS1222-8BA module?
A: System addresses and specific hardware parameters for the 6DS1222-8BA SIEMENS are typically configured via manual onboard jumpers or DIP switches prior to installation in the ISA slot.

SIEMENS 6DS1222-8BA Images

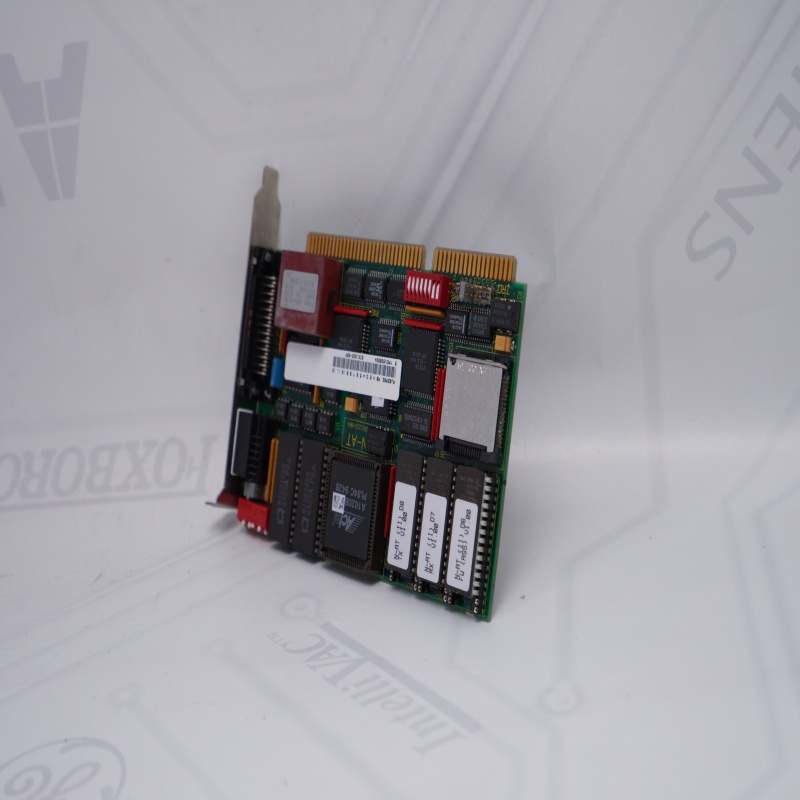

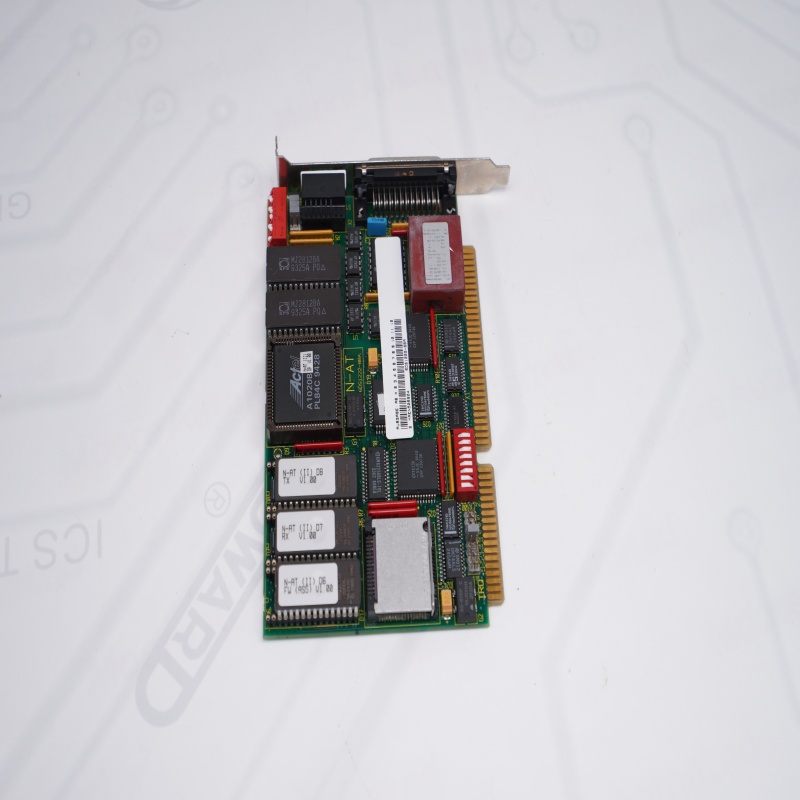

SIEMENS Teleperm M interface module(6DS1222-8BA SIEMENS)

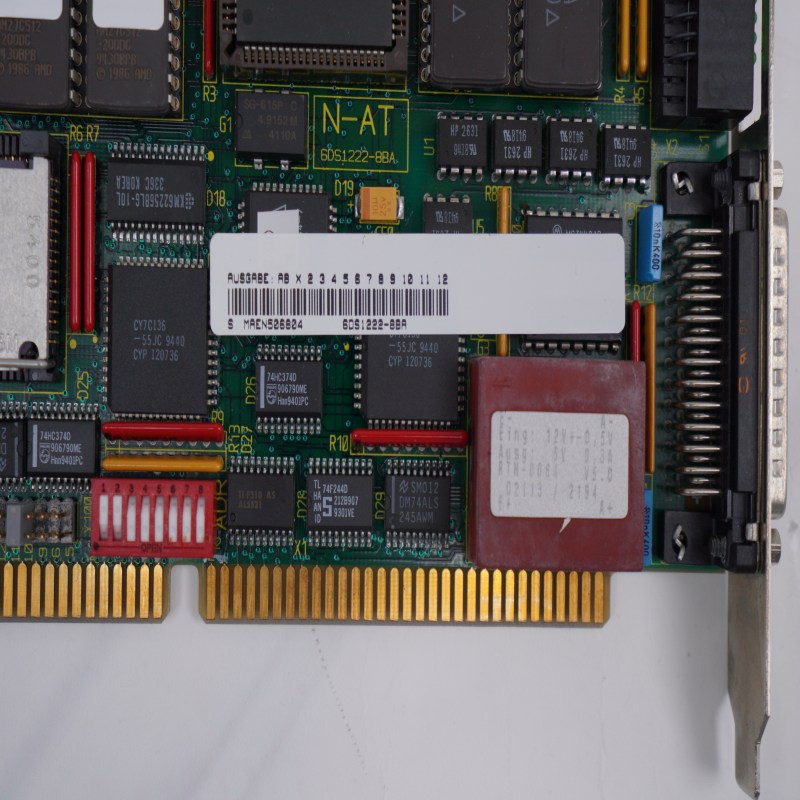

SIEMENS Teleperm M interface module(SIEMENS 6DS1222-8BA)

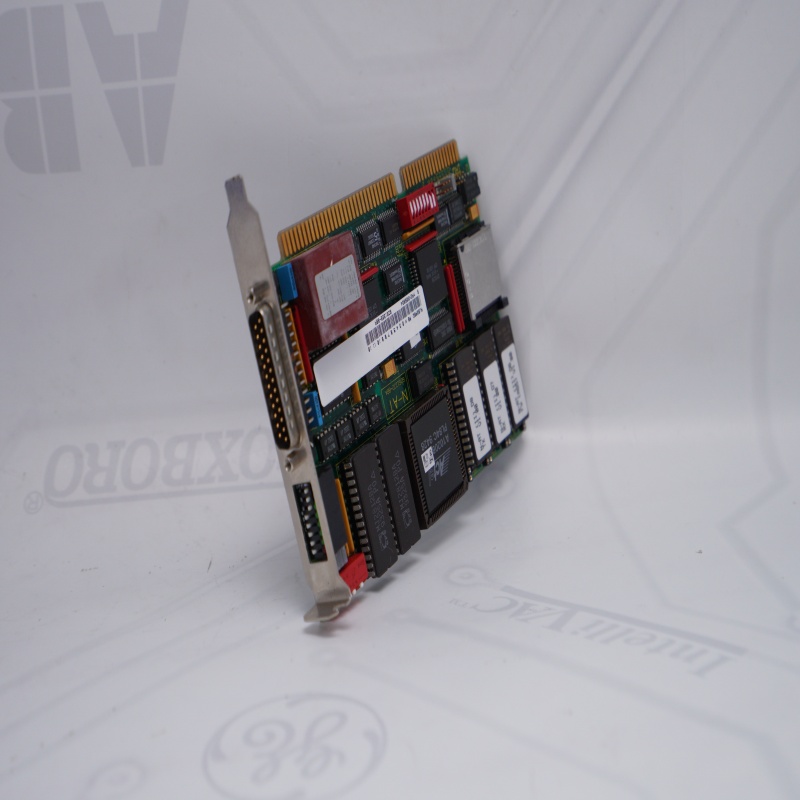

SIEMENS Teleperm M interface module
