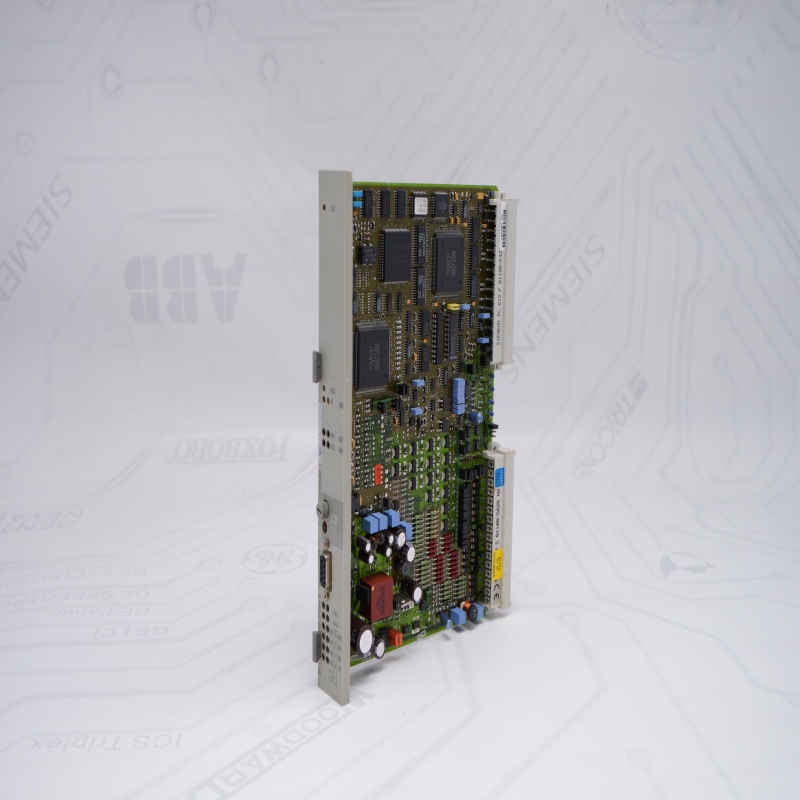

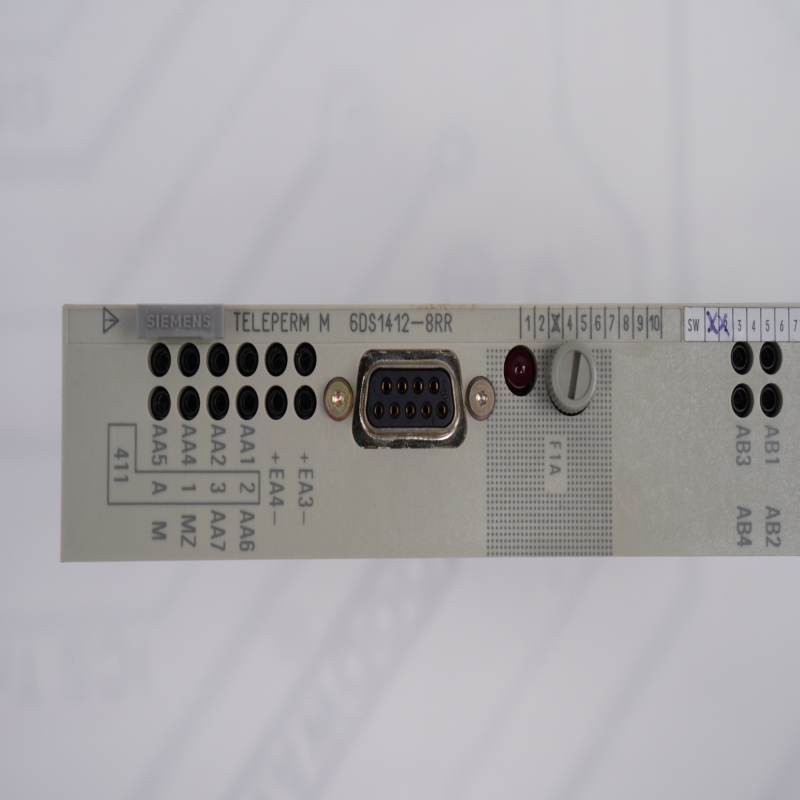

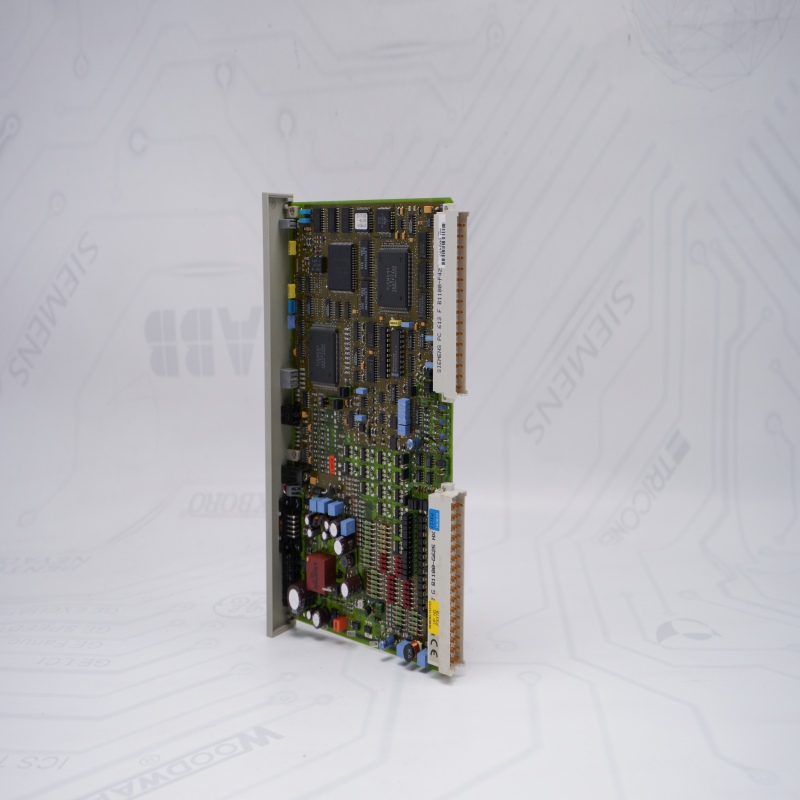

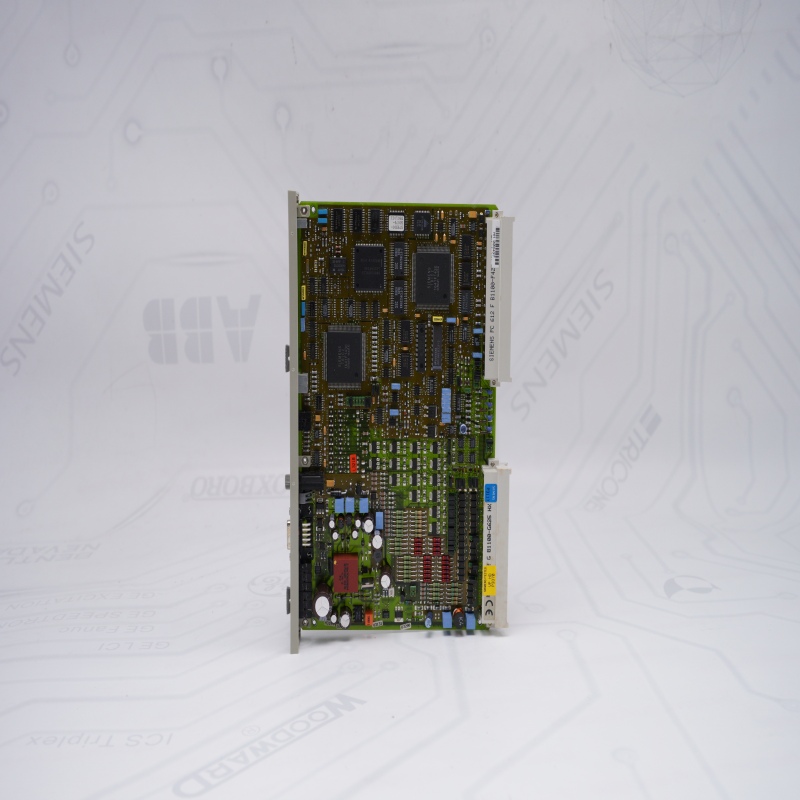

SIEMEN 6DS1412-8RR 2-channel Continuous Controller Module

• SIEMEN 2-channel Continuous Controller Module Closed-Loop Control: Used for precise regulation of pressure, temperature, and flow in industrial processes.

• SIEMEN 2-channel Continuous Controller Module Power Generation: Frequently applied in fossil fuel and nuclear power plant control systems (e.g., AS 235H).

• SIEMEN 2-channel Continuous Controller Module Chemical Processing: Utilized in large-scale chemical manufacturing for continuous monitoring and automation.

• 6DS1412-8RR 2-channel Continuous Controller ModuleSystem Modernization: Serving as a critical spare part for maintaining and extending the life of existing Teleperm M/ME automation stations.

• 6DS1412-8RR 2-channel Continuous Controller ModuleIndustrial Infrastructure: Deployment in water treatment and complex manufacturing plants using Siemens AS series controllers.

If you want to more details about SIEMEN 6DS1412-8RR，please contact me without hesitate.Email：sales@sparecenter.com

• 6DS1412-8RR 2-channel Continuous Controller Module Dual-Channel Processing: Operates as a 2-channel continuous controller (K-Loop) for parallel process regulation.

• 6DS1412-8RR 2-channel Continuous Controller Module Broad Compatibility: Fully pin-and-function compatible as a replacement for legacy modules 6DS1412-8AA/CC/DD/DE.

• SIEMEN 2-channel Continuous Controller Module Redundancy Support: Designed to work in pairs for high-availability systems (redundancy requires identical firmware).

• 6DS1412-8RR SIEMEN Signal Versatility: Supports both current (0...20 mA) and voltage (+/- 10 V) analog input/output configurations.

• 6DS1412-8RR SIEMEN Legacy Integration: Specifically engineered for seamless communication within the Teleperm M bus architecture.

• 6DS1412-8RR SIEMEN Hardware Configurability: Internal jumpers allow for specific adaptation to various technical requirements and older system modes.

• 1. What is the primary function of the 6DS1412-8RR module?
  The 6DS1412-8RR SIEMEN is a 2-channel continuous controller module, often referred to as a K-Loop controller, designed for high-precision closed-loop control tasks within the Siemens Teleperm M automation system.
• 2. Can the 6DS1412-8RR replace older 6DS1412 series modules?
  Yes, the 6DS1412-8RR SIEMEN is pin-and-function compatible with legacy variants including the 6DS1412-8AA, 8CC, 8DD, and 8DE, allowing for direct integration into existing hardware racks.
• 3. Is it possible to mix a 6DS1412-8RR with an older version in a redundant pair?
  No, for redundant operations, you must use two identical 6DS1412-8RR modules with the same firmware version; mixing the 6DS1412-8RR SIEMEN with older models like the 8DD or 8DE in a redundancy coupling is strictly prohibited.
• 4. What signal types are supported by the 6DS1412-8RR inputs?
  The 6DS1412-8RR SIEMEN supports analog input signals of 0...20 mA or +/- 10 V, which can be configured via internal hardware jumpers to match the specific process sensor requirements.
• 5. How does the 6DS1412-8RR handle output signals for actuators?
  The 6DS1412-8RR SIEMEN provides analog outputs ranging from -10 V to +10 V or -250 µA to +250 µA, ensuring compatibility with a wide range of industrial positioning elements and actuators.
• 6. Does the 6DS1412-8RR require specific jumper settings when replacing a 6DS1412-8DE?
  Yes, when using the 6DS1412-8RR SIEMEN as a replacement for the 8DE variant, the internal jumper X22/7-8 must be plugged in to ensure correct functional logic and system recognition.
• 7. In which automation stations is the 6DS1412-8RR typically installed?
  The 6DS1412-8RR SIEMEN is primarily used in Siemens AS 230, AS 235, and AS 235H automation stations, as well as the AS 220 EA system for specialized industrial processing.
• 8. Where can I source the 6DS1412-8RR since it is discontinued?
  While the 6DS1412-8RR SIEMEN is no longer in active production by the OEM, our spare center maintains a dedicated inventory of these modules to support your legacy systems, providing reliable, tested units for immediate replacement needs.
