Schneider VW3A3607 Specification
| Product Brand | Schneider Electric | Product Model | VW3A3607 |
| Product Type | Communication module | Communication Protocol | PROFIBUS DP V1 |
| Connector Type | 1 female SUB-D 9-pin connector | Transmission Rate | 9.6 kbps to 12 Mbps |
| Addressing | 1 to 126 (configurable via terminal or software) | Status Indicators | 2 LEDs (RUN/Bus Fault) |
| Power Supply | Internal via drive (5V DC) | Standards/Certifications | CE, UL, CSA, RoHS compliant |
Schneider VW3A3607 Features
Schneider Profibus DP V1 communication module Seamless Network Integration: Enables direct connection of industrial drives (Altivar/Lexium) to a Profibus DP fieldbus network for centralized control and monitoring.
Schneider Profibus DP V1 communication module High-Speed Communication: Supports auto-detection and manual configuration of transmission speeds ranging from 9.6 kbps up to 12 Mbps.
Schneider Profibus DP V1 communication module Advanced Diagnostics: Equipped with dual LED status indicators (RUN and BF/Bus Fault) for immediate visual troubleshooting of module and network health.
Schneider Profibus DP V1 communication module Acyclic Messaging (V1 Support): Supports Profibus DP V1 protocol, allowing for acyclic data exchange, which is essential for complex parameter configuration and extended diagnostics while the cyclic process is running.
VW3A3607 communication module Easy Addressing: Node addresses (1 to 126) can be easily assigned using the drive’s graphic display terminal or via SoMove software.
VW3A3607 communication module Plug-and-Play Design: Compact hardware that clips directly into the communication slot of compatible drives; powered internally by the drive, requiring no external power source.
VW3A3607 communication module Standardized Connection: Uses a standard 9-way female SUB-D connector, ensuring compatibility with common Profibus cables and connectors.
VW3A3607 communication module Extensive Compatibility: A versatile "cross-platform" module that works across multiple Schneider Electric ranges, including ATV320, ATV340, ATV600, ATV900, LXM32, and ATS480.
If you want to more details about Schneider VW3A3607(Schneider Profibus DP V1 communication module)，please contact me without hesitate. Email：sales@sparecenter.com
Schneider VW3A3607 Application
Industry Applications
Water & Pump Systems: Use the VW3A3607 communication module to connect ATV630 drives to a PLC for remote pump station control and flow monitoring.
Logistics & Conveyors: The VW3A3607 communication module enables high-speed communication (up to 12Mbps) for sorting systems and automated warehouses.
Hoisting: Install the VW3A3607 communication module on cranes to get real-time feedback on motor torque and position via Profibus.
Packaging Lines: The VW3A3607 communication module allows Lexium 32 servos to handle rapid start/stop cycles in bottling and wrapping machines.
Process Industries: Use the VW3A3607 communication module to bridge Altivar drives into a DCS for large-scale factory automation.
Functional Use Cases
Remote Data: Use the VW3A3607 Schneider to read motor speed, current, and power usage directly from the control room.
Fast Commissioning: Use the VW3A3607 Schneider to push settings to multiple drives at once via the network, saving time over manual setup.
Smart Maintenance: The VW3A3607 Schneider supports DP V1 acyclic data, meaning you can check drive health without stopping the motor.
Alarm Tracking: The VW3A3607 Schneider sends trip codes and warnings to the PLC immediately for faster troubleshooting.
Network Integration
Siemens Integration: The VW3A3607 Schneider is the standard way to hook Schneider drives to S7-300, 1200, or 1500 controllers.
Legacy Support: Use the VW3A3607 Schneider to add new drives to existing Profibus DP plant networks without changing the backbone.
Node Expansion: A single network can support up to 126 VW3A3607 Schneider using standard addressing.
Schneider VW3A3607 Images

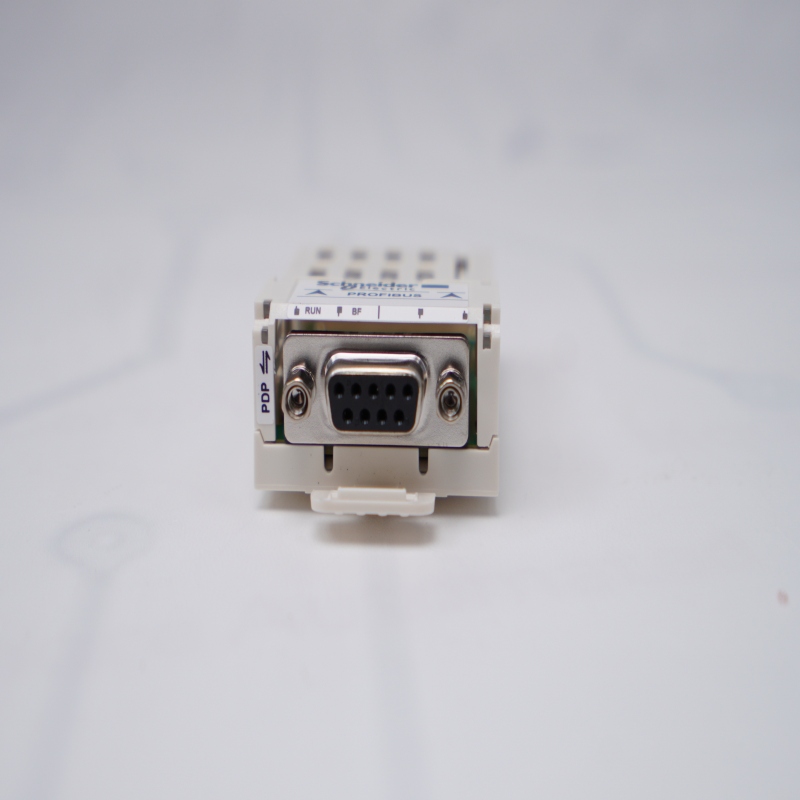

Schneider VW3A3607

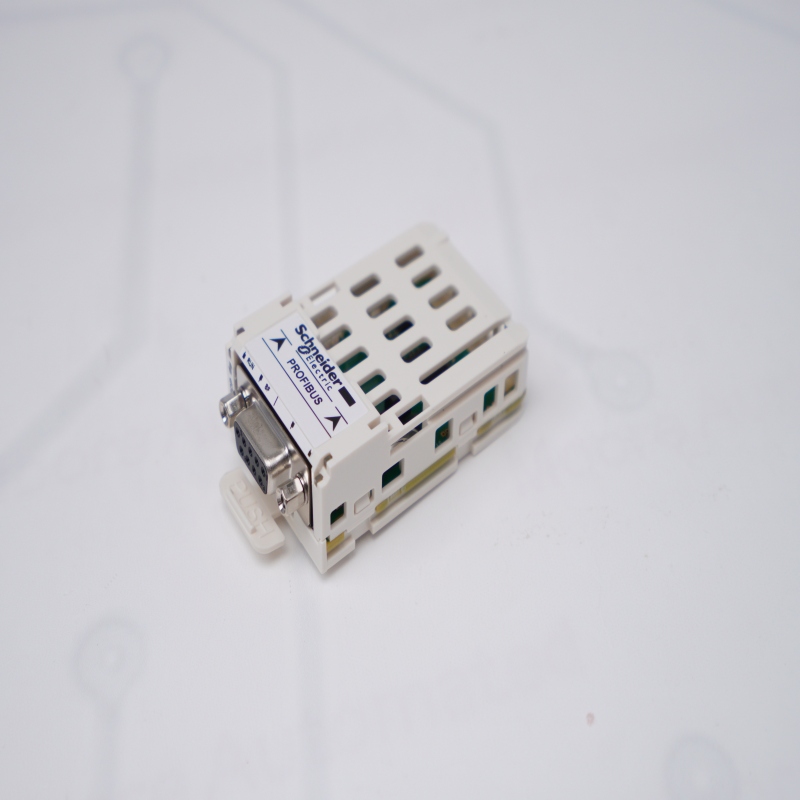

Schneider VW3A3607

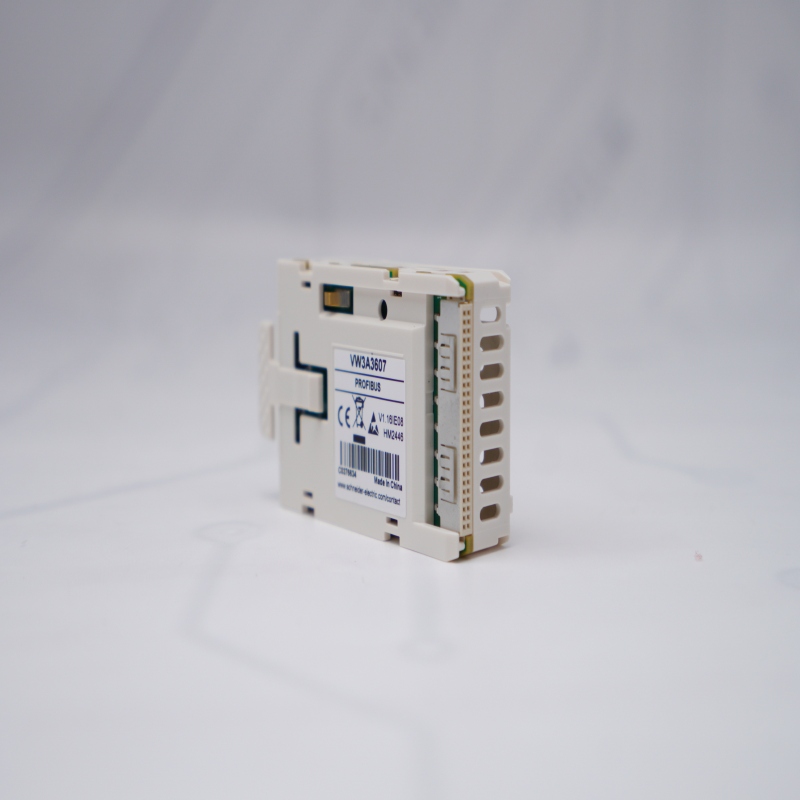

Schneider VW3A3607

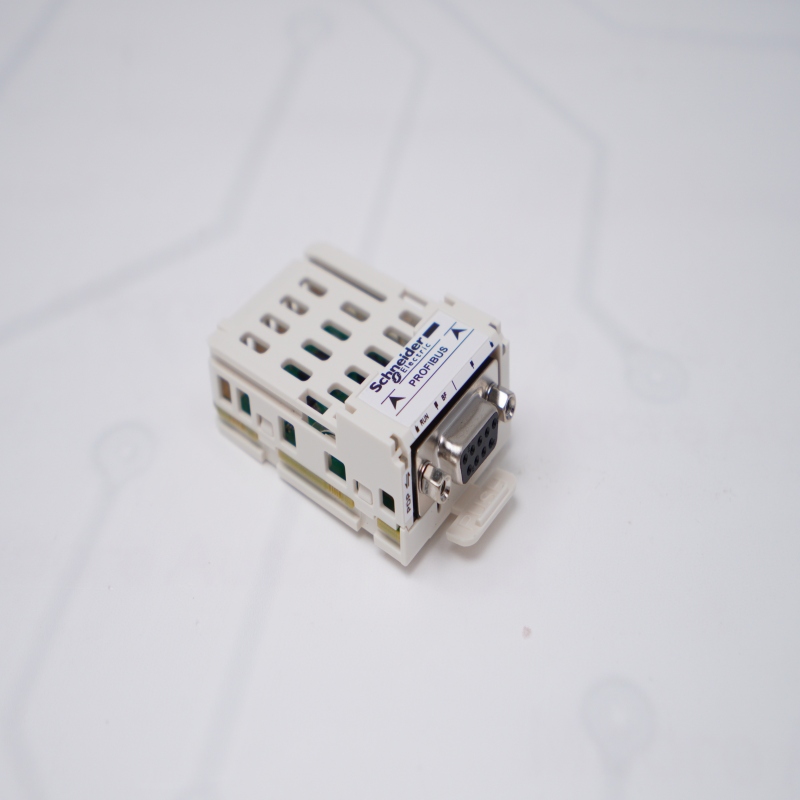

Schneider VW3A3607
Schneider VW3A3607 FAQ
Q1: Which Schneider Electric drives are compatible with the VW3A3607?
A: The VW3A3607 is designed for a wide range of drives, including the Altivar Process (ATV600, ATV900), Altivar Machine (ATV320, ATV340), Altivar 32, and Lexium 32 servo drives. Always ensure your drive has a communication tech slot available for the Schneider VW3A3607.
A: The VW3A3607 is designed for a wide range of drives, including the Altivar Process (ATV600, ATV900), Altivar Machine (ATV320, ATV340), Altivar 32, and Lexium 32 servo drives. Always ensure your drive has a communication tech slot available for the Schneider VW3A3607.
Q2: What is the maximum data transfer speed supported by the VW3A3607?
A: The VW3A3607 supports standard Profibus DP baud rates from 9.6 kbps up to 12 Mbps. The module usually auto-detects the bus speed set by the Profibus master, ensuring the VW3A3607 syncs correctly with the network.
A: The VW3A3607 supports standard Profibus DP baud rates from 9.6 kbps up to 12 Mbps. The module usually auto-detects the bus speed set by the Profibus master, ensuring the VW3A3607 syncs correctly with the network.
Q3: How do I set the network address for a VW3A3607 module?
A: You can configure the VW3A3607 Schneider node address (from 1 to 126) directly through the drive’s HMI keypad, the graphic display terminal, or via SoMove software. Once set, the drive stores the address specifically for that VW3A3607 interface.
A: You can configure the VW3A3607 Schneider node address (from 1 to 126) directly through the drive’s HMI keypad, the graphic display terminal, or via SoMove software. Once set, the drive stores the address specifically for that VW3A3607 interface.
Q4: What do the LED indicators on the VW3A3607 signify?
A: The VW3A3607 Schneider features two main LEDs: RUN and BF (Bus Fault). A solid green RUN LED means the VW3A3607 Schneider is powered and operational, while a red BF LED indicates a communication error, such as a physical cable break or a configuration mismatch in the PLC.
A: The VW3A3607 Schneider features two main LEDs: RUN and BF (Bus Fault). A solid green RUN LED means the VW3A3607 Schneider is powered and operational, while a red BF LED indicates a communication error, such as a physical cable break or a configuration mismatch in the PLC.
Q5: Does the VW3A3607 support acyclic communication for parameters?
A: Yes, the VW3A3607 supports Profibus DP V1, which allows for acyclic messaging. This means you can use the VW3A3607 Schneider to read or write specific drive parameters (like diagnostic logs or energy counters) without interrupting the high-speed cyclic control data.
A: Yes, the VW3A3607 supports Profibus DP V1, which allows for acyclic messaging. This means you can use the VW3A3607 Schneider to read or write specific drive parameters (like diagnostic logs or energy counters) without interrupting the high-speed cyclic control data.
Q6: What type of connector is required to plug into the VW3A3607?
A: The VW3A3607 Schneider is equipped with a standard 9-way female SUB-D connector. For industrial environments, it is recommended to use a shielded Profibus connector with a built-in termination resistor when the VW3A3607 is at the end of the network segment.
A: The VW3A3607 Schneider is equipped with a standard 9-way female SUB-D connector. For industrial environments, it is recommended to use a shielded Profibus connector with a built-in termination resistor when the VW3A3607 is at the end of the network segment.
