Schneider TSXETZ410 Ethernet gateway modules

Legacy-to-Ethernet Bridging: Schneider TSXETZ410 connects legacy Modicon TSX Micro (TSX37) and Premium PLCs to standard TCP/IP Ethernet networks.

Protocol Conversion: Schneider TSXETZ410 automatically translates serial Uni-Telway and Modbus protocols into standard Modbus TCP/IP.

No-Software Diagnostics: Schneider TSXETZ410 enables remote hardware monitoring via standard web browsers without installing proprietary software.

Dynamic Rack Viewer: Schneider TSXETZ410 provides a real-time, visual graphical representation of the connected PLC chassis status remotely.

Integrated Data Editor: TSXETZ410 Ethernet gateway modules allows authorized users to read, monitor, and modify PLC variables and registers over the network.

Web-Based Alarm Viewer: TSXETZ410 Ethernet gateway modules captures, logs, and displays device anomalies and network faults directly within the web interface.

Faulty Device Replacement (FDR): TSXETZ410 Ethernet gateway modules automates parameter recovery from a server during module swaps to minimize downtime.

Standard BOOTP Client: TSXETZ410 Ethernet gateway modules utilizes standardized network protocols for rapid, centralized IP address allocation.

SNMP Management: TSXETZ410 Ethernet gateway modules features an embedded SNMP Agent for IT-level remote network health monitoring and diagnostics.

Modem Support: TSXETZ410 Ethernet gateway modules includes a dedicated RS232 port for dial-up or wireless modems to enable long-distance remote telemetry.

Dual Transmission Speed: TSXETZ410 Ethernet gateway modules supports 10/100 Mbps auto-sensing Fast Ethernet alongside up to 56 kbps remote serial links.

Autonomous Operation: TSXETZ410 Ethernet gateway modules operates as a standalone unit with external 24V DC power without drawing load from the PLC backplane.

If you want to more details about TSXETZ410(Schneider Ethernet gateway modules)，please contact me without hesitate. Email：sales@sparecenter.com

SCADA and HMI Integration: Schneider Ethernet gateway modules connects legacy TSX Micro and Premium PLCs to modern Supervisory Control and Data Acquisition (SCADA) systems and Human-Machine Interfaces (HMIs) via Modbus TCP/IP.

Remote Facility Telemetry: Schneider Ethernet gateway modules utilizes the RS232 modem link to monitor isolated pumping stations, pipelines, and environmental tracking sites over long-distance dial-up or wireless networks.

Web-Based Remote Diagnostics: Schneider Ethernet gateway modules enables maintenance teams to perform off-site troubleshooting, view real-time rack statuses, and clear faults using a standard web browser without specialized software.

Factory floor Modernization: Schneider Ethernet gateway modules serves as a cost-effective migration bridge to network-enable older machinery and production lines without undergoing expensive full-scale PLC hardware replacements.

Centralized Data Logging: Schneider Ethernet gateway modules transports field-level operational data from legacy controllers directly to enterprise-level databases, MES (Manufacturing Execution Systems), or ERP platforms.

Multi-Vendor Network Bridging: Schneider Ethernet gateway modules acts as an intermediary communication hub to allow Schneider legacy PLCs to exchange data with third-party industrial controllers and smart instruments over an Ethernet backbone.

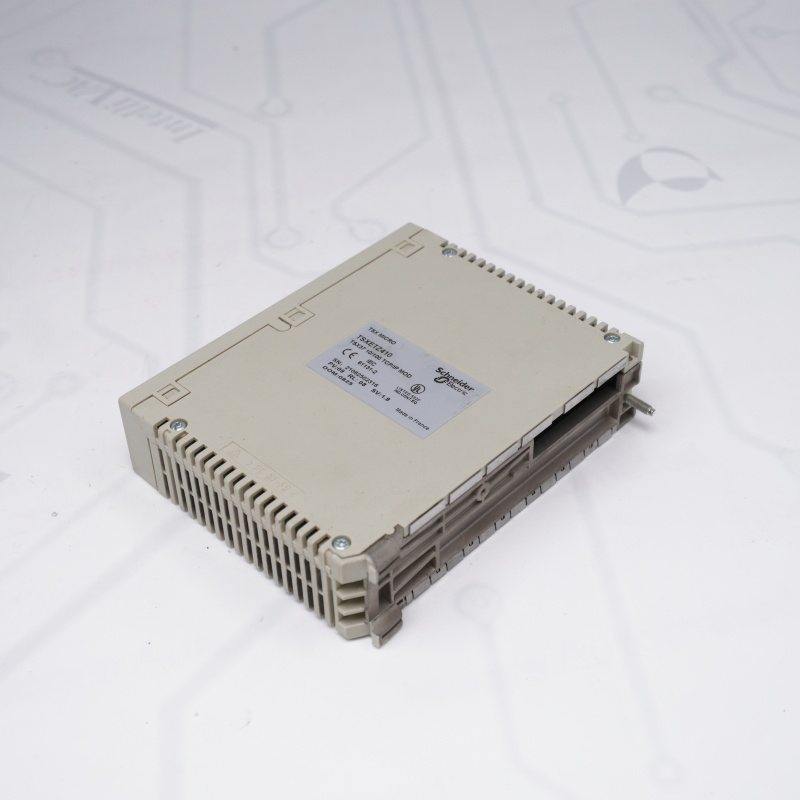

Schneider TSXETZ410(TSXETZ410 Schneider)

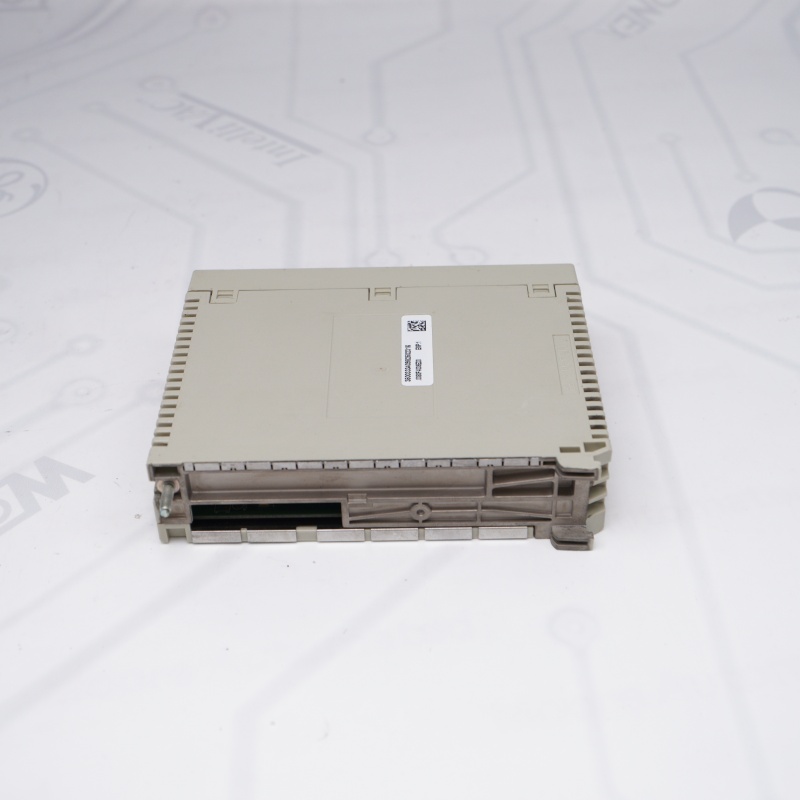

Schneider TSXETZ410(TSXETZ410 Schneider)

Schneider TSXETZ410(TSXETZ410 Schneider)

Schneider TSXETZ410(TSXETZ410 Schneider)

Q1: What is the primary purpose of the TSXETZ410?

A1: The TSXETZ410(TSXETZ410 Schneider) bridges legacy Modicon TSX Micro and Premium PLCs onto modern industrial Ethernet networks by converting serial Uni-Telway or Modbus protocols into Modbus TCP/IP.

Q2: Which PLC platforms are natively compatible with the TSXETZ410 gateway?

A2: The TSXETZ410 Schneider is specifically engineered to interface with Schneider Electric Modicon TSX Micro (TSX37) and Modicon Premium controller platforms via their serial terminal ports.

Q3: How is the IP address initially assigned to a new or reset TSXETZ410 module?

A3: The TSXETZ410 Schneider relies on standard BOOTP client services, requiring an external BOOTP server to automatically allocate the MAC-bound IP address during device power-up.

Q4: Does the TSXETZ410 draw its operational power directly from the PLC backplane?

A4: No, the TSXETZ410 Schneider operates as a standalone external device that requires an independent, external 24V DC power supply connected through its screw terminal block.

Q5: What embedded web services are available inside the TSXETZ410 for remote diagnostics?

A5: The TSXETZ410 Schneider features FactoryCast Web Services, hosting an interactive Rack Viewer, a real-time Data Editor, and an integrated Alarm Viewer accessible via standard web browsers.

Q6: How does the Faulty Device Replacement (FDR) function operate on the TSXETZ410?

A6: When a module fails, the FDR service allows a replacement TSXETZ410 Schneider to automatically download the identical configuration profiles from a centralized server to minimize downtime.

Q7: What physical connection interfaces are located on the hardware chassis of the Schneider TSXETZ410?

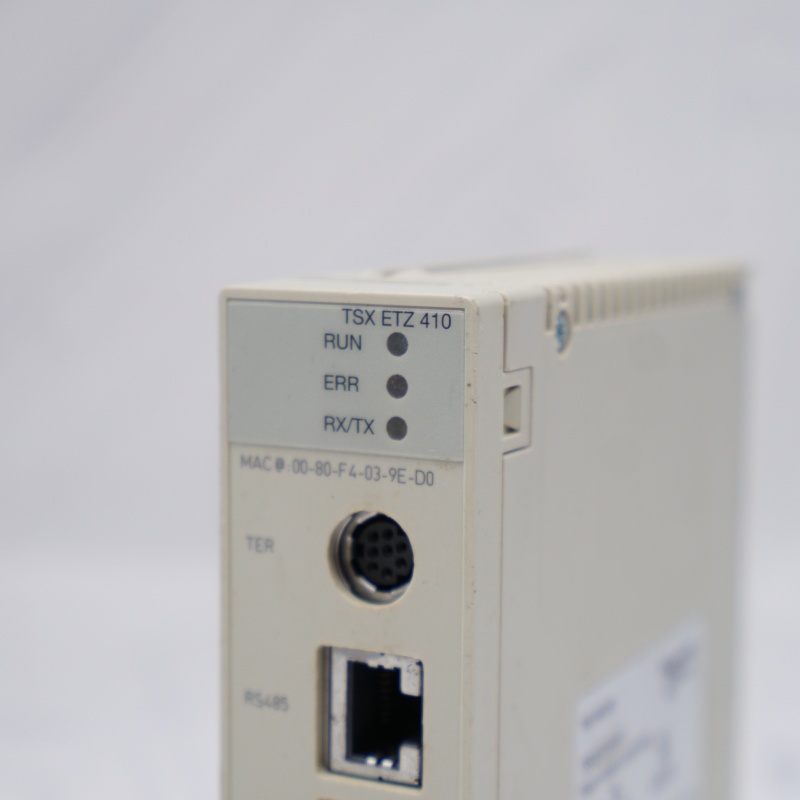

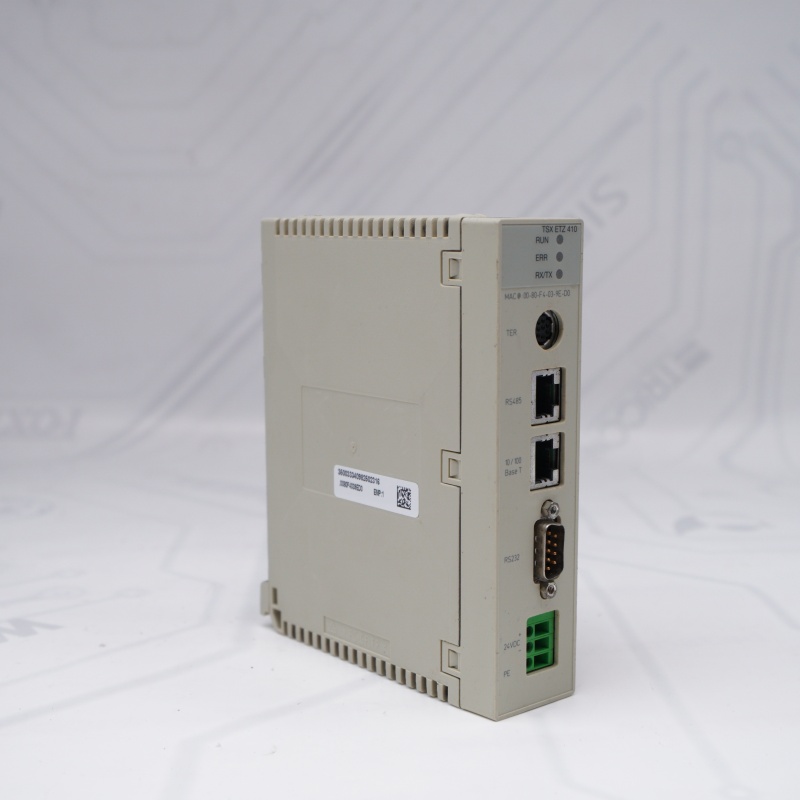

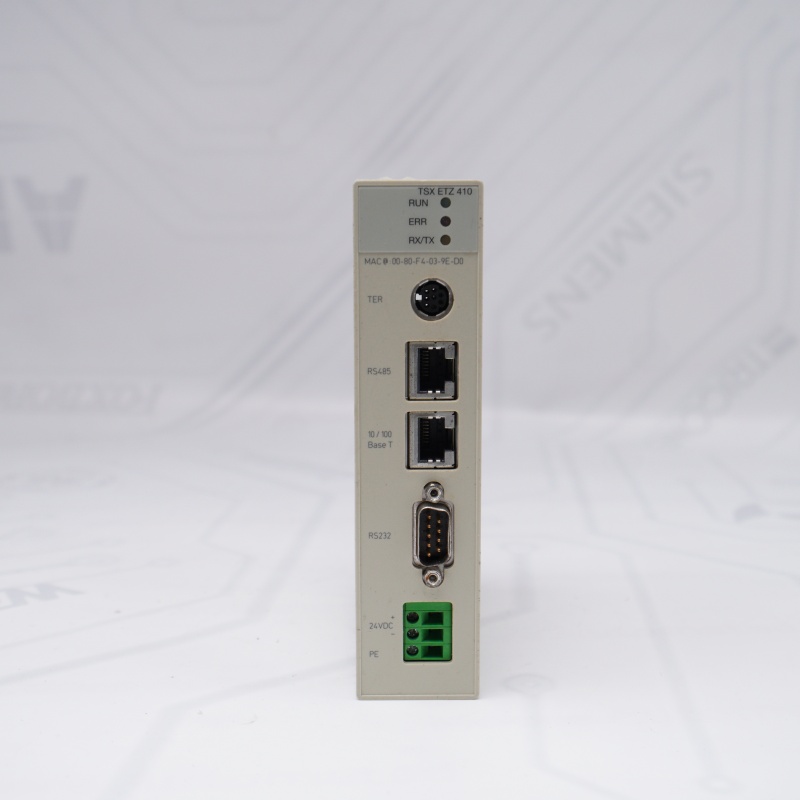

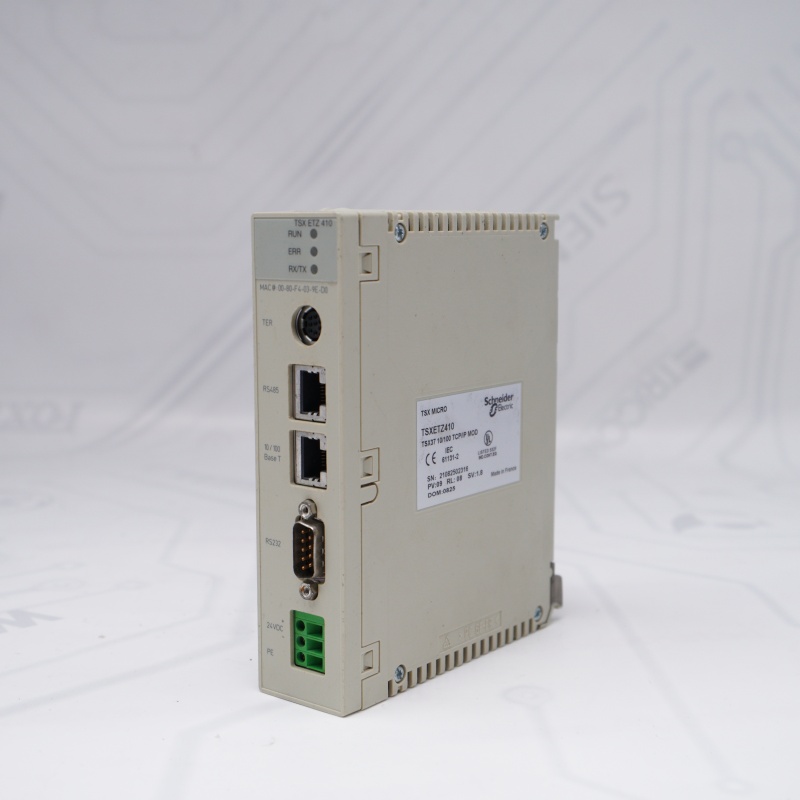

A7: The TSXETZ410 Schneider physical layout includes one RJ45 Ethernet port, one Mini-DIN Uni-Telway port, one 9-way SUB-D RS232 modem port, and one 24V DC screw terminal block.

Q8: Is the TSXETZ410 still actively manufactured and sold by Schneider Electric?

A8: No, the TSXETZ410 Schneider has reached its End of Commercialization, but you can find available units at our spare center.
