Schneider BMXP341000 Specification
| Range of Product | Modicon M340 | Product Type | Processor module |
| Max Discrete I/O | 512 | Max Analog I/O | 128 |
| Application Specific Channels | 20 | Internal RAM (Program) | 1792 KB |
| Internal RAM (Data) | 128 KB | Backup Storage | Flash memory card (BMXRMS008MP) |
| Protocols | Modbus (RTU/ASCII), Character Mode | Transmission Rate | 0.3...19.2 kbit/s |
| Execution Time | 0.18 µs (Boolean) | Operating Temperature | 0...60 °C |
Schneider BMXP341000 Features
1. Integrated Communication and Connectivity
The BMXP341000 serves as a versatile entry-point processor for the Modicon M340 platform, featuring two integrated communication ports. BMXP341000 Modicon M340 processor module includes a USB 2.0 port dedicated to high-speed programming and firmware updates, alongside a non-isolated serial link (RJ45). This serial port supports Modbus RTU/ASCII and Character Mode, allowing the BMXP341000(BMXP341000 Modicon M340 processor module) to interface seamlessly with legacy serial devices, HMI terminals, or simple field instruments without requiring additional communication modules.
2. Reliable Memory and Data Management
Designed for maintenance-free operation, the BMXP341000 utilizes a battery-less architecture. It comes equipped with a BMXRMS008MP flash memory card, which ensures secure backup of the application program and constants. With a memory capacity of 1792 KB for programs and 128 KB for data, the BMXP341000(BMXP341000 Modicon M340 processor module) provides ample space for mid-range logic control while ensuring that critical machine data is preserved even during prolonged power outages.
3. Optimized Performance for Industrial Control
The BMXP341000 is engineered for high-speed logic execution, achieving a Boolean instruction time of 0.18 µs. This makes BMXP341000 Modicon M340 processor module highly effective for discrete manufacturing and infrastructure applications. Within a single-rack configuration, the BMXP341000 can manage up to 512 discrete I/O points and 20 application-specific channels, such as high-speed counting or simple motion control, providing a robust "all-in-one" solution for machine automation.
4. Scalability and Ruggedized Design
As part of the EcoStruxure architecture, the BMXP341000 is fully compatible with Control Expert software, allowing for easy migration and scaling to more powerful CPUs if system requirements grow. Physically, the BMXP341000 is built to withstand harsh industrial environments, operating efficiently between 0°C and 60°C with an IP20 protection rating, ensuring long-term reliability on the factory floor.
If you want to more details about Schneider BMXP341000，please contact me without hesitate. Email：sales@sparecenter.com
Schneider BMXP341000 Application
1. Discrete Manufacturing & Machine Control
Because of BMXP341000 Modicon M340 processor module's fast Boolean execution (0.18 µs), the BMXP341000 is ideal for:
Schneider BMXP341000 Packaging Machines: Coordinating high-speed conveyors and sorting arms.
Schneider Modicon M340 processor module Material Handling: Controlling automated palletizers, small cranes, and lift systems.
Schneider Modicon M340 processor module Assembly Lines: Managing multi-step assembly processes with sensors and actuators.
2. Water and Wastewater Management
The BMXP341000 is frequently used in remote or localized utility stations:
Schneider Modicon M340 processor module Pumping Stations: Managing pump start/stop logic based on level sensors.
Schneider Modicon M340 processor module Small Treatment Plants: Controlling filtration, chemical dosing, and valve sequencing.
Schneider Modicon M340 processor module Irrigation Systems: Automating water distribution based on scheduled timers or soil data.
3. Infrastructure and Building Automation
Its compact size and reliability make the BMXP341000 a favorite for:
Schneider Modicon M340 processor module HVAC Control: Managing large-scale industrial heating, ventilation, and air conditioning systems.
BMXP341000 Schneider Tunnel Ventilation: Controlling fan arrays and air quality monitoring systems.
BMXP341000 Schneider Power Distribution: Monitoring switchgears and controlling backup generators.
4. Renewable Energy
BMXP341000 Schneider Solar Tracking: Adjusting panel angles based on the sun's position via the serial Modbus link.
BMXP341000 Schneider Wind Turbines: Managing the nacelle's yaw control and pitch adjustment logic for smaller turbines.
5. Simple Process Industries
BMXP341000 Schneider Food & Beverage: Handling mixing, batching, and temperature control in small production units.
BMXP341000 Schneider Textiles: Controlling yarn tension and loom speed.
Schneider BMXP341000 Images

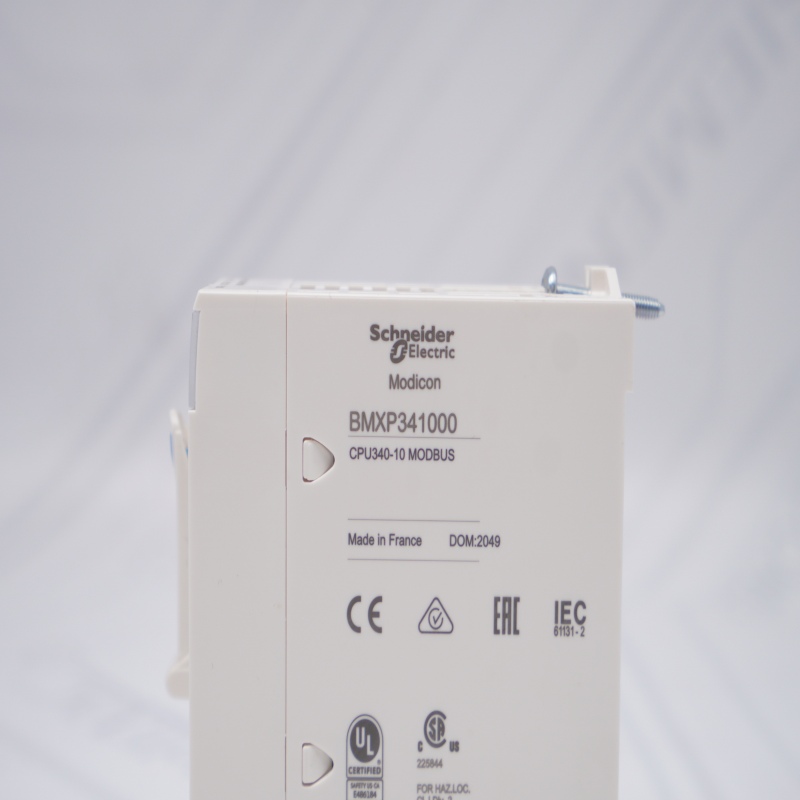

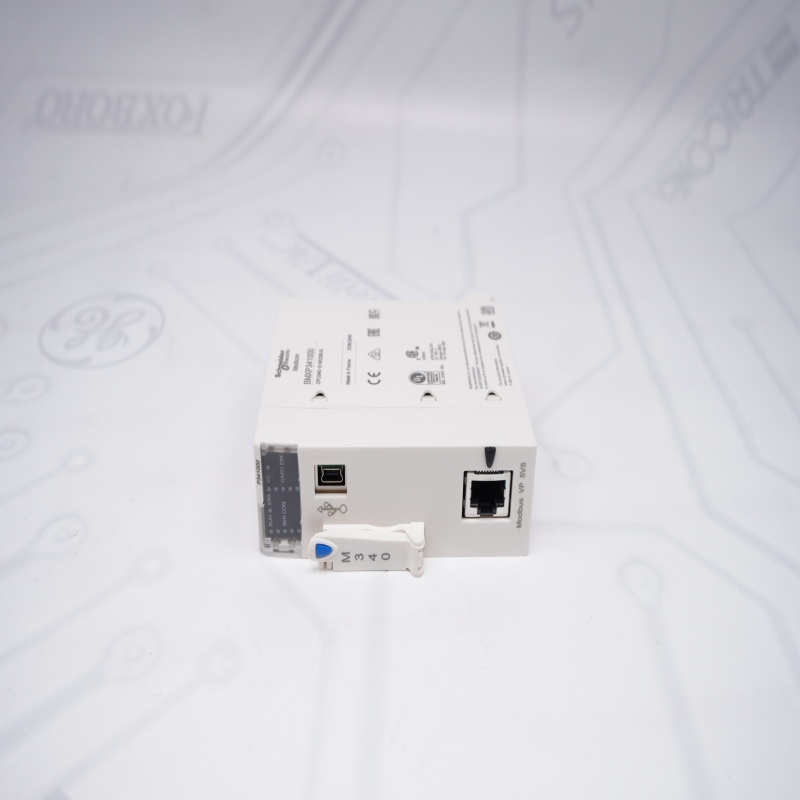

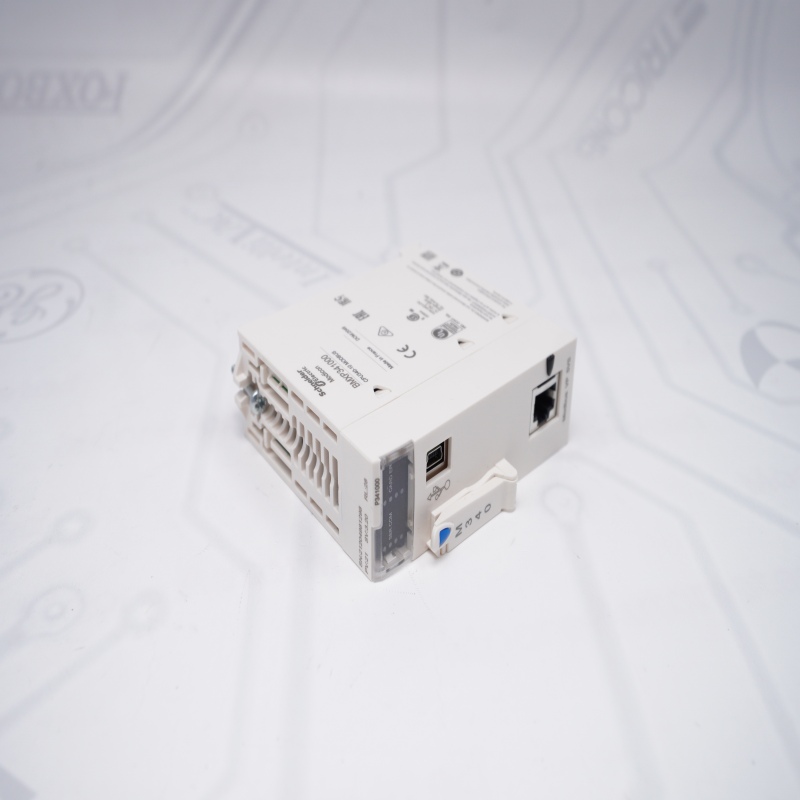

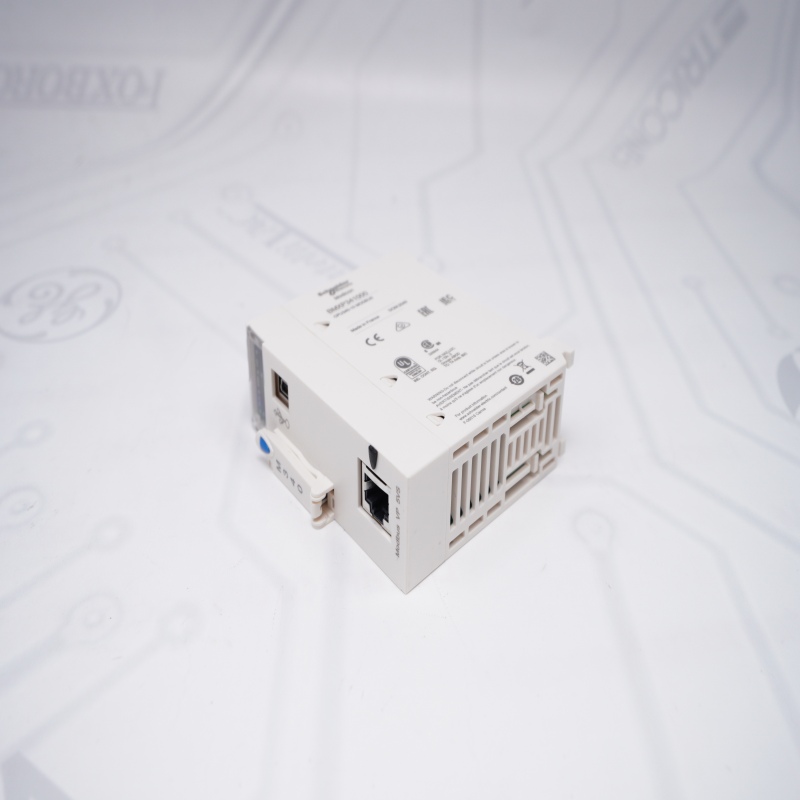

Schneider BMXP341000
Schneider BMXP341000
Schneider BMXP341000
Schneider BMXP341000
Schneider BMXP341000 FAQ
1. Does the BMXP341000 require a backup battery for data retention?
No, the BMXP341000 Schneider features a battery-less architecture. It utilizes the supplied BMXRMS008MP Flash memory card to back up the application program, symbols, and constants, ensuring that critical data is retained during power loss without the need for periodic battery maintenance.
No, the BMXP341000 Schneider features a battery-less architecture. It utilizes the supplied BMXRMS008MP Flash memory card to back up the application program, symbols, and constants, ensuring that critical data is retained during power loss without the need for periodic battery maintenance.
2. What are the integrated communication options available on the BMXP341000?
The BMXP341000 Schneider is equipped with two built-in ports: one USB 2.0 port dedicated to high-speed programming and terminal diagnostics, and one non-isolated RJ45 serial link. This serial port of BMXP341000 Schneider supports Modbus RTU/ASCII (Master/Slave) and Character Mode for interfacing with simple field devices and HMIs.
The BMXP341000 Schneider is equipped with two built-in ports: one USB 2.0 port dedicated to high-speed programming and terminal diagnostics, and one non-isolated RJ45 serial link. This serial port of BMXP341000 Schneider supports Modbus RTU/ASCII (Master/Slave) and Character Mode for interfacing with simple field devices and HMIs.
3. What is the maximum I/O capacity supported by the BMXP341000 processor?
The Schneider Modicon M340 processor module supports a maximum of 512 discrete I/O points and 128 analog I/O points. Additionally, it can manage up to 20 application-specific channels, which include specialized functions such as high-speed counting, motion control, and serial communication modules.
The Schneider Modicon M340 processor module supports a maximum of 512 discrete I/O points and 128 analog I/O points. Additionally, it can manage up to 20 application-specific channels, which include specialized functions such as high-speed counting, motion control, and serial communication modules.
4. How fast is the logic processing capability of the BMXP341000?
The BMXP341000 is designed for high-performance automation tasks, delivering a Boolean instruction execution time of 0.18 µs. Under a typical mixed-instruction workload, the execution speed is approximately 0.12 µs, making the BMXP341000 Schneider highly efficient for mid-range industrial control.
The BMXP341000 is designed for high-performance automation tasks, delivering a Boolean instruction execution time of 0.18 µs. Under a typical mixed-instruction workload, the execution speed is approximately 0.12 µs, making the BMXP341000 Schneider highly efficient for mid-range industrial control.
5. What is the memory configuration for the BMXP341000 processor?
The BMXP341000 Schneider provides an internal RAM capacity of 2048 KB. This is divided into 1792 KB specifically for the application program and 128 KB for data (unlocated variables and system bits). Users can expand storage for data logging or documentation using the memory card slot.
The BMXP341000 Schneider provides an internal RAM capacity of 2048 KB. This is divided into 1792 KB specifically for the application program and 128 KB for data (unlocated variables and system bits). Users can expand storage for data logging or documentation using the memory card slot.
6. What are the environmental and electrical constraints for the BMXP341000?
The BMXP341000 Schneider is rated for an operating temperature range of 0 to 60 °C (32 to 140 °F) and features an IP20 protection rating. Electrically, the BMXP341000 Schneider consumes a current of 72 mA at 24 V DC from the backplane power supply, making it a low-power consumption CPU for compact installations.
The BMXP341000 Schneider is rated for an operating temperature range of 0 to 60 °C (32 to 140 °F) and features an IP20 protection rating. Electrically, the BMXP341000 Schneider consumes a current of 72 mA at 24 V DC from the backplane power supply, making it a low-power consumption CPU for compact installations.
