Supply PROSOFT PC56-2K-IDE In-Rack Industrial PC Wholesale Factory

PROSOFT PC56-2K-IDE Specification

Platform	Allen-Bradley ControlLogix (In-Rack)	Processor	Intel Celeron 2.0 GHz
Memory	128 MB RAM	Storage	40 GB IDE Hard Drive
Operating System	Windows 2000 SP4	Display Output	1 x VGA Port
Network	1 x 10/100 Ethernet Port	Serial Ports	2 x RS-232/422/485 Ports
USB	1 x USB 1.1 Port	I/O	2 x PS/2 Ports (Keyboard/Mouse)

PROSOFT PC56-2K-IDE Features

Seamless Integration: PROSOFT PC56-2K-IDE is designed as a single-slot module for direct installation into the Allen-Bradley ControlLogix backplane.

Ruggedized Design: Industrial-grade hardware of PROSOFT PC56-2K-IDE is built to withstand harsh factory environments without the need for external PC enclosures.

High-Speed Communication: PROSOFT PC56-2K-IDE enables high-speed data transfer between the PC environment and the ControlLogix processor via the backplane.

Versatile Connectivity: PROSOFT In-Rack Industrial PC is equipped with dual serial ports (RS-232/422/485) and an Ethernet port for flexible industrial networking.

Standard OS Environment: PROSOFT In-Rack Industrial PC runs a standard Windows-based platform, supporting custom C++/VB applications, SCADA/HMI software, and database integration.

Independent Operation: PROSOFT In-Rack Industrial PC operates as a complete standalone computer within the chassis, featuring dedicated VGA, USB, and PS/2 I/O.

If you want to more details about PROSOFT PC56-2K-IDE(PROSOFT In-Rack Industrial PC)，please contact me without hesitate. Email：sales@sparecenter.com

PROSOFT PC56-2K-IDE Application

PROSOFT In-Rack Industrial PC Data Acquisition and Logging: High-speed collection and storage of production data directly from the ControlLogix backplane for local analysis or archiving.

PROSOFT In-Rack Industrial PC Custom Application Execution: Running specialized industrial software (C++, Visual Basic, or .NET) that requires real-time access to PLC data without network latency.

PC56-2K-IDE In-Rack Industrial PC Local HMI/SCADA Station: Serving as a localized operator interface by connecting a monitor to the VGA port, eliminating the need for a separate industrial PC.

PC56-2K-IDE In-Rack Industrial PC Protocol Conversion: Acting as a gateway between the ControlLogix platform and proprietary or non-standard serial/Ethernet devices.

PC56-2K-IDE In-Rack Industrial PC Edge Computing & IT Integration: Pre-processing floor-level data before transmitting it to higher-level MES (Manufacturing Execution Systems) or ERP databases.

PC56-2K-IDE In-Rack Industrial PC Complex Calculations: Performing advanced mathematical modeling or algorithmic processing that exceeds standard PLC instruction capabilities.

PROSOFT PC56-2K-IDE Images

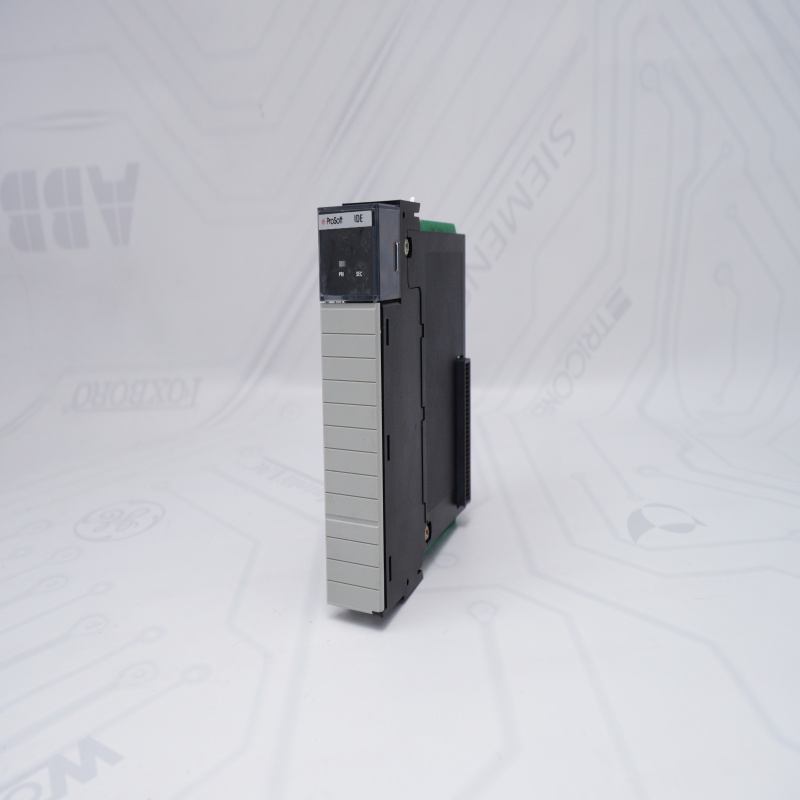

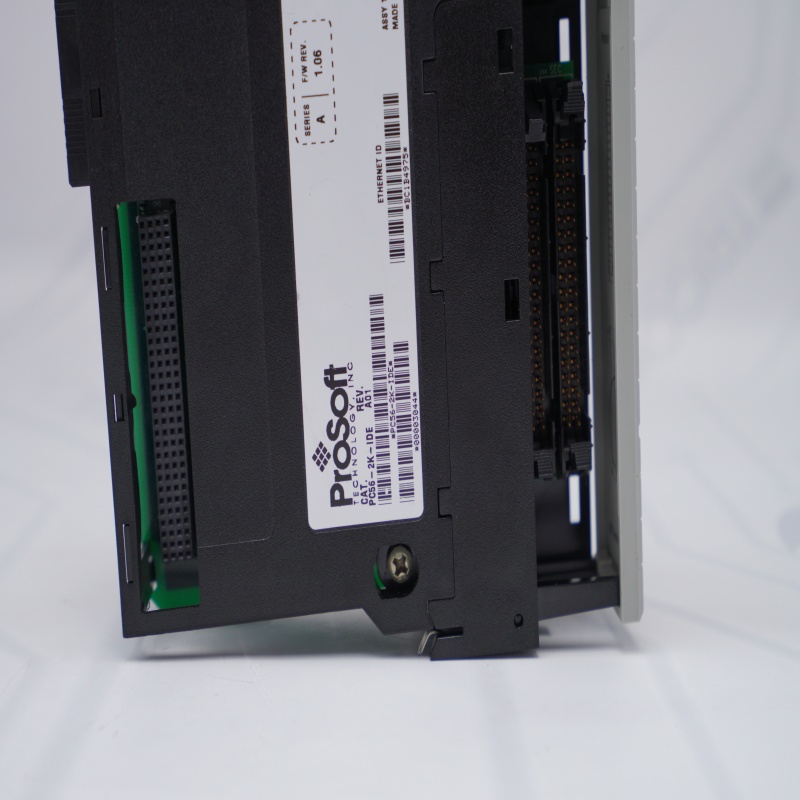

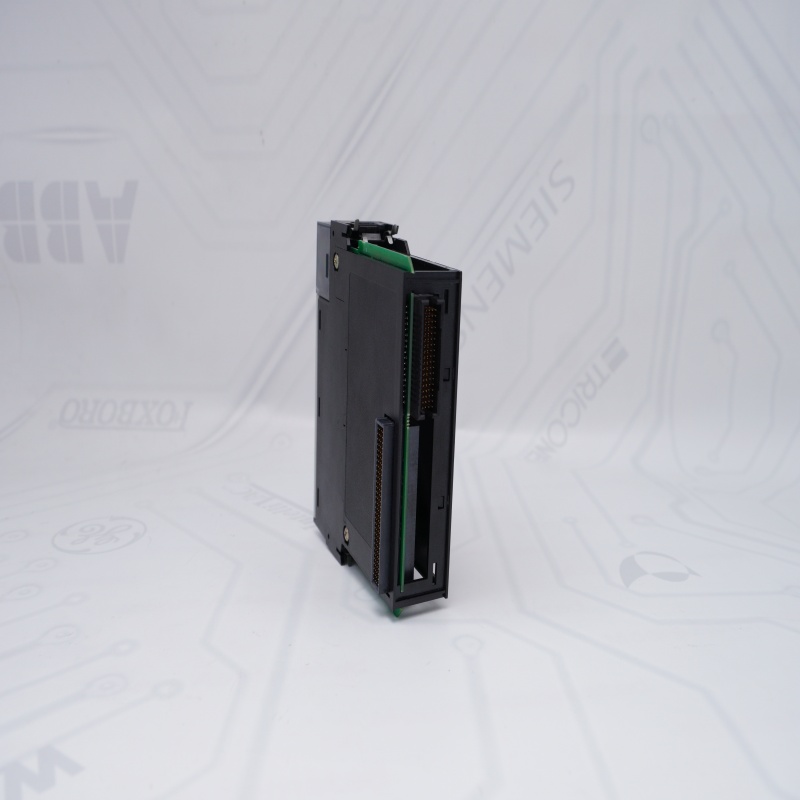

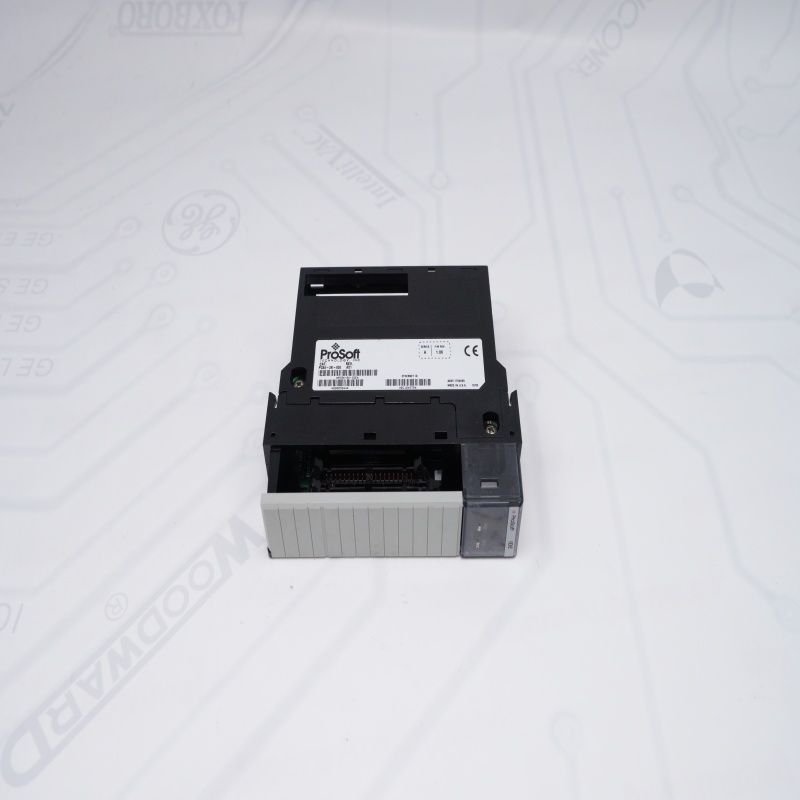

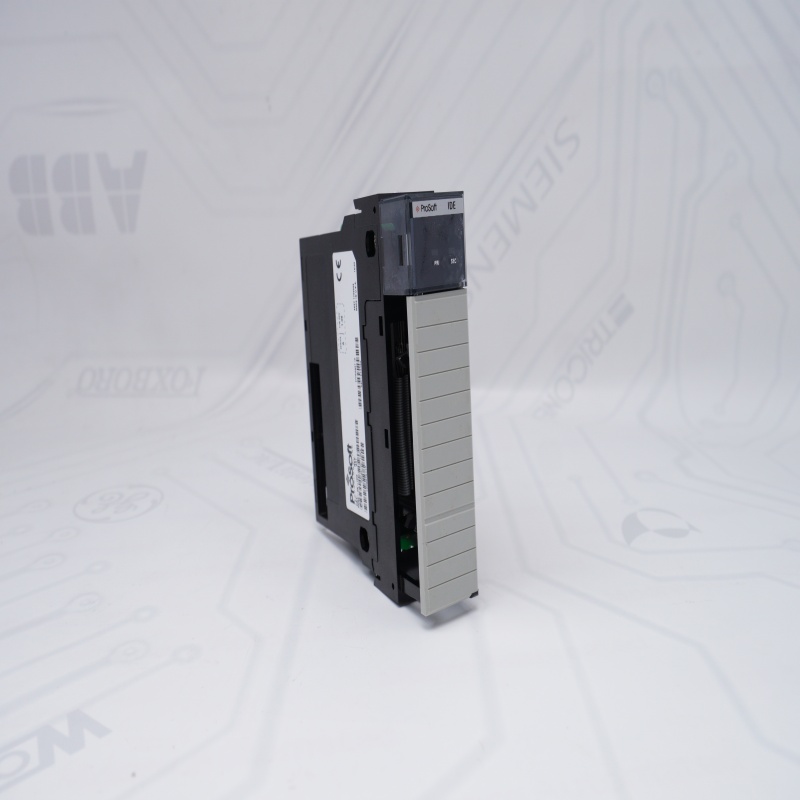

PC56-2K-IDE In-Rack Industrial PC

PC56-2K-IDE In-Rack Industrial PC

PC56-2K-IDE PROSOFT

PROSOFT PC56-2K-IDE FAQ

1. Which hardware platform is the PC56-2K-IDE designed for?
The PC56-2K-IDE PROSOFT is specifically engineered as a single-slot industrial PC module that installs directly into an Allen-Bradley ControlLogix chassis.

2. What is the standard operating system pre-installed on the PC56-2K-IDE?
The PC56-2K-IDE PROSOFT typically comes pre-loaded with Windows 2000 SP4, though it can support other compatible Windows Embedded operating systems depending on the software requirements.

3. Does the PC56-2K-IDE require an external power supply?
No, the PC56-2K-IDE PROSOFT draws its power directly from the ControlLogix backplane, though users must calculate the total current draw to ensure the chassis power supply is not overloaded.

4. What type of storage media is utilized in the PC56-2K-IDE?
The PC56-2K-IDE PROSOFT is equipped with a 40 GB IDE internal hard drive, providing ample local storage for applications, OS files, and data logs.

5. How does the PC56-2K-IDE communicate with the ControlLogix processor?
The PC56-2K-IDE PROSOFT communicates via high-speed backplane interface drivers, allowing the PC environment to read and write PLC tags with minimal latency.

6. Can I connect a monitor and peripherals directly to the PC56-2K-IDE?
Yes, the PC56-2K-IDE PROSOFT features a built-in VGA port for video output and dual PS/2 ports for a keyboard and mouse, functioning as a complete standalone computer.

7. Is the PC56-2K-IDE suitable for harsh industrial environments?
The PC56-2K-IDE PROSOFT features a ruggedized, fanless design (depending on the revision) and is built to the same industrial vibration and temperature standards as standard ControlLogix modules.

8. What should I do if the hard drive in my PC56-2K-IDE fails?
Since the PC56-2K-IDE PROSOFT uses a mechanical IDE drive, it is recommended to replace it with a compatible industrial-grade IDE drive or a Solid State Disk (SSD) equivalent to improve long-term reliability.
