PROSOFT MVI56E-MCM Specification
| Feature | PROSOFT MVI56E-MCM Specification |
|---|---|
| Platform | Rockwell Automation ControlLogix (1756) |
| Module Type | Modbus Master/Slave Enhanced Communication Module |
| Slot Width | Single Slot |
| Backplane Current | 800 mA @ 5 VDC; 3 mA @ 24 VDC |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Serial Ports | 2 x RS-232, RS-422, or RS-485 (RJ45 Connectors) |
| Ethernet Port | 10/100 Base-T (for configuration and diagnostics) |
| Display | 4-character scrolling LED (Status/Error codes) |
| Baud Rate | 110 to 115,200 baud |
| Modbus Modes | RTU and ASCII |
| Internal Database | 10,000 registers (16-bit) |
| Function Codes | 1, 2, 3, 4, 5, 6, 8, 15, 16, 17, 22, 23 |
| Configuration | ProSoft Configuration Builder (PCB) & Add-On Instruction (AOI) |
PROSOFT MVI56E-MCM Details
Description
The MVI56E-MCM(PROSOFT Communication Module) is a high-performance Modbus Master/Slave Enhanced Communication Module designed specifically for the Rockwell Automation ControlLogix platform.
Occupying a single slot in a 1756 chassis, PROSOFT MVI56E-MCM(PROSOFT Communication Module) acts as a gateway between the ControlLogix backplane and Modbus serial networks. PROSOFT MVI56E-MCM allows for seamless data exchange between the processor and various third-party devices, supporting both Modbus RTU and ASCII protocols with high-speed data integrity.
Features
The MVI56E-MCM(PROSOFT Communication Module) features two independently configurable serial ports that support RS-232, RS-422, and RS-485 hardware interfaces.PROSOFT MVI56E-MCM(PROSOFT Communication Module) includes a dedicated Ethernet port for simplified remote configuration via the ProSoft Configuration Builder (PCB) software and a 4-character scrolling LED display for real-time local diagnostics.
Modern integration is achieved through a pre-defined Add-On Instruction (AOI), while its backward-compatible design allows PROSOFT MVI56E-MCM to drop into legacy MVI56-MCM systems without requiring code modifications.
Application
PROSOFT MVI56E-MCM is ideal for industrial environments where a ControlLogix PLC needs to interface with diverse serial devices. Common applications include gathering data from power monitors, flow meters, and variable frequency drives (VFDs), or integrating SCADA systems and building automation controllers.
PROSOFT MVI56E-MCM's dual-port design makes PROSOFT MVI56E-MCM(PROSOFT Communication Module) particularly useful for complex architectures where a single PLC must simultaneously act as a Master to field instruments and a Slave to a higher-level supervisory system.
If you want to more details about MVI56E-MCM Communication Module(PROSOFT Communication Module)，please contact me without hesitate.Email：sales@sparecenter.com

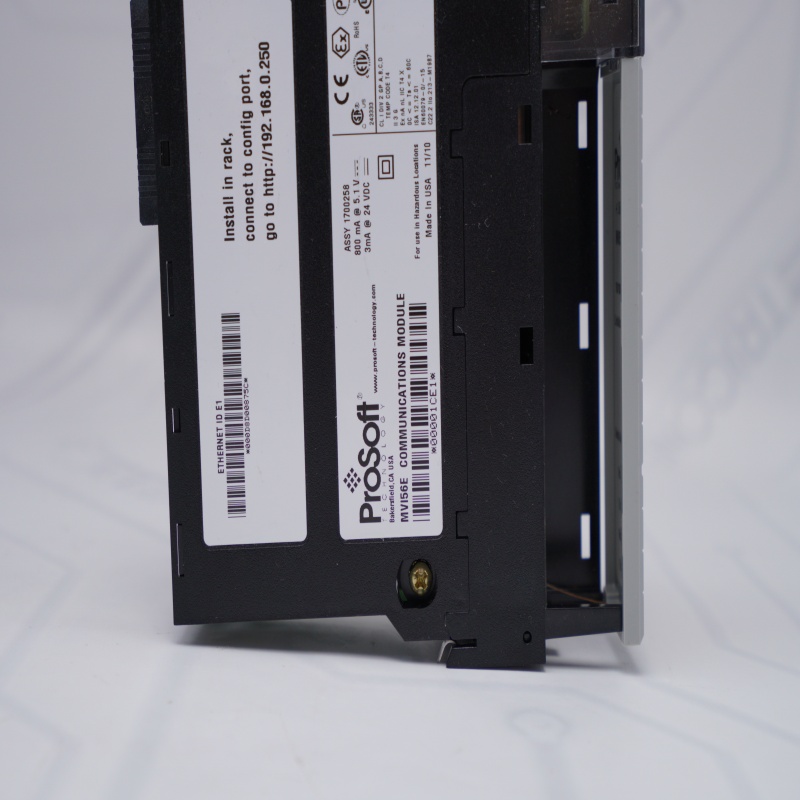

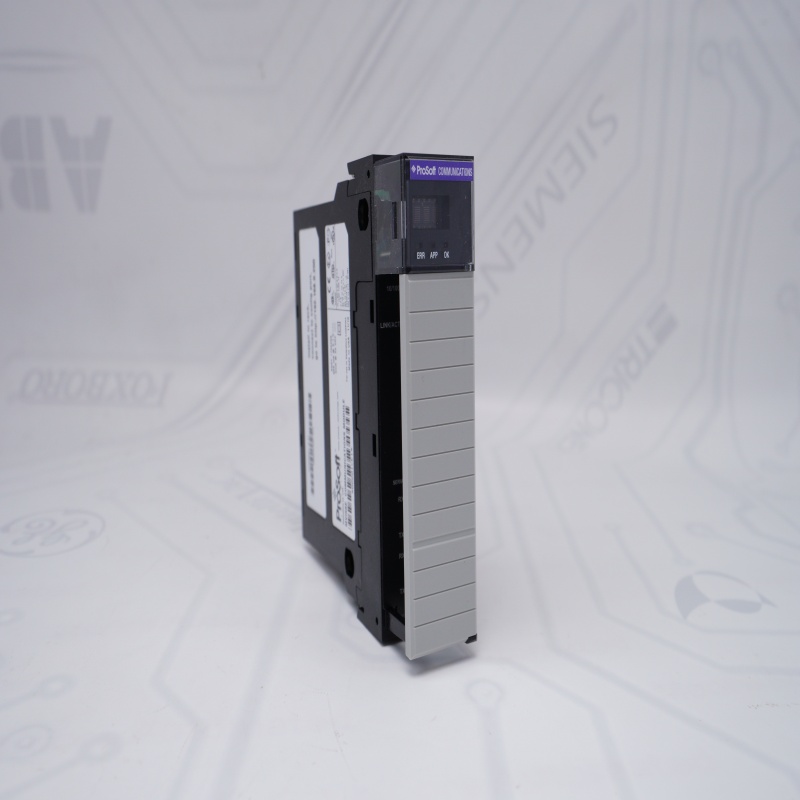

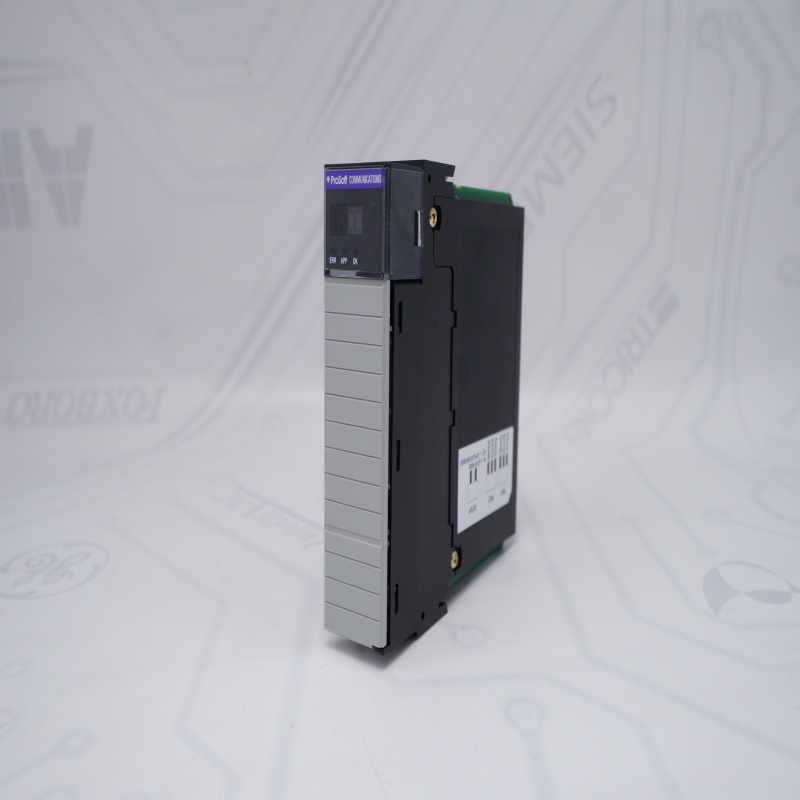

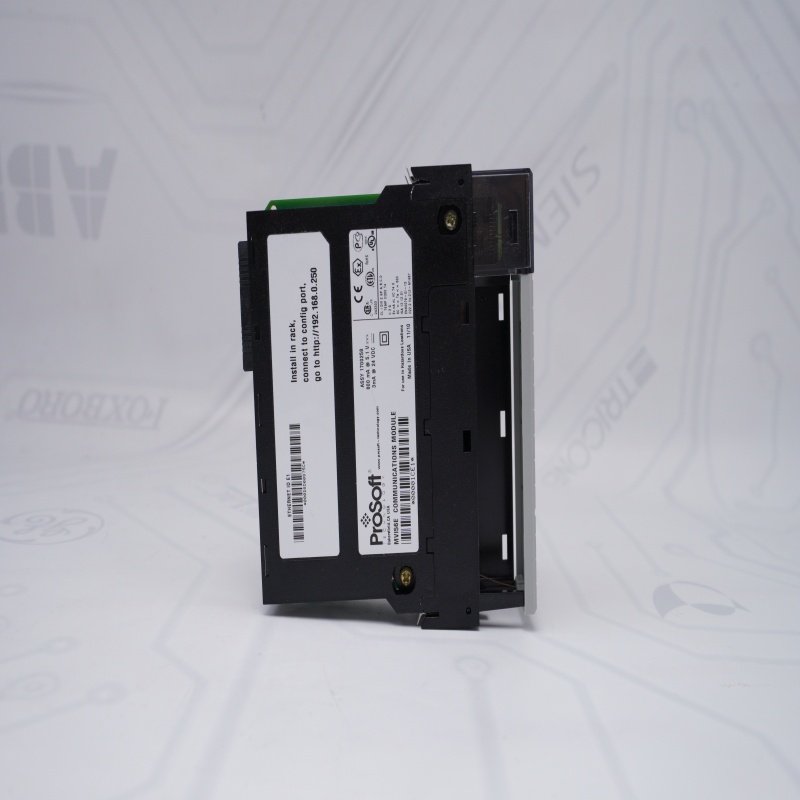

MVI56E-MCM Communication Module Images
MVI56E-MCM Communication Module
MVI56E-MCM Communication Module
MVI56E-MCM Communication Module
MVI56E-MCM Communication Module FAQ
1. Q: Is the MVI56E-MCM compatible with older ControlLogix systems?
A: Yes, the MVI56E-MCM is fully backward compatible. It is designed to act as a direct replacement for the legacy MVI56-MCM module, allowing PROSOFT Communication Module to work in existing systems without requiring changes to the ladder logic.
A: Yes, the MVI56E-MCM is fully backward compatible. It is designed to act as a direct replacement for the legacy MVI56-MCM module, allowing PROSOFT Communication Module to work in existing systems without requiring changes to the ladder logic.
2. Q: How do I configure the MVI56E-MCM serial ports?
A: Configuration for the MVI56E-MCM is primarily done using the ProSoft Configuration Builder (PCB) software via the module’s dedicated Ethernet port. Settings like baud rate, parity, and Modbus commands are then downloaded to the module.
A: Configuration for the MVI56E-MCM is primarily done using the ProSoft Configuration Builder (PCB) software via the module’s dedicated Ethernet port. Settings like baud rate, parity, and Modbus commands are then downloaded to the module.
3. Q: Can the MVI56E-MCM act as both a Master and a Slave simultaneously?
A: Yes. Each of the two serial ports on the MVI56E-MCM is independently configurable. You can set Port 1 as a Modbus Master and Port 2 as a Modbus Slave, or vice versa, to suit your network topology.
A: Yes. Each of the two serial ports on the MVI56E-MCM is independently configurable. You can set Port 1 as a Modbus Master and Port 2 as a Modbus Slave, or vice versa, to suit your network topology.
4. Q: What is the purpose of the Ethernet port on the MVI56E-MCM PROSOFT ?
A: The Ethernet port on the MVI56E-MCM PROSOFT is used for high-speed configuration, detailed diagnostics, and remote monitoring. Note that this port is for module management and does not support Modbus TCP communications.
A: The Ethernet port on the MVI56E-MCM PROSOFT is used for high-speed configuration, detailed diagnostics, and remote monitoring. Note that this port is for module management and does not support Modbus TCP communications.
5. Q: How many Modbus registers can the MVI56E-MCM PROSOFT handle?
A: The MVI56E-MCM PROSOFT features an internal database that can store up to 10,000 16-bit registers. These registers are used to facilitate the transfer of data between the Modbus network and the ControlLogix processor.
A: The MVI56E-MCM PROSOFT features an internal database that can store up to 10,000 16-bit registers. These registers are used to facilitate the transfer of data between the Modbus network and the ControlLogix processor.
6. Q: Does the MVI56E-MCM PROSOFT require an Add-On Instruction (AOI)?
A: While not strictly mandatory for basic operation, ProSoft provides a specialized AOI for the MVI56E-MCM PROSOFT to simplify integration in RSLogix 5000 / Studio 5000. It manages the data backplane transfer and stores configuration within the PLC project.
A: While not strictly mandatory for basic operation, ProSoft provides a specialized AOI for the MVI56E-MCM PROSOFT to simplify integration in RSLogix 5000 / Studio 5000. It manages the data backplane transfer and stores configuration within the PLC project.
7. Q: How can I troubleshoot the MVI56E-MCM PROSOFT without a laptop?
A: The MVI56E-MCM PROSOFT is equipped with a 4-character scrolling LED display on the front panel. This display provides real-time status updates and error codes in plain English, allowing for quick on-site diagnostics.
A: The MVI56E-MCM PROSOFT is equipped with a 4-character scrolling LED display on the front panel. This display provides real-time status updates and error codes in plain English, allowing for quick on-site diagnostics.
8. Q: What cable distance is supported by the MVI56E-MCM PROSOFT serial ports?
A: The distance depends on the interface: for RS-232, the MVI56E-MCM PROSOFT supports up to 15 meters (50 feet), while for RS-422 or RS-485, it can support distances up to 1,200 meters (4,000 feet) depending on the baud rate and cable quality.
A: The distance depends on the interface: for RS-232, the MVI56E-MCM PROSOFT supports up to 15 meters (50 feet), while for RS-422 or RS-485, it can support distances up to 1,200 meters (4,000 feet) depending on the baud rate and cable quality.
