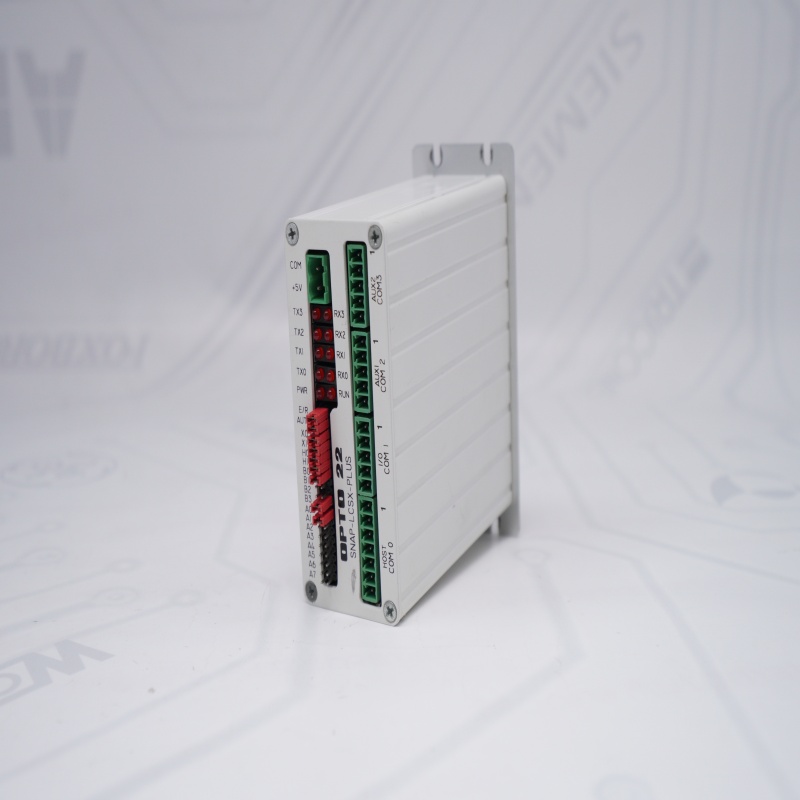

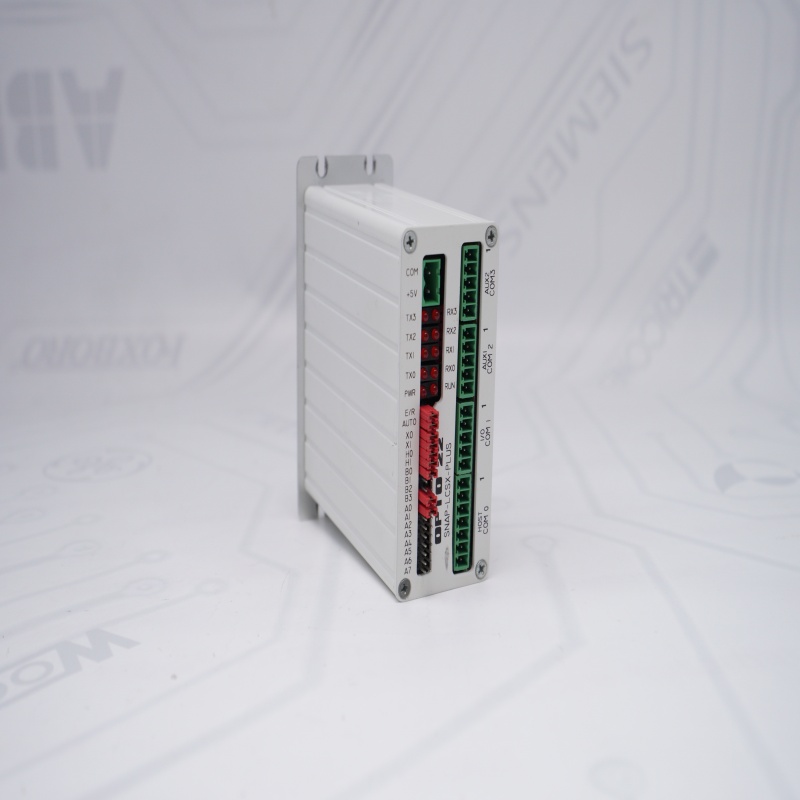

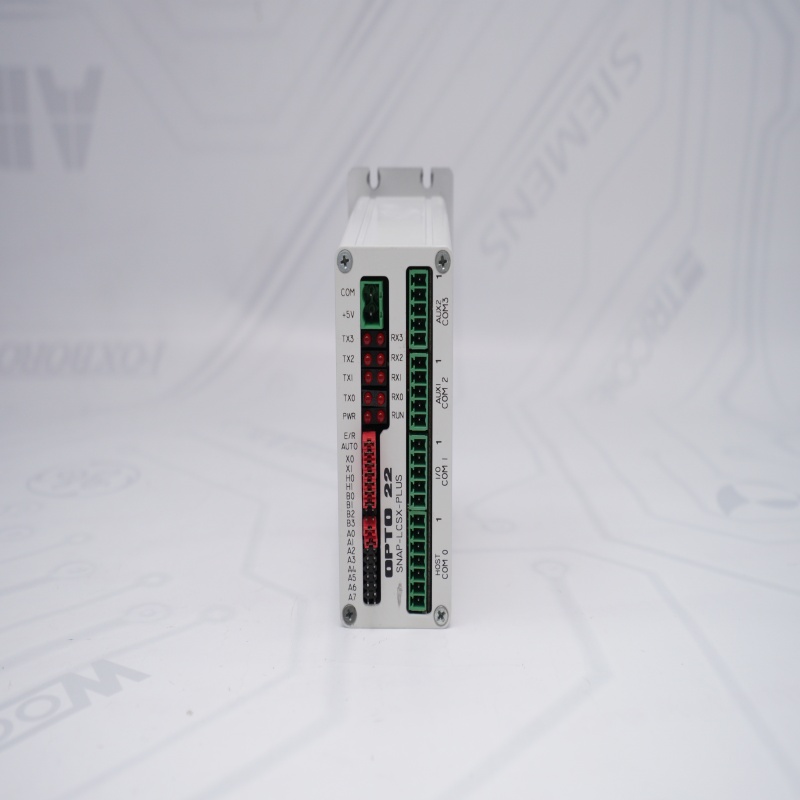

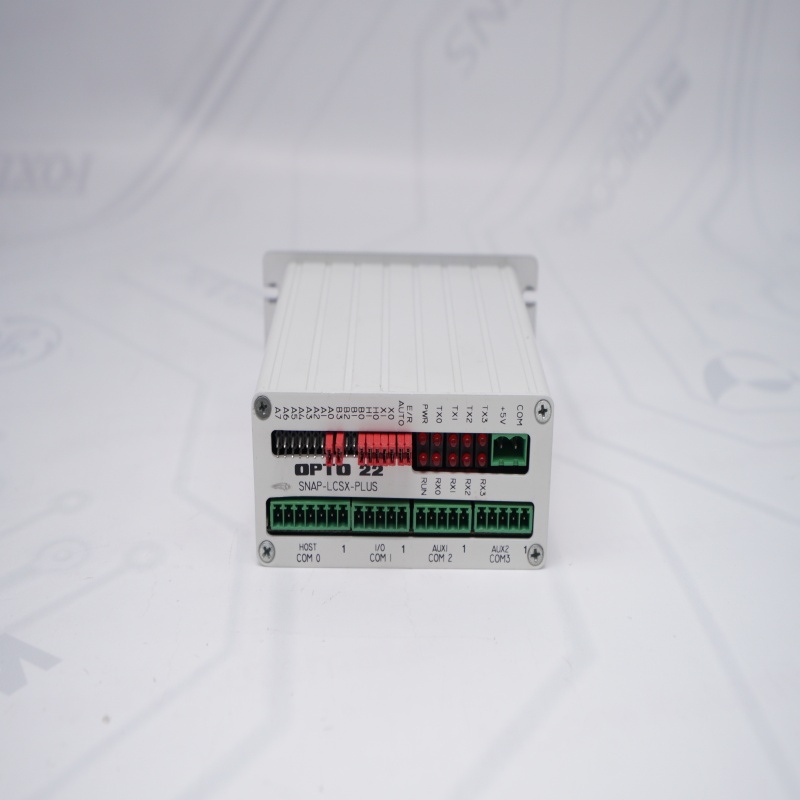

OPTO 22 SNAP-LCSX-PLUS logic controller

  • Opto 22
  • USA
  • 2024
  • In Stock
The SNAP-LCSX-PLUS is a powerful, compact programmable logic controller (PLC) manufactured by Opto 22, designed for real-time industrial control. OPTO 22 SNAP-LCSX-PLUS is specifically built for distributed automation applications that require a small footprint and integration with existing Opto 22 hardware and software.
Annex

OPTO 22 SNAP-LCSX-PLUS Specification


Manufacturer: Opto 22

Country of Origin: United States (USA)

Part Number: SNAP-LCSX-PLUS

Processor: 32-bit Motorola 68EC020

Processor Speed: 16.67 MHz

Memory (RAM): 1 MB (with battery backup)

Flash Memory (ROM): 256 KB

Communication Ports: 4 Serial Ports (1 x Remote I/O, 3 x RS-232 or RS-485)

Power Requirements: 5 VDC at 500 mA

Operating Temperature: 0 °C to 70 °C

Status: Obsolete / Legacy Hardware


OPTO 22 SNAP-LCSX-PLUS Application


SNAP-LCSX-PLUS OPTO 22 Distributed Control Systems (DCS): Localized real-time control of standalone machinery and industrial sub-systems.

OPTO 22 SNAP-LCSX-PLUS Remote Site Monitoring: Monitoring of remote equipment such as pumping stations, tank levels, and environmental sensors.

SNAP-LCSX-PLUS OPTO 22 Data Acquisition (DAQ): High-speed collection and processing of analog and digital signals from field sensors.

SNAP-LCSX-PLUS OPTO 22 Serial Device Integration: Connecting and managing legacy serial hardware (barcode scanners, scales, or printers) via its four COM ports.

SNAP-LCSX-PLUS OPTO 22 SCADA Connectivity: Serving as a communication gateway between field-level I/O and supervisory software layers.

SNAP-LCSX-PLUS OPTO 22 Process Automation: Automation of batching, mixing, and temperature control in chemical or food & beverage production.

SNAP-LCSX-PLUS OPTO 22 Building Management: Control of HVAC, lighting, and energy monitoring systems in large-scale facilities.

If you want to more details about OPTO 22 SNAP-LCSX-PLUS，please contact me without hesitate.Email：sales@sparecenter.com


OPTO 22 SNAP-LCSX-PLUS Features


Powerful 32-bit Processing: SNAP-LCSX-PLUS OPTO 22 is equipped with a Motorola 68EC020 processor for high-speed industrial logic execution.

Expanded Serial Connectivity: SNAP-LCSX-PLUS OPTO 22(logic controller) features four independent serial ports (1x dedicated Remote I/O, 3x selectable RS-232/485) for versatile device integration.

Reliable Memory Protection: 1 MB of RAM protected by battery backup and 256 KB of Flash ROM for permanent program storage.

Compact Footprint: Small form factor designed for space-saving DIN-rail or panel mounting in tight enclosures.

Broad Software Support: SNAP-LCSX-PLUS OPTO 22 is fully compatible with FactoryFloor (OptoControl) and legacy Mistic (Cyrano) software suites.

Distributed Architecture: OPTO 22 logic controller is optimized for controlling SNAP I/O modules across distributed remote racks.

Industrial Durability: OPTO 22 logic controller is built with no moving parts and wide operating temperature range (0 °C to 70 °C) for harsh environments.

Safety Certified: Factory Mutual (FM) approved for use in demanding industrial locations.


OPTO 22 SNAP-LCSX-PLUS FAQ


Q1: What is the primary difference between the SNAP-LCSX and the SNAP-LCSX-PLUS?
A: The OPTO 22 logic controller features four serial communication ports (one dedicated remote I/O and three selectable RS-232/485), while the standard SNAP-LCSX only provides two ports.
Q2: Is the SNAP-LCSX-PLUS still in active production by Opto 22?
A: No, the OPTO 22 logic controller is classified as an Obsolete/Legacy product; however, it is still available for maintenance and replacement needs, and you can contact us directly to purchase high-quality units.
Q3: Which software suite must be used to program the SNAP-LCSX-PLUS?
A: The OPTO 22 logic controller is programmed using Opto 22’s legacy FactoryFloor (OptoControl) or Mistic (Cyrano) software, rather than the modern PAC Project suite.
Q4: How does the SNAP-LCSX-PLUS handle program retention during power outages?
A: The OPTO 22 logic controller utilizes an internal battery-backed system to protect its 1 MB of RAM, ensuring that critical logic and data are not lost during power interruptions.
Q5: Can the SNAP-LCSX-PLUS communicate with third-party Modbus RTU devices?
A: Yes, the OPTO 22 logic controller can interface with Modbus RTU devices through its jumper-selectable RS-485/232 serial ports using specific software integration toolkits.
Q6: What are the exact voltage and current requirements for the SNAP-LCSX-PLUS?
A: The SNAP-LCSX-PLUS requires a regulated 5 VDC (+/- 0.1 VDC) power source with a maximum current consumption of 500 mA.
Q7: What is the maximum I/O capacity manageable by a single SNAP-LCSX-PLUS?
A: A single logic controller can manage thousands of I/O points by connecting to multiple remote SNAP I/O racks via its dedicated high-speed remote I/O serial link.
Q8: Does the SNAP-LCSX-PLUS provide native Ethernet or RJ45 connectivity?
A: No, the logic controller is a serial-based controller; it requires an external gateway or a modern SNAP PAC upgrade if Ethernet communication is necessary.

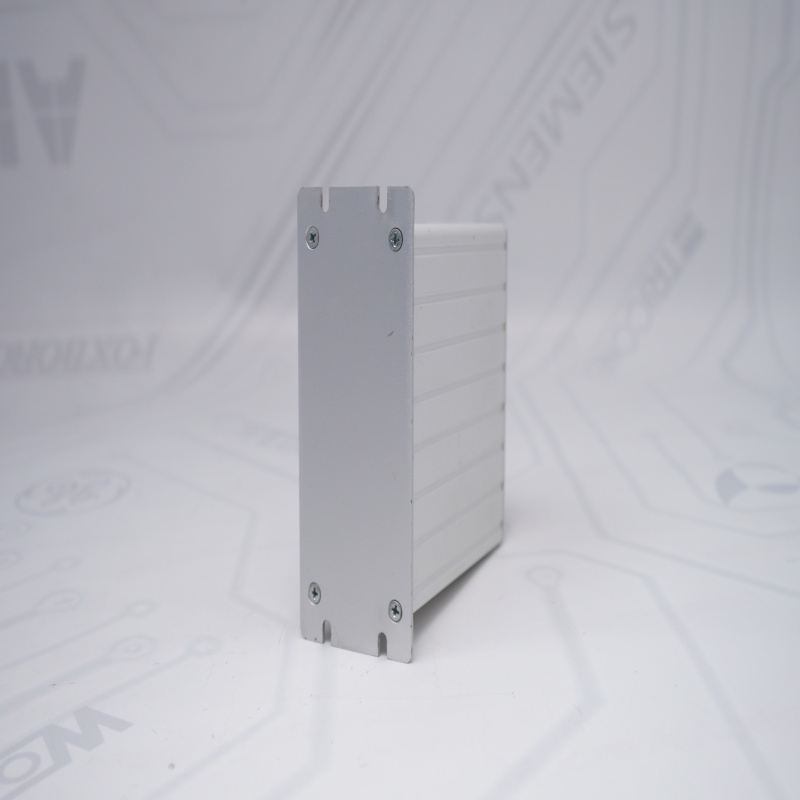

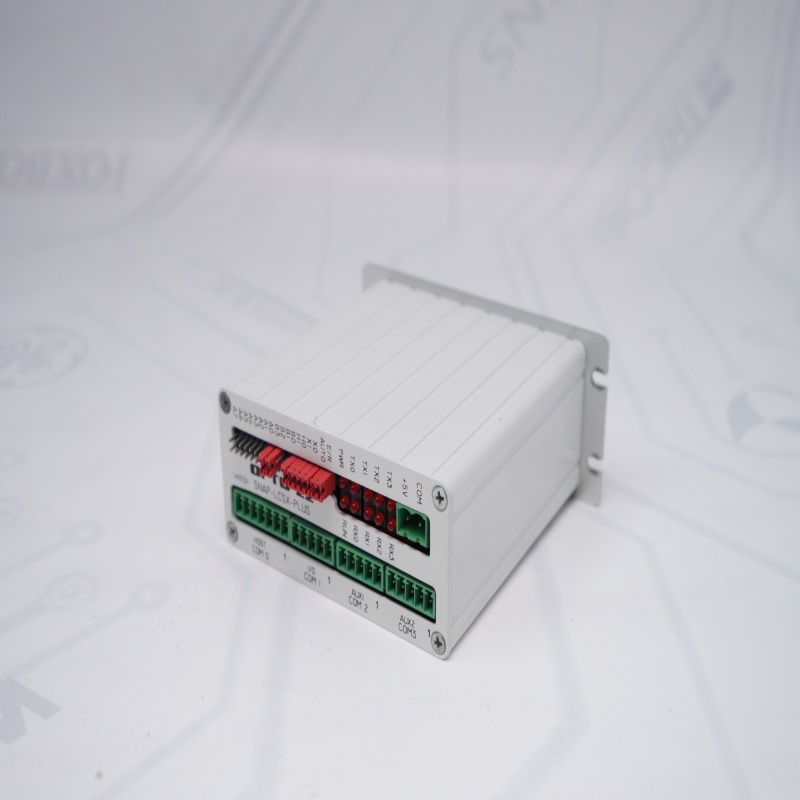

OPTO 22 SNAP-LCSX-PLUS Images


OPTO 22 SNAP-LCSX-PLUS


SNAP-LCSX-PLUS


SNAP-LCSX-PLUS OPTO 22


OPTO 22 SNAP-LCSX-PLUS
