ABB ICSI16D1 Summary
1. Key Information
Model / Part Number: ICSI16D1 / FPR3315101R1032
System Family: ABB Procontic CS31 (Legacy / Discontinued series)

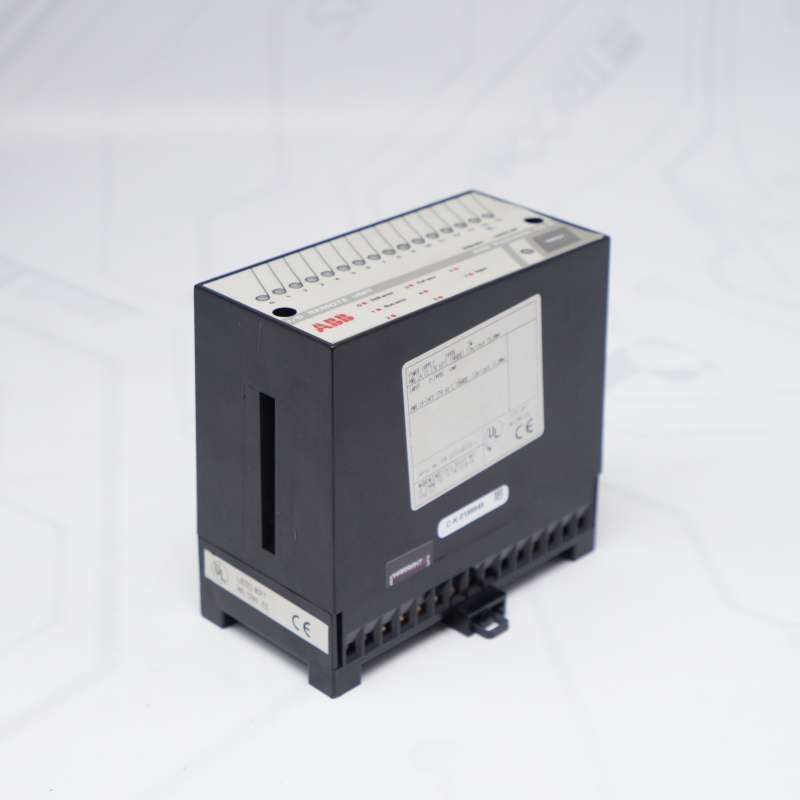

Device Type: 16-channel Decentralized/Remote Digital Input Unit (for collecting field switch and button signals)
2. Electrical Specifications

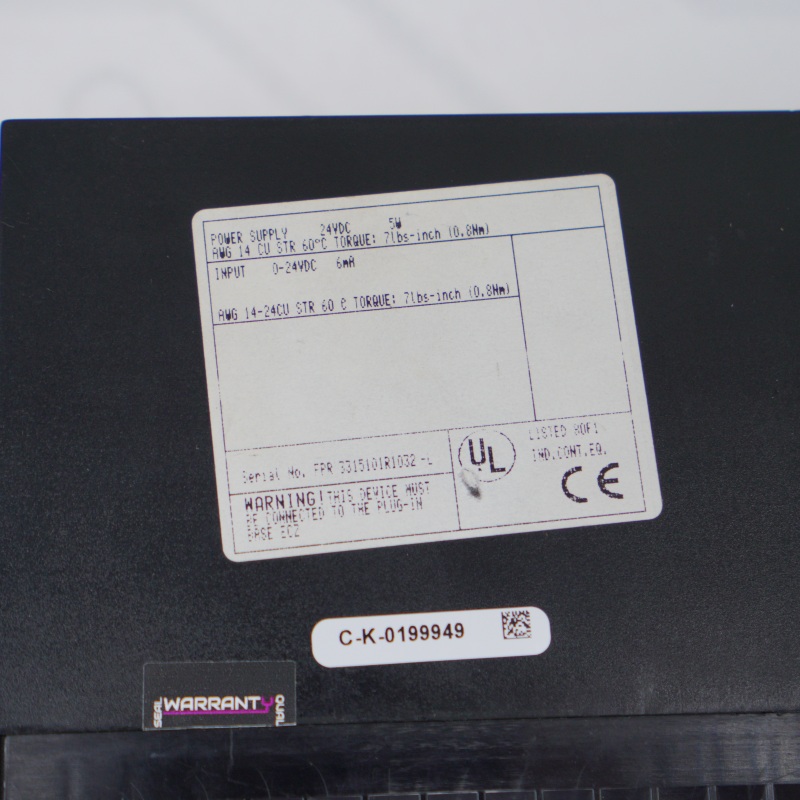

Power Supply: 24 VDC / 5 W
Input Signal: 0 - 24 VDC / 6 mA
3. Installation & Wiring
Required Base: Must be connected to the EC2 plug-in base to operate.
Wire Size: AWG 14-24 CU STR 60°C (Stranded copper wire)
Tightening Torque: 7 lbs-inch (0.8 Nm)
Certifications: UL Listed, CE marked
If you want to more details about ABB ICSI16D1，please contact me without hesitate. Email：sales@sparecenter.com
ABB ICSI16D1 Practical Application Summary
ABB ICSI16D1 Application: The ABB ICSI16D1 (FPR3315101R1032) is used in legacy factory automation like conveyors, packaging lines, and water pump stations.
How ABB ICSI16D1 Works: It is placed near machinery to collect 16 local 24VDC signals from e-stops or switches, then sends them to the central PLC over a single CS31 cable.
ABB ICSI16D1 Benefits: ABB ICSI16D1 eliminates 16 long-distance cable runs to save costs, and its plug-in design allows a fast swap in minutes without disconnecting wires to reduce downtime.
ABB ICSI16D1 FAQ
Q: What is the primary function of the ABB ICSI16D1 FPR3315101R1032 module in industrial automation?
A: The ABB ICSI16D1 is a decentralized 16-channel digital input remote I/O unit designed to collect 24VDC field signals from devices like limit switches and pushbuttons, transmitting this data back to a central PLC over the CS31 system bus.
A: The ABB ICSI16D1 is a decentralized 16-channel digital input remote I/O unit designed to collect 24VDC field signals from devices like limit switches and pushbuttons, transmitting this data back to a central PLC over the CS31 system bus.
Q: What are the strict mechanical and electrical installation requirements for the ICSI16D1 FPR3315101R1032 ABB?
A: Mechanically, the ICSI16D1 FPR3315101R1032 ABB features a plug-in design and must be explicitly mounted onto a dedicated EC2 plug-in base to operate. Electrically, it requires AWG 14-24 stranded copper wires with terminal screws tightened to a specific torque of 0.8 Nm (7 lbs-inch) to prevent contact failure.
A: Mechanically, the ICSI16D1 FPR3315101R1032 ABB features a plug-in design and must be explicitly mounted onto a dedicated EC2 plug-in base to operate. Electrically, it requires AWG 14-24 stranded copper wires with terminal screws tightened to a specific torque of 0.8 Nm (7 lbs-inch) to prevent contact failure.
Q: How does the plug-in design of the ICSI16D1 FPR3315101R1032 ABB benefit field maintenance and minimize factory downtime?
A: Because the terminal wiring is completely separated on the EC2 base, technicians can hot-swap a failed ICSI16D1 FPR3315101R1032 ABB by pulling it out and plugging in a new unit within minutes, eliminating the need to disconnect any field wires and keeping production downtime to a minimum.
A: Because the terminal wiring is completely separated on the EC2 base, technicians can hot-swap a failed ICSI16D1 FPR3315101R1032 ABB by pulling it out and plugging in a new unit within minutes, eliminating the need to disconnect any field wires and keeping production downtime to a minimum.
Q: What is the current lifecycle status of the ICSI16D1 FPR3315101R1032 ABB and how can replacements be sourced?
A: The ICSI16D1 FPR3315101R1032 ABB is a legacy, discontinued product from the Procontic CS31 series. Since it is no longer in active production by the manufacturer, you can purchase reliable replacement units directly from our spare center, where we offer tested surplus and refurbished inventory to support your system maintenance.
A: The ICSI16D1 FPR3315101R1032 ABB is a legacy, discontinued product from the Procontic CS31 series. Since it is no longer in active production by the manufacturer, you can purchase reliable replacement units directly from our spare center, where we offer tested surplus and refurbished inventory to support your system maintenance.
