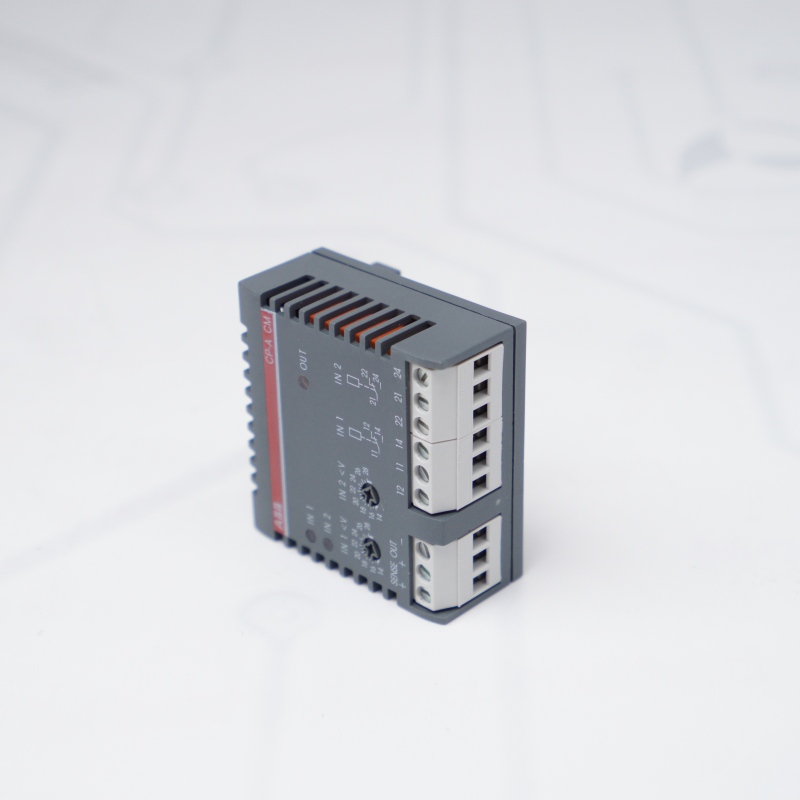

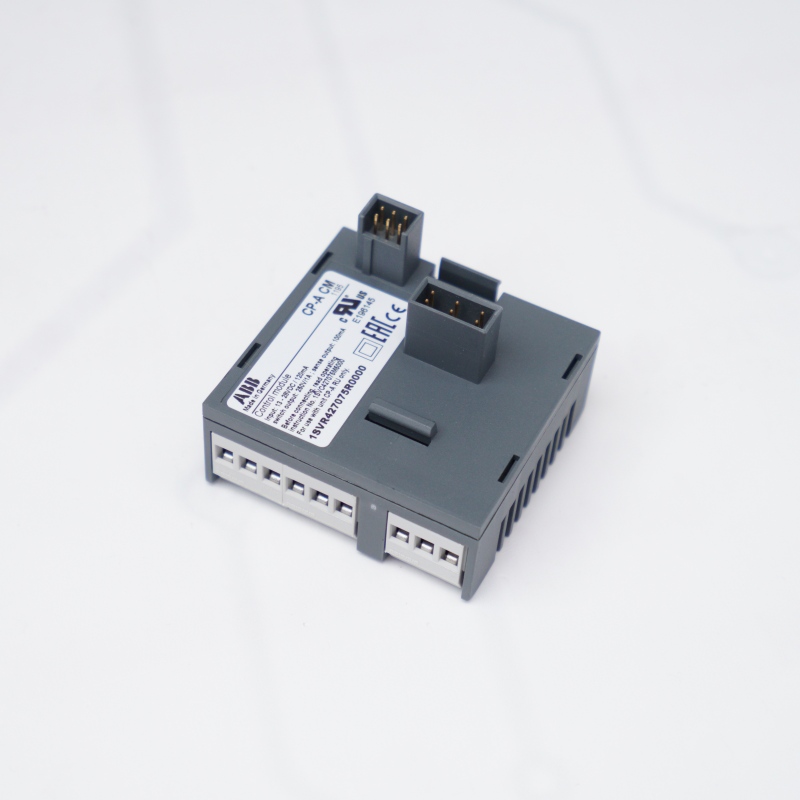

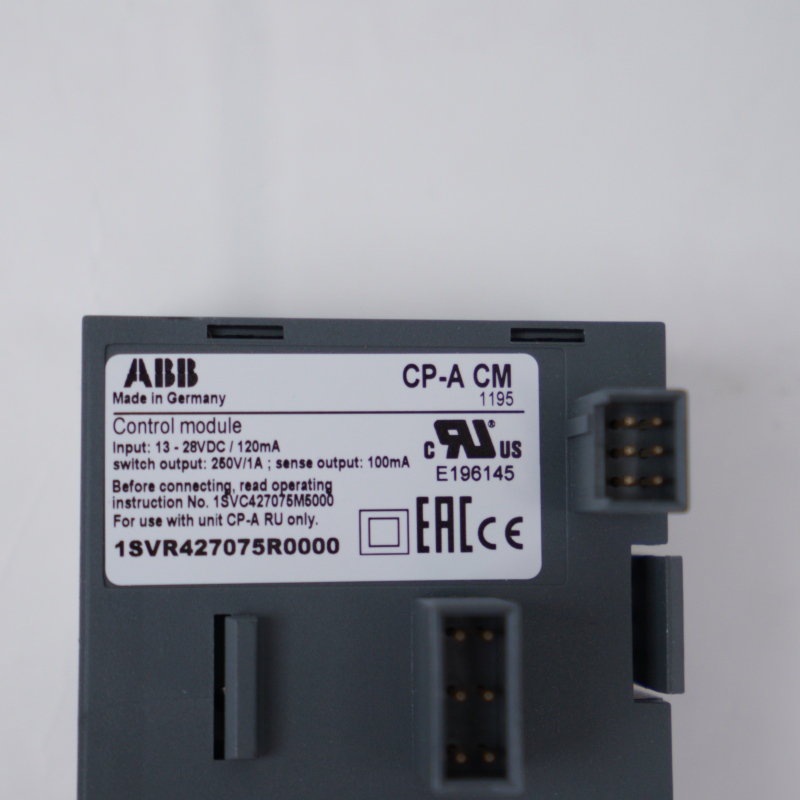

ABB control module Technical Data
ABB control module Voltage Monitoring Specifications Monitoring Channels: 2 independent DC voltage inputs Voltage Threshold Range: 14V to 28V DC (Adjustable via front rotary switches) Rated Control Supply Voltage / Rated Input Voltage: 24V DC Input Voltage Range: 13V to 28V DC ABB control module Outputs and Signaling Output Contacts: 2 independent SPDT (1 c/o) relay outputs Operating Principle: Closed-circuit principle Maximum Switching Voltage / Current: 250V / 1A LED Indicators: IN 1 / IN 2 (Green): Input voltage exceeds the adjusted threshold value OUT (Green): Output voltage is higher than 3V | ABB control module Mechanical and Installation Mounting Method: Tool-free snap-on mounting directly onto the front side of the CP-A RU redundancy unit Connection Type: Screw connection Wire Size Compatibility: Rigid wires: 0.2 to 4 mm² (24 to 12 AWG) Fine-strand wires: 0.2 to 2.5 mm² (24 to 14 AWG) Dimensions (W x H x D): 56.5 x 54 x 24 mm ABB control module Environmental Limits Ambient Operating Temperature Range: -25 °C to +70 °C Storage Temperature Range: -40 °C to +85 °C Degree of Protection (Housing and Terminals): IP20 / IP20 |
If you want to more details about ABB control module，please contact me without hesitate. Email：sales@sparecenter.com
About UsReasons For Choosing Spare Center
Massive Stock
Over 1M products ready for same-day shipping.
Global Support
Multilingual team serving 100+ countries.
Guaranteed Quality
Original origin testing with third-party verification.
Flexible Shipping
Global delivery via DHL, FedEx, TNT, and UPS.
ABB control module FAQ
Q1: What is the primary function of the ABB CP-A CM 1SVR427075R0000?
A1: The ABB control module is a pluggable control module designed to monitor the input voltage signals of the CP-A RU redundancy unit. The ABB control module provides real-time undervoltage monitoring for two independent DC channels, ensuring the integrity of redundant power supply systems in industrial automation.
A1: The ABB control module is a pluggable control module designed to monitor the input voltage signals of the CP-A RU redundancy unit. The ABB control module provides real-time undervoltage monitoring for two independent DC channels, ensuring the integrity of redundant power supply systems in industrial automation.
Q2: How do you adjust the voltage monitoring thresholds on the CP-A CM 1SVR427075R0000?
A2: The ABB CP-A CM 1SVR427075R0000 features front-facing rotary switches that allow engineers to set the undervoltage threshold values manually. The threshold value for each monitored channel on the ABB CP-A CM 1SVR427075R0000 can be adjusted separately within a range of 14V to 28V DC.
A2: The ABB CP-A CM 1SVR427075R0000 features front-facing rotary switches that allow engineers to set the undervoltage threshold values manually. The threshold value for each monitored channel on the ABB CP-A CM 1SVR427075R0000 can be adjusted separately within a range of 14V to 28V DC.
Q3: What do the green LED indicators on the ABB CP-A CM 1SVR427075R0000 signify?
A3: The ABB CP-A CM 1SVR427075R0000 uses three green LEDs for status monitoring. The IN 1 and IN 2 LEDs light up when respective channel voltages are above the threshold, while the OUT LED indicates the output voltage is above 3V.
A3: The ABB CP-A CM 1SVR427075R0000 uses three green LEDs for status monitoring. The IN 1 and IN 2 LEDs light up when respective channel voltages are above the threshold, while the OUT LED indicates the output voltage is above 3V.
Q4: How do the output relays on the CP-A CM 1SVR427075R0000 ABB operate during a fault condition?
A4: Utilizing a closed-circuit principle, the SPDT relay outputs on the CP-A CM 1SVR427075R0000 ABB de-energize when voltage drops below the set threshold, signaling a fault to the control system.
A4: Utilizing a closed-circuit principle, the SPDT relay outputs on the CP-A CM 1SVR427075R0000 ABB de-energize when voltage drops below the set threshold, signaling a fault to the control system.
Q5: How is the CP-A CM 1SVR427075R0000 ABB mechanically installed and mounted?
A5: The CP-A CM 1SVR427075R0000 ABB features a snap-on mounting system that attaches directly to the front of the corresponding CP-A RU redundancy unit.
A5: The CP-A CM 1SVR427075R0000 ABB features a snap-on mounting system that attaches directly to the front of the corresponding CP-A RU redundancy unit.
Q6: Can the CP-A CM 1SVR427075R0000 ABB be plugged or unplugged while the system is live?
A6: To prevent potential electrical damage, the CP-A CM 1SVR427075R0000 ABB should only be installed or removed from the system while it is powered down.
A6: To prevent potential electrical damage, the CP-A CM 1SVR427075R0000 ABB should only be installed or removed from the system while it is powered down.
