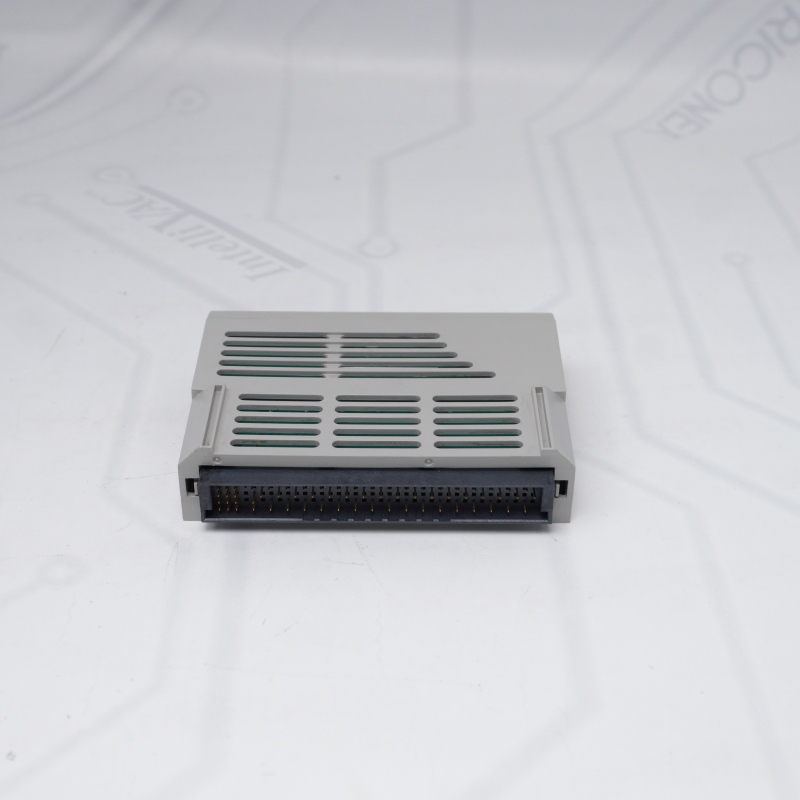

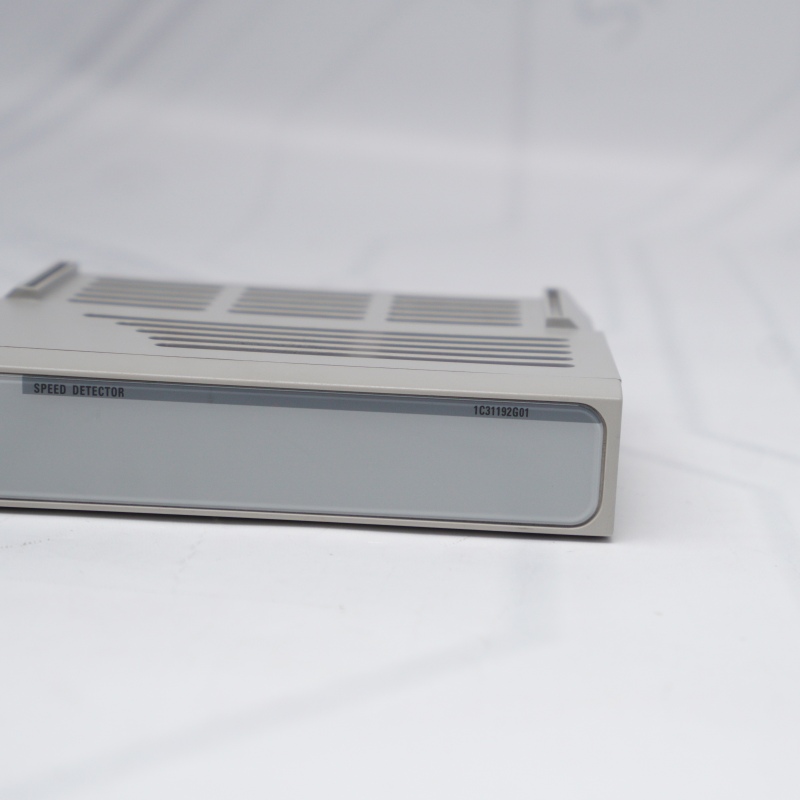

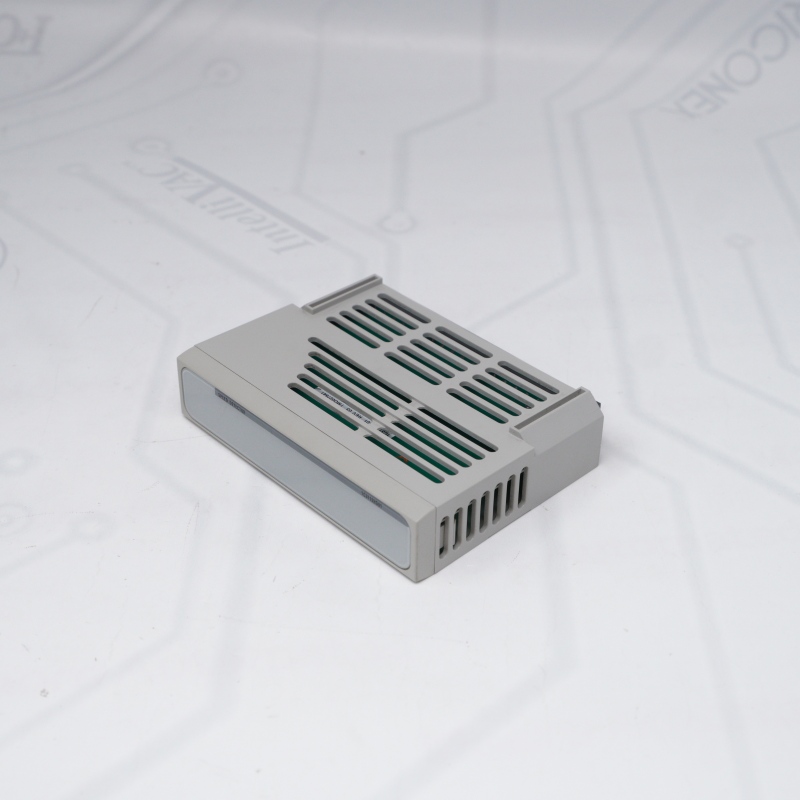

IC31192G01 Speed Detector Module Overview
Type: Industrial high-performance Speed Detector Module.
Platform: Integrated into the Emerson Ovation DCS platform.
Application: Real-time speed monitoring and protection for power plant turbines, gas turbines, and large industrial motors.
Lifecycle: Legacy / Discontinued.
Channels: 8 independent, electrically isolated input channels (1000V isolation).
Dual-Processing:
16-bit output: 5ms refresh rate, dedicated to overspeed protection.
32-bit output: High precision, dedicated to speed regulation.
If you want to more details about IC31192G01 WESTINGHOUSE ，please contact me without hesitate. Email：sales@sparecenter.com
The strength of the Spare Center
Flexible Shipping
Global delivery via DHL, FedEx, TNT, and UPS.
Guaranteed Quality
Original origin testing with third-party verification.
Global Support
Multilingual team serving 100+ countries.
Massive Stock
Over 1M products ready for same-day shipping.
IC31192G01 Speed Detector Module Key Features
8 Isolated Channels: Supports eight independent input channels with 1000V AC/DC dielectric isolation to eliminate signal interference.
Dual-Tier Resolution: Processes speeds using two distinct registers to optimize both safety and control functions simultaneously.
5ms Overspeed Response: Features a dedicated 16-bit output that updates every 5 milliseconds for rapid emergency trip protection.
32-Bit Speed Control: Provides a high-resolution 32-bit register dedicated to precise, steady-state machine velocity regulation.
Industrial Durability: Operates reliably under harsh power plant conditions across a temperature range of 0°C to 60°C.
IC31192G01 Speed Detector Module FAQ
Q1: What sensors can be wired directly to the IC31192G01 Speed Detector Module?
A: The IC31192G01 WESTINGHOUSE interfaces directly with passive magnetic pickups (MPUs), active digital encoders, and proximity tachometers, converting their raw sinusoidal or pulse-train frequencies into processable digital signals.
Q2: How does the IC31192G01 Speed Detector Module convert frequency into accurate RPM?
A: The IC31192G01 WESTINGHOUSE scales incoming frequency based on the "Pulses per Revolution" (PPR) value configured in the Ovation software, automatically calculating true machine RPM before broadcasting data to the controller.
Q3: What do the diagnostic faceplate LEDs on the Westinghouse IC31192G01 indicate?
A: The IC31192G01 WESTINGHOUSE features three standard status LEDs: P (Power) confirms healthy 24V DC auxiliary power; C (Comm) flashes during active I/O bus communication; and I (Internal) illuminates to flag hardware or firmware self-test failures.
Q4: How does the Westinghouse IC31192G01 communicate with the turbine Emergency Trip System (ETS)?
A: When an overspeed setpoint is breached, the IC31192G01 WESTINGHOUSE instantly alters its register state, prompting the Ovation controller to drop its hardware outputs to the steam or gas trip valves through its matching baseboard.
Q5: How do you identify a field wiring issue on the Westinghouse IC31192G01?
A: If an open circuit or sensor failure occurs, the Westinghouse IC31192G01 flags the linked system variables as "Bad Quality" in the Ovation error log, signaling technicians to inspect the specific terminal block channels.
Q6: Can the Westinghouse IC31192G01 be hot-swapped while the turbine is online?
A: No, hot-swapping the Westinghouse IC31192G01 on an active single-channel system breaks the speed feedback loop, immediately triggering a safety trip unless the process is protected by a redundant multi-card configuration.
