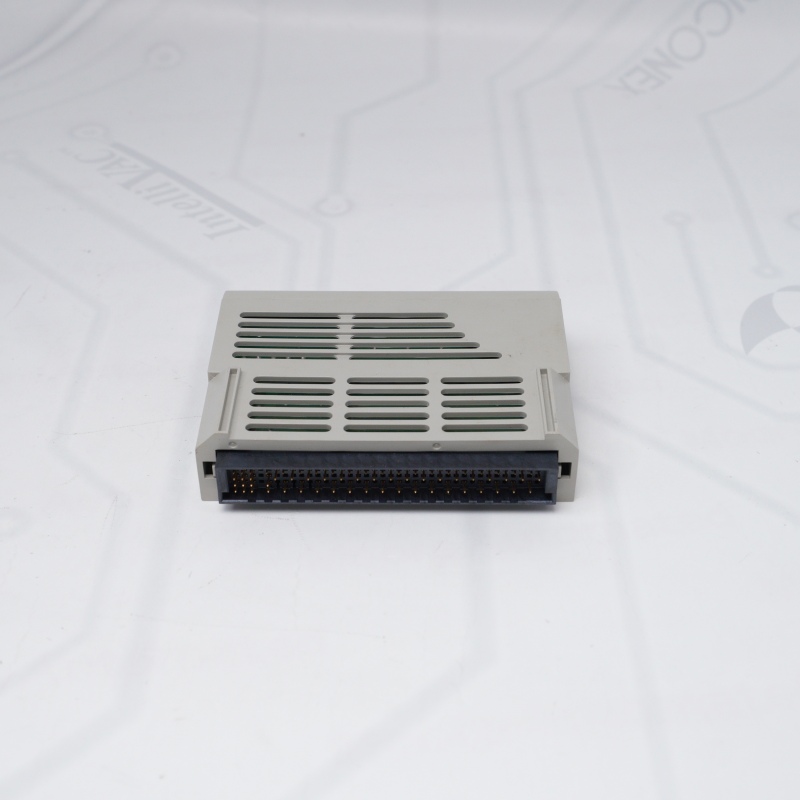

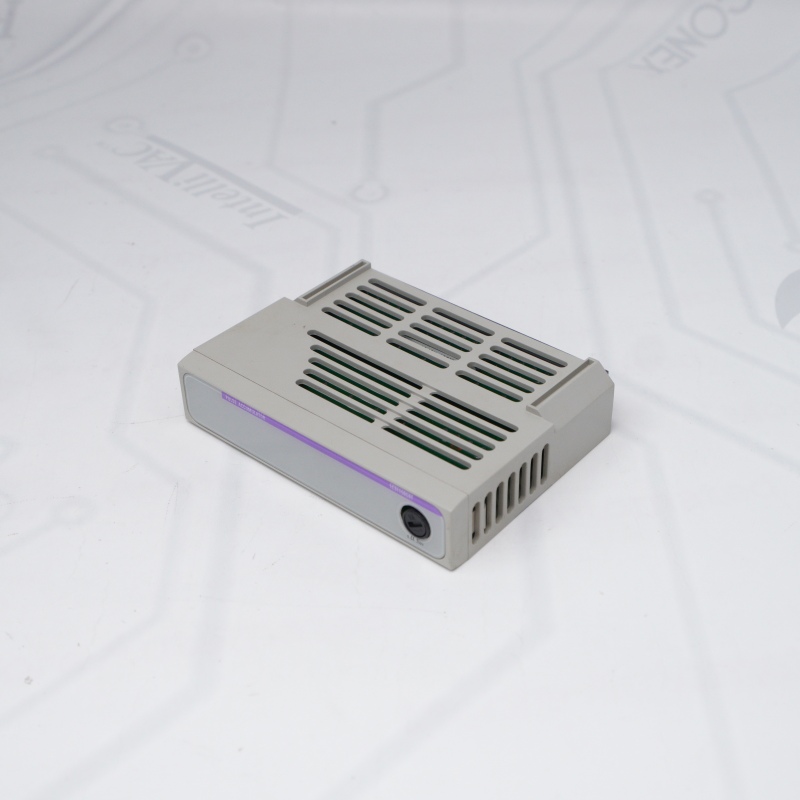

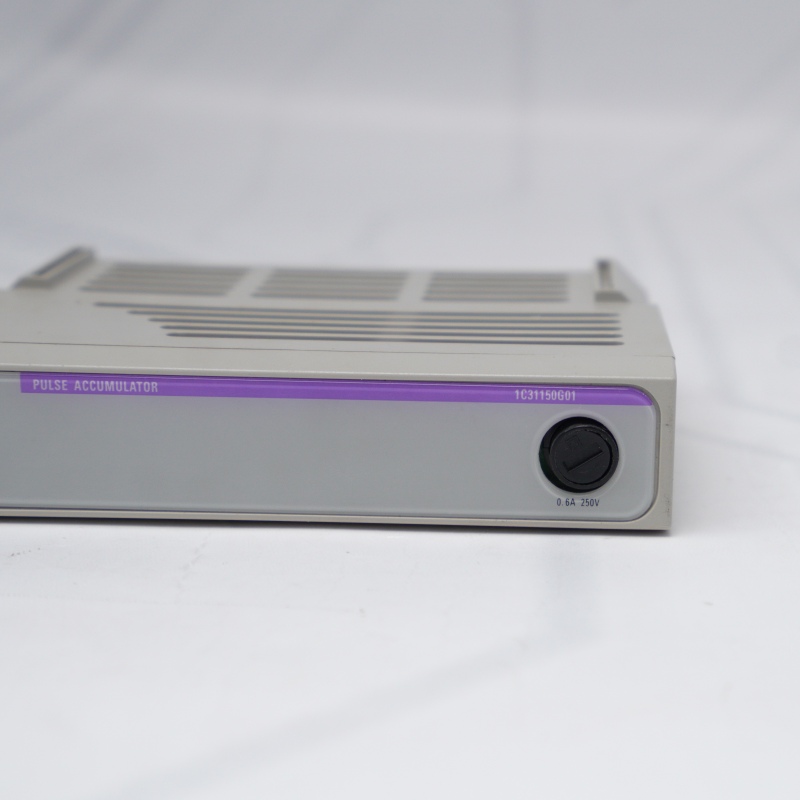

1C31150G01 EMERSON WESTINGHOUSE OVATION Pulse Accumulator Module

Product Name: Westinghouse / Emerson Ovation Pulse Accumulator Module

Model Number: 1C31150G01

Core Function: Captures, counts, and processes high-speed digital pulse signals from field devices like flow meters, tachometers, and speed sensors.

Compatibility: Fully integrated with Emerson Ovation Distributed Control Systems (DCS) and legacy Westinghouse WDPF PLC platforms.

Key Specs: Supports 250V AC / 1–2A ratings, operates from -40°C to +85°C, features an IP20 protection class, and mounts directly onto standard system base units.

Primary Use: Deployed in power generation, water treatment, and chemical processing plants for precise flow measurement, speed monitoring, and legacy system maintenance.

If you want to more details about 1C31150G01 WESTINGHOUSE，please contact me without hesitate. Email：sales@sparecenter.com

Flexible Shipping

Global delivery via DHL, FedEx, TNT, and UPS.

Guaranteed Quality

Original origin testing with third-party verification.

Global Support

Multilingual team serving 100+ countries.

Massive Stock

Over 1M products ready for same-day shipping.

Electromagnetic Interference (EMI): VFD noise distorts the signal, causing Westinghouse 1C31150G01 over-counting or under-counting.

Incorrect Polarity Wiring: The 1C31150G01 Westinghouse utilizes a Positive Common logic configuration, causing zero count registration if miswired.

Voltage Threshold Mismatch: Low sensor voltage fails to trigger the Westinghouse 1C31150G01 internal logic high threshold.

Mechanical Contact Bounce: Dry contacts cause artificial count spikes unless software debounce filters are configured on the 1C31150G01 module.

Hardware Aging: Degradation of old components or oxidized base units leads to intermittent 1C31150G01 Westinghouse channel faults.

  A: The 1C31150G01 WESTINGHOUSE is engineered with internal non-volatile register memory. In the event of a DCS cabinet power failure, the 1C31150G01 WESTINGHOUSE automatically freezes and retains its last valid accumulated pulse count values. Once the Ovation system restores power, the module resumes counting from that exact value without resetting to zero, preventing critical industrial data gaps.

  A: Yes, the WESTINGHOUSE Pulse Accumulator Module supports Hot-Swapping (Online Module Replacement). However, it must be inserted cleanly into its dedicated base unit terminal slot. While swapping the WESTINGHOUSE Pulse Accumulator Module will not disrupt the rest of the functional I/O drops on the network, field personnel must note that pulse counts generated during the physical swap window will not be captured.

  A: When a "Bad Quality" flag points to the WESTINGHOUSE Pulse Accumulator Module, engineers should first check the internal I/O status bits in the Ovation software. If the problem is hardware-related, look at the physical LED status panel on the WESTINGHOUSE Pulse Accumulator Module faceplate. A solid red 'Fault' light indicates an internal module component failure, whereas an unlit 'Active' LED implies the 1C31150G01 is missing its local external 24/48V power feed.

  A: The primary difference lies in the electrical interface of the hardware. The WESTINGHOUSE Pulse Accumulator Module is explicitly designed for medium-speed, positive-common (Low-True) input structures running on local power supplies. In contrast, the G02 model features high-speed inputs utilizing external power supplies, while the G03 version operates on negative-common logic. Mixing up these modules during field replacement will prevent input loops from energizing.

  A: Under optimal electrical conditions and clean square-wave signal inputs, the medium-speed channels of the Pulse Accumulator Module can reliably process high-frequency discrete electronic pulse patterns. To maintain accuracy at high speeds, the Pulse Accumulator Module relies on internal optocouplers that isolate field signals up to 250V AC from the sensitive, low-voltage Ovation system backplane.
