Supply Honeywell FC-SDIL-1608 V1.3 Digital Input Module Wholesale Factory

FC-SDIL-1608 V1.3 Specification

Category	Specification Details
Module Type	Safe Loop-Monitored Digital Input Module (16 channels)
Safety Integrity Level	SIL 3 (certified per IEC 61508)
System Compatibility	Honeywell Safety Manager / FSC Systems
Input Signal Type	DIN 19234 (NAMUR) Proximity Switches or Dry Contacts
Monitoring Features	Line monitoring (Open/Short circuit) & Earth fault detection
Power Supply	5 Vdc (160 mA) and 24 Vdc (110 mA)
Power Dissipation	Approx. 3.5 Watts
Typical Response Time	25 ms
Physical Dimensions	190 x 128 x 20 mm (3 HE x 4 TE)
Weight	~0.16 kg (0.35 lb)
Operating Temp	-40°C to +70°C (-40°F to +158°F)
Status Indicators	Front-panel LEDs (Ready, Run, Channel Status, Fault)
Required Adapters	Must be used with BN-1608 or BSN-1608 converters

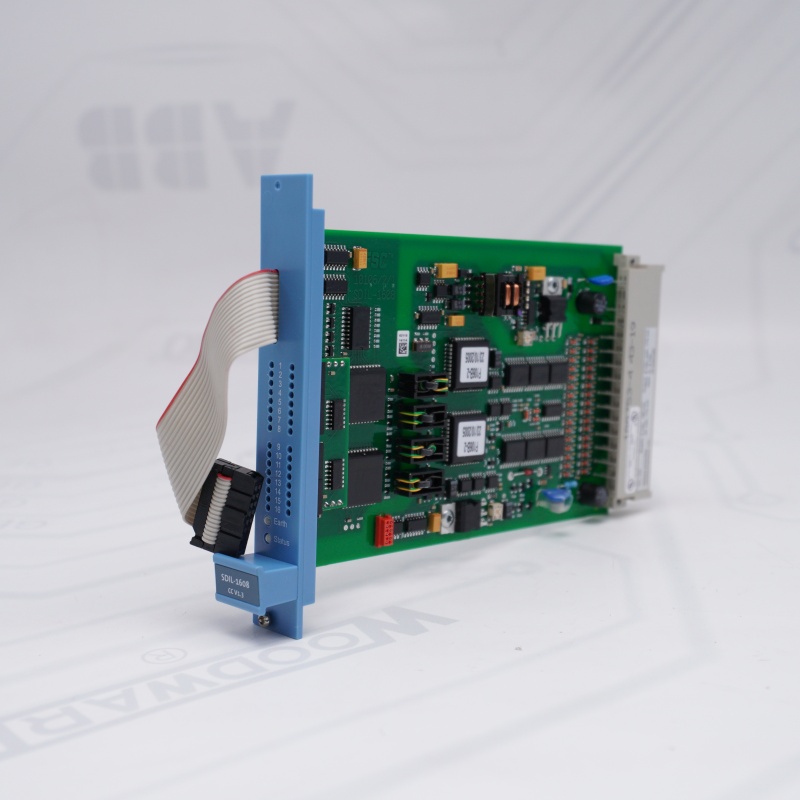

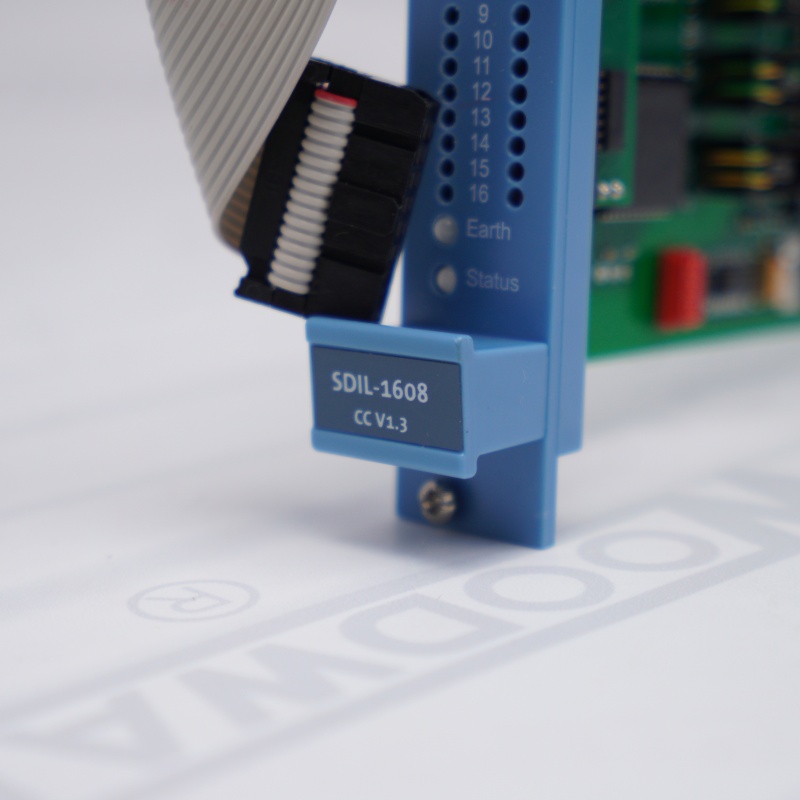

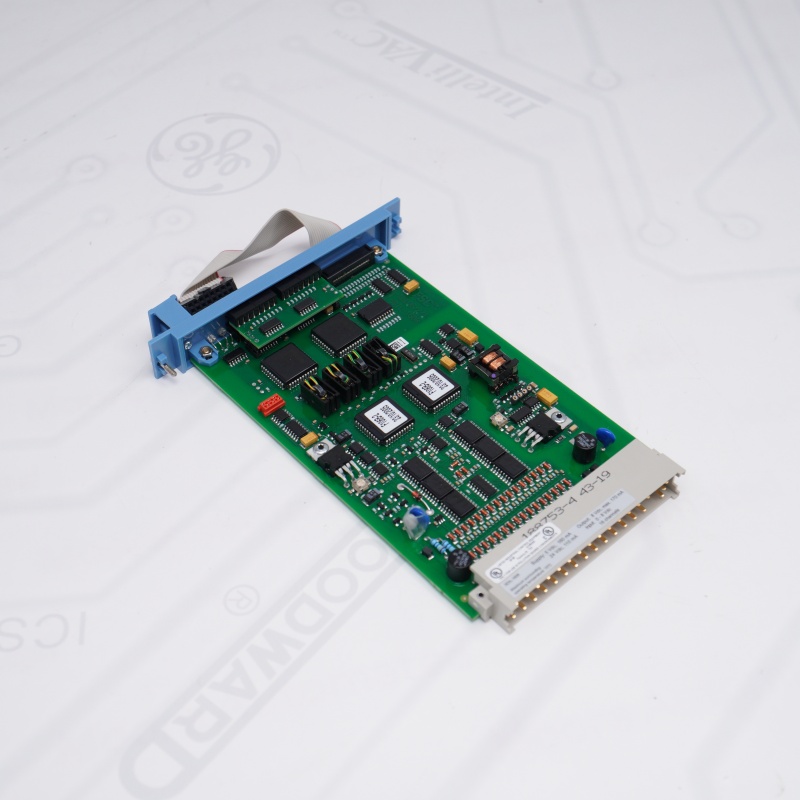

FC-SDIL-1608 V1.3(V1.3 Digital Input Module) Images

FC-SDIL-1608 V1.3

Honeywell V1.3 Details

FC-SDIL-1608 V1.3 Description

The Honeywell FC-SDIL-1608 V1.3 is a high-density, 16-channel digital input module designed for the Honeywell Safety Manager platform. Honeywell V1.3 acts as a safety-critical interface between field sensors and the controller, specifically engineered to handle safe loop-monitored signals.

Honeywell V1.3 is primarily used to monitor the status of NAMUR proximity switches or dry contacts in environments requiring up to SIL 3 certification. Honeywell V1.3 stands out for its integrated diagnostic capabilities, which allow it to distinguish between normal switching states and line faults such as short circuits or wire breaks. Built for industrial durability, Honeywell V1.3 features a rugged design capable of operating in extreme temperatures and is hot-swappable, ensuring continuous system availability during hardware maintenance.

FC-SDIL-1608 V1.3 Key Characteristics

V1.3 Digital Input Module SIL 3 Safety Rating: Certified for use in high-integrity safety functions, providing maximum reliability for Emergency Shutdown (ESD) systems.

V1.3 Digital Input Module 16 Monitored Channels: Features 16 independent input channels that support loop monitoring to detect field wiring issues.

NAMUR Compatibility: Specifically designed to interface with DIN 19234 (NAMUR) proximity switches and dry contact sensors.

Advanced Diagnostics: Built-in detection for open circuits, short circuits, and earth faults to prevent undetected failures.

Hot-Swappable Design: Supports "plug-and-play" replacement during operation, ensuring zero system downtime during maintenance.

FC-SDIL-1608 V1.3 Application

V1.3 Digital Input Module Emergency Shutdown (ESD): Monitoring critical pushbuttons and safety sensors to trigger immediate shutdowns.

V1.3 Digital Input Module Fire & Gas (F&G) Systems: Interfacing with flame and toxic gas detectors for facility protection.

V1.3 Digital Input Module Burner Management (BMS): Ensuring safe startup and operation of industrial boilers and furnaces.

V1.3 Digital Input Module NAMUR Input Monitoring: Specifically designed to process signals from NAMUR-compliant proximity switches.

V1.3 Digital Input Module Line & Earth Fault Detection: Real-time monitoring for open circuits, short circuits, and ground leakage in safety loops (up to SIL 3).

If you want to more details about FC-SDIL-1608 V1.3，please contact me without hesitate.Email：sales@sparecenter.com

FC-SDIL-1608 FAQ

1. What is the primary function of the Honeywell FC-SDIL-1608 V1.3?
The Honeywell FC-SDIL-1608 V1.3 is a 16-channel, safe loop-monitored digital input module. Its primary role is to interface field sensors (such as NAMUR proximity switches or dry contacts) with the Honeywell Safety Manager system, ensuring signal integrity in safety-critical loops.

2. What safety integrity level (SIL) does the Honeywell FC-SDIL-1608 V1.3 support?
The module is strictly designed for high-availability and high-safety applications. FC-SDIL-1608 is certified for use in SIL 3 environments according to IEC 61508, making it suitable for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems.

3. How does the Honeywell FC-SDIL-1608 V1.3 handle line monitoring and fault detection?
The Honeywell FC-SDIL-1608 V1.3 features advanced internal diagnostics. FC-SDIL-1608 can actively detect and distinguish between standard signal states and field wiring faults, specifically open circuits (wire breaks) and short circuits, providing immediate alerts to the controller.

4. Is the Honeywell FC-SDIL-1608 V1.3 compatible with NAMUR sensors?
Yes. The Honeywell FC-SDIL-1608 V1.3 is specifically designed to meet DIN 19234 (NAMUR) standards. FC-SDIL-1608 provides an 8.2V DC supply to the field and monitors current consumption to determine the "on/off" status of the proximity switch.

5. Can the Honeywell FC-SDIL-1608 V1.3 detect grounding issues?
Yes, the module includes an on-board earth fault monitor. FC-SDIL-1608 checks all 16 channels for leakage current between the input wires and the ground, ensuring that floating field sensors remain isolated and reliable.

6. Does the Honeywell FC-SDIL-1608 V1.3 support maintenance without system downtime?
Absolutely. The Honeywell FC-SDIL-1608 V1.3 supports hot-swapping, allowing technical personnel to replace a faulty module while the Safety Manager system is still powered and operational, thereby maintaining continuous plant protection.
