Honeywell Internal Cabinet Cable Specification
| Property | Specifications |
|---|---|
| Model Number | MU-KLAM09 |
| Part Number | 51304465-500 |
| Manufacturer | Honeywell |
| Component Type | Internal Cabinet Cable / I/O Link Cable |
| System Compatibility | TDC 3000, Experion PKS (C200/C300), Experion LS |
| Application | Connects I/O modules, Power Adapters, and FTAs |
| Length | 300 cm (approx. 10 feet) |
| Data Rate | 750 KBaud (Standard Series C I/O Link) |
| Cable Jacket | Standard Industrial Grade PVC |
| Weight | Approximately 0.14 kg (0.31 lbs) |
| Dimensions (Packaged) | 15.0 cm x 14.0 cm x 3.0 cm |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Country of Origin | USA |
Honeywell Internal Cabinet Cable Features

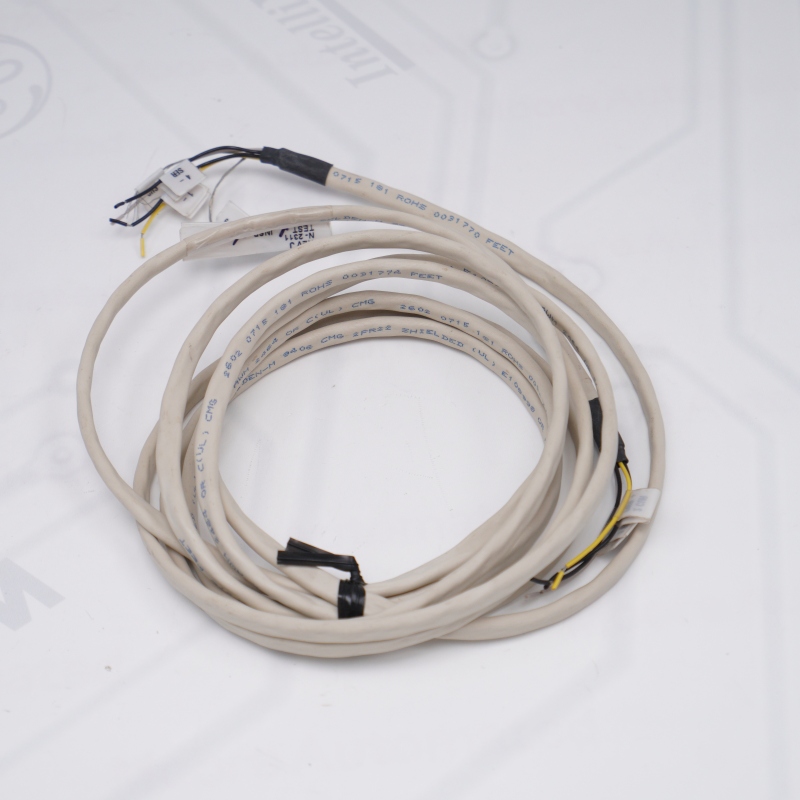

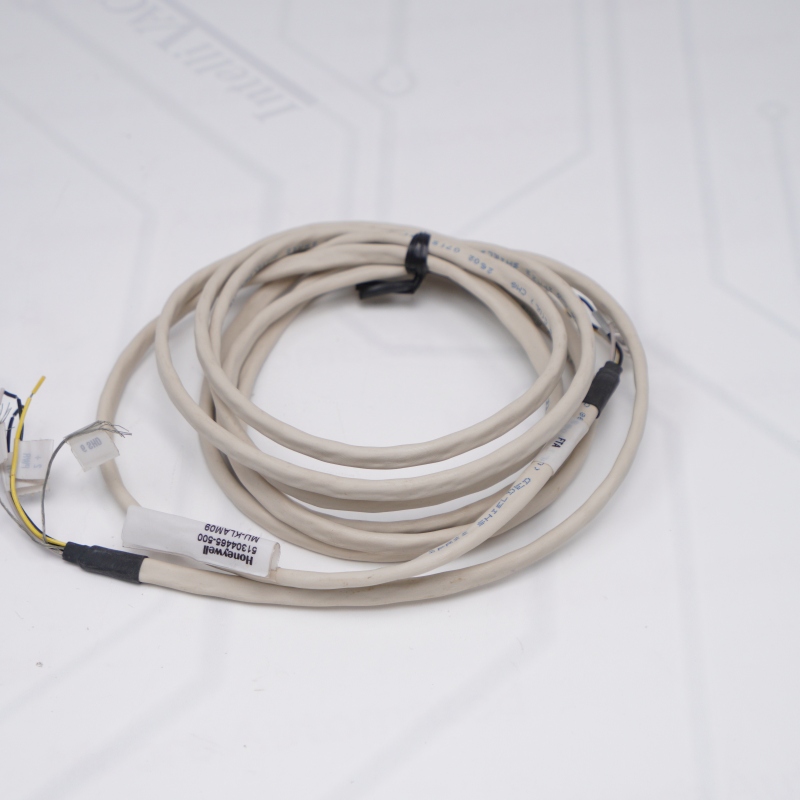

Extended Reach Capability: The Honeywell 51304465-500 MU-KLAM09 features a generous 300 cm (10 ft) length, making it the ideal choice for complex routing that shorter cables cannot accommodate.
High-Fidelity Signal Integrity: Specifically engineered to support the 750 KBaud Series C I/O Link, Honeywell Internal Cabinet Cable ensures minimal signal attenuation and high-speed data consistency.
Industrial-Grade Shielding: The MU-KLAM09 is built with heavy-duty shielding to protect critical I/O data from electromagnetic interference (EMI) commonly found in high-voltage industrial cabinets.
Ruggedized Construction: Designed for longevity, the 51304465-500 utilizes high-quality PVC jacketing that resists oil, dust, and temperature fluctuations within DCS environments.
Secure Locking Connectors: MU-KLAM09 is equipped with precision-engineered connectors that provide a vibration-resistant "lock" to prevent accidental disconnections in mission-critical systems.
If you want to more details about Honeywell Internal Cabinet Cable，please contact me without hesitate.Email：sales@sparecenter.com
Honeywell Internal Cabinet Cable Application
Experion PKS & TDC 3000 Integration: The Honeywell 51304465-500 MU-KLAM09 is primarily used to establish reliable communication between C200/C300 controllers and their respective I/O modules.
Cross-Cabinet Communication: Due to its 3-meter length, the MU-KLAM09 is the standard solution for linking hardware located in adjacent or separate cabinet bays.
I/O Link Redundancy: Honeywell Internal Cabinet Cable is frequently applied in redundant system architectures to connect primary and secondary I/O Link Interface Modules (IOLIM), ensuring zero-down-time failovers.
Field Termination Connectivity: The 51304465-500 acts as the vital bridge between Series C power adapters and Field Termination Assemblies (FTAs) for streamlined signal processing.
Legacy System Upgrades: The MU-KLAM09 is widely used during system migrations to replace older, worn-out internal cables in HPM and APM hardware environments.
Honeywell Internal Cabinet Cable FAQ
1. What is the primary function of the Honeywell 51304465-500 MU-KLAM09 within a DCS?
The Honeywell 51304465-500 MU-KLAM09 serves as a high-speed internal cabinet I/O Link cable. Its primary role is to facilitate reliable 750 KBaud data communication between Honeywell controllers (such as the C300) and various I/O modules, power adapters, or Field Termination Assemblies (FTAs).2. Can the Honeywell 51304465-500 MU-KLAM09 be used for redundant configurations?
Yes. The Honeywell 51304465-500 MU-KLAM09 is fully compatible with redundant architectures. It is frequently utilized to connect primary and secondary I/O Link Interface Modules (IOLIMs) to ensure continuous system availability and prevent data loss during a failover event.
Yes. The Honeywell 51304465-500 MU-KLAM09 is fully compatible with redundant architectures. It is frequently utilized to connect primary and secondary I/O Link Interface Modules (IOLIMs) to ensure continuous system availability and prevent data loss during a failover event.
3. What distinguishes the MU-KLAM09 model from the MU-KLAM03 or MU-KLAM06?
The primary difference is the cable length. While all three belong to the same functional family, the Honeywell 51304465-500 MU-KLAM09 is the longest standard variant at 300 cm (10 ft). This makes it specifically suitable for cross-cabinet routing where the 100 cm (KLAM03) or 200 cm (KLAM06) versions are insufficient.
The primary difference is the cable length. While all three belong to the same functional family, the Honeywell 51304465-500 MU-KLAM09 is the longest standard variant at 300 cm (10 ft). This makes it specifically suitable for cross-cabinet routing where the 100 cm (KLAM03) or 200 cm (KLAM06) versions are insufficient.
4. Is the Honeywell 51304465-500 MU-KLAM09 hot-swappable?
While the cable is rugged, it is generally recommended to follow Honeywell standard operating procedures for the specific I/O link. Typically, if the Honeywell 51304465-500 MU-KLAM09 is part of a redundant link, it can be replaced while the system is live; however, for non-redundant links, disconnection will result in a loss of communication with the downstream I/O modules.
While the cable is rugged, it is generally recommended to follow Honeywell standard operating procedures for the specific I/O link. Typically, if the Honeywell 51304465-500 MU-KLAM09 is part of a redundant link, it can be replaced while the system is live; however, for non-redundant links, disconnection will result in a loss of communication with the downstream I/O modules.
5. What are the environmental limitations for the Honeywell 51304465-500 MU-KLAM09?
The Honeywell 51304465-500 MU-KLAM09 is designed for indoor industrial cabinet environments. It features a PVC jacket rated for standard industrial temperature ranges (typically 0°C to 60°C). It should be routed away from high-voltage power lines to maintain signal integrity and avoid electromagnetic interference.
The Honeywell 51304465-500 MU-KLAM09 is designed for indoor industrial cabinet environments. It features a PVC jacket rated for standard industrial temperature ranges (typically 0°C to 60°C). It should be routed away from high-voltage power lines to maintain signal integrity and avoid electromagnetic interference.
6. How do I verify the authenticity of a Honeywell 51304465-500 MU-KLAM09 spare part?

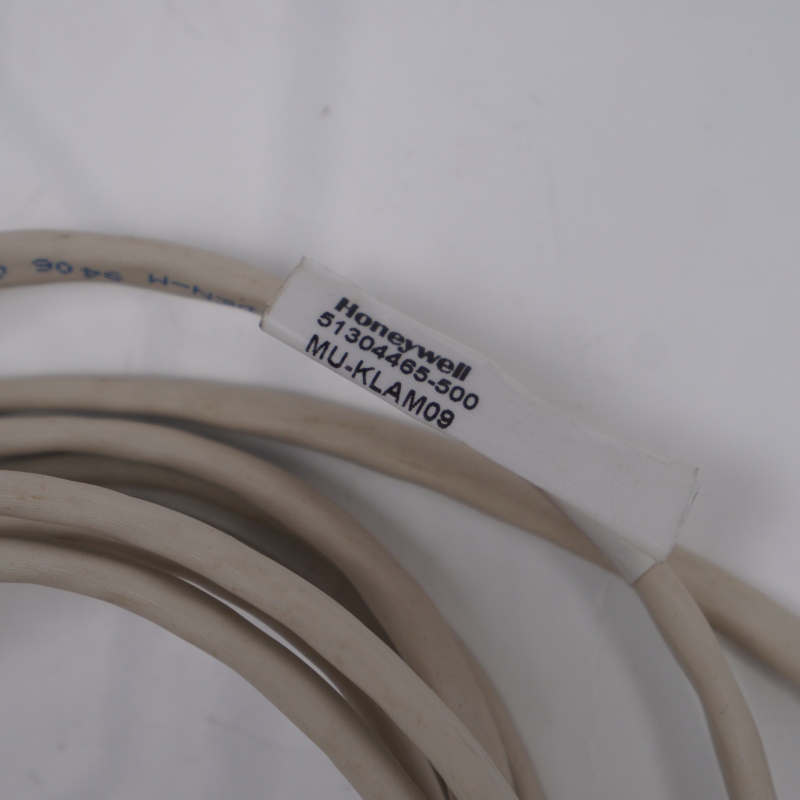

An authentic Honeywell 51304465-500 MU-KLAM09 will feature the specific part number (51304465-500) on the cable label or packaging. It should also include precision-molded connectors designed for a snap-lock fit, ensuring it meets the strict impedance and shielding requirements of the Honeywell Experion PKS and TDC 3000 systems.
