Honeywell Cable Specification
| Attribute | Detail |
|---|---|
| Manufacturer | Honeywell |
| Part Number | 51202343-001 |
| Description | Power Supply Status Indication Cable |
| Application | Connects PSU alarm contacts to I/O Modules (DCS/Experion PKS) |
| Total Length | Approx. 12 feet (3.66 meters) |
| Configuration | 4 drop points with 9-inch spacing |
| Voltage Rating | 30V DC |
| Current Rating | 1.0 Amp |
| Conductor Material | High-quality copper alloy (tinned finish) |
| Insulation/Sheath | Black PVC |
| Connector Type | 4-pin locking connector (M12 style) |
| Environmental Protection | NEMA 4X / IP66 |
| Operating Temperature | -40°C to +85°C (-40°F to 185°F) |
| Communication Protocols | RS-485, Modbus, BACnet (via connected system) |
Honeywell Cable Application
Fault Detection & Alarming: Connects power supply alarm contacts to I/O modules to provide real-time notification of PSU failures.
Experion PKS Integration: Specifically designed for use within Honeywell Series C I/O systems and C300 controller environments.
Redundancy Monitoring: Essential for monitoring redundant power configurations to ensure an alarm is triggered if one power path is lost.
Multi-Point Connectivity: Features four drop points to monitor multiple power modules within a single cabinet using one cable run.
Environmental Resilience: Ideal for Universal Process Cabinets (UPC) in harsh or outdoor industrial areas due to its IP66/NEMA 4X rating.
Remote Diagnostics: Facilitates remote system health checks by converting physical status changes into digital signals for the control room.
Honeywell Cable Key Features
1
Multi-Drop 4-Point Connectivity
Honeywell Cable features four distribution points with 9-inch spacing, allowing a single cable to monitor up to four power supply modules simultaneously to reduce cabinet wiring clutter.
2
Industrial-Grade Environmental Protection
With an IP66 and NEMA 4X rating, the cable is fully protected against dust, high-pressure water, and corrosion, making Honeywell Cable suitable for harsh outdoor or wash-down industrial environments.
3
Plug-and-Play Series C Integration
Specifically designed for Honeywell Experion PKS Series C hardware, Honeywell Cable provides a seamless bridge between power supply alarm contacts and I/O modules for automated system diagnostics.
If you want to more details about Honeywell Cable(51202343-001 Cable)，please contact me without hesitate.Email：sales@sparecenter.com
Honeywell Cable Images

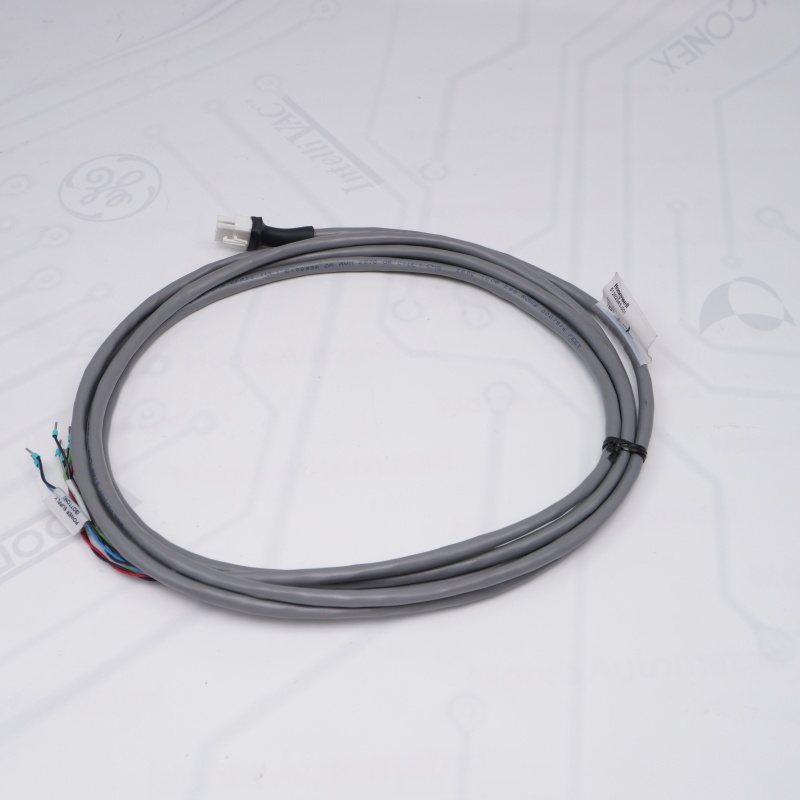

Honeywell Cable

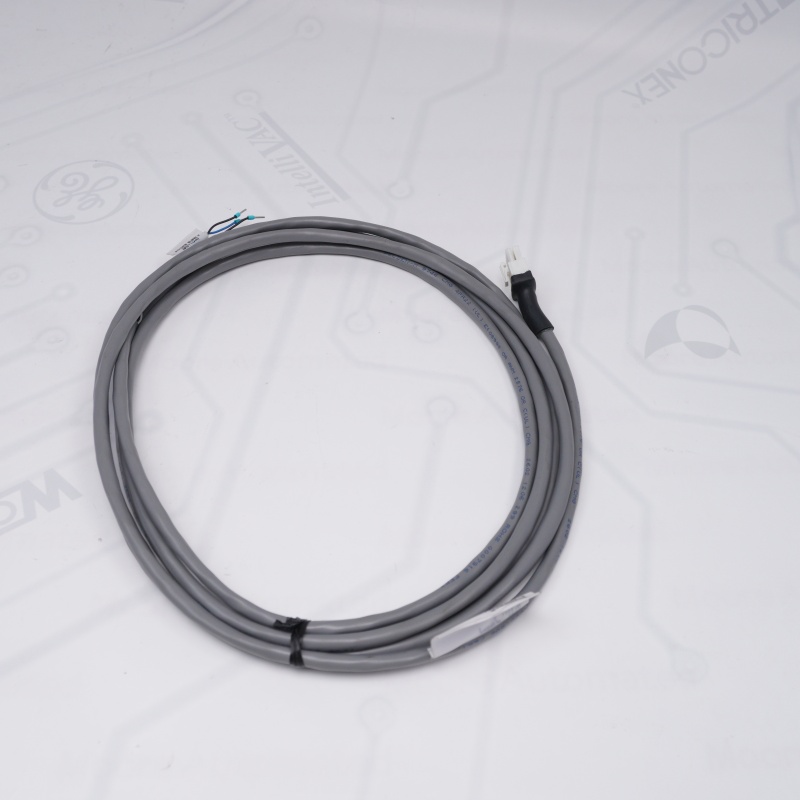

Honeywell Cable

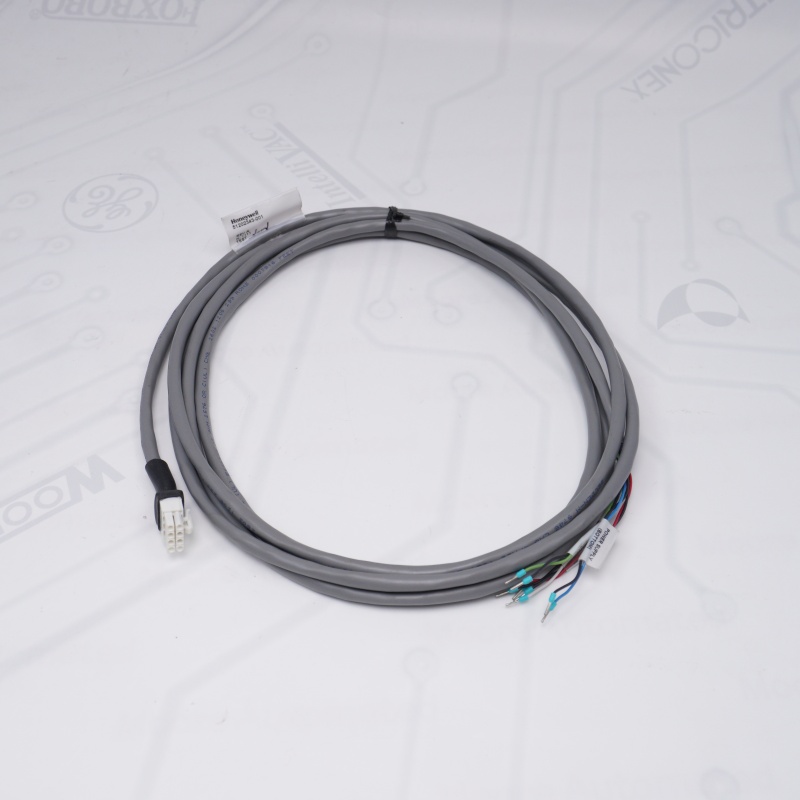

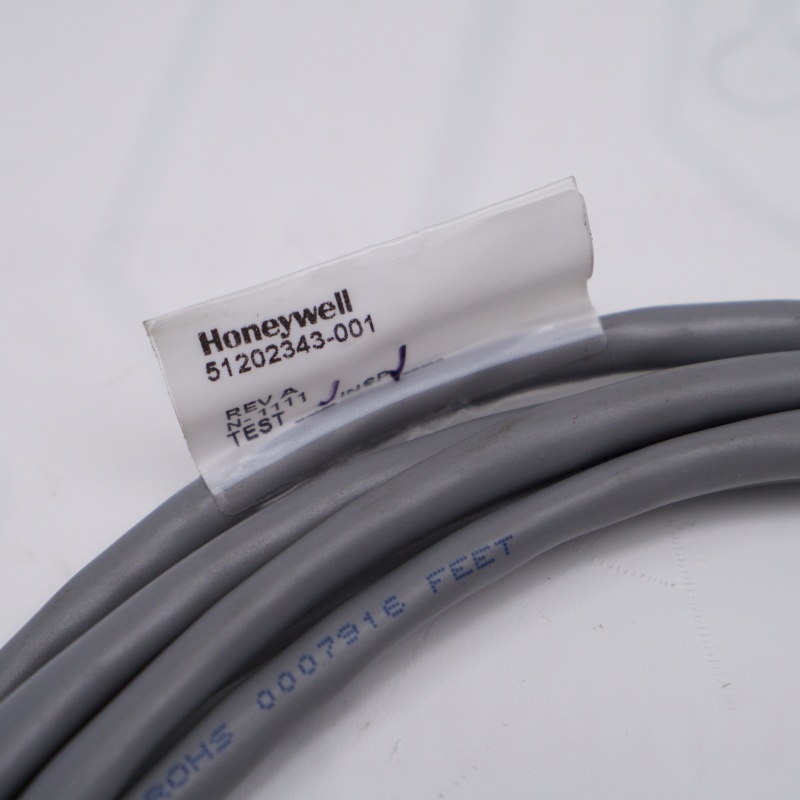

51202343-001 Cable
51202343-001 Cable FAQ
Q: What is the primary function of the Honeywell 51202343-001?
A: The Honeywell 51202343-001 is a Power Supply Status Indication Cable designed to link power supply alarm contacts to Digital Input (DI) modules, enabling the control system to monitor the operational health of the power units.
Q: Which systems are compatible with the Honeywell 51202343-001(51202343-001 Cable)?
A: The Honeywell 51202343-001 is specifically engineered for use with Honeywell Experion PKS (Process Knowledge System) hardware, particularly the Series C I/O modules and C300 controllers.
A: The Honeywell 51202343-001 is specifically engineered for use with Honeywell Experion PKS (Process Knowledge System) hardware, particularly the Series C I/O modules and C300 controllers.
Q: Does the Honeywell 51202343-001(51202343-001 Cable) support monitoring multiple power units?
A: Yes, the Honeywell 51202343-001 features a multi-drop design with four distribution points, allowing 51202343-001 Cable to collect status signals from up to four separate power supply modules simultaneously.
A: Yes, the Honeywell 51202343-001 features a multi-drop design with four distribution points, allowing 51202343-001 Cable to collect status signals from up to four separate power supply modules simultaneously.
Q: Can the Honeywell 51202343-001(51202343-001 Cable) be used in outdoor or harsh environments?
A: Absolutely. The Honeywell 51202343-001 carries IP66 and NEMA 4X ratings, meaning 51202343-001 Cable is fully protected against dust, corrosion, and high-pressure water, making it ideal for Universal Process Cabinets (UPC) located in outdoor areas.
A: Absolutely. The Honeywell 51202343-001 carries IP66 and NEMA 4X ratings, meaning 51202343-001 Cable is fully protected against dust, corrosion, and high-pressure water, making it ideal for Universal Process Cabinets (UPC) located in outdoor areas.
Q: What is the total length and spacing of the Honeywell 51202343-001?
A: The Honeywell 51202343-001 has a total length of approximately 12 feet (3.66 meters), with the four drop points intelligently spaced 9 inches apart for efficient cabinet cable management.
A: The Honeywell 51202343-001 has a total length of approximately 12 feet (3.66 meters), with the four drop points intelligently spaced 9 inches apart for efficient cabinet cable management.
Q: Does the Honeywell 51202343-001 require external power to operate?
A: No, the Honeywell 51202343-001(Power Supply Status Indication Cable) is a passive cable assembly that transmits existing alarm contact signals; 51202343-001 Cable does not require a separate power source, though it is rated to handle up to 30V DC.
