Honeywell 51202324-100 Power Cable

Applications of Honeywell 51202324-100

• Honeywell Power Cable Power Distribution Link: Connects the 24 Vdc power distribution connector on a subsystem interface to the Horizontal DC Power Bus Bar (HDPB).

• Honeywell Power Cable System Integration: Specifically designed for use within the Honeywell Experion PKS Honeywell Power Cable Series C and TDC3000 Distributed Control System (DCS) architectures.

• Honeywell Power Cable Controller Powering: Facilitates the delivery of steady DC power to Controller Chassis Assemblies (CCAs) and their associated modules.

• Honeywell Power Cable Cabinet Infrastructure: Serves as a critical internal wiring component for high-density industrial control cabinets and power systems.

• Honeywell Power Cable Maintenance & Redundancy: Used for replacing worn cables or expanding power distribution capacity to maintain system uptime and reliability.

• Optimized Length: 9-inch (228.6 mm) design specifically sized for compact, high-density industrial cabinet wiring.

• Plug-and-Play Connectivity: Factory-terminated connectors ensure quick installation and reduce the risk of wiring errors.

• High Reliability: Built to industrial standards for continuous 24/7 operation in harsh Distributed Control System (DCS) environments.

• Seamless Integration: Fully compatible with the Series C Power System and Experion PKS hardware architecture.

• Voltage Stability: Engineered to provide low-resistance transmission for consistent +24 Vdc power delivery.

• Durable Construction: Features heavy-duty insulation and robust connectors to withstand industrial vibrations and temperature fluctuations.

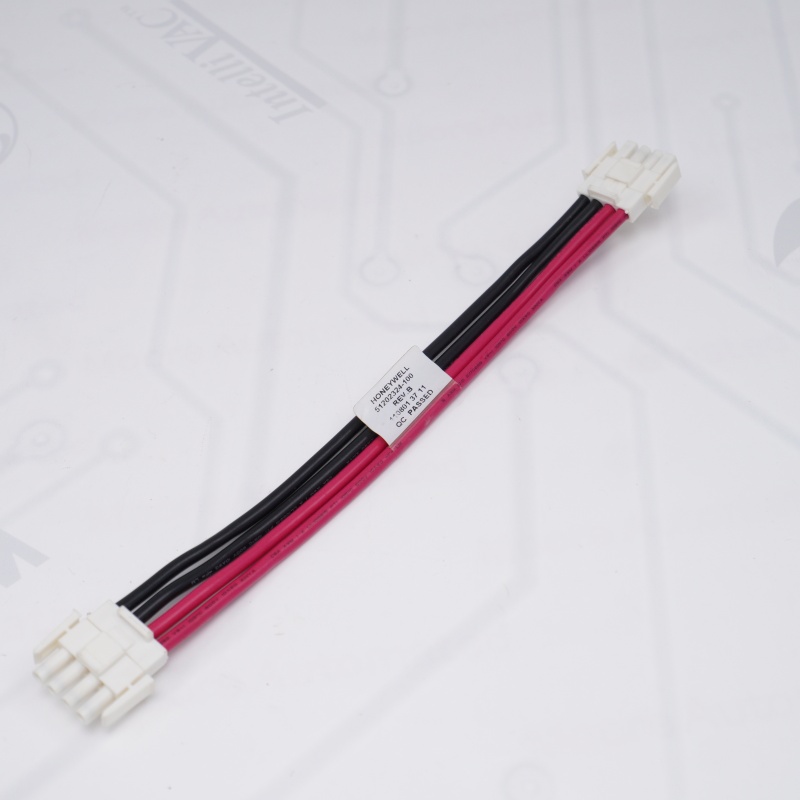

51202324-100 Power Cable

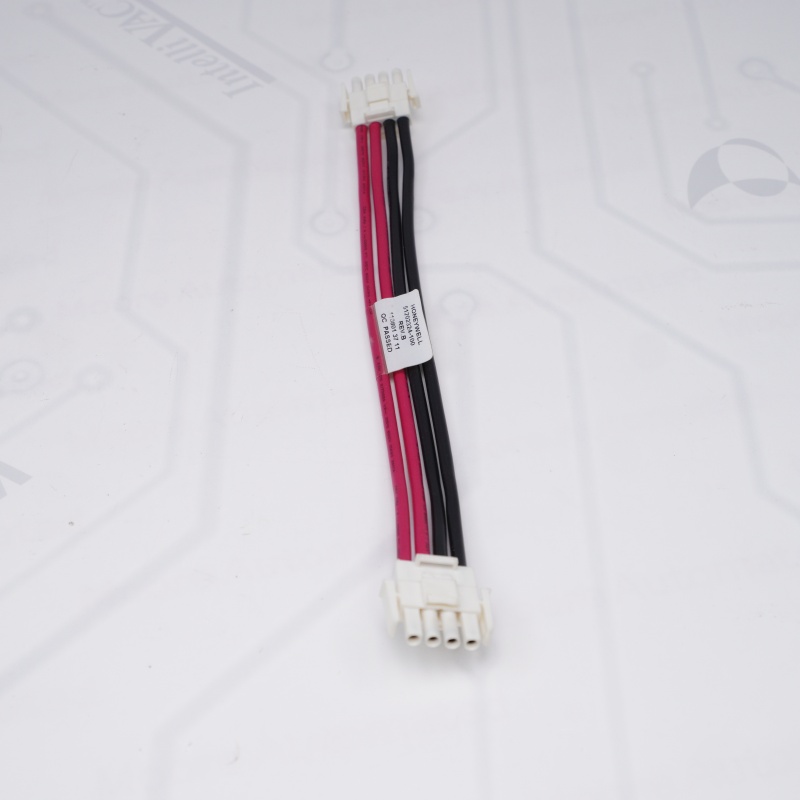

51202324-100 Power Cable

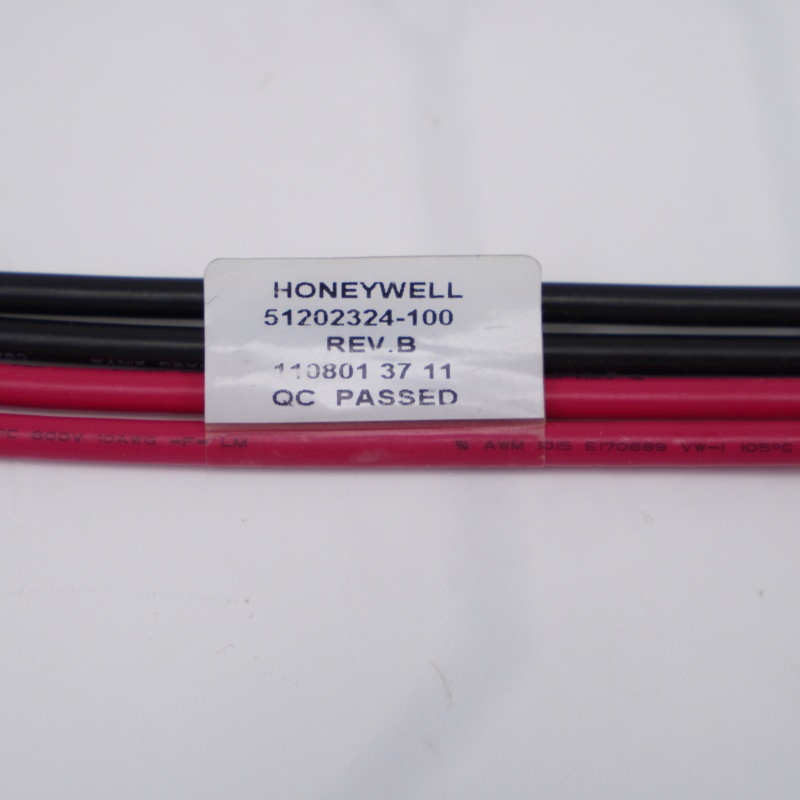

51202324-100 Power Cable

1. 1. What is the primary function of the Honeywell 51202324-100?

2. The Honeywell 51202324-100 is a specialized DC power cable designed to bridge the connection between the 24 Vdc power distribution connector and the Horizontal DC Power Bus Bar (HDPB) within the Series C cabinet.

1.


2. 2. Which control systems are compatible with the Honeywell 51202324-100?

3. The Honeywell 51202324-100 (51202324-100 Power Cable) is purpose-built for the Experion PKS Series C architecture and is also utilized in legacy TDC 3000 systems that have been upgraded to modern power distribution standards.

4.


5.


6. 3. What is the exact physical length of the Honeywell 51202324-100?
   The Honeywell 51202324-100 features a precise 9-inch (approximately 229 mm) length, engineered specifically to minimize cable clutter while ensuring adequate reach within high-density controller chassis configurations.

7.


8.


9. 4. Can the Honeywell 51202324-100 be used for AC power applications?
   No. The Honeywell 51202324-100 is strictly rated for +24 Vdc power distribution. Using it for AC applications or voltages outside its specified range can result in equipment damage or safety hazards.

10.


11.


12. 5. Does the Honeywell 51202324-100 require specialized tools for installation?
    No specialized crimping tools are required. The Honeywell 51202324-100 is factory-terminated with industrial-grade connectors designed for secure, "plug-and-play" integration into the Series C Power System.

13.


14.


15. 6. Why is the Honeywell 51202324-100 preferred over generic DC cabling?
    The Honeywell 51202324-100 ensures strict compliance with Honeywell’s proprietary electrical specifications and impedance requirements, which is critical for maintaining the system's MTBF (Mean Time Between Failures) and operational warranty.
