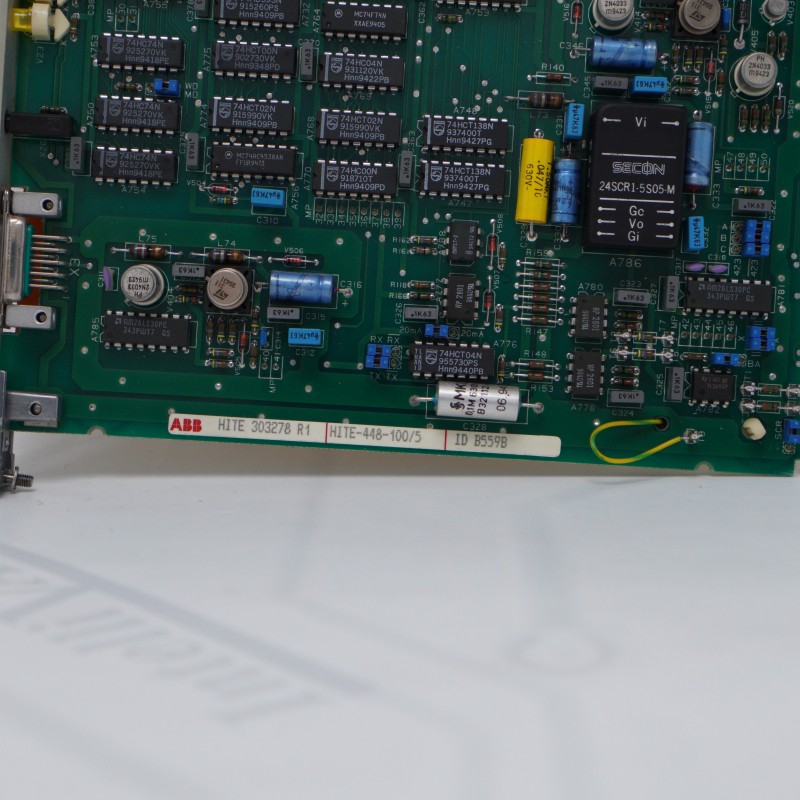

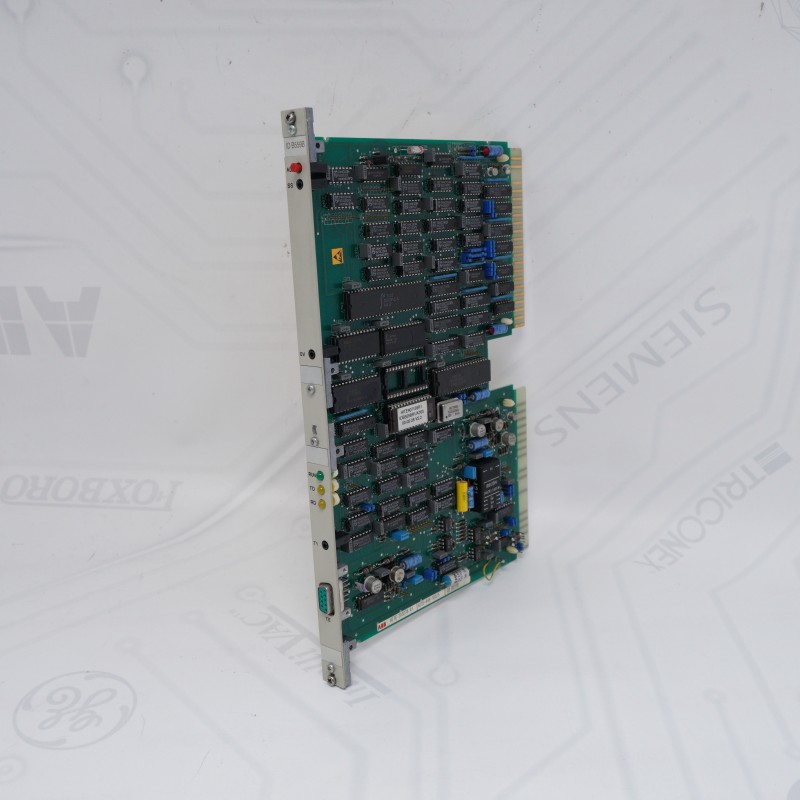

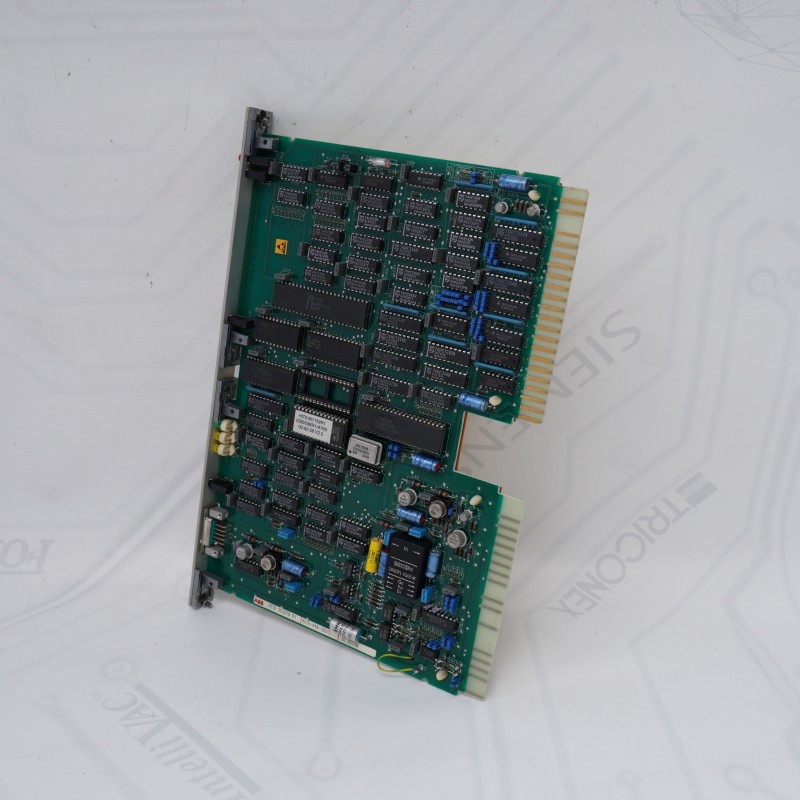

HITE303278R1 HITE-448-100-5 IDB559B ABB control I/O printed circuit board

  • ABB
  • sweden
  • 2024
  • In Stock
The ABB HITE303278R1 is an industrial control I/O printed circuit board designed for legacy Procontic IDB559B automation systems.
Annex

ABB HITE303278R1 Overview


HITE-448-100-5 Key Specifications

Brand / Origin: ABB / Sweden

Part Number: HITE303278R1

Model Code: HITE-448-100/5

System: Procontic IDB559B Series

HITE-448-100-5 Type: Industrial Control & Interface PCB

HITE-448-100-5 Lifecycle & Sourcing

ABB HITE303278R1 Status: Obsolete (Discontinued); no longer produced by ABB.

If you want to more details about ABB HITE303278R1，please contact me without hesitate.Email：sales@sparecenter.com

HITE-448-100-5Key Function


HITE-448-100-5 Logic Signal Processing: The ABB HITE303278R1 coordinates high-speed digital interlocking and timing controls via onboard 74HCT CMOS ICs.

HITE-448-100-5 Electrical Isolation: Using its integrated SECON isolation module, the ABB HITE303278R1 protects central processors from harsh shop-floor voltage spikes.

Bus Interface Routing: The ABB HITE303278R1 facilitates reliable input/output data communication across the Procontic IDB559B backplane system.

Real-Time Visual Diagnostics: Dedicated onboard LED status indicators enable the ABB HITE303278R1 to offer rapid field troubleshooting for maintenance teams.


HITE-448-100-5 FAQ

Q1: What is the core circuit architecture and logic execution method of the ABB HITE303278R1?

A1: The HITE303278R1 control I/O printed circuit board utilizes a hardware-level logic platform built with onboard 74HCT-series high-speed CMOS ICs (e.g., 74HCT02N, 74HCT138N). Following the HITE-448-100-5 specification, the ABB control I/O printed circuit board executes sub-microsecond interlocking and digital signal timing through physical circuitry rather than software, ensuring zero-latency and deterministic timing for the Procontic IDB559B system loops.

Q2: How does the HITE303278R1 protect the IDB559B backplane from field-side electrical hazards?
A2: The HITE303278R1 control I/O printed circuit board features robust galvanic isolation using an onboard SECON 24SCR1-5S05-M DC-DC module and high-speed optocouplers. This hardware layer completely decouples the field I/O channels from sensitive internal logic, blocking high-voltage spikes, ground loops, and EMI on the shop floor. By absorbing these transients, the ABB control I/O printed circuit board directly protects the core processors inside the IDB559B chassis.

Q3: How do you isolate a hardware failure on the HITE303278R1 during a rack communication timeout?
A3: Engineers can isolate faults by checking the front-facing LED diagnostics array on the HITE303278R1 control I/O printed circuit board. If the LEDs show active bus traffic but data is corrupted, the failure typically stems from thermal degradation of the board's 74HCT logic gates or capacitors. If the ABB control I/O printed circuit board fails to initialize entirely under correct input voltage, the backplane routing interface is faulty, requiring a replacement card that strictly matches the HITE-448-100-5 hardware revision.

Q4: Why must a surplus HITE303278R1 undergo full dynamic simulation before field deployment?

A4: Due to the aging characteristics of legacy CMOS architectures, standard static testing cannot guarantee field reliability. A professional service protocol requires installing the ABB control I/O printed circuit board into an authentic Procontic IDB559B test chassis. The board is powered to full HITE-448-100-5 electrical parameters and subjected to dynamic I/O cycle testing to verify signal integrity under peak bus loads and thermal stress.
